Product Overview

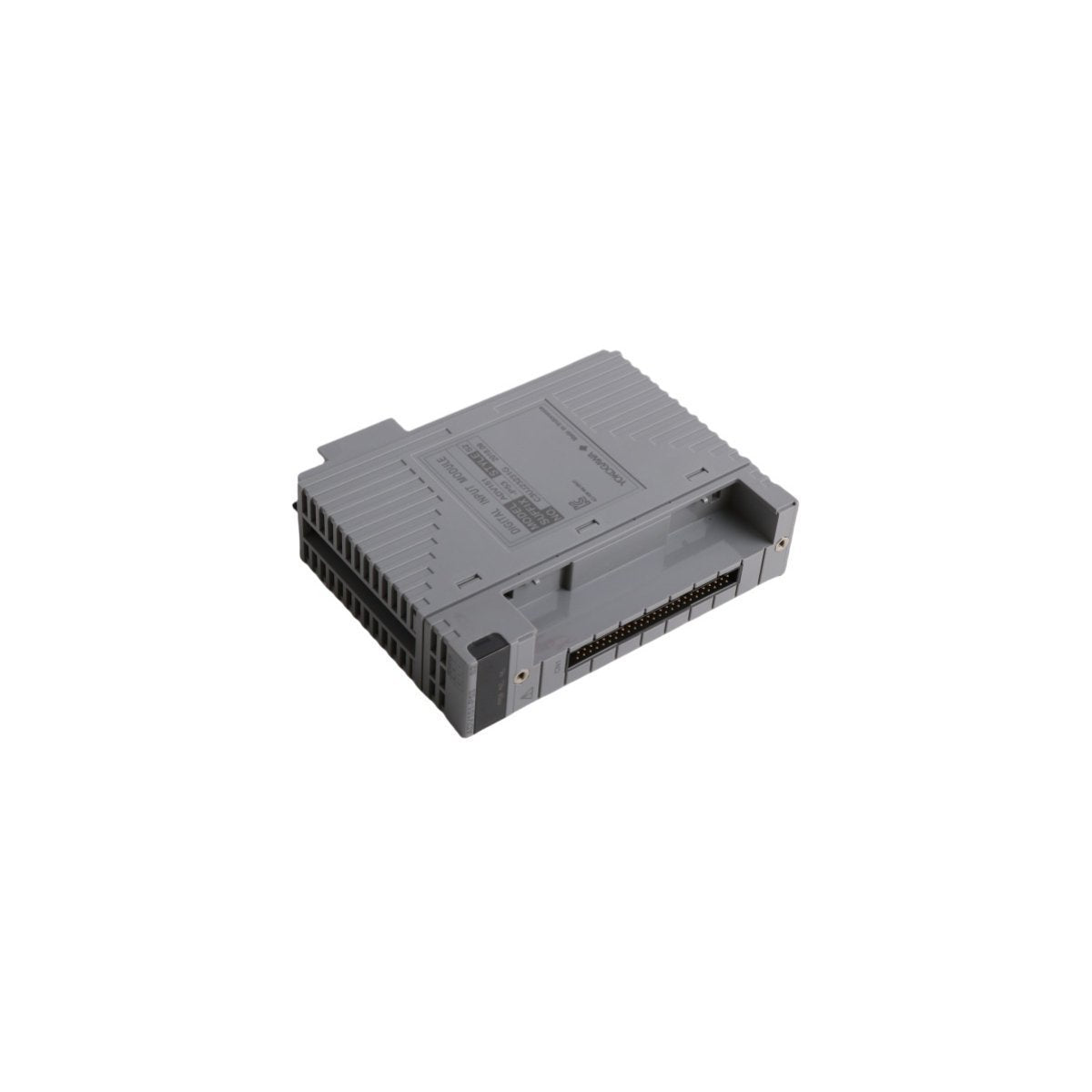

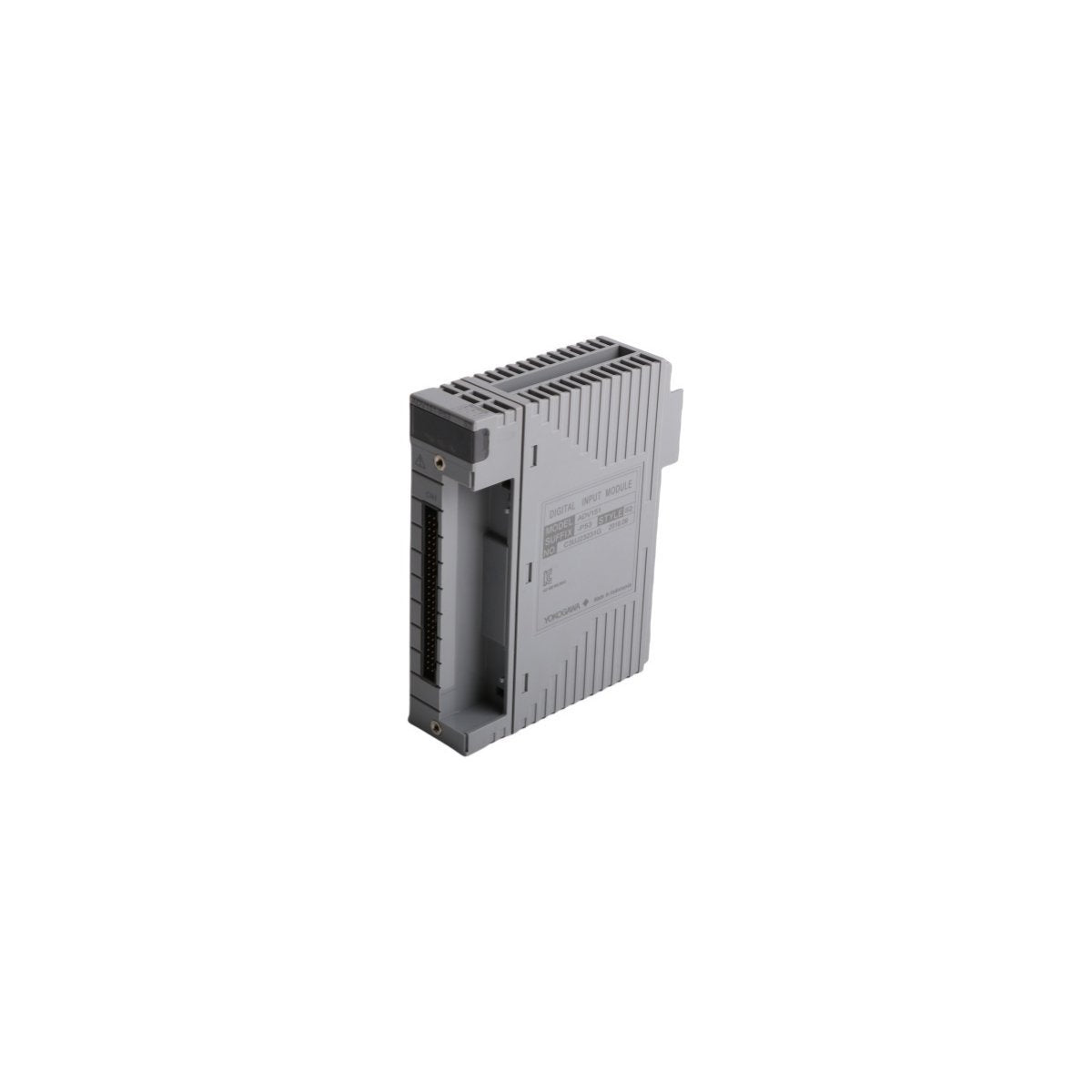

The Yokogawa ADV151-P53 S2 is a high-density 32-channel Digital Input Module engineered for the CENTUM VP Distributed Control System (DCS). Functioning within the FIO (Field Interface Orbus) architecture, this module provides the essential interface for monitoring discrete field states, such as pushbuttons, limit switches, and relay contacts. The "P53" specification denotes a high-reliability variant featuring pressure-clamp terminals and specific protection circuits suitable for mission-critical industrial signal acquisition.

Designed to deliver precision and stability, the ADV151-P53 S2 converts external 24V DC binary signals into digital data for the Field Control Station (FCS). This allows for rapid logic execution and sequence control in large-scale plants. By utilizing advanced galvanic isolation, the module shields the internal DCS bus from electrical noise and potential surges originating from the field wiring.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ADV151-P53 S2

• Module Type: Digital Input Module

• Number of Channels: 32-channel, isolated

• Input Signal: 24 V DC (Sink/Source support)

• Input Current: 4.1 mA per channel

• Isolation Type: Optical isolation (1500 V AC withstand)

• Status Indicators: Integrated LED indicators for channel state

• Data Refresh Cycle: 10 ms or less

• Current Consumption: Max. 0.50 A (5 V DC)

• Operating Temperature: -20°C to +70°C

• Weight: 0.26 kg

• Dimensions: 32.8 mm x 106.3 mm x 130 mm

• Origin: Japan

Key Technical Characteristics

• High-Density Monitoring: Efficiently manages 32 independent input points in a single FIO slot, optimizing control cabinet space and reducing the overall hardware footprint for high-I/O count systems.

• Fault-Tolerant Redundancy: Fully supports dual-redundant configuration. In a redundant pair, the system ensures seamless process visibility even if a single module hardware failure occurs.

• Advanced Signal Conditioning: Features high-speed opto-isolation to eliminate ground loops and prevent electromagnetic interference (EMI) from degrading the accuracy of digital state detection.

• Robust Environmental Build: Built to withstand the rigorous conditions of heavy industry, including the extreme temperatures and vibrations found in petrochemical refineries and power generation facilities.

• Simplified Field Integration: The module is natively recognized within the CENTUM VP engineering software, allowing for streamlined I/O mapping, point-naming, and remote diagnostics through the Human Interface Station (HIS).

• Hot-Swap Capability: In redundant setups, the module can be replaced while the system remains energized, facilitating maintenance without interrupting critical plant control sequences.
