Product Overview

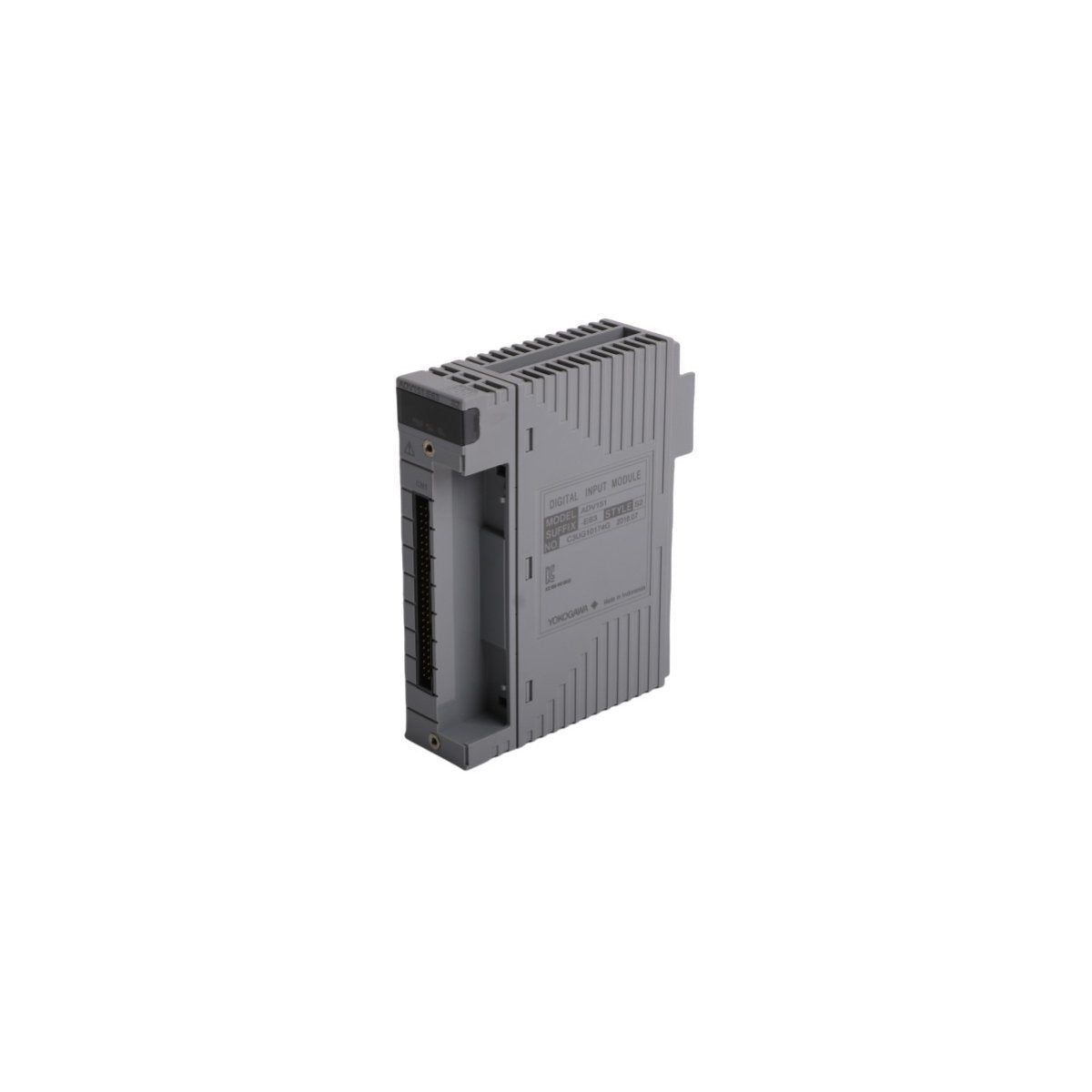

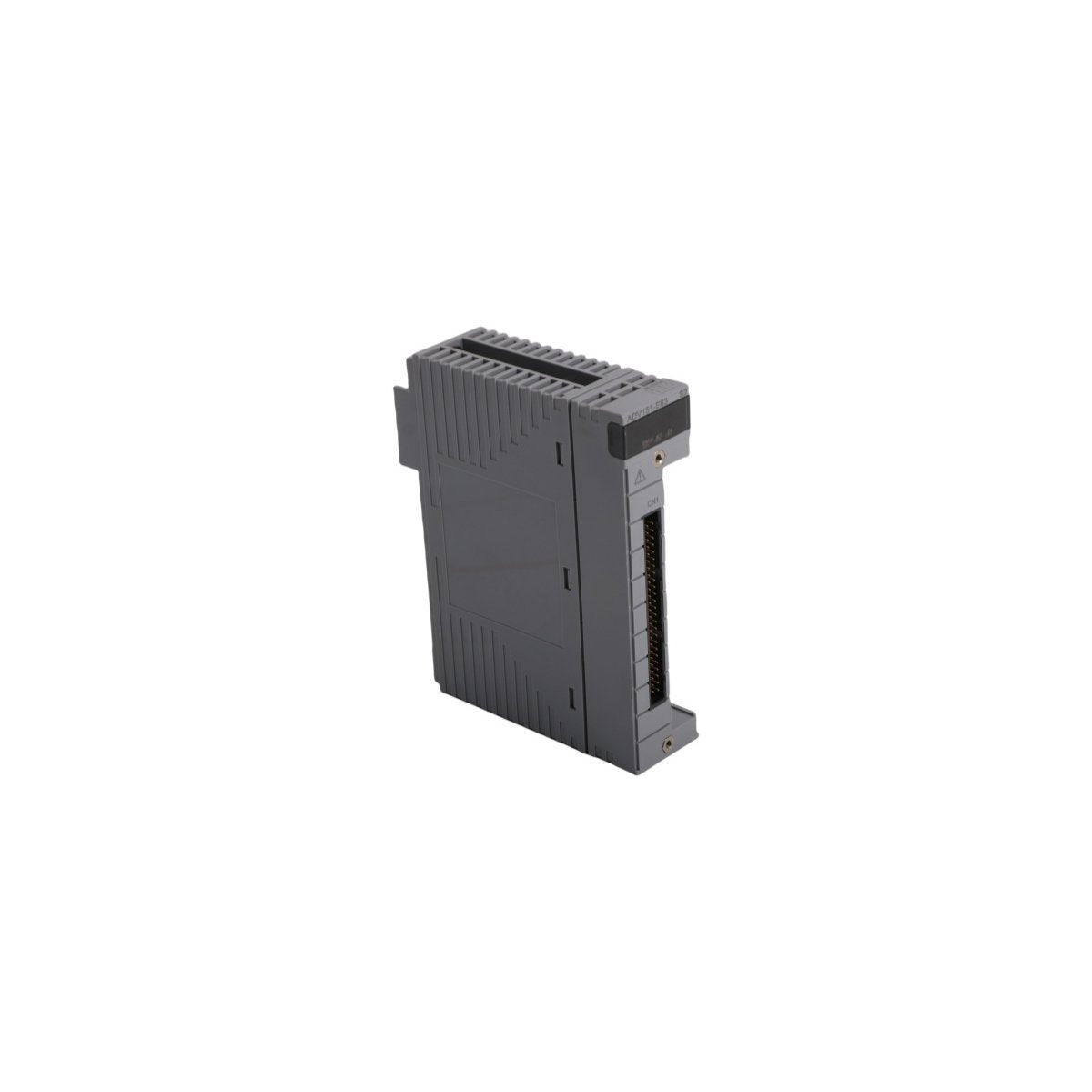

The Yokogawa ADV151-E63 S2 is a high-density digital input module designed for the CENTUM VP Distributed Control System (DCS). Operating within the FIO (Field Interface Orbus) architecture, this module provides 32 isolated channels for acquiring discrete binary signals from field devices such as pushbuttons, limit switches, and relay contacts. The "E63" variant is specifically engineered for high-reliability signal detection, utilizing a 24V DC input rating to ensure compatibility with standard industrial instrumentation.

As an "S2" enhanced performance version, this module features improved internal diagnostics and robust signal conditioning. It serves as a critical link in process automation, converting physical switch states into digital data for the Field Control Station (FCS). With its high-speed data refresh capabilities and galvanic isolation, the ADV151-E63 S2 protects the system backbone from electrical noise while maintaining precise real-time monitoring of plant operations.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ADV151-E63 S2

• Module Type: Digital Input Module

• Number of Channels: 32-channel, isolated

• Input Signal: 24 V DC (Sink/Source support)

• Input Current: 4.1 mA per channel

• Withstand Voltage: 1500 V AC between field and system logic

• Data Refresh Cycle: 10 ms or less

• Connection Style: Pressure-clamp or KS Cable (depending on base unit)

• Current Consumption: Max. 0.50 A (5 V DC)

• Operating Temperature: -20°C to +70°C

• Weight: 0.24 kg

• Dimensions: 32.8 mm x 106.3 mm x 130 mm

• Origin: Japan

Key Technical Characteristics

• High-Density Input Capacity: Manages 32 independent digital points in a single FIO slot, allowing for maximum I/O concentration and reduced control cabinet footprint.

• Advanced Electrical Isolation: Utilizes optical isolation (1500 V AC) to prevent ground loops and protect sensitive system logic from field-side voltage spikes or electromagnetic interference (EMI).

• Deterministic Real-Time Response: Supports a rapid 10 ms data refresh cycle, ensuring that critical state changes in the field are communicated to the controller without significant latency.

• Industrial Resilience: Engineered to function reliably in extreme environments, maintaining performance across a wide thermal range (-20°C to +70°C) and resisting corrosive atmospheres.

• Hot-Swap Functionality: Supports online module replacement when utilized in redundant configurations, facilitating maintenance and system upgrades without interrupting active process control.

• Enhanced Diagnostics: The S2 circuitry provides proactive monitoring of module health and communication status, streamlining troubleshooting and reducing Mean Time to Repair (MTTR).
