Product Overview

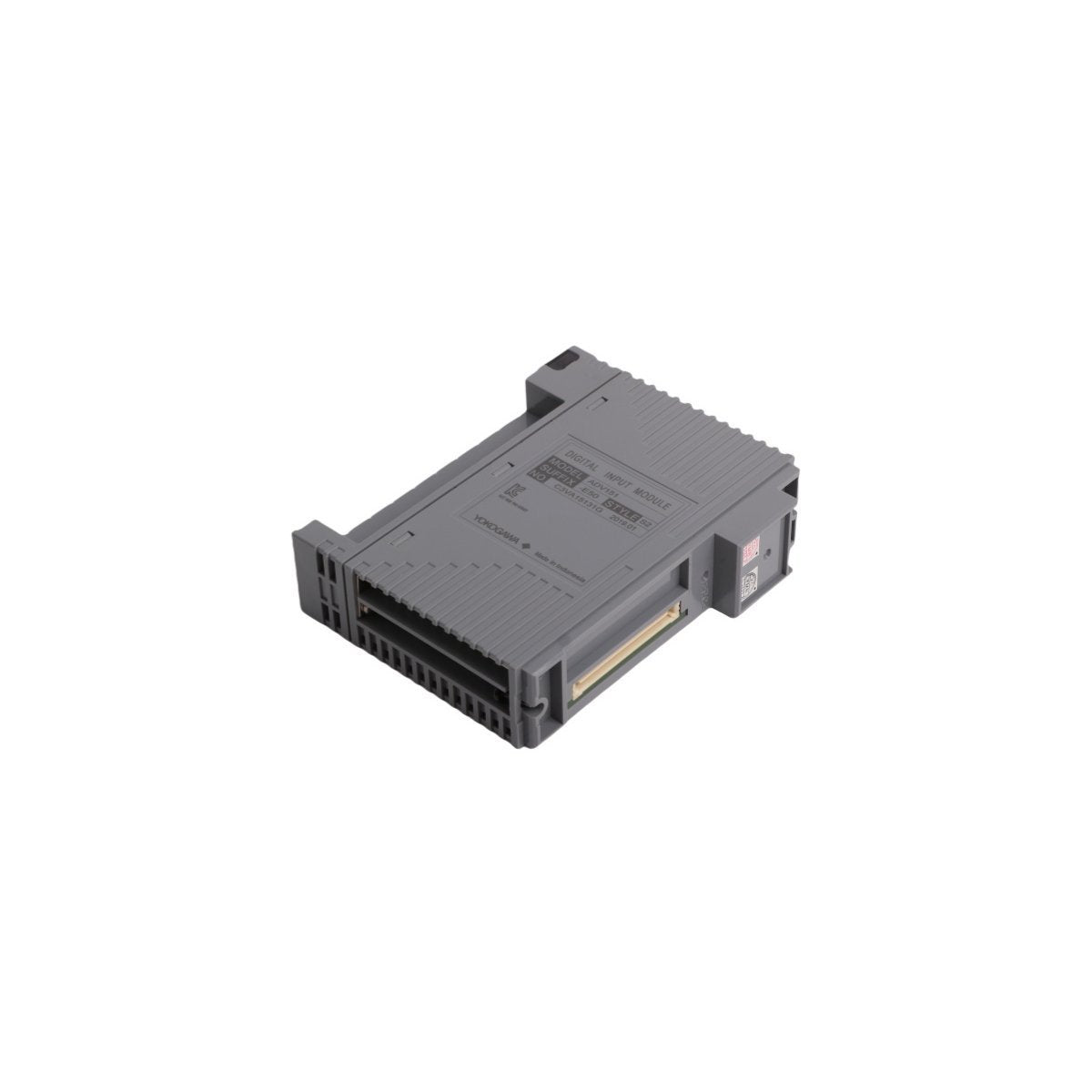

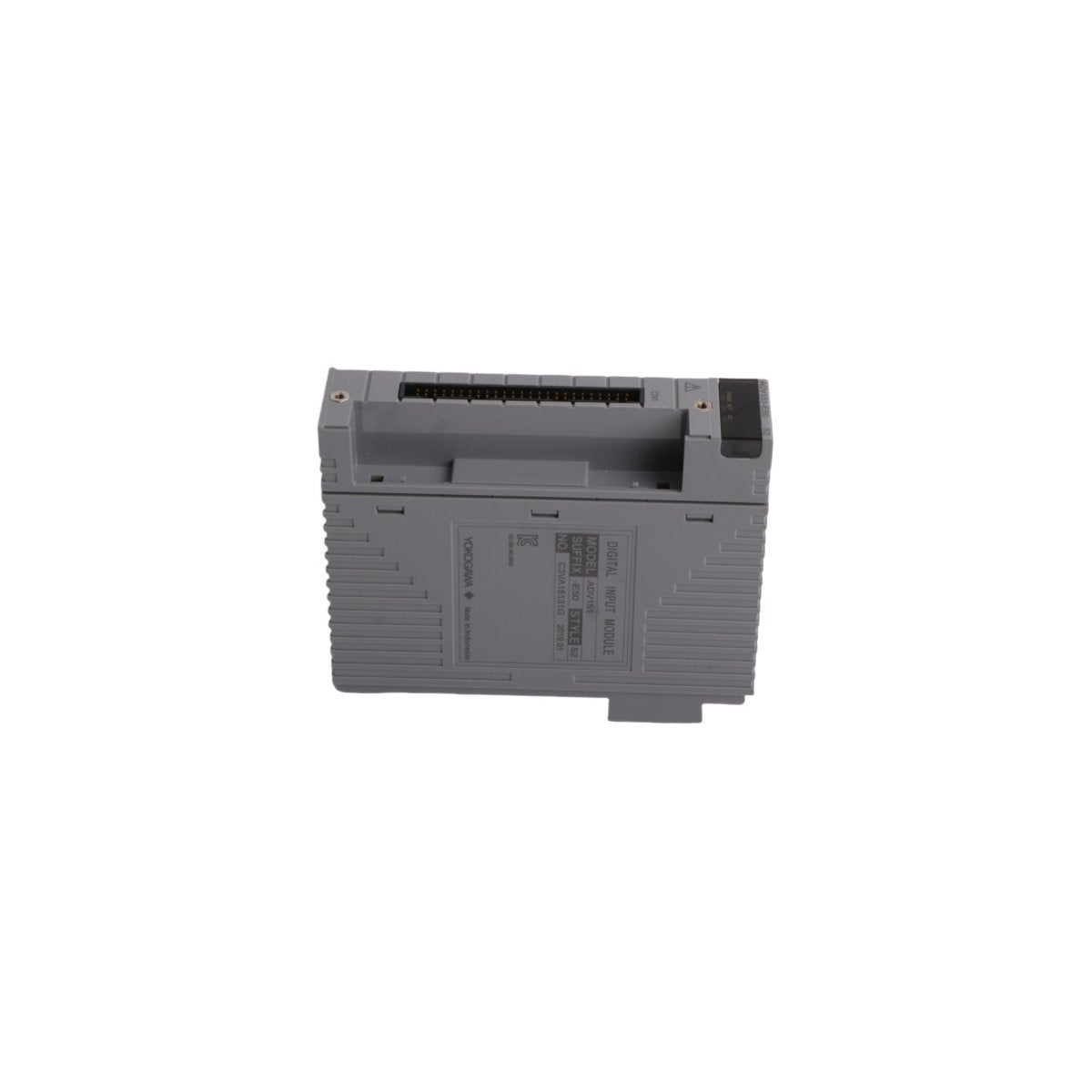

The Yokogawa ADV151-E50 S2 is a high-density digital input module engineered for the CENTUM VP Distributed Control System (DCS). This module serves as a critical interface for collecting discrete signals from field devices, converting external status inputs into digital data for system-wide processing. It is specifically designed to handle 32 channels of isolated inputs, ensuring high-speed signal acquisition and superior noise rejection in complex industrial infrastructures.

This S2 variant is optimized for reliability in process industries such as oil and gas, chemical manufacturing, and power generation. By utilizing advanced circuitry, the ADV151-E50 S2 provides consistent performance for monitoring switches, sensors, and contact closures. Its architecture supports seamless integration into the FIO (Field network I/O) subsystem, contributing to the overall scalability and stability of the DCS environment.

Technical Capabilities

• Input Channels: 32-channel isolated inputs

• Input Signal Type: Dry contact or voltage status inputs

• Input Voltage Rating: 24V DC

• Sequence of Events (SOE): High-resolution time-stamping for precise fault analysis

• Input Configuration: Supports both Sink and Source wiring orientations

• Isolation: Optocoupler isolation for individual channel protection and system integrity

• Status Indicators: LED diagnostics for input status and module health

• System Compatibility: Optimized for CENTUM VP and CENTUM CS 3000 FIO environments

Physical and Environmental Specifications

• Weight: 0.26 kg

• Dimensions: 130 mm x 106 mm x 32 mm

• Mounting: Vertical or horizontal installation within an I/O node unit

• Power Consumption: 500 mA maximum at 5V DC (internal backplane)

• Operating Temperature: 0 to 50 °C (Standard environment)

• Humidity Range: 10% to 90% RH (non-condensing)

• Withstanding Voltage: 1500V AC between input terminals and functional ground

Application and Integration

The ADV151-E50 S2 is frequently deployed in safety-critical and high-availability applications. Its capability to provide Sequence of Events (SOE) data allows operators to reconstruct the exact order of digital changes during a trip or system disturbance. The module's robust design allows for "Hot Swap" functionality, enabling maintenance or replacement without disrupting the power to the rest of the I/O rack, thereby minimizing downtime in continuous process operations.
