Product Overview

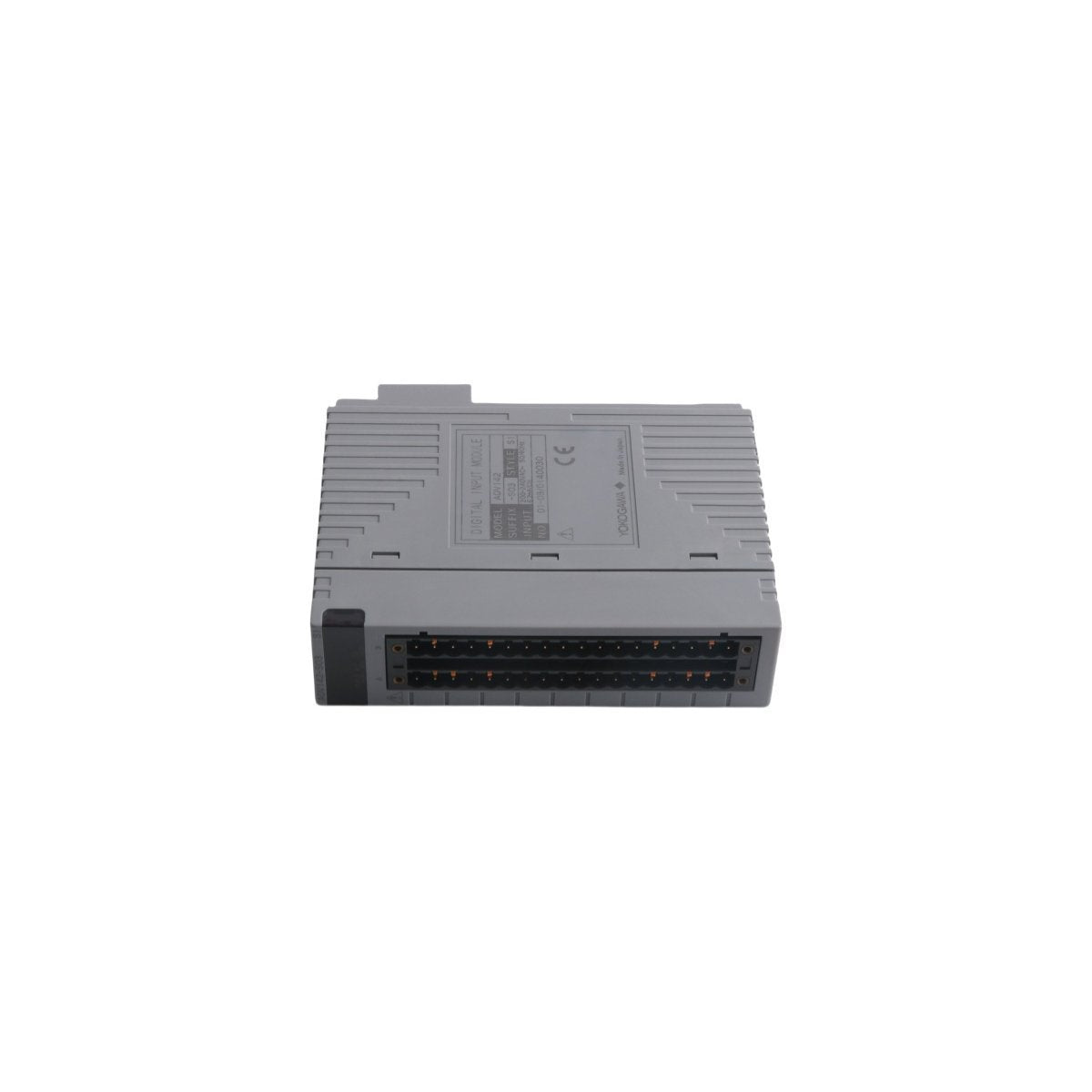

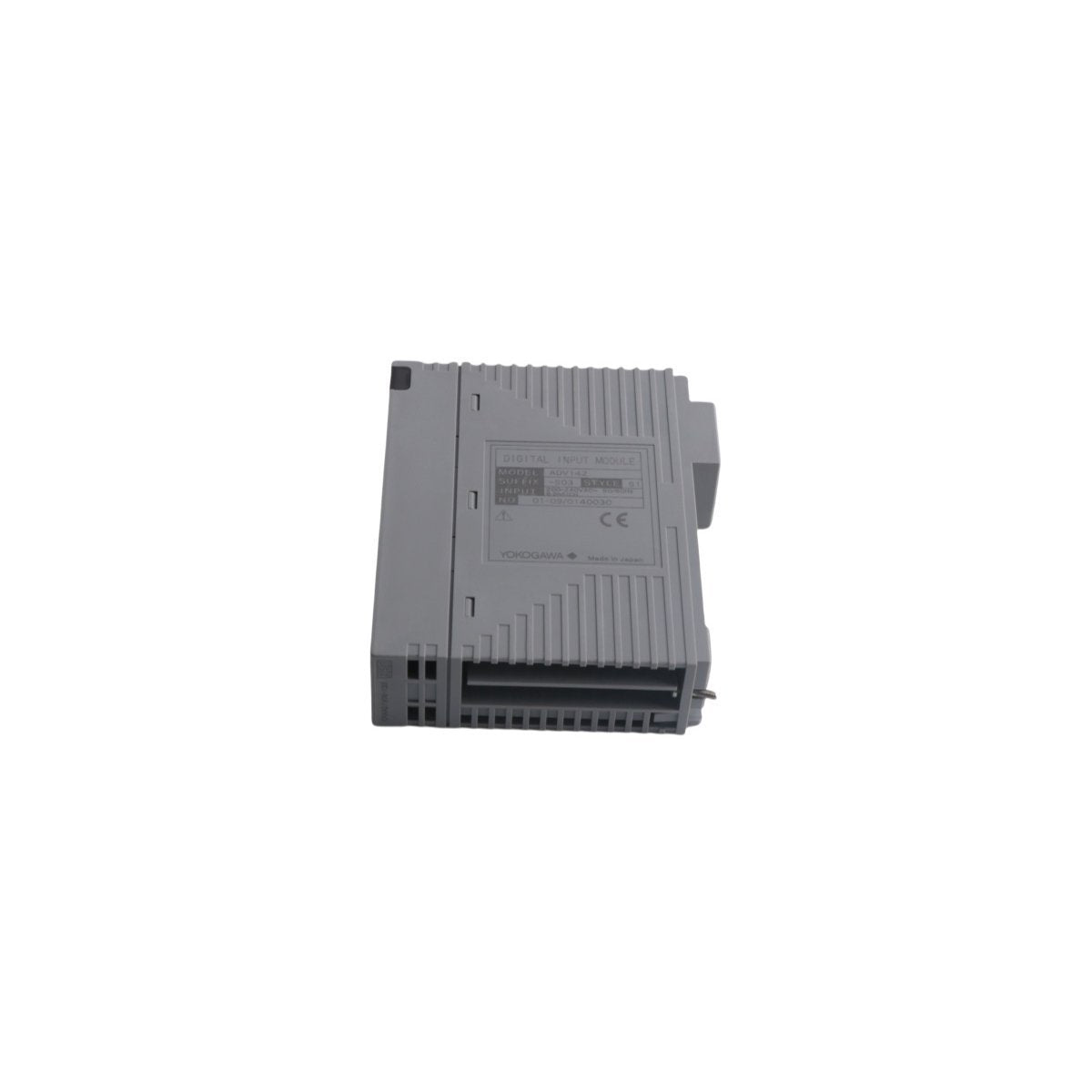

The Yokogawa ADV142-S03 S1 is a high-density digital input module designed for the CENTUM VP Distributed Control System (DCS). This module serves as a critical interface for acquiring discrete signals from field devices, such as switches and relay contacts, and transmitting them to the control station for logic processing. The ADV142 series is specifically engineered for reliability in high-voltage sensing environments, supporting 100 V to 120 V AC input signals (standard range for the S03 variant).

Utilizing Yokogawa's FIO (Field Interface Orbus) architecture, the ADV142-S03 S1 facilitates the integration of 32 separate input channels in a single compact slot. This high-density design significantly reduces the footprint required in control cabinets while maintaining robust galvanic isolation between field circuits and internal system logic to prevent damage from electrical surges or noise interference.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ADV142-S03 S1

• Module Type: Digital Input Module

• Number of Channels: 32-channel, isolated

• Input Signal: 100 V to 120 V AC, 50/60 Hz

• Input Impedance: Approximately 20 kΩ

• On/Off Threshold: ON: ≥ 80 V AC; OFF: ≤ 20 V AC

• Response Time: 20 ms or less (for input signal change detection)

• Withstand Voltage: 1500 V AC between field side and system side

• Power Consumption: Max. 0.50 A (5 V DC)

• Weight: 0.26 kg

• Dimensions: 32.8 mm x 106.3 mm x 130 mm

• Origin: Japan

Key Operational Features

• High-Density Monitoring: Provides 32 channels in a single unit, allowing for efficient status monitoring of large arrays of valves, motor starters, and field switches.

• Robust Signal Conditioning: Built-in hardware filters effectively eliminate contact chatter and AC noise, ensuring that only stable signal transitions are recorded by the DCS.

• Isolated Architecture: Features high-voltage isolation between input channels and the internal system bus, protecting the Field Control Station (FCS) from field-side electrical faults.

• Hot-Swappable Capability: Designed for high-availability environments, the module can be replaced while the system is online without interrupting the communication of other modules on the FIO node.

• Industrial Standard Compliance: Rigorously tested to operate in temperatures ranging from -20°C to +70°C, making it suitable for deployment in various global climates and harsh industrial zones.
