Product Overview

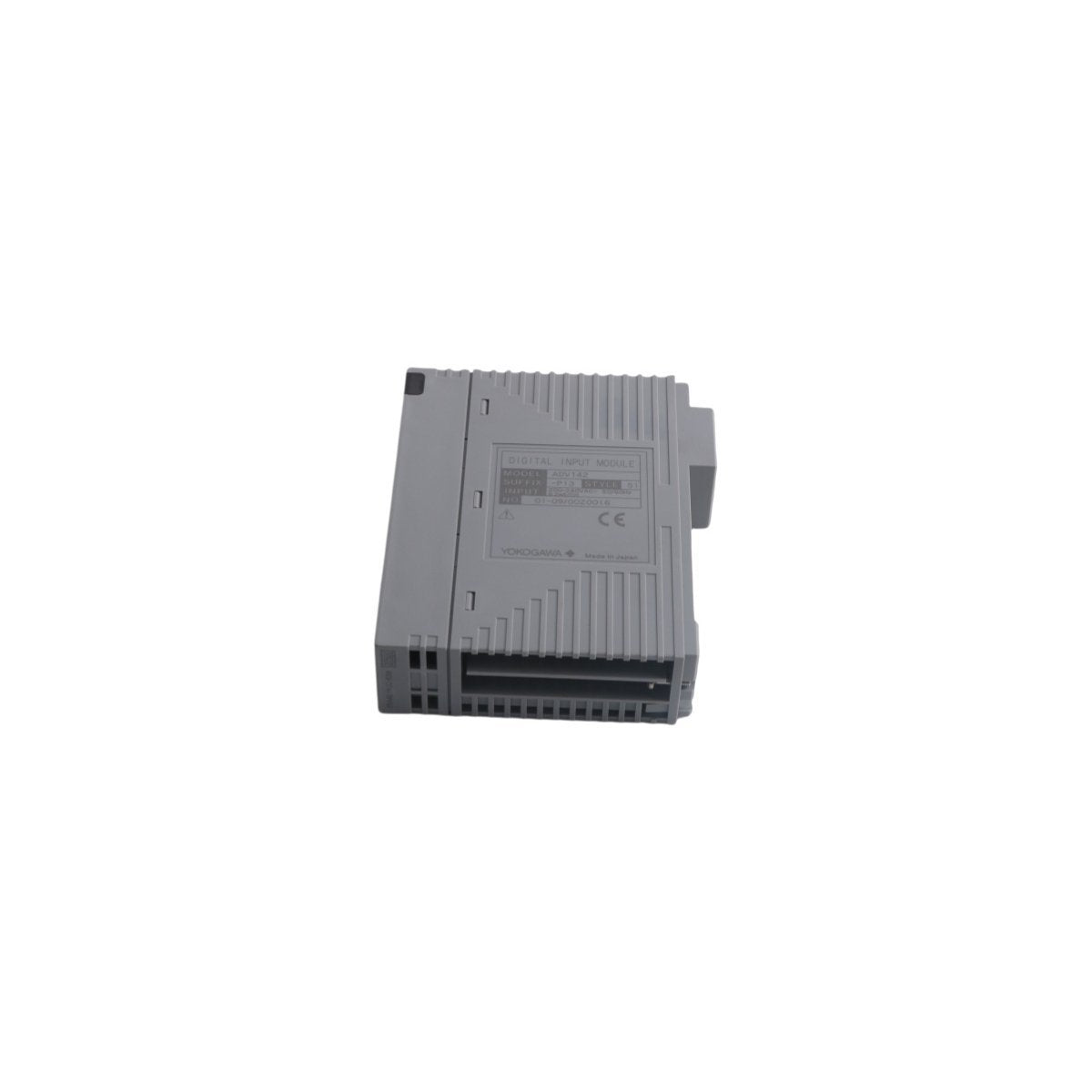

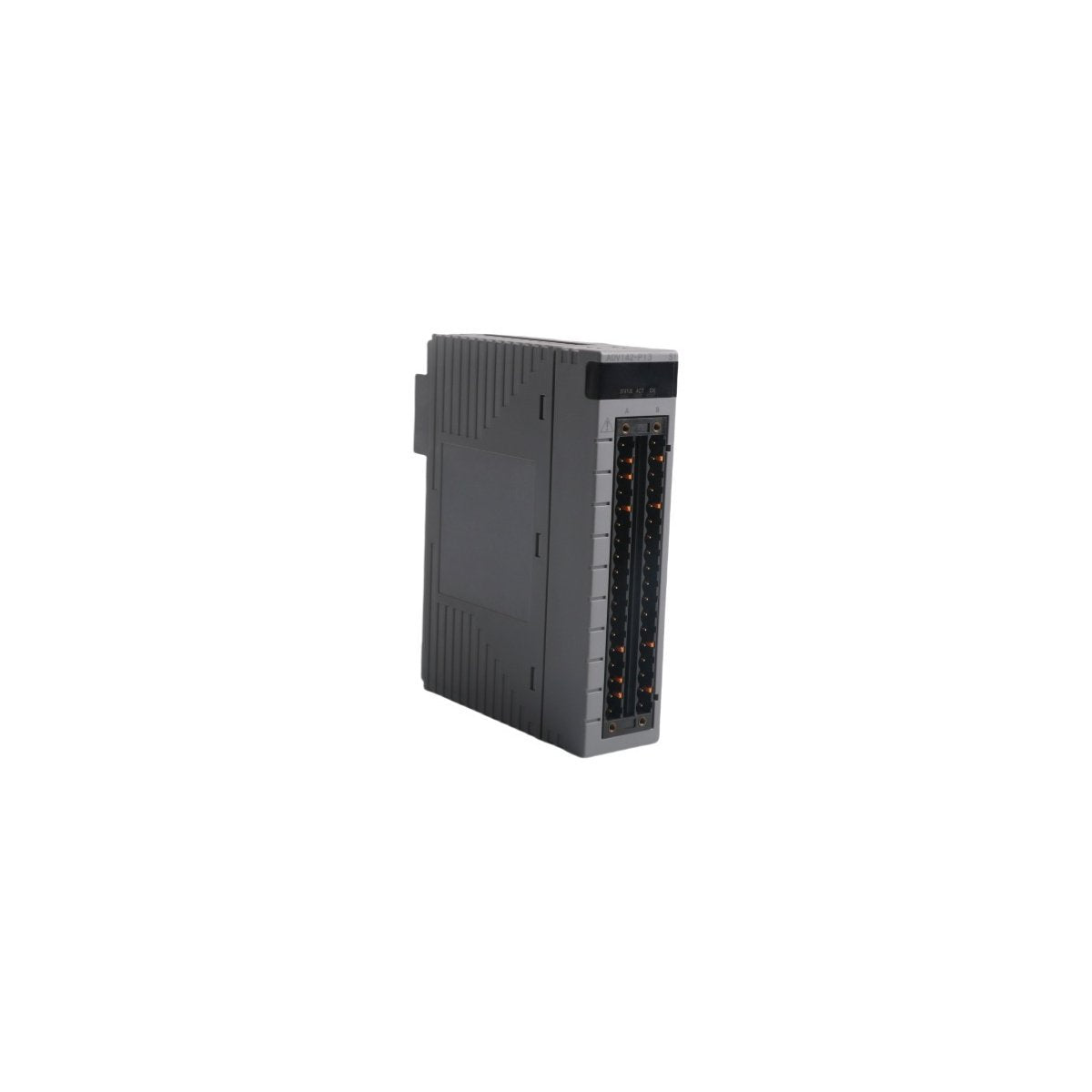

The Yokogawa ADV142-P13 S1 is a high-reliability digital input module designed for the CENTUM VP Distributed Control System (DCS). This module serves as the primary interface for detecting discrete states from field-mounted devices, such as limit switches, relay contacts, and push buttons. Engineered with 32 channels, the ADV142-P13 S1 provides the high-density I/O required to monitor plant status with deterministic precision. By converting binary field signals into digital data for the Field Control Station (FCS), it enables real-time monitoring and sequence control in mission-critical industrial environments.

Technical Characteristics

The ADV142-P13 S1 is defined by its robust electrical architecture and seamless system integration:

High-Density Signal Processing The module features 32 isolated channels, allowing for the centralized acquisition of numerous field status points within a single I/O slot. This high density reduces the required physical footprint in control cabinets and simplifies overall system wiring.

Superior Signal Isolation and Noise Immunity To ensure data integrity in electrically noisy plant environments, the module incorporates sophisticated galvanic isolation. This protection prevents ground loops and electromagnetic interference (EMI) from affecting the internal system bus, ensuring that binary states are reported accurately even in areas with heavy motor activity or high-voltage switching.

Versatile Field Interface Designed for 24V DC logic, the ADV142-P13 S1 is compatible with a wide array of industrial sensor configurations. It supports dry contact inputs and provides built-in surge protection to shield the module's circuitry from field-side voltage spikes.

Industrial Reliability and Maintenance The module is built for continuous 24/7 operation in harsh environments, supporting an active status in the CENTUM VP lifecycle. Its hot-swappable design allows for module replacement without interrupting the power or communication of the remaining I/O rack, significantly reducing mean time to repair (MTTR).

Technical Specifications

• Brand: Yokogawa

• Model Number: ADV142-P13 S1

• Product Type: Digital Input (DI) Module

• Number of Channels: 32 (Isolated)

• Input Signal Type: 24V DC / Dry Contact

• System Series: CENTUM VP DCS

• Operating Temperature: -20 to 60°C (standard industrial range)

• Mounting: Rack-mount (FIO System)

• Weight: 0.26 kg

• Dimensions: 3.2 x 10.7 x 13 cm

• Origin: Japan

Application Areas

The Yokogawa ADV142-P13 S1 is a core component in automated processes requiring reliable status feedback, including:

• Petrochemical Refining: Monitoring valve positions and emergency shutdown (ESD) status.

• Power Generation: Tracking breaker auxiliary contacts and plant alarm states.

• Chemical Manufacturing: Managing sequence-based batching and interlock systems.

• Pharmaceuticals: Providing validated status monitoring for sterile environments and cleanrooms.
