Product Overview

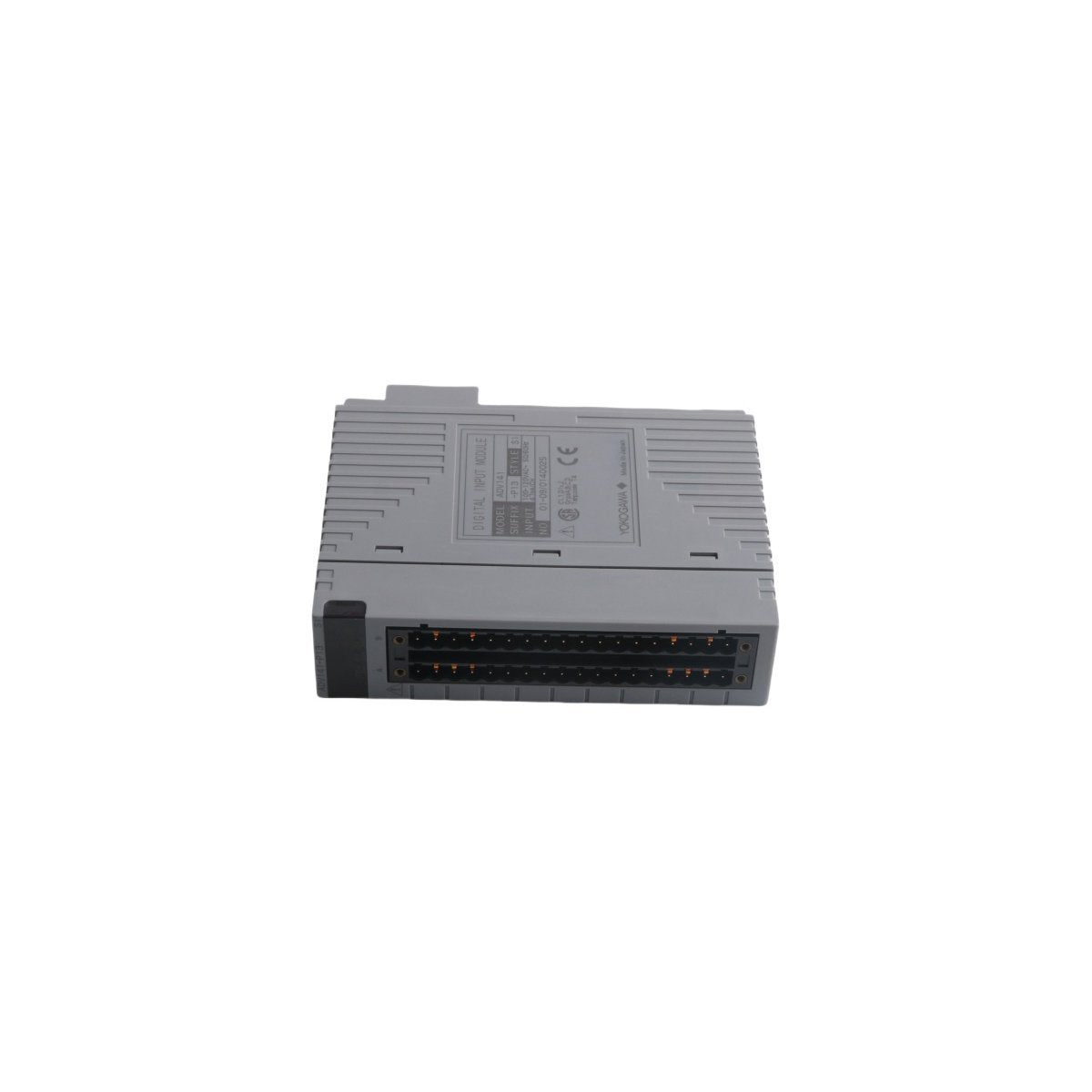

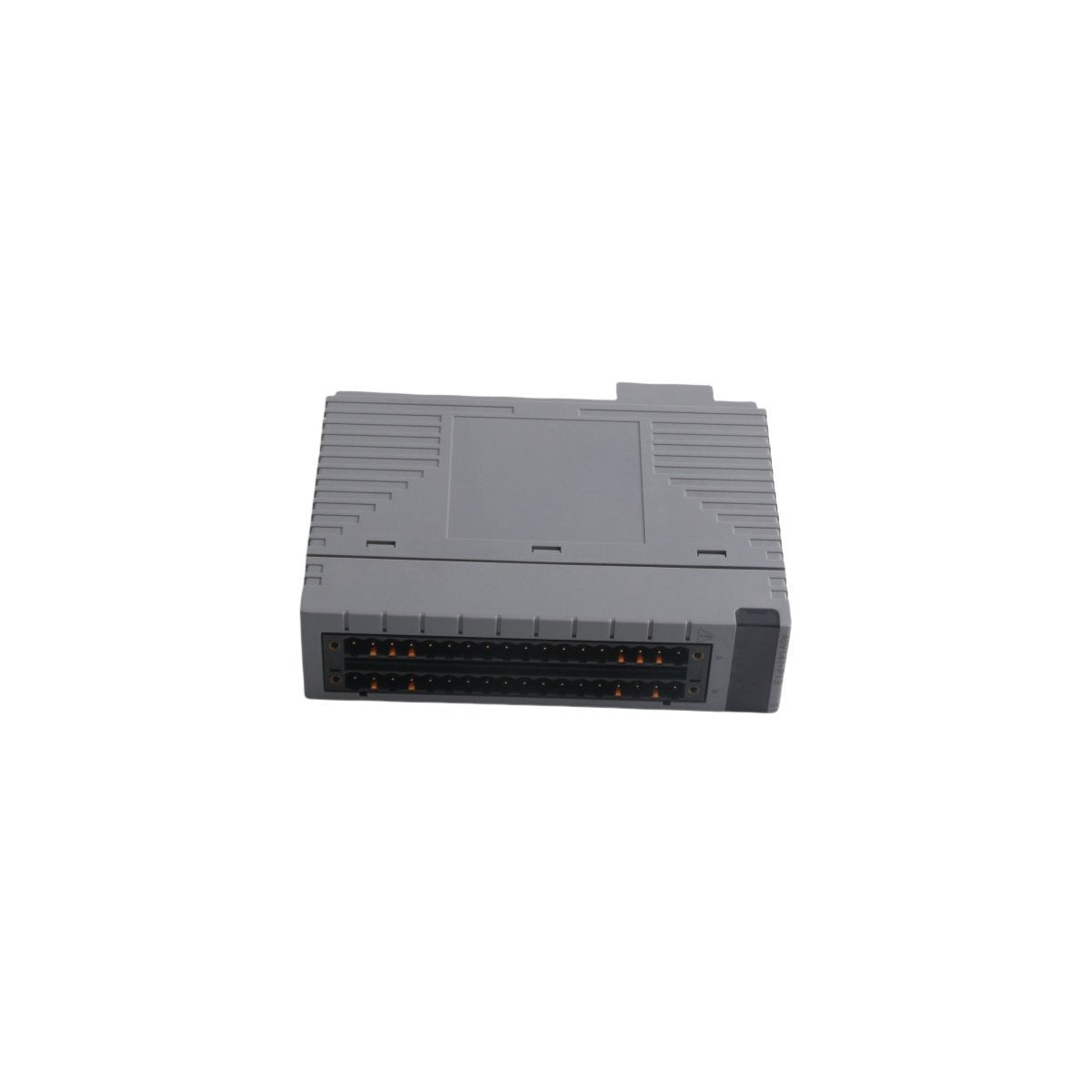

The Yokogawa ADV141-P13 S1 is a high-performance digital input module specifically engineered for the CENTUM VP Distributed Control System (DCS) environment. This 16-channel module serves as a critical interface for detecting discrete states from field-side equipment, such as limit switches, push buttons, and relay contacts. It is designed to provide high-speed signal acquisition while maintaining the rigorous safety and reliability standards required in heavy industrial processes.

The "S1" designation indicates a refined hardware revision compatible with modern Yokogawa I/O units. Unlike standard analog modules, the ADV141-P13 S1 focuses on high-integrity binary signal processing, utilizing advanced electrical isolation to protect the system backplane from field-side electrical noise and surges. This ensures consistent data accuracy in electromagnetically noisy environments.

Technical Specifications

• Manufacturer: Yokogawa Electric Corporation

• Model: ADV141-P13 S1

• Series: CENTUM VP

• Input Type: Digital Input (Contact or Voltage Input)

• Number of Channels: 16 channels, isolated

• Input Voltage: Supports 24V DC configurations

• Isolation: Individual channel-to-backplane electrical isolation

• Operating Temperature: -20°C to 70°C

• Weight: 0.28 kg

• Dimensions: 3.2 x 10.7 x 13 cm

• System Compatibility: CENTUM VP / CS 3000 R3

Key Functional Characteristics

Robust Signal Protection

The module is equipped with comprehensive electrical isolation barriers. This architecture prevents ground loops and safeguards the internal DCS logic from potential voltage spikes originating in the field. This level of protection is essential for maintaining operational uptime in industries such as oil and gas, petrochemicals, and power generation.

Flexible System Integration

The ADV141-P13 S1 is designed for seamless integration into CENTUM VP node units. It supports hot-swapping (configuration dependent), allowing for maintenance or module replacement without requiring a complete system shutdown. This modularity reduces mean time to repair (MTTR) and enhances overall plant availability.

High-Density and Efficiency

Despite its 16-channel capacity, the module maintains a compact 3.2cm width, optimizing cabinet space. It is engineered for low power consumption and high heat dissipation, which contributes to a longer lifecycle for both the module and the adjacent hardware in the rack.

Versatile Environmental Tolerance

With a certified operational range from -20°C to 70°C, the ADV141-P13 S1 is capable of performing in extreme climates. Whether deployed in desert heat or arctic conditions, the module’s thermal management system ensures signal stability and component longevity.
