Product Overview

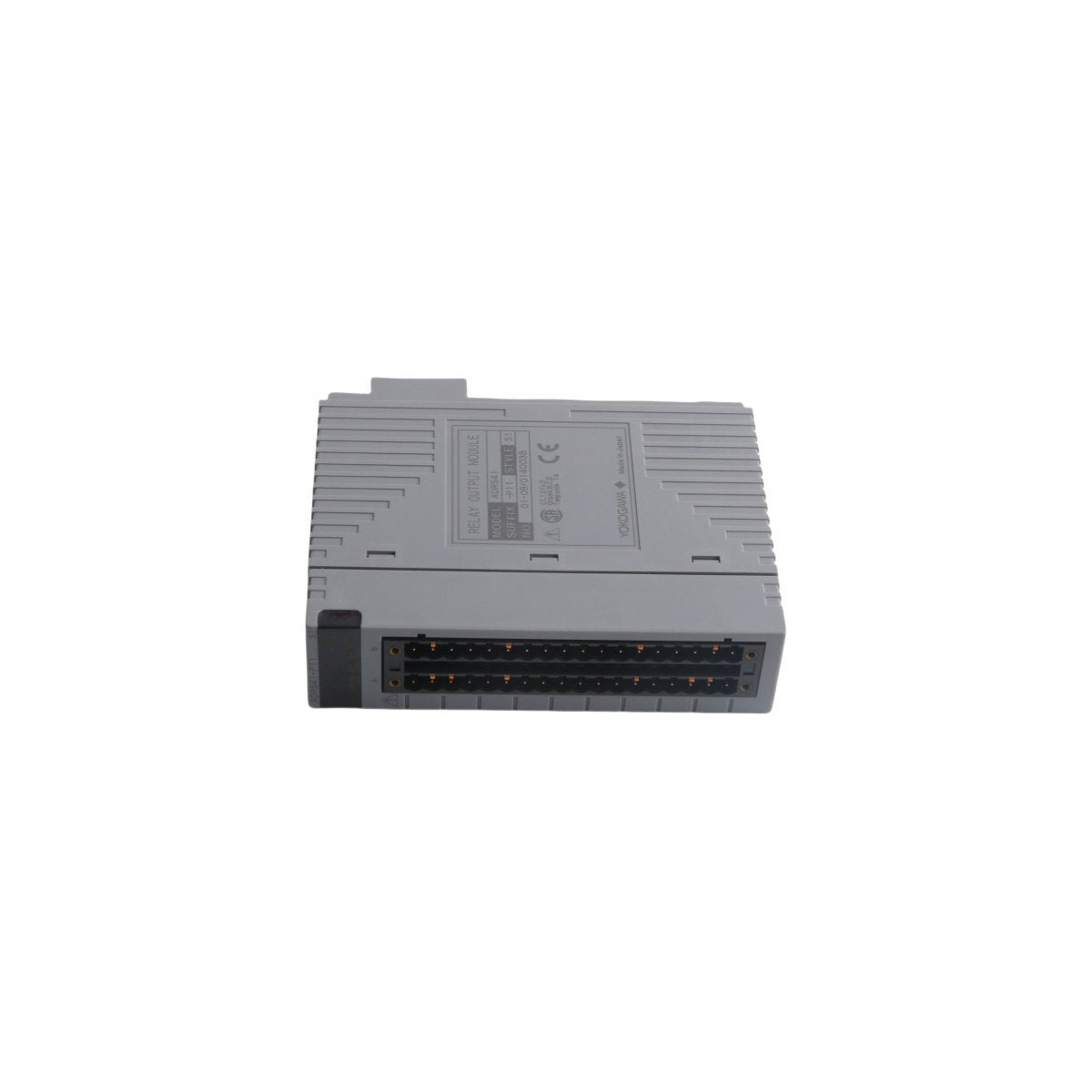

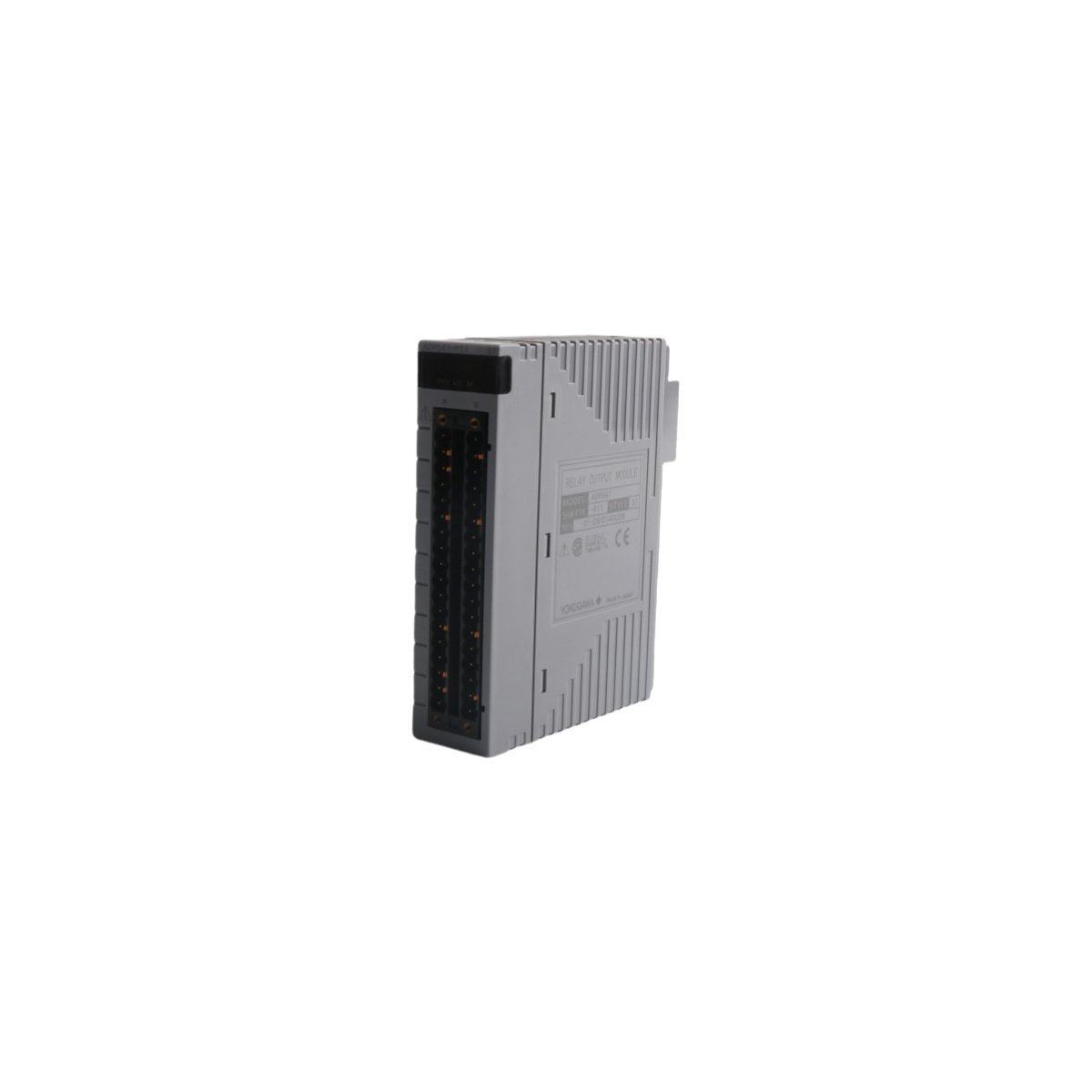

The Yokogawa ADR541-P11 S1 is a high-density analog output module specifically engineered for the CENTUM VP Distributed Control System (DCS). This module serves as a critical interface between the controller and field-actuated devices, converting digital signals from the processor into precise 4 to 20 mA current outputs. With 16 isolated channels, it provides the necessary control for proportional valves, dampers, variable frequency drives (VFDs), and other modulating field instruments.

The "S1" version represents a refined hardware revision within the CENTUM VP series, optimized for enhanced signal stability and long-term reliability in continuous process industries. The ADR541-P11 S1 is designed to maintain high accuracy and rapid response times, ensuring that the control loop remains stable even under fluctuating process conditions.

Technical Specifications

• Manufacturer: Yokogawa Electric Corporation

• Model: ADR541-P11 S1

• Series: CENTUM VP

• Module Type: Analog Output Module

• Output Channels: 16 channels, isolated

• Signal Range: 4 to 20 mA DC

• Load Resistance: 0 to 600 Ω

• Accuracy: ±0.3% of span

• Redundancy: Supports dual-redundant configuration

• Weight: 0.26 kg

• Dimensions: 32.8 mm x 107 mm x 130 mm

• Origin: Japan

Functional Characteristics and Benefits

Precise Control and Performance

The ADR541-P11 S1 utilizes high-resolution digital-to-analog conversion to ensure that field devices respond accurately to the DCS logic. It is particularly effective in complex automation environments where fine-tuned modulation is required to maintain process variables such as pressure, temperature, and flow.

Robust Industrial Design

Constructed to withstand the rigors of industrial environments, the module features high-grade electrical isolation to prevent ground loops and protect the internal system backplane from field-side surges. Its rugged form factor allows for reliable operation in temperatures ranging from -20 to 60°C.

Redundancy and Reliability

For mission-critical applications where output failure could lead to process downtime, the ADR541-P11 S1 supports dual-redundant operation. When paired with a secondary module, the system ensures a "bumpless" transfer of control, maintaining output current even if one hardware unit requires maintenance or fails.

Integrated Diagnostics

The module is equipped with front-facing LED indicators that provide immediate status updates for both power and communication health. These diagnostics simplify troubleshooting for field technicians, allowing for rapid identification of channel-specific errors or module-level faults.
