Product Overview

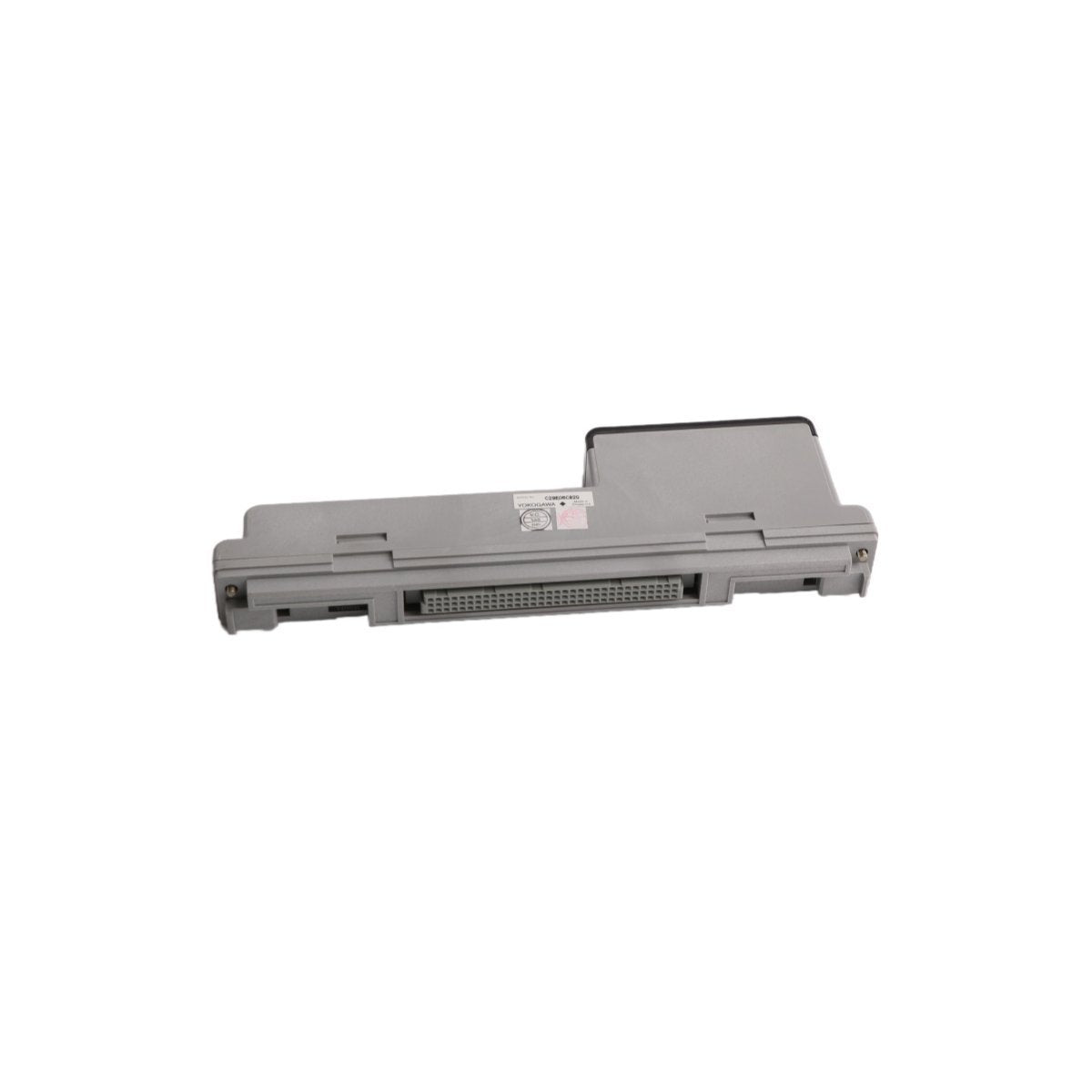

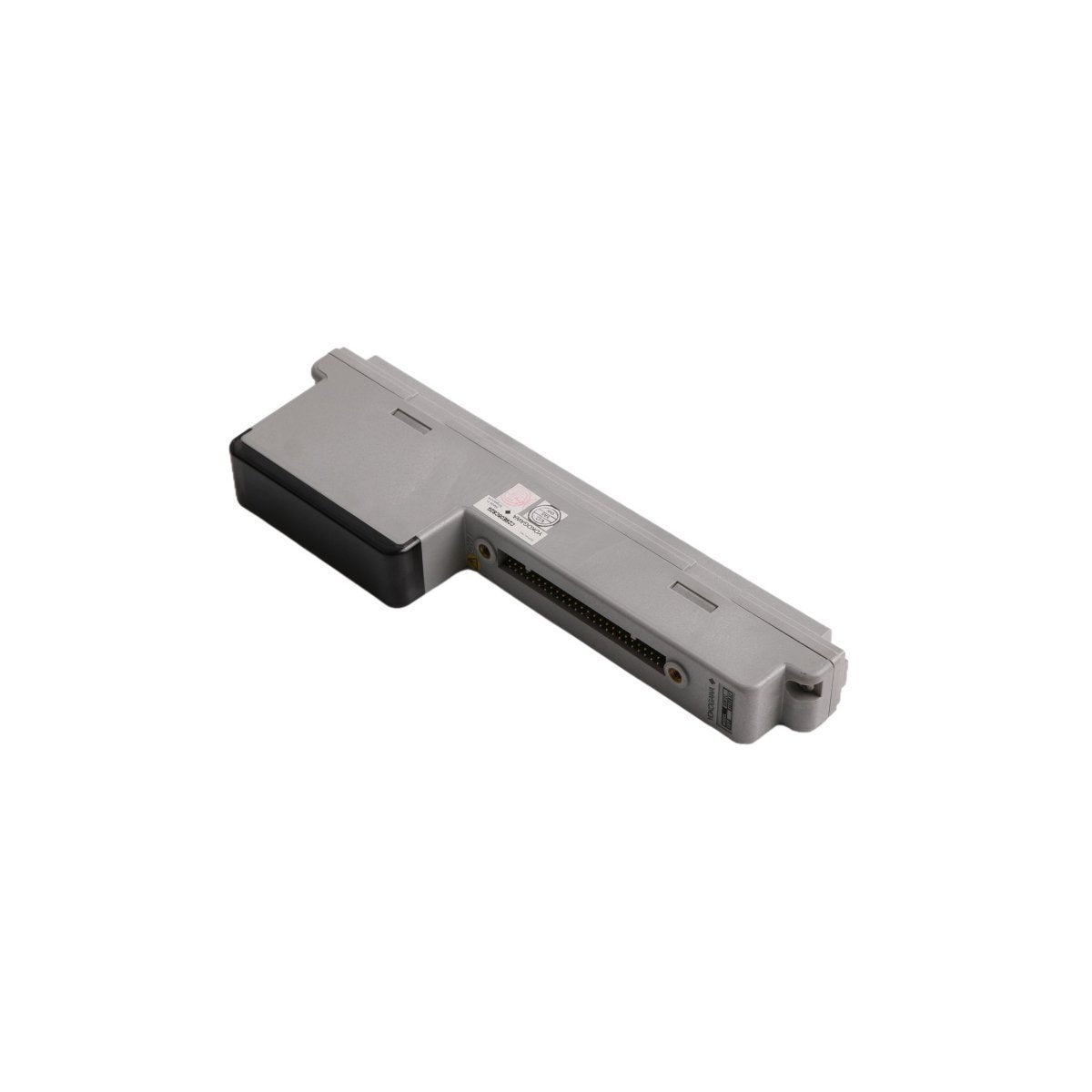

The Yokogawa ADM11C is a high-reliability contact input module engineered for integration within legacy and modern Distributed Control System (DCS) architectures. This module is specifically designed to interface between field-side discrete signals and the control processor, providing precise status monitoring for equipment such as limit switches, motor starters, and valve positioners.

As part of Yokogawa's robust I/O lineup, the ADM11C facilitates the conversion of dry or wet contact closures into digital logic. It is optimized for high-density environments where signal integrity and rapid response times are critical for process safety and sequence control. The module's hardware architecture focuses on noise immunity and long-term thermal stability, making it a staple component in heavy industrial sectors including petrochemical, power generation, and water treatment.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ADM11C

• Module Type: Contact Input Module (Digital Input)

• Number of Channels: 16 channels

• Input Signal Type: Potential-free contact (Dry contact) or Voltage contact

• External Power Supply: Required for voltage contact sensing

• Response Time: Fast logic processing for real-time status updates

• Weight: 0.30 kg

• Dimensions: 33 mm x 107 mm x 130 mm

• Mounting: Compatible with standard Yokogawa I/O nests/racks

• System Environment: CENTUM CS 1000 / CS 3000 / VP Compatible

• Origin: Japan

Key Features and Functional Capabilities

• High-Density Signal Processing: Supports 16 independent input points in a compact form factor, reducing the physical footprint in control cabinets.

• Galvanic Isolation: Incorporates electrical isolation to protect the system's internal bus from field-side voltage spikes or ground loops, ensuring operational safety.

• Versatile Application: Capable of monitoring a variety of discrete inputs, ensuring flexibility for diverse automation workflows and safety interlocking logic.

• Durable Industrial Build: Engineered to maintain high-performance levels across a broad operating temperature range and in high-vibration environments.

• Seamless DCS Integration: Fully compatible with Yokogawa's diagnostic software, allowing for easy channel configuration and real-time status visualization at the Human Interface Station (HIS).
