Product Overview

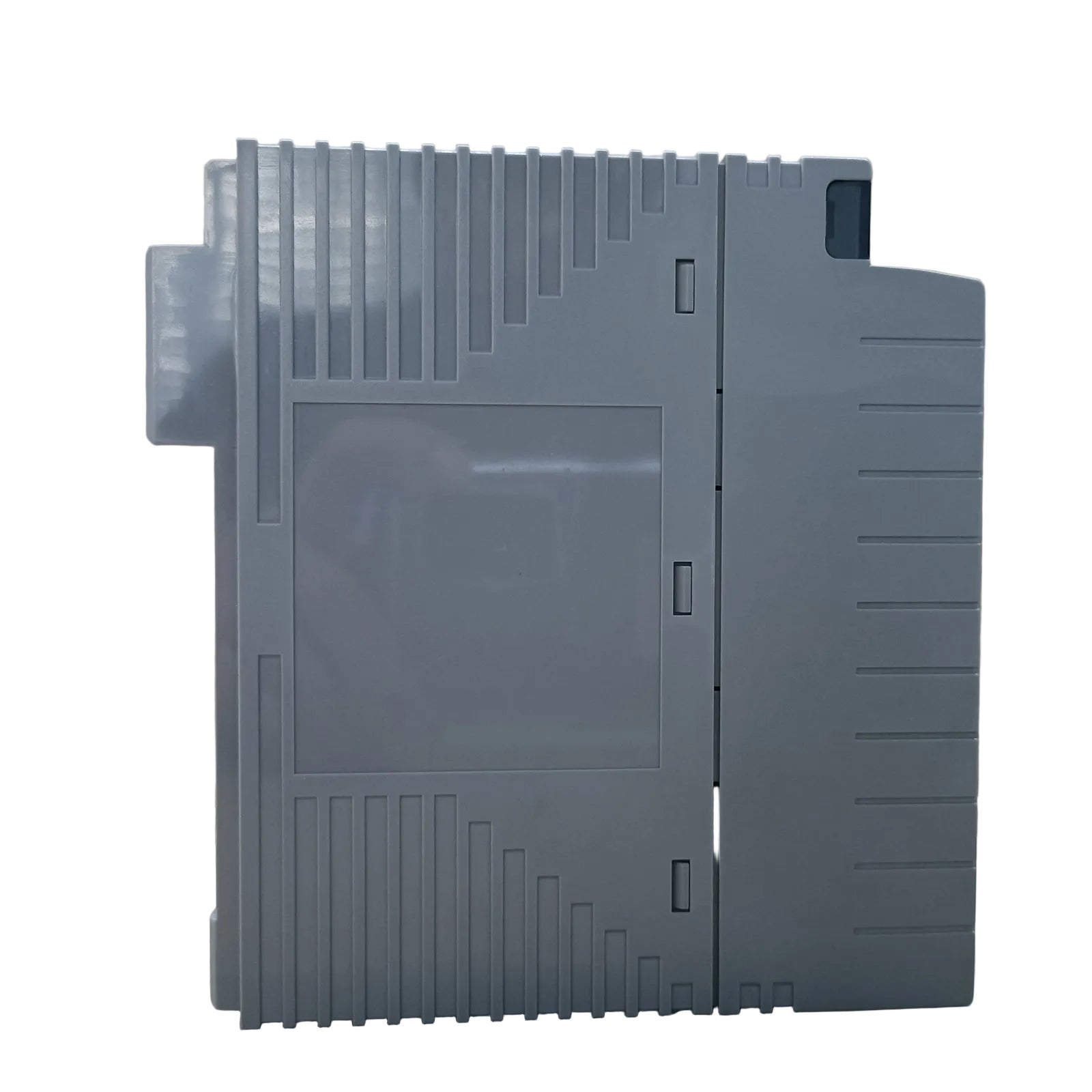

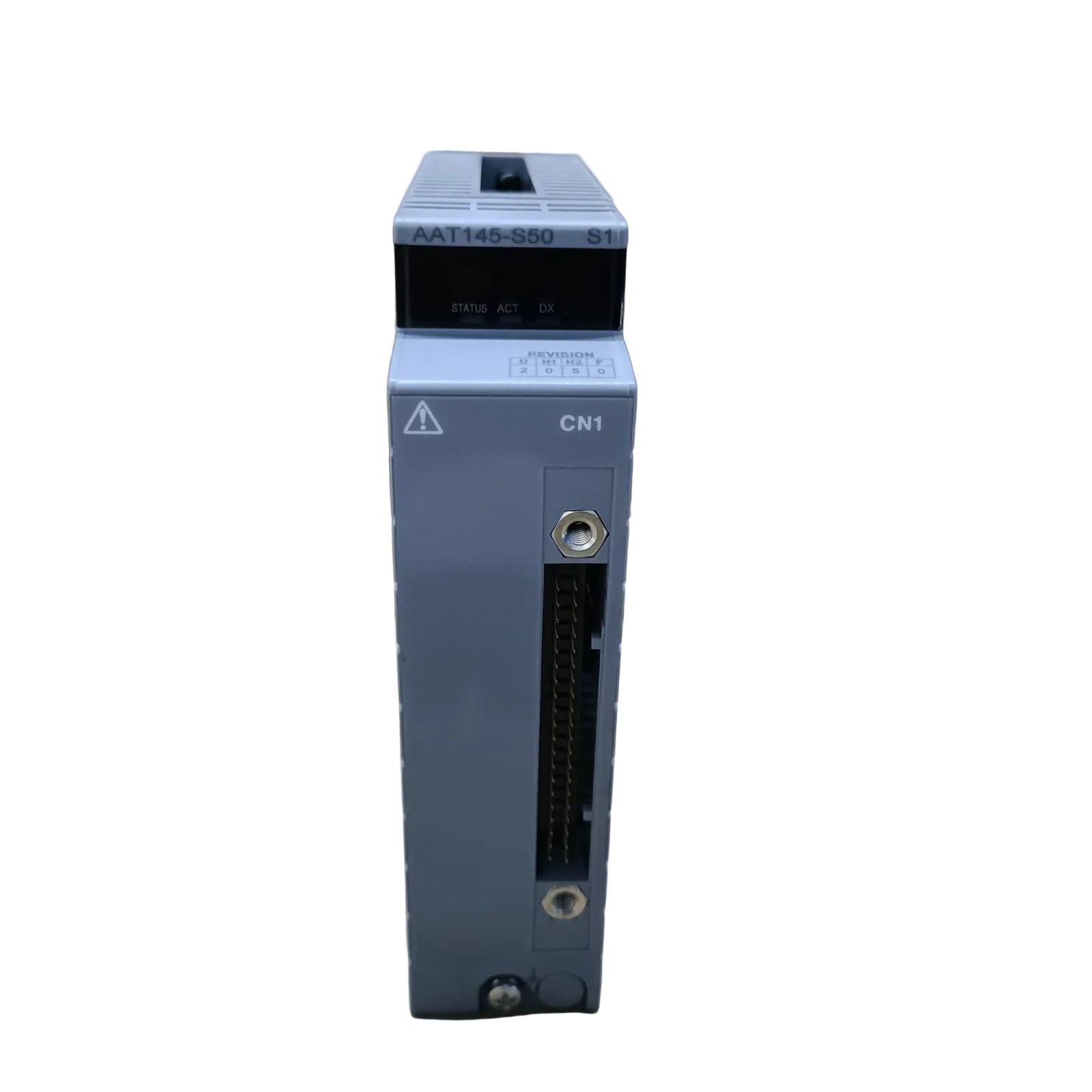

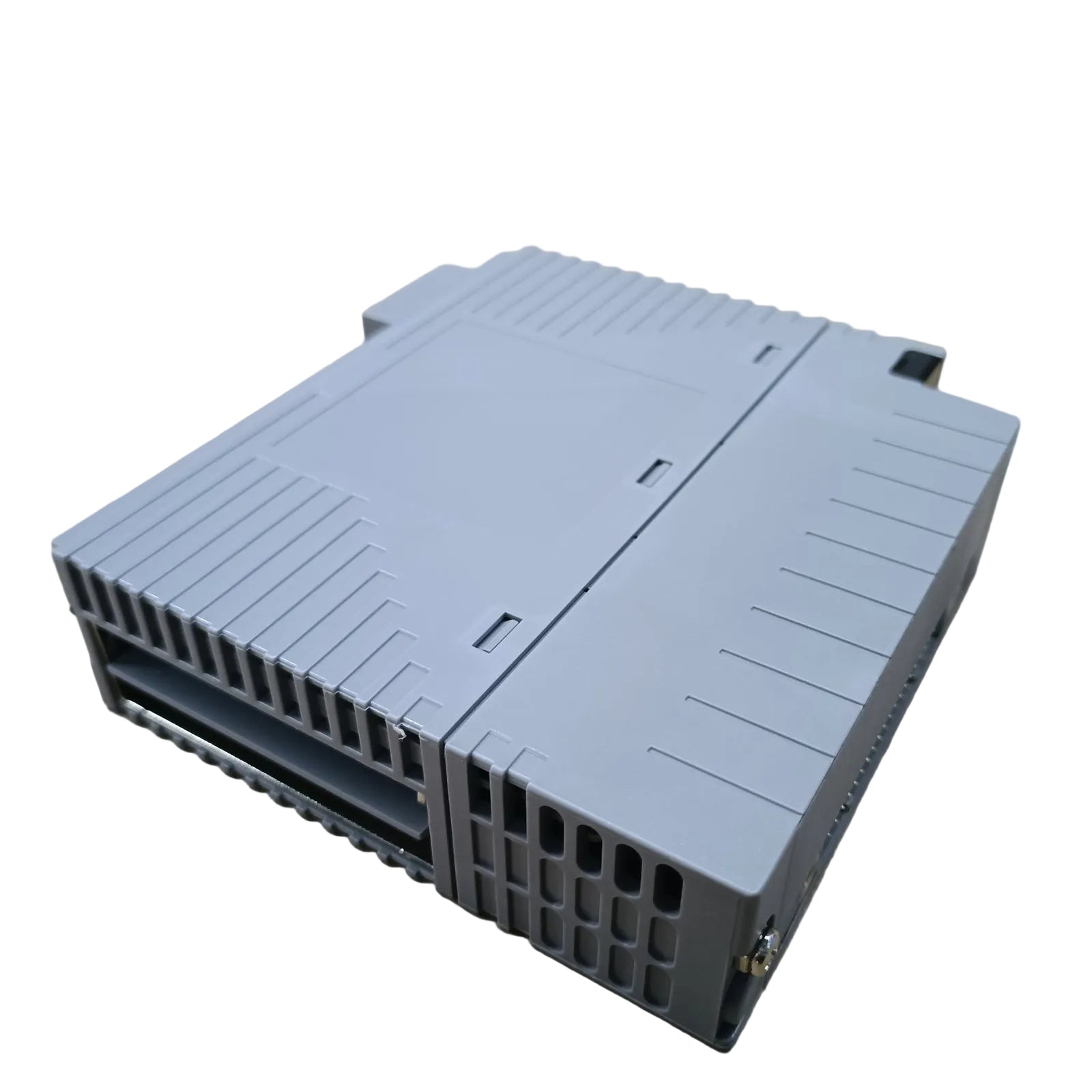

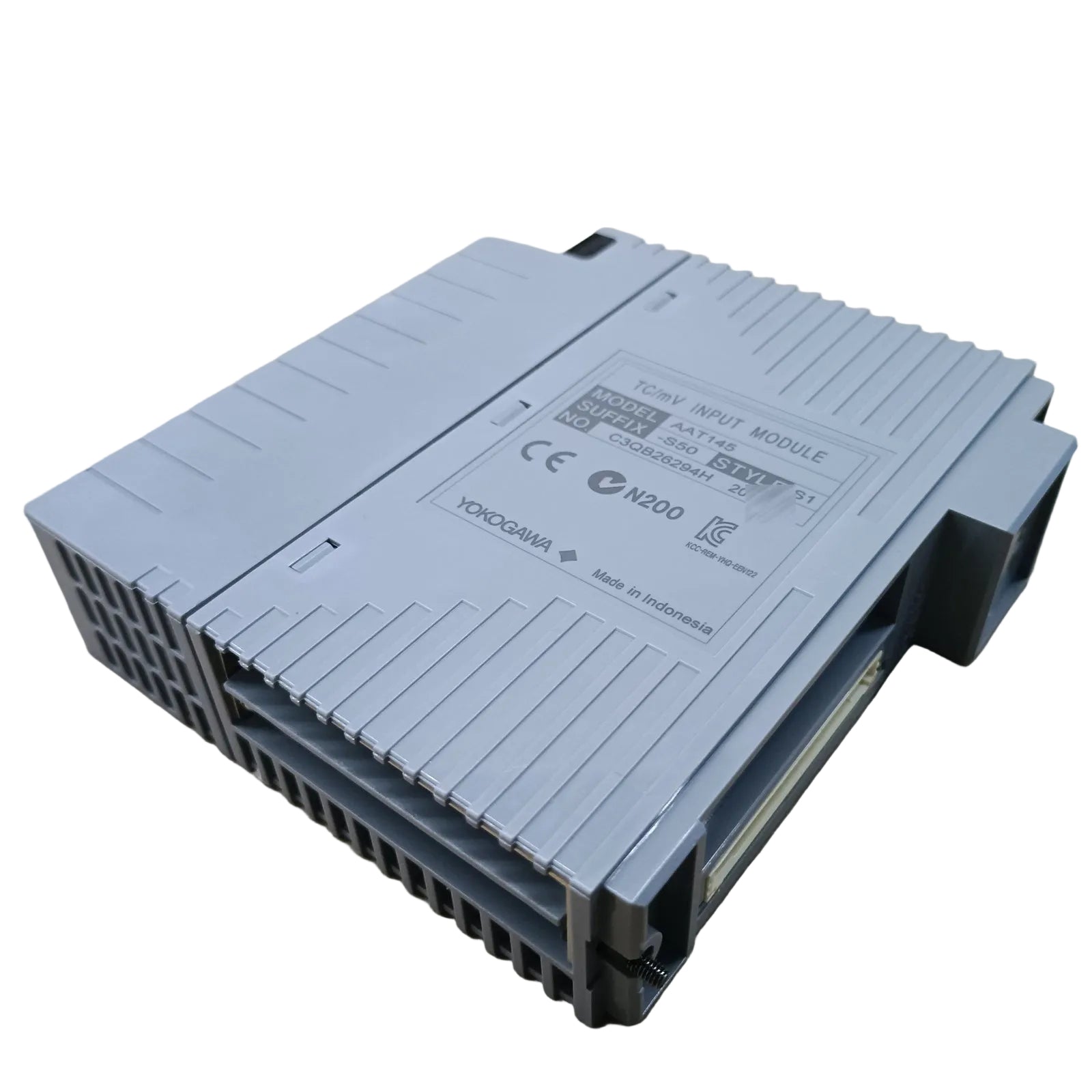

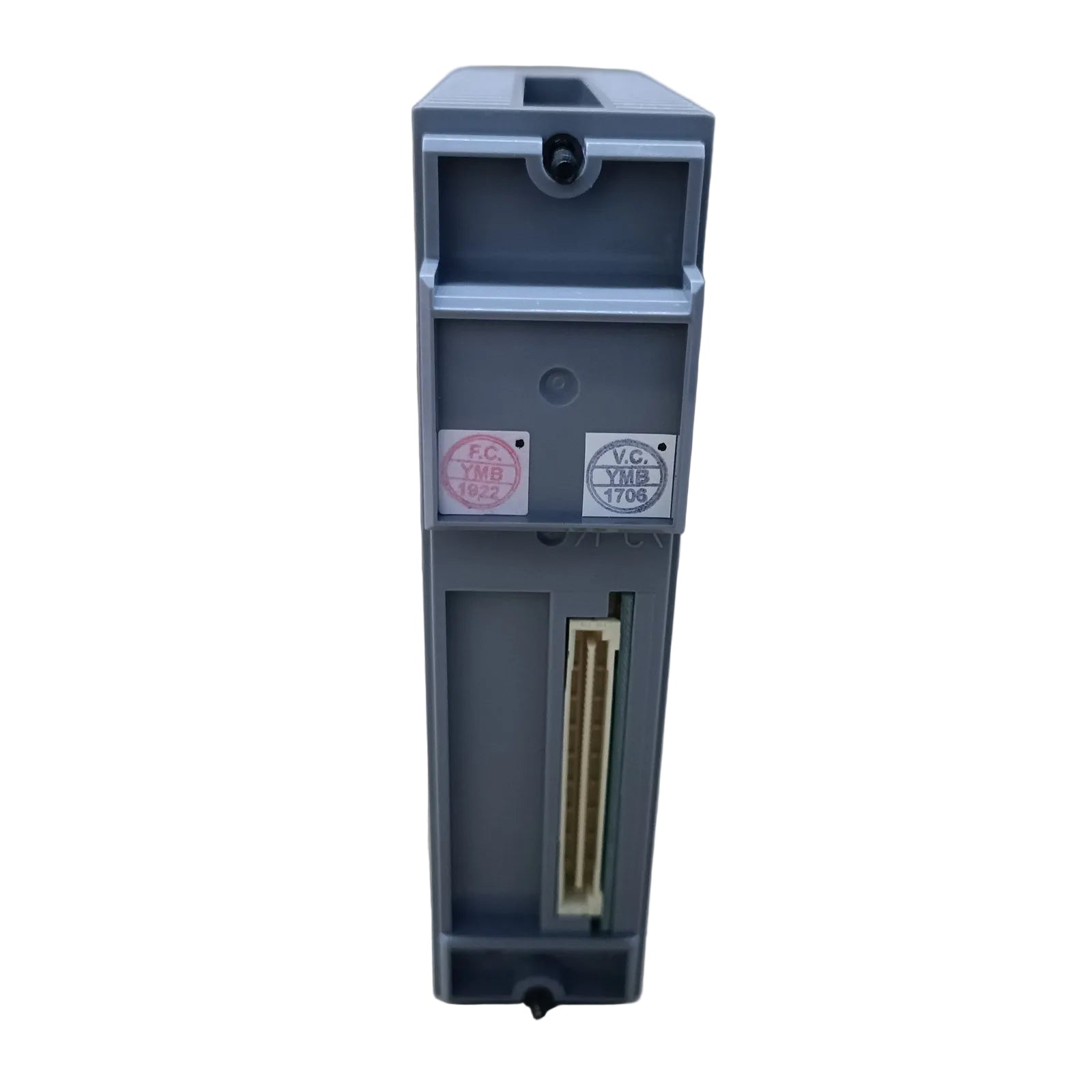

The Yokogawa AAT145-S50 serves as a high-density thermal sensing powerhouse for the CENTUM VP and FIO systems. This 16-channel isolated module captures millivolt-level signals from diverse thermocouple types and low-voltage transducers with exceptional precision. In the context of large-scale rotating machinery, such as industrial gas turbines and high-capacity centrifugal compressors, the AAT145-S50 monitors critical bearing temperatures and exhaust gas profiles. By providing channel-to-channel isolation, the module eliminates ground loop interference, ensuring that high-speed thermal transients are digitized without noise corruption. This robust data stream allows the DCS to execute proactive safety interlocks and performance optimizations, protecting high-value assets from the catastrophic effects of overheating or thermal imbalance in demanding process environments.

Technical Configuration

The AAT145-S50 utilizes a specific suffix logic to define its operational environment and hardware protection levels within the Yokogawa I/O ecosystem.

Model Suffix Analysis: AAT145-S50

AAT145: This identifies the core Thermocouple and mV Input Module series, featuring 16 isolated channels to maximize I/O density within a single slot.

-S: Indicates the Standard type of hardware construction. This version is designed for general industrial applications where high-reliability signal processing is the primary requirement.

5: Specifies that the module carries no explosion protection rating. It is optimized for installation in non-hazardous areas or within purged enclosures where intrinsic safety (IS) barriers are handled elsewhere.

0: Denotes the Basic type functional style. This configuration focuses on core signal acquisition performance, adhering to the fundamental Yokogawa engineering standards for longevity and stability.

Technical Specifications

Engineering Advantages

The AAT145-S50 stands out through its superior signal isolation and high-density hardware architecture. Every channel is electrically separated from the others, which is a critical advantage when measuring temperatures on large metallic structures where potential differences often exist. This isolation prevents a failure or short circuit in one sensor from affecting the remaining 15 channels, ensuring maximum system availability.

Furthermore, the module handles a wide array of thermocouple types (K, J, E, T, R, S, B, N) through simple software configuration. Its internal cold junction compensation (CJC) is highly accurate, maintaining measurement integrity even when ambient temperatures in the control room fluctuate. The AAT145-S50 also includes advanced burnout detection logic, allowing the DCS to instantly identify an open-circuit sensor and trigger a "Safe State" response, preventing control errors in mission-critical loops.

Installation Guide

Correct engineering practices for the AAT145-S50 prevent signal degradation and ensure long-term thermal accuracy.

Cold Junction Compensation (CJC)

Always use the appropriate Yokogawa terminal block (such as the ATA145) which includes an integrated thermistor for CJC. Ensure the terminal block is securely tightened to the module to maintain a uniform thermal gradient across the input pins.

Signal Wiring

Use shielded compensation wires specific to the thermocouple type in use. Ground the shield only at the DCS cabinet end to prevent the formation of ground loops. For mV inputs, utilize twisted-pair cabling to minimize electromagnetic interference from adjacent power lines.

Redundancy Protocols

In high-availability configurations, install the AAT145-S50 in a duplexed FIO nest. The system supports seamless hot-swapping; ensure the "Ready" LED is green on the redundant partner before extracting a faulty module to maintain uninterrupted process visibility.

Technical FAQs

Q1: Can the AAT145-S50 measure both mV and TC signals simultaneously?

A1: Yes. Since each of the 16 channels is independently configurable via the Yokogawa engineering software, you can mix thermocouple types and millivolt inputs on the same module.

Q2: What is the maximum distance for thermocouple wiring?

A2: While the module has high input resistance, we recommend limiting runs to 100 meters using high-grade compensation wire to minimize lead-wire resistance and noise pickup.

Q3: How does the module indicate a thermocouple burnout?

A3: The module features programmable burnout detection. When a sensor fails open, the module drives the value to a predetermined "Up-scale" or "Down-scale" value, which the DCS recognizes as an error state.

Q4: Is an external power supply required for the AAT145-S50?

A4: No. The module draws its required 5V and 24V DC power directly from the FIO backplane, simplifying cabinet wiring and reducing potential failure points.
