Product Overview

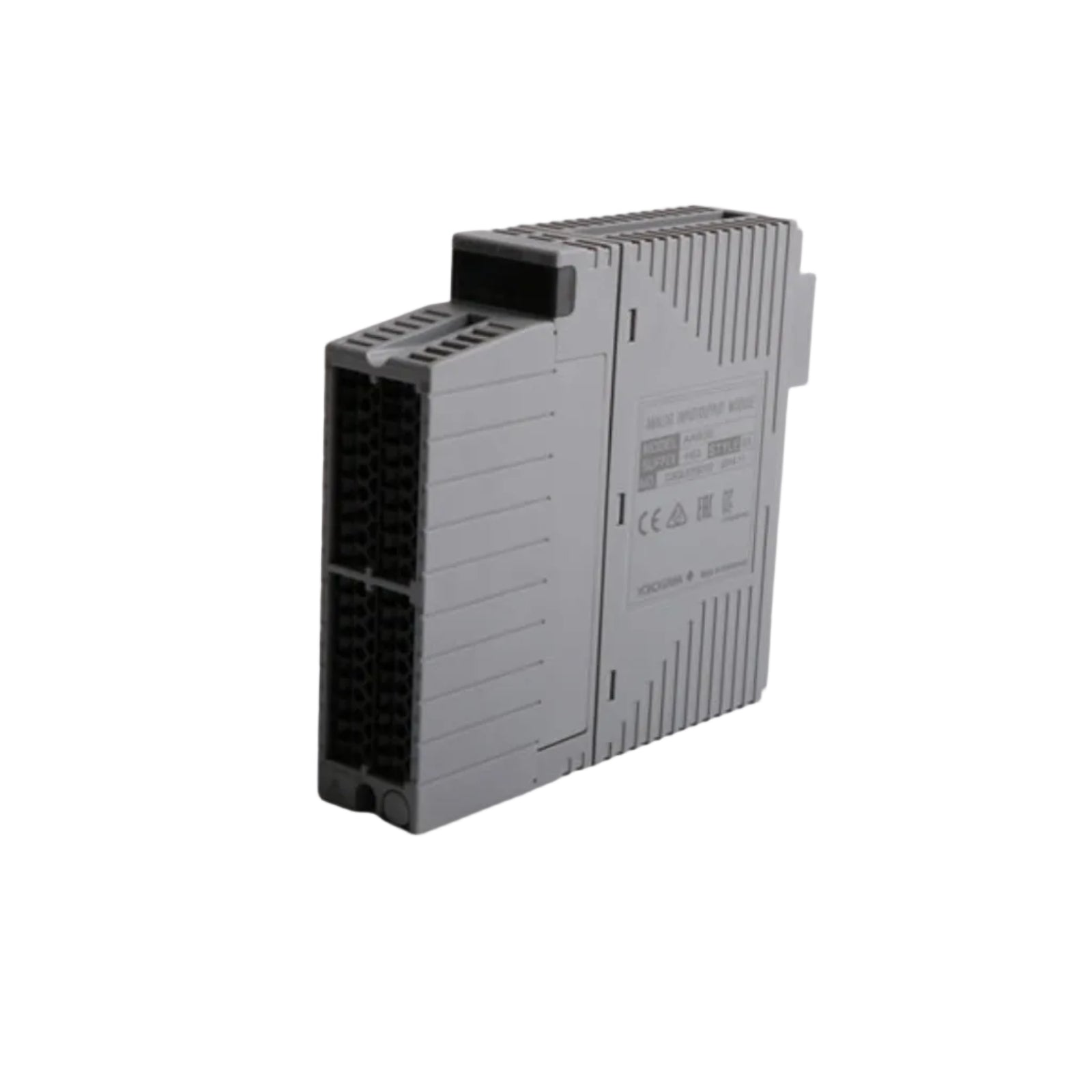

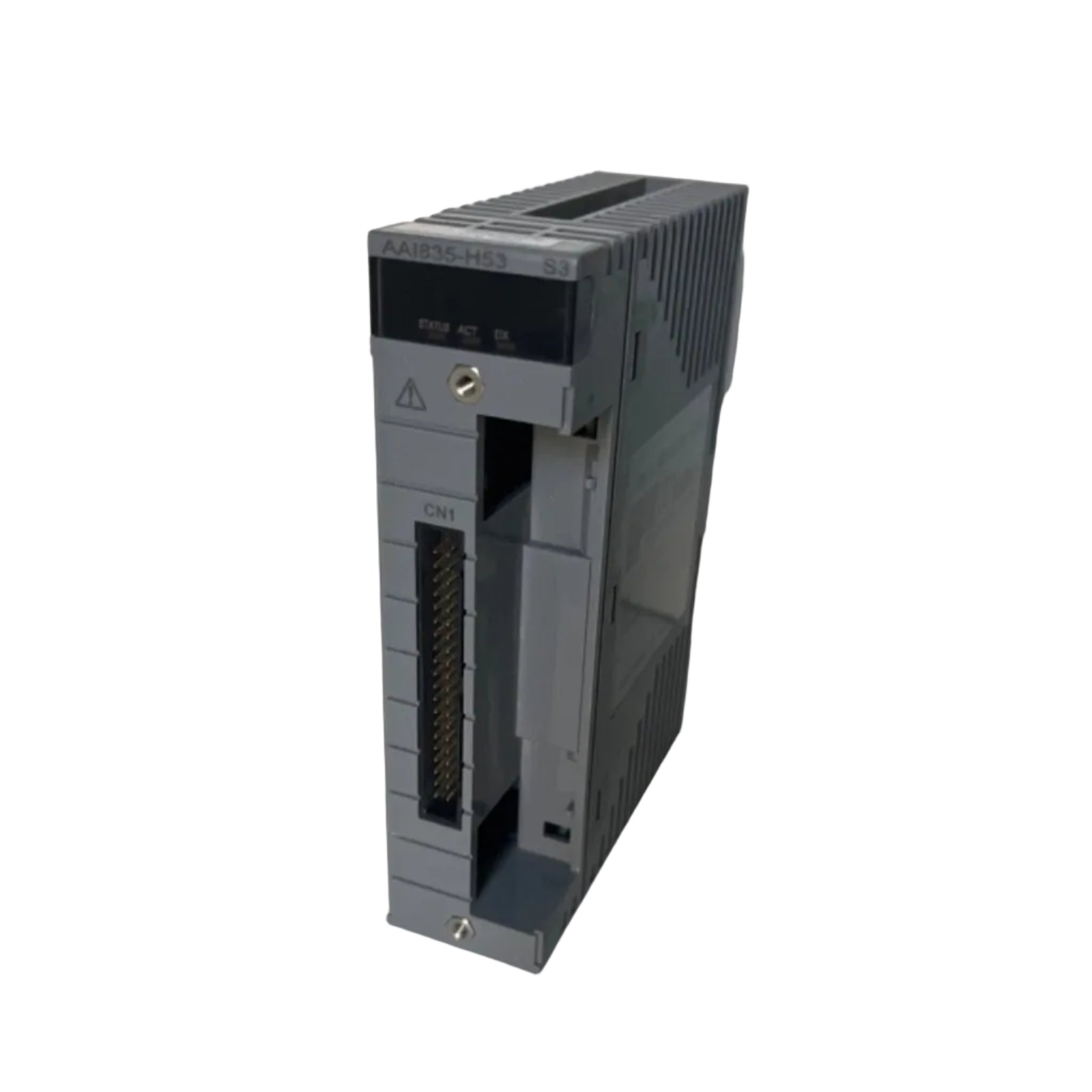

The Yokogawa AAI835-H53 functions as a high-reliability integrated interface for the CENTUM VP and CS 3000 Distributed Control Systems (DCS). This specialized module provides 4 isolated analog input channels and 4 isolated analog output channels, specifically engineered for mission-critical process loops that require simultaneous data acquisition and actuator control. In heavy-duty industrial environments—such as power plant boiler control or refinery distillation units—this module maintains 16-bit signal resolution to ensure precise management of pressure, flow, and temperature variables. Its dual-function design optimizes cabinet space while providing robust galvanic isolation between channels and the system backplane. Built-in signal conditioning and advanced diagnostics allow the AAI835-H53 to identify field-side abnormalities instantly, supporting SIL3 safety requirements in hazardous and high-noise process architectures.

Technical Configuration

The AAI835-H53 utilizes Yokogawa’s modular suffix coding to define its communication capabilities and environmental hardening.

Suffix Code Breakdown

AAI835: Base model for the Isolated Analog I/O Module featuring a combined 4-channel input and 4-channel output architecture.

-H: Designates HART communication support. This enables the module to superimpose digital device management data over the 4-20 mA analog signal, allowing for remote instrument configuration and asset management.

5: Specifies the Protection Level. This code indicates the "Standard" variant intended for non-hazardous locations or for use within purged and pressurized enclosures.

3: Indicates the specific software and firmware revision compatibility, optimized for seamless integration with modern CENTUM VP Field Control Units (FCU).

Technical Specifications

Installation Guide

Proper engineering deployment ensures the high-fidelity performance of the AAI835-H53 within the modular rack.

Terminal Connection and Wiring

Utilize shielded twisted-pair cables for all I/O runs to mitigate electromagnetic interference. Secure the connections to the pressure clamp terminals or MIL connectors depending on your base unit configuration. For the 4-channel outputs, ensure the loop resistance stays below 750 Ω to prevent signal saturation.

HART Device Integration

When utilizing the HART capability (suffix -H), ensure the field instruments are HART-compatible. The module provides a minimum of 15.0 V DC at 20 mA for transmitter power; verify that this meets the minimum operating voltage of your field transmitters after accounting for cable resistance drops.

Grounding Strategy

Connect the cable shields to the functional ground (FG) at the DCS cabinet side only. This prevents ground loops which can introduce significant offsets in 16-bit high-resolution measurements.

Engineering Advantages

The AAI835-H53 excels in extreme industrial climates where thermal drift and electrical noise often degrade signal quality. Its channel-to-channel isolation acts as a definitive barrier against field-side electrical surges, protecting the DCS core and ensuring that a failure in one loop does not affect the remaining process points. The module's impressive 10ms update cycle makes it ideal for fast-acting PID control loops, such as surge protection in large compressors or steam pressure regulation in turbines. Furthermore, the SIL3 compliance ensures that this hardware meets the rigorous safety integrity standards required for Emergency Shutdown (ESD) and Fire & Gas (F&G) systems.

Shipping and Delivery

Delivery Time: 3-5 business days upon payment finish.

Carrier Partners: Global express delivery by DHL, FEDEX, or UPS.

Product Status: Brand New, Factory Sealed, Original Pack.

Technical FAQs

Q1: Does the AAI835-H53 support redundancy?

A1: Yes. When installed in a redundant-capable base unit (such as the AFV30 or AFV40), you can pair two AAI835 modules to ensure continuous control even if one module fails.

Q2: What is the significance of the 500 kΩ "Power OFF" input resistance?

A2: This high impedance ensures that if the module loses power, the field loop remains open and does not create an unintended path for current, which protects the integrity of the loop for other monitoring devices.

Q3: Can I mix different signal types on this module?

A3: No. The AAI835-H53 is strictly designed for 4-20 mA DC signals. For voltage-based inputs (e.g., 1-5V), a different module type such as the AAV series is required.

Q4: How does the module handle a "Burn-out" or open circuit?

A4: The module includes integrated open-circuit detection. If the input current drops below 0.65 mA, the module triggers a diagnostic alarm to the DCS, allowing operators to identify broken wires or transmitter failures immediately.
