Product Overview

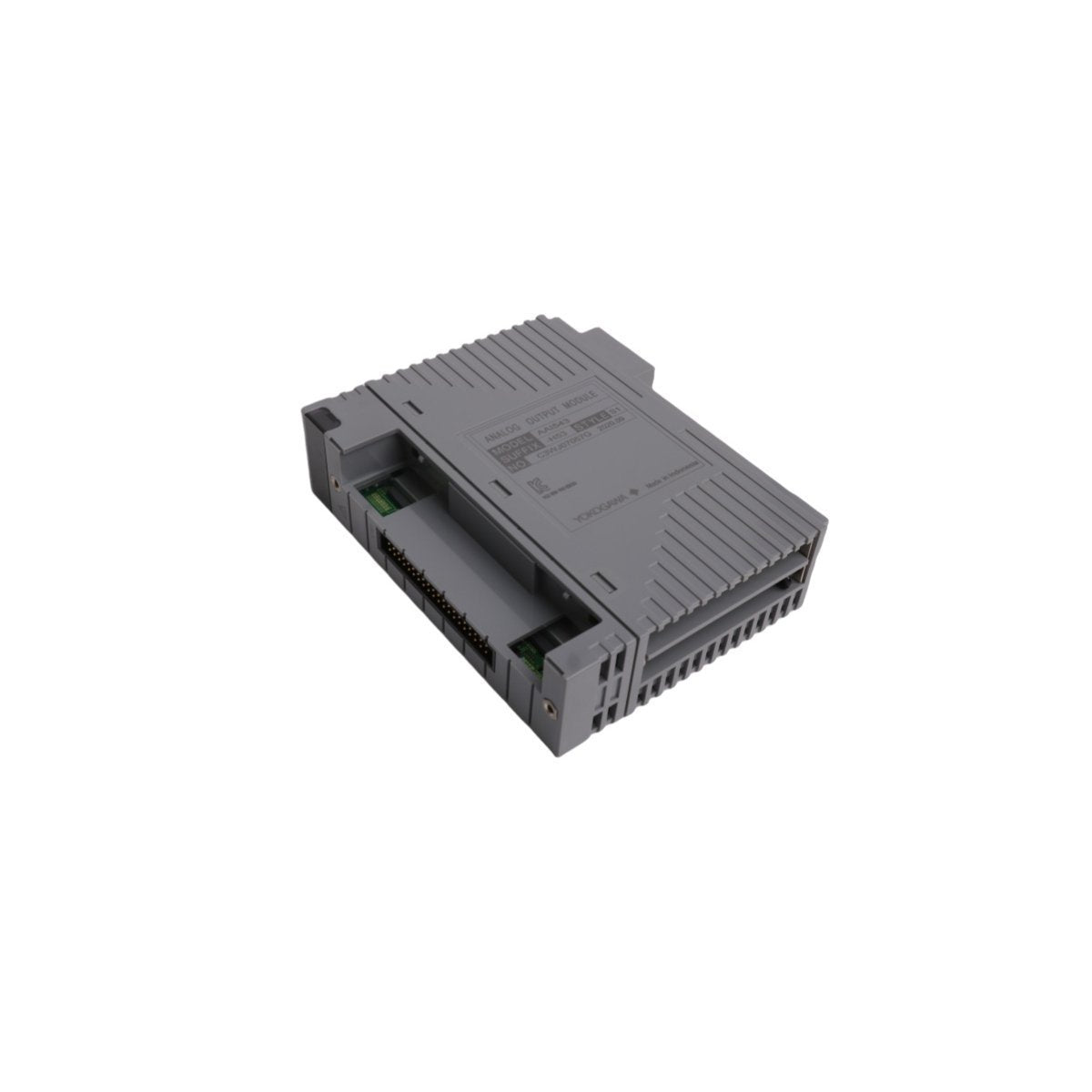

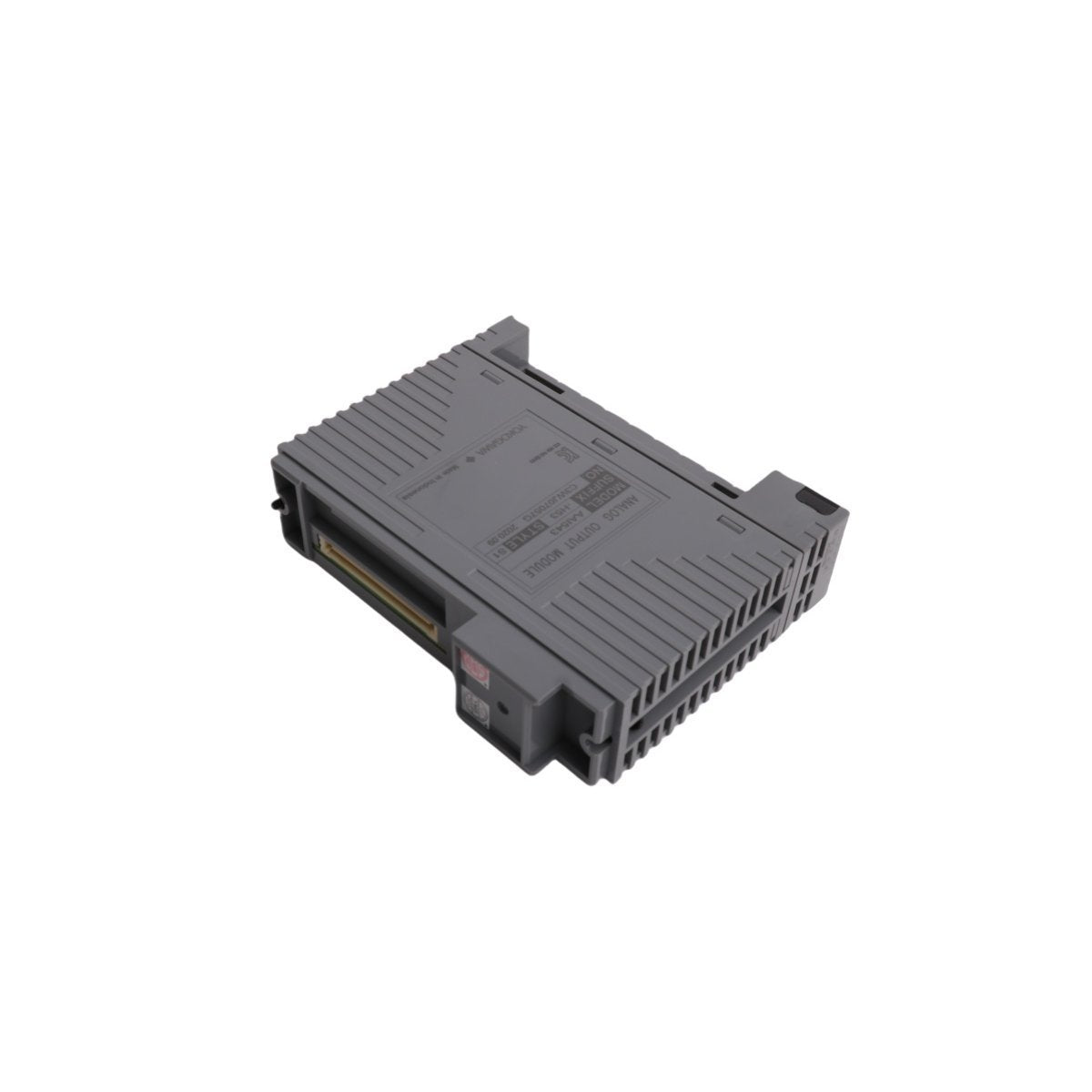

The Yokogawa AAI543-H50 is a high-performance analog output module designed for the CENTUM VP Distributed Control System (DCS). This module provides 16 channels of isolated 4 to 20 mA current outputs, primarily used to drive field actuators such as control valves, dampers, and variable speed drives. As an "H" suffix model, it features integrated HART 7 protocol support, allowing the system to transmit and receive digital maintenance information simultaneously with the analog control signal.

Engineered for mission-critical reliability, the AAI543-H50 is essential for industries requiring precise loop control, including oil and gas refining, chemical processing, and power generation. Its high channel density and robust electrical isolation minimize cabinet space requirements while protecting the system logic from field-side electrical disturbances.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: AAI543-H50

• Output Signal: 4 to 20 mA DC

• Number of Channels: 16 channels, isolated

• Communication: HART 7 protocol supported

• Accuracy: ±0.1% of span

• Allowable Load Resistance: 0 to 750 Ω

• Data Refresh Cycle: 10 ms

• Withstand Voltage: 1500 V AC (between field signals and system logic)

• Operating Temperature: -20°C to +70°C

• Weight: 0.32 kg

• Dimensions: 32.8 mm x 106.3 mm x 130 mm

• Origin: Japan

Key Technical Characteristics

• Integrated HART Digital Communication: Facilitates bi-directional communication with smart valve positioners and actuators, enabling remote configuration and advanced device diagnostics without interrupting the control signal.

• Enhanced System Availability: Supports dual-redundant configurations. When paired in a redundant node, the module ensures bumpless failover, maintaining continuous process control even during a hardware fault.

• Precision and Stability: Delivers high-accuracy outputs (±0.1%) with excellent thermal stability, ensuring consistent valve positioning even in extreme environmental conditions ranging from -20°C to +70°C.

• Galvanic Isolation: Each channel is electrically isolated to prevent ground loops and provide a high level of immunity against electromagnetic interference (EMI) in heavy industrial zones.

• Hot-Swap Functionality: Designed for online maintenance, the module can be replaced while the system is powered (in redundant setups), eliminating the need for process shutdowns during service.

• Safety and Compliance: Meets SIL2 functional safety requirements and carries global certifications (ATEX, IECEx, CE, UL) for installation in hazardous areas and regulated industrial environments.
