Product Overview

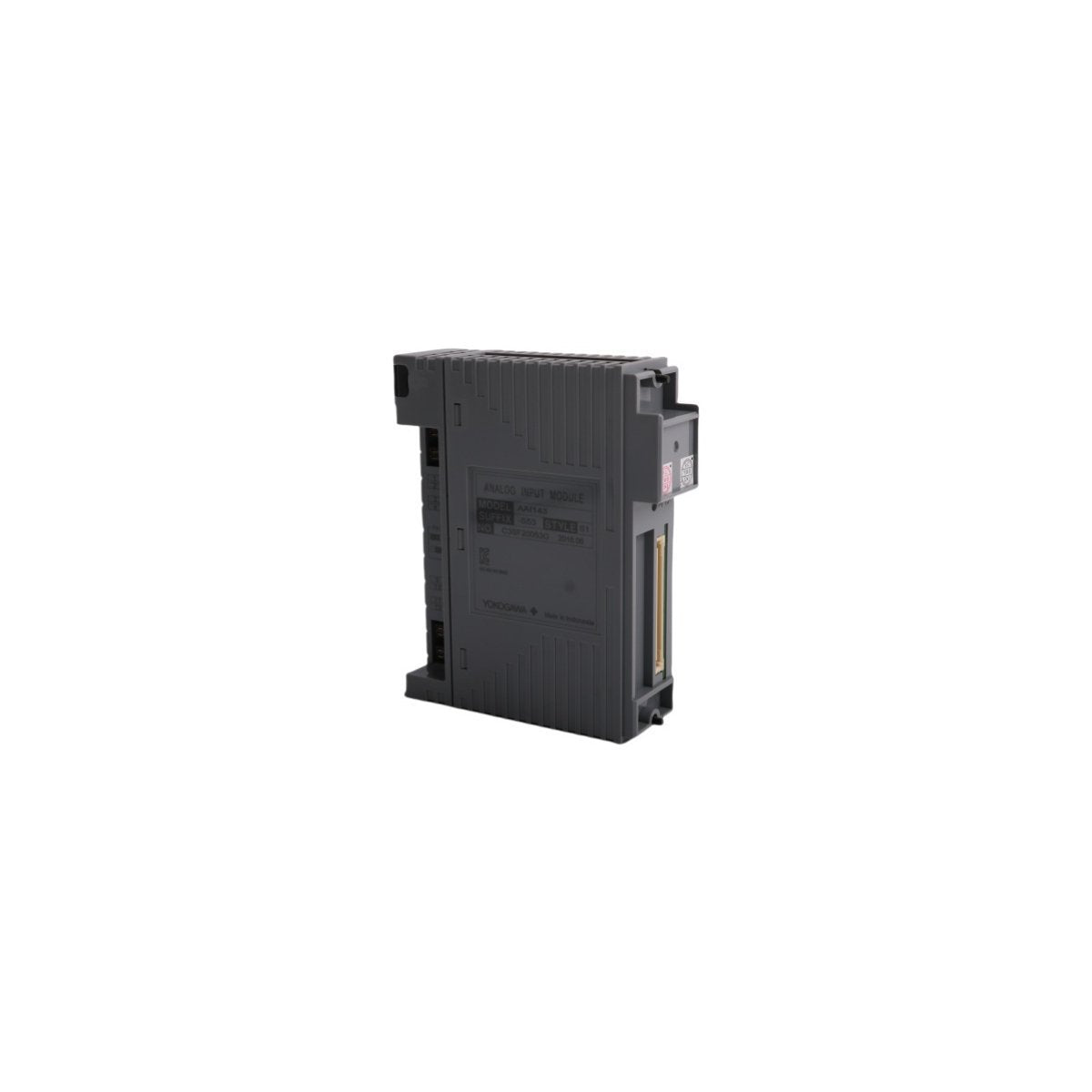

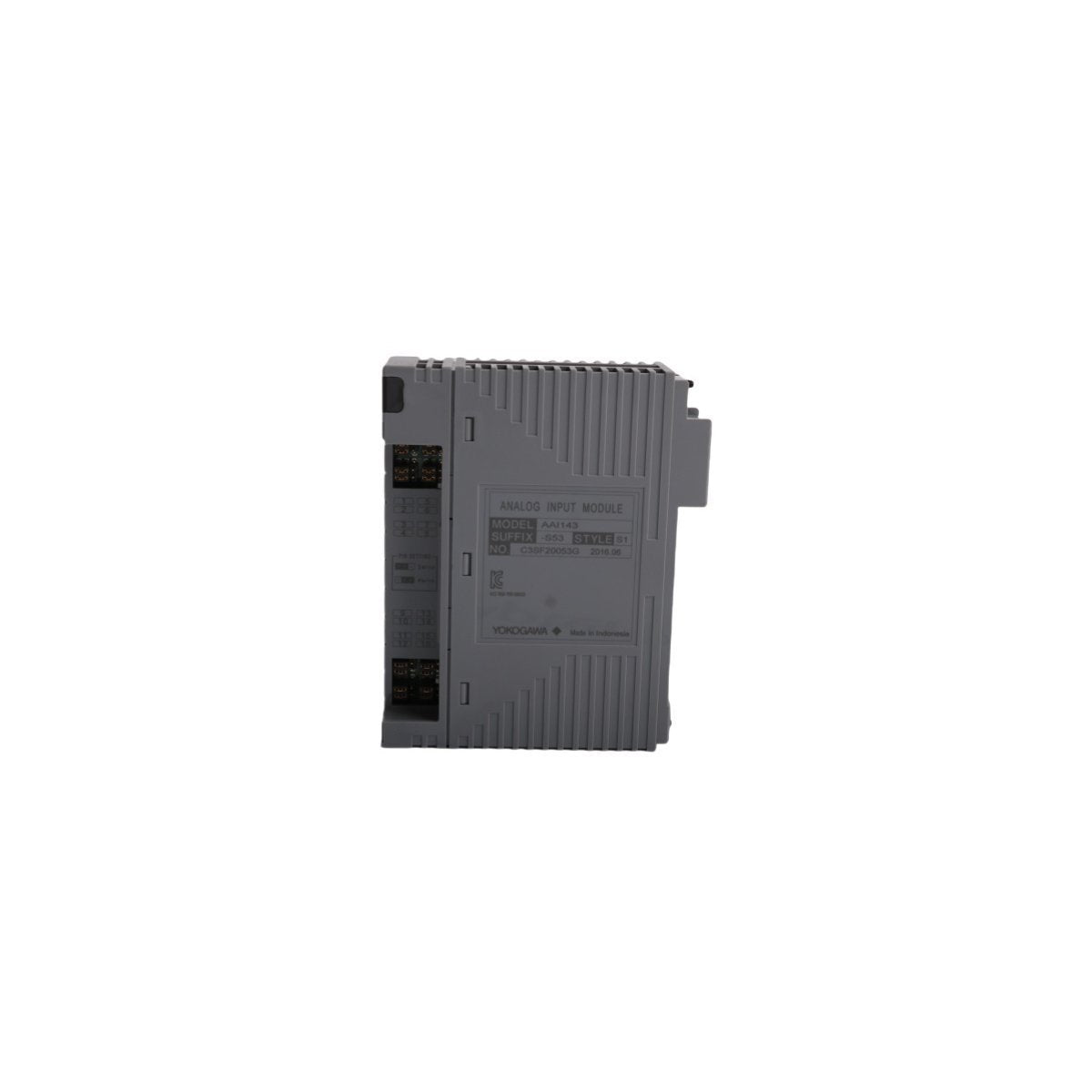

The Yokogawa AAI143-S53 S1 is a high-density analog input module designed for the FIO (Field network I/O) system within Yokogawa’s CENTUM VP and CS 3000 Distributed Control Systems. This module provides 16 isolated channels specifically calibrated to interface with standard 4-20 mA current loops. By serving as a reliable bridge between field instrumentation and the Field Control Station (FCS), the AAI143-S53 S1 ensures precise data acquisition of process variables such as pressure, temperature, and flow. Its architecture is optimized for high-speed signal processing and long-term stability in mission-critical industrial automation environments.

Technical Characteristics

The AAI143-S53 S1 is engineered with a focus on signal purity and rugged performance:

Superior Channel Isolation Featuring comprehensive galvanic isolation, the module protects the internal system backplane from field-side electrical noise and surges. This isolation effectively eliminates ground loop currents, which is vital for maintaining measurement accuracy in plants with complex electrical grounding systems.

High-Accuracy Data Conversion The module supports 16-bit signal resolution, allowing the control system to detect minute fluctuations in process data. With a fast update cycle, it provides the deterministic performance required for tight PID control loops and real-time monitoring of fast-acting process variables.

Advanced Hardware Reliability Built to Yokogawa's stringent industrial standards, the AAI143-S53 S1 is designed for continuous 24/7 operation. The "S53" suffix indicates specific protective coating or configuration options suitable for standard industrial environments, ensuring the circuitry remains resilient against humidity and temperature variations typically found in control cabinets.

Simplified System Maintenance The module supports hot-swapping within a redundant I/O configuration, allowing for hardware replacement without interrupting the process. Diagnostic LEDs on the front panel provide immediate visual feedback on the health of the module and the status of the communication bus.

Technical Specifications

• Brand: Yokogawa

• Model Number: AAI143-S53 S1

• Product Type: Analog Input Module

• Channels: 16 (Isolated)

• Input Signal: 4 to 20 mA DC

• System Compatibility: CENTUM VP / CS 3000 (FIO System)

• Accuracy: ±0.1% of span

• Input Resistance: 250 Ω

• Weight: 0.24 kg

• Dimensions: 3.2 x 10.6 x 13.0 cm

• Country of Origin: Japan

Application Areas

The Yokogawa AAI143-S53 S1 is a fundamental component for data acquisition in various sectors:

• Oil and Gas: Monitoring of 4-20mA pressure and level transmitters in refining units.

• Power Generation: Data collection for boiler feed water and steam pressure loops.

• Chemical Manufacturing: Precise monitoring of reactant flow rates and reactor temperatures.

• Water & Wastewater: Integration of analytical sensors and distributed flow meters.
