Product Overview

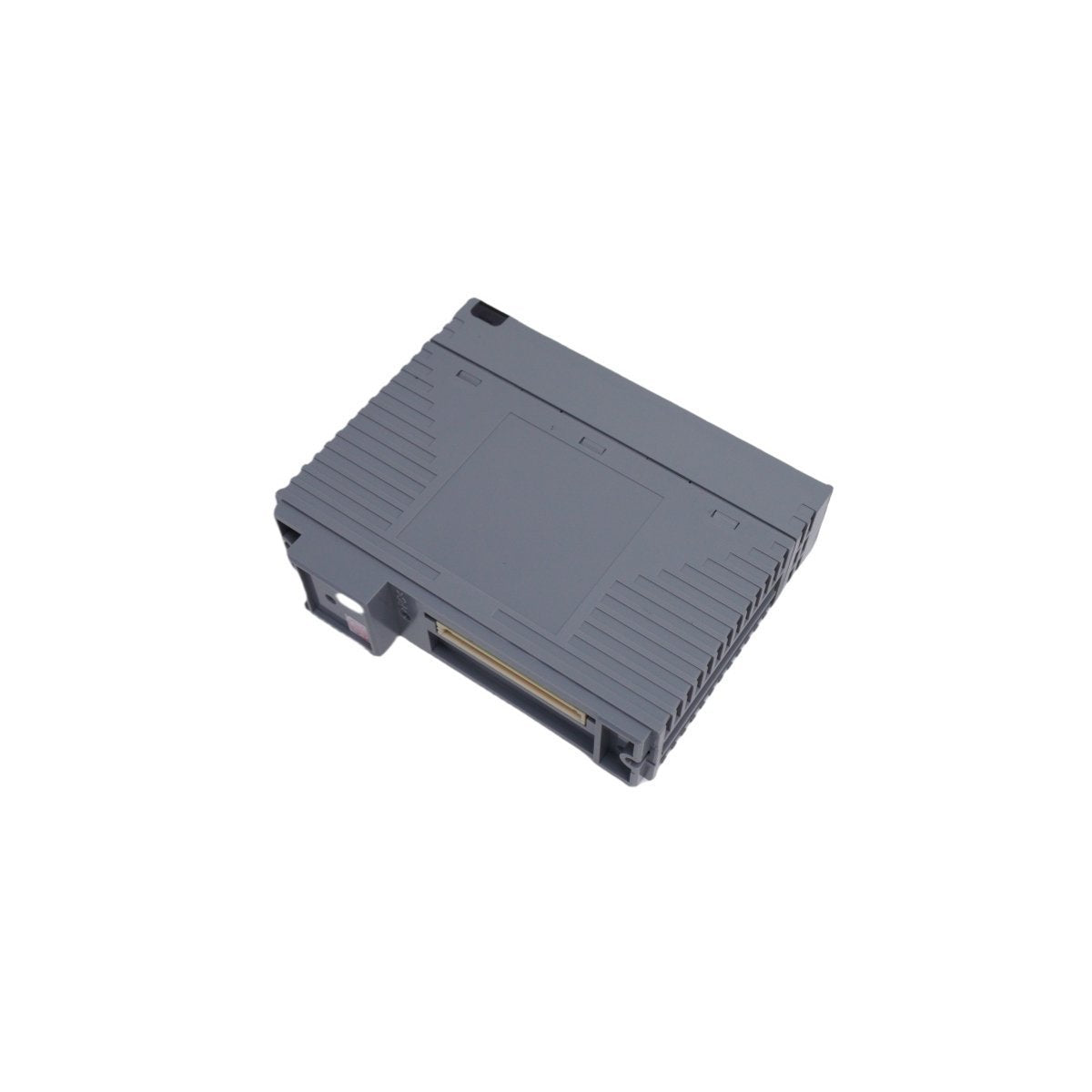

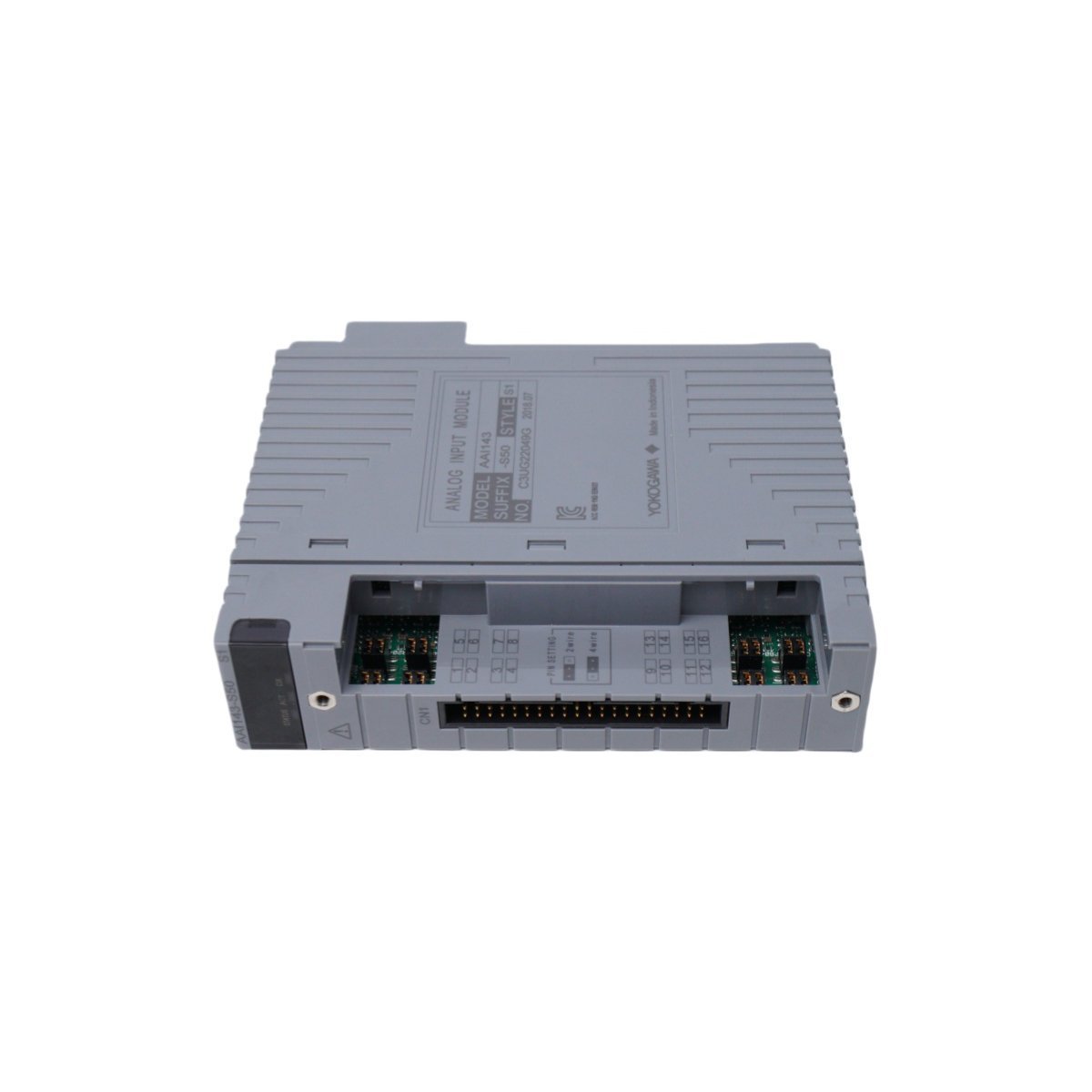

The Yokogawa AAI143-S50 is a high-density analog input module developed for the CENTUM VP Distributed Control System (DCS). This module is engineered to interface with field transmitters, providing 16 isolated channels for 4 to 20 mA current signals. It serves as a vital data acquisition component, converting continuous process variables—such as flow, pressure, and level—into precise digital values for the Field Control Station (FCS).

A primary technical advantage of the AAI143-S50 is its support for HART (Highway Addressable Remote Transducer) digital communication. This allows the module to pass smart device variables and diagnostic information from the field directly to the DCS maintenance software without interrupting the analog signal. Its robust design and high precision make it a standard choice for mission-critical infrastructure in the petrochemical, power, and water treatment sectors.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: AAI143-S50

• Input Signal: 4 to 20 mA DC

• Number of Channels: 16 channels, isolated

• Accuracy: ±0.1% of span

• Input Impedance: 250 Ω (Power ON), Min. 500 kΩ (Power OFF)

• Data Refresh Cycle: 10 ms

• Isolation Voltage: 1500 V AC between field signals and system logic

• Operating Temperature: -20°C to +70°C

• HART Communication: Supported (HART 5/6/7)

• Weight: 0.30 kg

• Dimensions: 32.8 mm x 106.3 mm x 130 mm

• Origin: Japan

Key Technical Characteristics

• HART Protocol Integration: Facilitates bi-directional digital communication with smart field instruments, allowing for remote configuration and advanced device diagnostics.

• Superior Signal Integrity: High-voltage galvanic isolation ensures that electrical noise, ground loops, and field-side surges do not compromise the integrity of the internal control bus.

• High-Density Monitoring: Consolidates 16 analog inputs into a single compact slot, significantly reducing the space required in control cabinets and simplifying wiring layouts.

• Dual-Redundant Capability: Supports redundant module pairing to ensure continuous process visibility; if one module fails, the control station automatically switches to the secondary unit without data loss.

• Hot-Swappable Maintenance: Designed for online replacement, allowing operators to swap modules without shutting down the system or interrupting other I/O operations on the same node.

• Global Safety Compliance: Rigorously tested to meet international standards for hazardous areas and functional safety, making it suitable for SIL2 safety instrumented systems.
