Product Overview

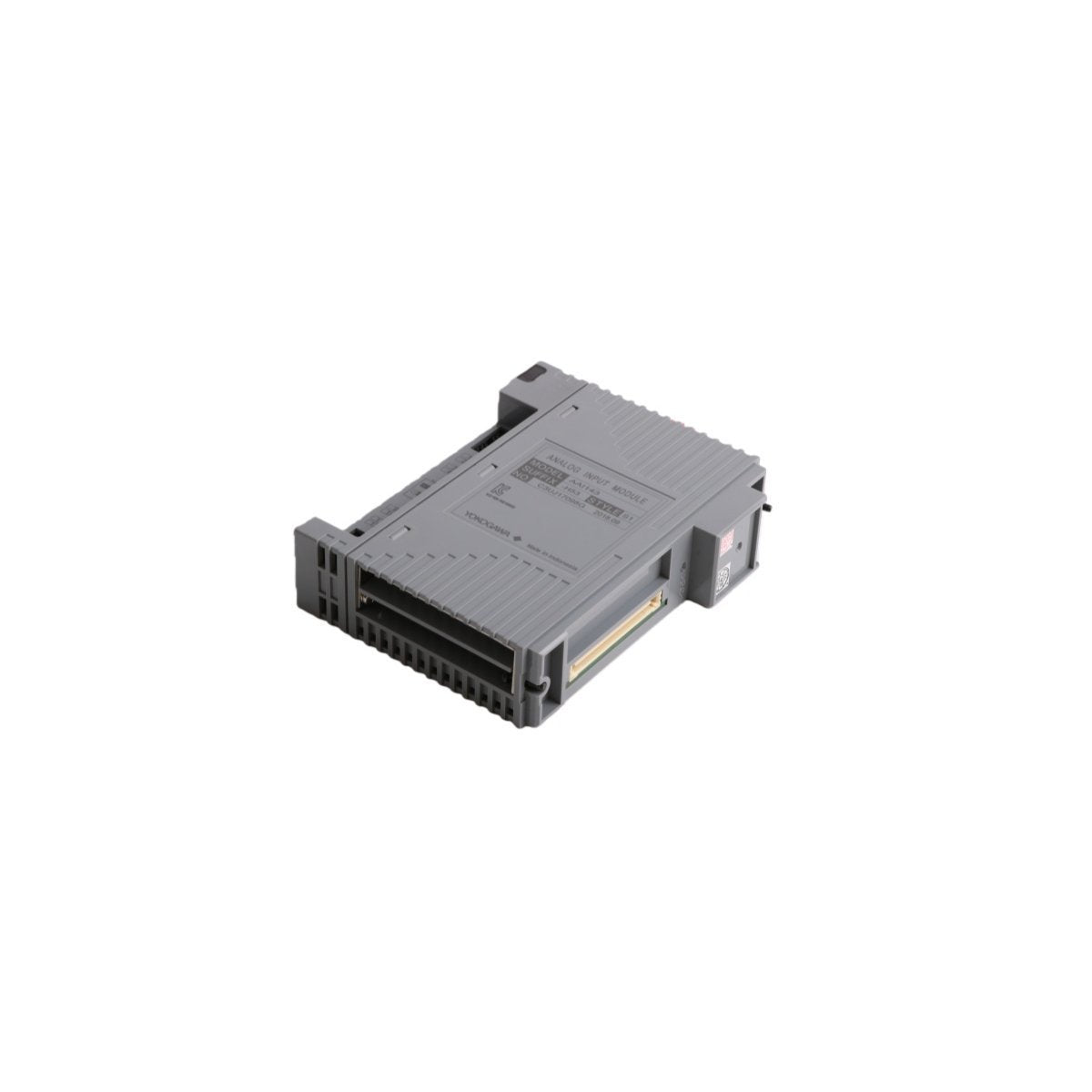

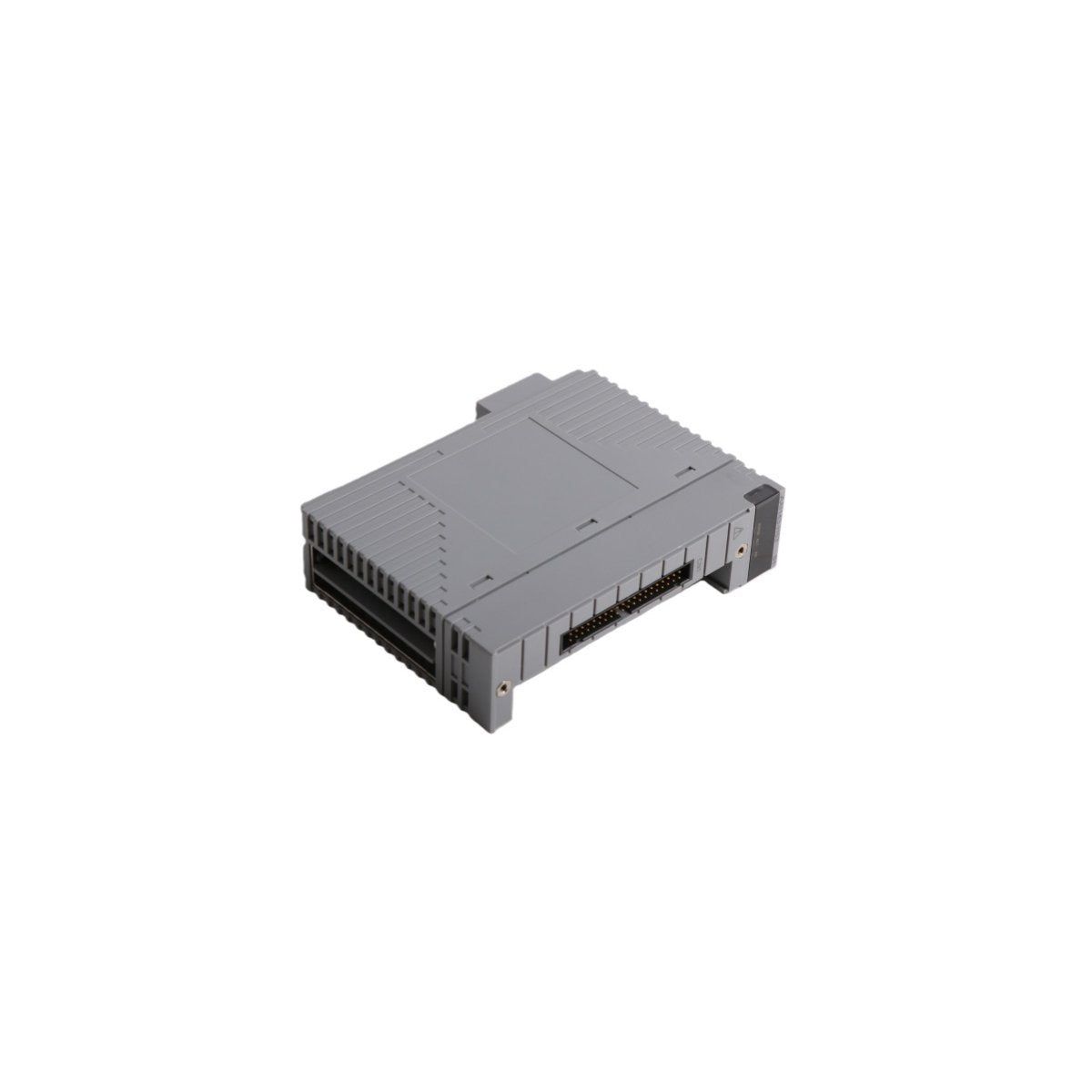

The Yokogawa AAI143-H53 S1 is a high-performance analog input module designed for the CENTUM VP and CS 3000 Distributed Control Systems (DCS). This module provides 16 isolated channels dedicated to capturing 4-20 mA current signals from field transmitters. Engineered for precision and high-speed data acquisition, it serves as a critical interface for monitoring variables such as pressure, temperature, and flow. By utilizing advanced signal conditioning and high-frequency sampling, the AAI143-H53 S1 ensures that the control system receives high-fidelity data, facilitating responsive and stable process regulation in demanding industrial environments.

Technical Characteristics

The AAI143-H53 S1 is built to sustain signal integrity and system uptime through several core engineering features:

Superior Optical Isolation Every channel is equipped with independent optical isolation to prevent the formation of ground loops. This architecture shields the system backplane from field-side electrical surges and high-frequency noise interference, which is essential for maintaining measurement accuracy in plants with large motors or heavy electrical loads.

High-Speed Sampling and Resolution With a 2 kHz sampling frequency, the module is capable of detecting rapid fluctuations in process variables. This high-speed acquisition is paired with 16-bit resolution, providing the granularity needed for sensitive control loops where minor signal deviations can impact product quality or system safety.

Robust Environmental Durability Designed for deployment in diverse climates, the module operates reliably across an extended temperature range of -20°C to +70°C. Its ruggedized internal circuitry is treated to withstand up to 95% non-condensing humidity, ensuring longevity in non-climate-controlled enclosures typical of offshore or remote field stations.

Flexible Integration and Compliance The module supports hot-swappable installation, allowing for maintenance without interrupting the operation of other I/O modules on the same rack. It complies with major international safety and quality standards, including CE and UL, making it a globally recognized solution for mission-critical automation.

Technical Specifications

• Brand: Yokogawa

• Model Number: AAI143-H53 S1

• Product Type: Current Input Module

• Channels: 16 (Isolated)

• Input Signal: 4 to 20 mA DC

• Sampling Frequency: 2 kHz

• Isolation: Optical isolation (Channel-to-System)

• Power Supply: 24V DC (Common)

• Operating Temperature: -20 to +70 °C

• Dimensions: 3.3 x 10.7 x 13.0 cm

• Weight: 0.3 kg

• Origin: Japan

Application Areas

The Yokogawa AAI143-H53 S1 is a staple component in process industries where signal reliability is paramount:

• Oil and Gas: Real-time monitoring of pipeline pressure and separator levels.

• Chemical Processing: Precise temperature acquisition for exothermic reactor control.

• Power Generation: Tracking secondary variables in boiler and turbine auxiliary systems.

• Water Treatment: Integrating flow and pH transmitters across distributed facilities.
