Product Overview

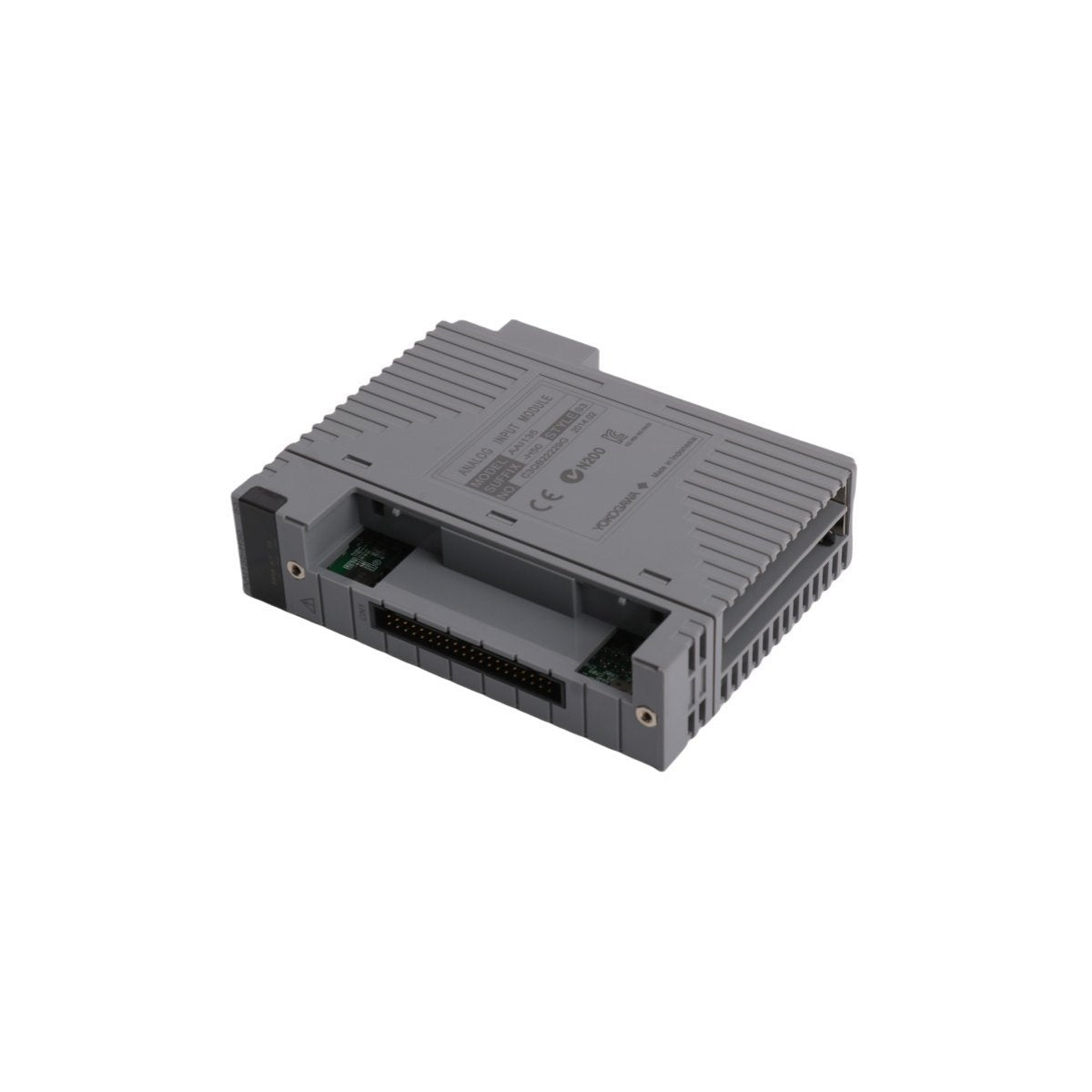

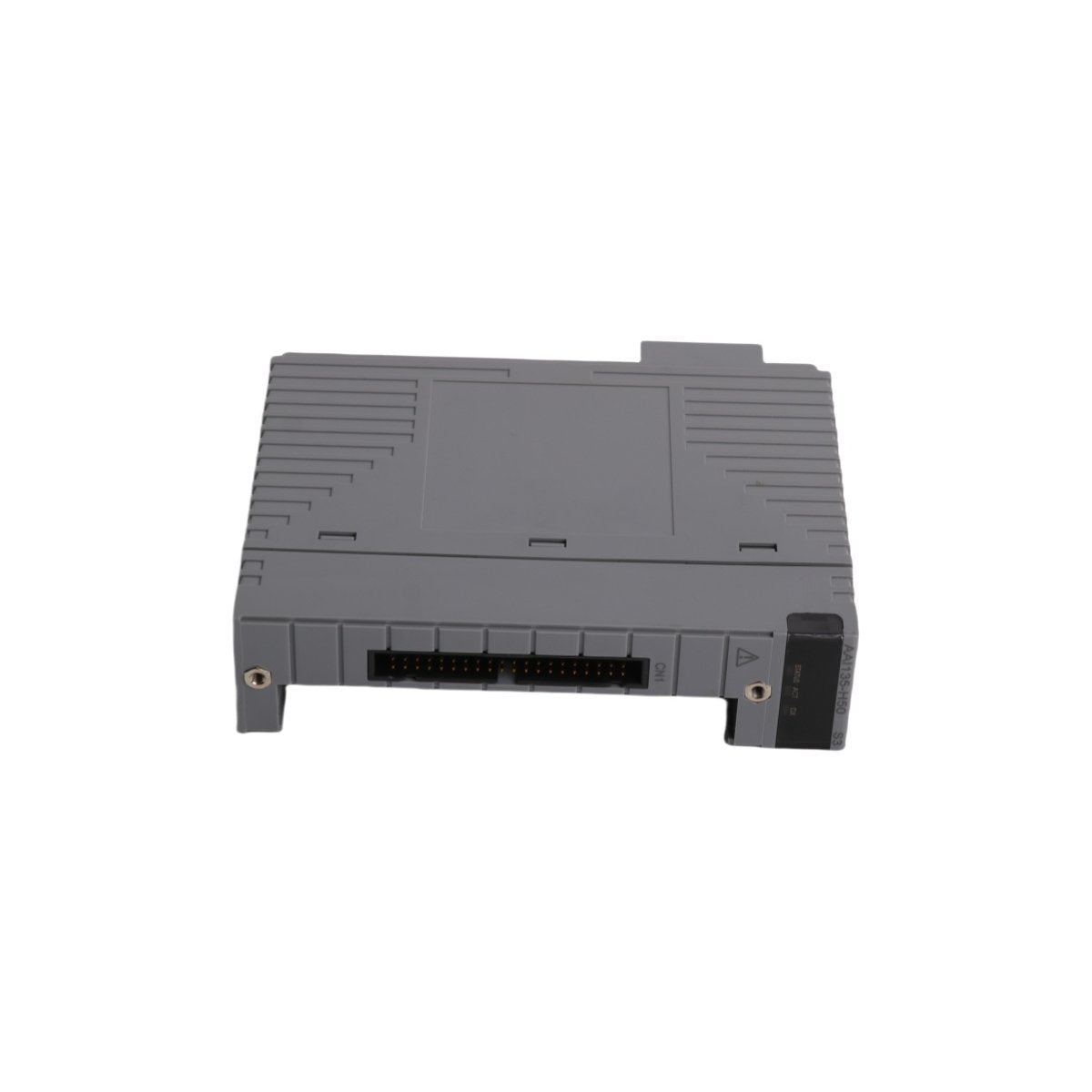

The Yokogawa AAI143-H50 S1 is a premium-grade analog input module engineered for the CENTUM VP Distributed Control System (DCS). This high-density module features 16 isolated channels designed to interface with 4-20 mA current loops. Beyond standard analog signal acquisition, it incorporates full HART 7 protocol compatibility, allowing the system to extract secondary process variables and diagnostic data from smart field instruments. With an industry-leading accuracy of ±0.05%, the AAI143-H50 S1 provides the precise data foundation required for advanced process control and asset management in critical industrial environments.

Technical Characteristics

The AAI143-H50 S1 is distinguished by its high-fidelity signal processing and robust hardware architecture:

Advanced Isolation and Noise Immunity To maintain signal integrity in harsh electromagnetic environments, this module utilizes a triple-isolation design. Each channel is galvanically isolated from the others, the field side is isolated from the system backplane, and the power circuitry is decoupled. This prevents ground loop errors and protects the DCS from field-side transients.

Smart Instrument Integration via HART 7 The module acts as a bridge for digital communication, supporting HART 7 pass-through. This enables plant operators to perform remote configuration, calibration, and health monitoring of smart transmitters directly from the maintenance station, significantly reducing the need for field-based inspections.

High-Availability Design The AAI143-H50 S1 supports dual-redundant configurations, ensuring that a single module failure does not disrupt the process loop. Its hot-swappable architecture allows for online replacement, meaning faulty units can be swapped without powering down the I/O rack or interrupting active control strategies.

Real-Time Diagnostics A front-facing multi-color LED matrix provides immediate visual status for every channel. Combined with internal system diagnostics, it allows for rapid identification of loop errors, such as wire breaks or short circuits, minimizing mean time to repair (MTTR).

Technical Specifications

• Brand: Yokogawa

• Model Number: AAI143-H50 S1

• Product Type: Analog Current Input Module

• Channels: 16 (Isolated)

• Input Signal: 4 to 20 mA DC

• Protocol Support: HART 7 (Digital Communication)

• Accuracy: ±0.05% of span

• System Compatibility: CENTUM VP / CS 3000 (FIO System)

• Power Consumption: Low-wattage optimized design

• Weight: 0.18 kg

• Dimensions: 3.2 x 10.6 x 13 cm

• Origin: Japan

Application Areas

The Yokogawa AAI143-H50 S1 is a standard-tier component for precision-reliant sectors:

• Petrochemical Refining: Precise monitoring of pressure and flow transmitters in volatile zones.

• Power Generation: Data acquisition for steam cycle analysis and boiler control.

• Chemical Processing: Real-time tracking of reactor temperatures and reagent levels.

• Water & Energy: Centralized management of distributed smart flow meters and analytical sensors.
