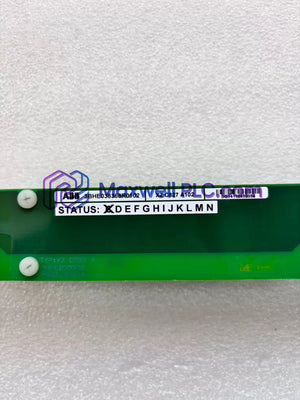

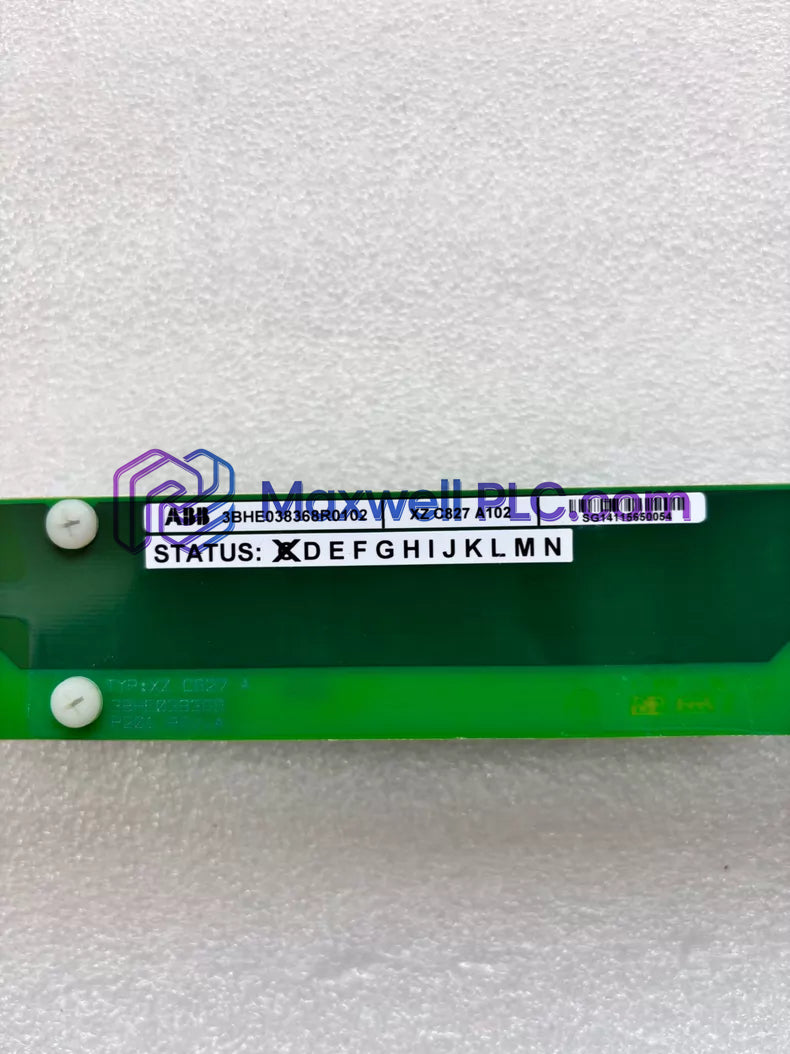

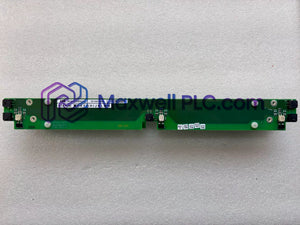

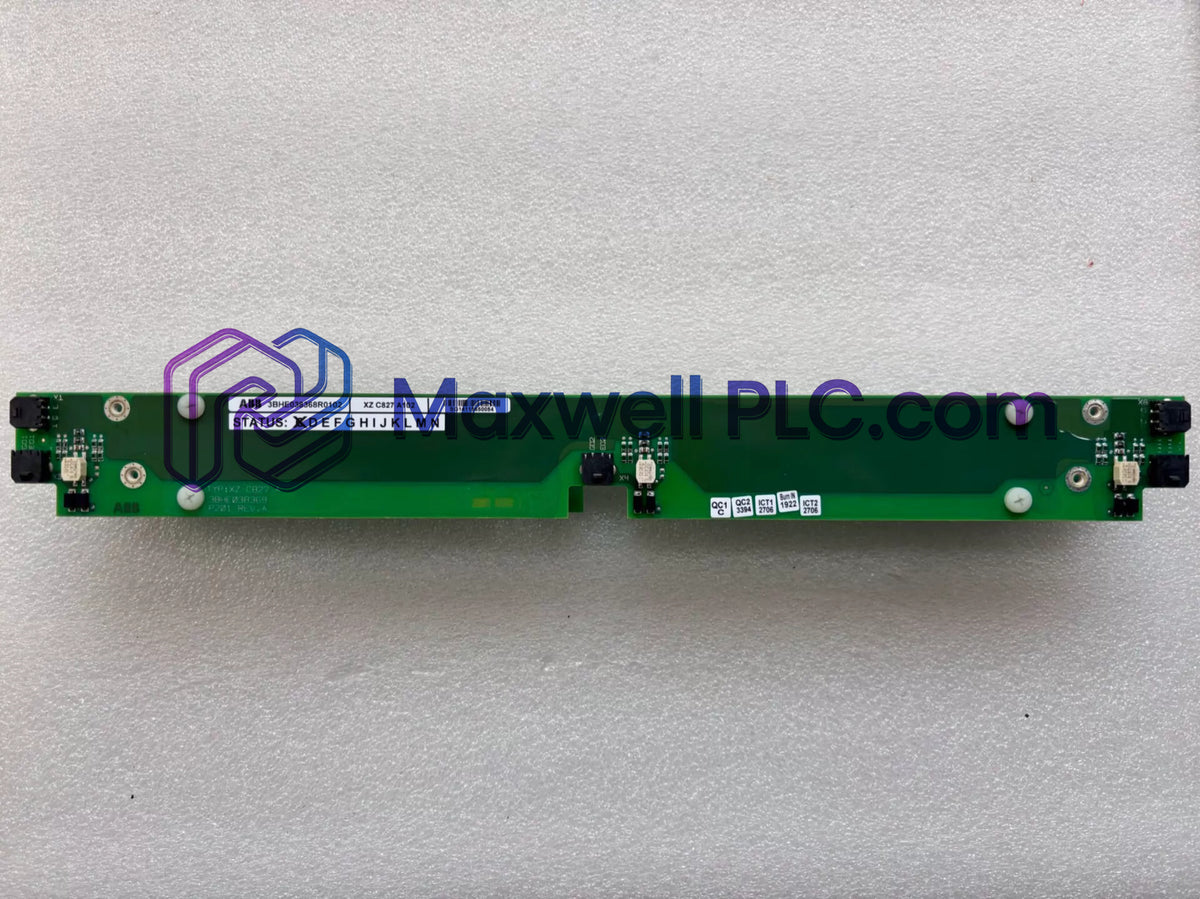

Configured for high-speed algorithm execution and system task processing in AC 800PEC platforms, the ABB XZ C827 A102 3BHE038368R0102 (XZ C827 A102 Control Board) provides direct physical/electrical execution.

Component Designations & System Architecture

The ABB XZ C827 A102 3BHE038368R0102 integrates processing hardware designed for high-performance closed-loop regulation:

• XZ C827 A102: Base hardware identification for the main processing control board assembly.
• 3BHE038368R0102: Specific factory order number for the populated PCB unit.
• High-Speed Onboard Memory: Integrated 512 MB to 1 GB RAM for dynamic variable processing and 2 to 4 GB non-volatile flash memory for OS/application storage.
• AC 800PEC Integration: Form-factor compatibility engineered for direct installation into AC 800PEC processing racks.

Physical and Electrical Specifications

Bus Communication Speed & System Synchronicity

The control board communicates over internal bus channels maintaining rapid backplane bus communication velocity across system modules. Compatible with Profinet / EtherNet/IP deterministic networks, the hardware facilitates synchronized deterministic control cycles. High I/O density scaling and direct firmware flash compatibility ensure uninterrupted program execution, low latency signal processing, and continuous diagnostic monitoring across field units.

Package Delivery Contents

• 1 x ABB XZ C827 A102 3BHE038368R0102 Control Board
• 1 x Anti-static ESD protection shield
• 1 x Factory hardware installation guide

Chassis Mounting & Field Wiring Directives

• Electrostatic Precaution: Wear a grounded ESD wrist strap before handling or inserting the control board assembly.
• Rack Mounting: Slide the PCB module evenly along the subrack card guides and seat backplane pins without applying lateral force.
• Power Supply Integrity: Ensure the 24 VDC main power supply remains within the nominal +/-10% operating tolerance.
• Shield Grounding: Ground all shielded communication cables directly at the cabinet grounding bar to mitigate electromagnetic interference.

Frequently Asked Questions

• What supply voltage range does the XZ C827 A102 control board require?

  The board operates on a 24 VDC nominal supply voltage with an allowable operational tolerance of +/-10%.

• What is the typical power dissipation of the 3BHE038368R0102 board?

  Under normal operational conditions, the board draws a typical power consumption of 5 W to 10 W.

• What memory capacities are built into the XZ C827 A102 control board?

  The unit incorporates 512 MB to 1 GB of system RAM alongside 2 GB to 4 GB of non-volatile flash storage.

• What operating temperature range is supported by the hardware?

  The control board is rated for continuous operation in ambient temperatures ranging from -20 to +70 deg C.

• Can the control board be inserted while the rack power is active?

  No. Subrack 24 VDC power must be disconnected before installing or removing the board to prevent backplane damage.

• What is the net weight of the XZ C827 A102 module?

  The standalone control board unit has a physical weight of 2.82 kg.

• How is electrical noise suppressed on communication lines connected to the board?

  Noise suppression is managed via internal ground planes and external shielded cable bonding directly to cabinet busbars.

• Which system series uses the XZ C827 A102 3BHE038368R0102 board?

  This control board is specifically engineered for integration into the ABB AC 800PEC controller architecture.
