Product Overview

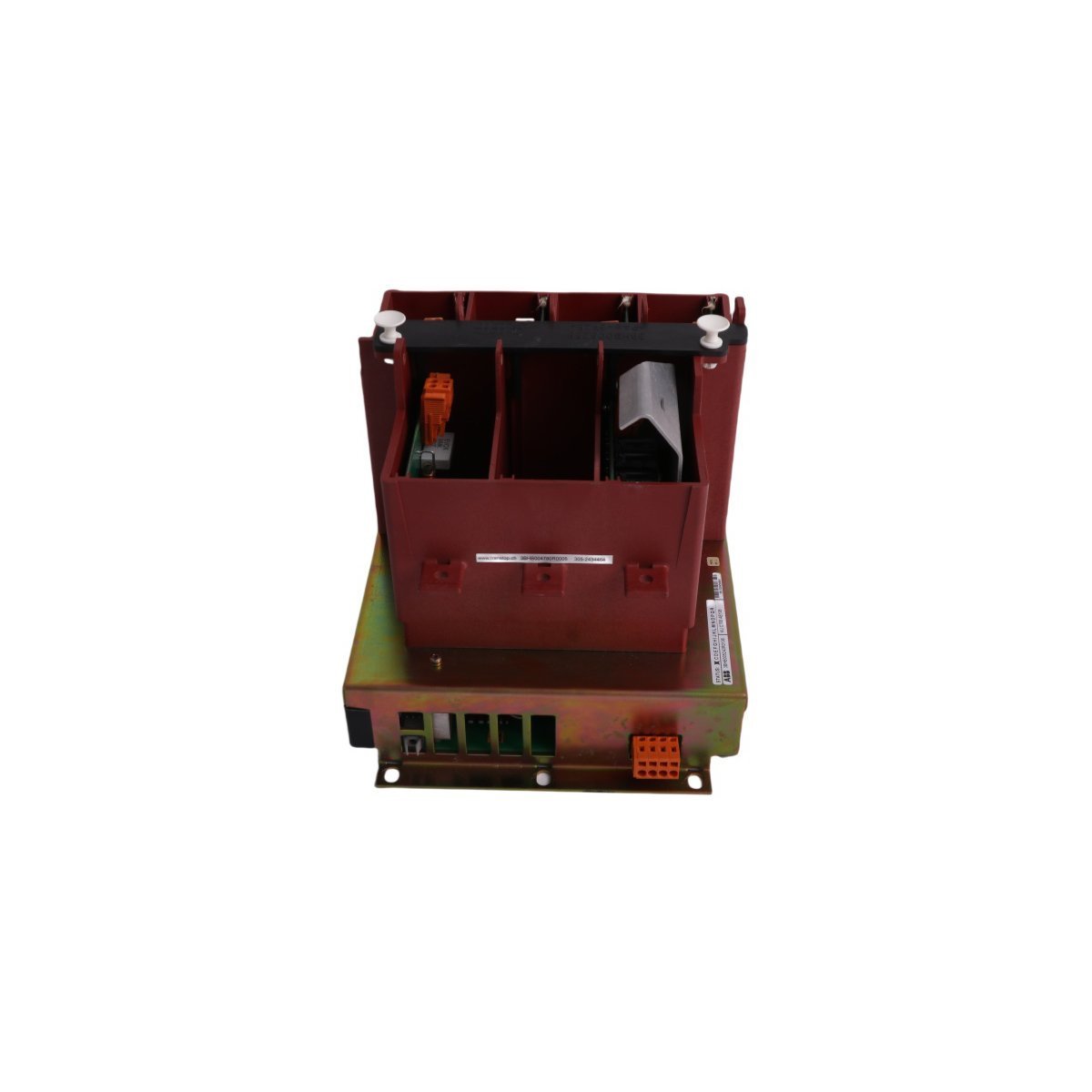

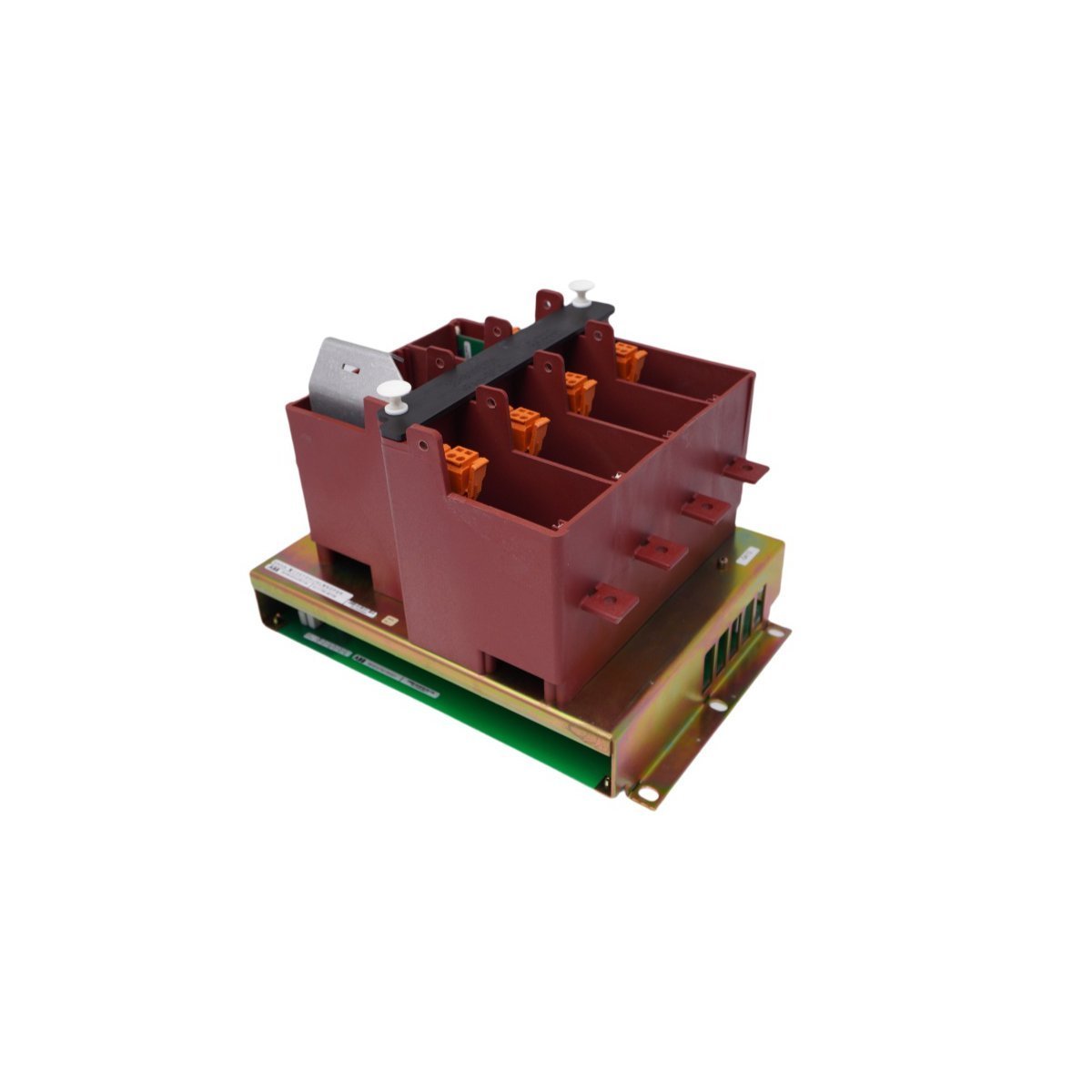

The ABB XVC768AE101, identified by the manufacturing part number 3BHE007211R0101, is a specialized precision sensing module developed for the Advant DCS 800xA ecosystem. This circuit board assembly is dedicated to the real-time supervision of electrical currents within industrial power distribution and control circuits. By providing high-accuracy monitoring, the XVC768AE101 acts as a safeguard against overcurrent conditions, enabling automated systems to take corrective actions before equipment damage occurs. Engineered for seamless integration with ABB’s distributed control platforms, it delivers the stability and deterministic feedback required for mission-critical process protection and energy management.

Critical Hardware Metrics and Performance Data

The XVC768AE101 is characterized by its ultra-lightweight design and versatile serial communication capabilities, allowing for flexible mounting and network integration.

• Mass: 0.12 kg

• Physical Dimensions: 17.4 x 8.6 x 1.8 cm

• Supply Voltage: 24V DC

• Serial Interfaces: RS-232 and RS-485 supported

• Thermal Operating Envelope: 0°C to 60°C

• Network Integration: Fully compatible with Ethernet router communication services

• System Architecture: Advant OCS / 800xA

• Manufacturing Origin: Sweden

• Standard Compliance: Industrial EMI/RFI resistance for control rack deployment

This module utilizes a low-profile 1.8 cm thickness, making it ideal for high-density control panels where space is at a premium. Its dual-interface serial support ensures it can communicate directly with legacy PLCs or modern sensors within a unified automation network.

Strategic Industrial Implementations

The 3BHE007211R0101 XVC768AE101 is a fundamental component for facilities prioritizing electrical safety and operational continuity.

• Power Distribution Monitoring: Tracking load currents in switchgear and distribution boards to ensure balanced phase loading.

• Predictive Maintenance: Analyzing motor current signatures to detect early signs of mechanical wear or winding degradation.

• Energy Management Systems: Providing precise current data to DCS controllers for real-time power consumption analytics.

• Process Automation Protection: Acting as a high-speed feedback loop for pumps, fans, and compressors in chemical processing and manufacturing.

Q: What is the primary function of the XVC768AE101 within an 800xA system?

A: It serves as a specialized input module that monitors electrical current levels, converting physical measurements into data that the control system uses for process protection and load management.

Q: Which communication protocols are natively supported by this board?

A: The module is equipped with both RS-232 and RS-485 interfaces, allowing for versatile connectivity with various field devices, smart sensors, and centralized controllers.

Q: How does the lightweight 0.12 kg design benefit installation?

A: Its minimal mass and compact dimensions allow for effortless mounting in crowded equipment racks and control panels without placing significant mechanical stress on the mounting rails or backplane.

Q: Can this current monitor board operate in high-temperature environments?

A: The XVC768AE101 is rated for stable operation up to 60°C, making it suitable for use in standard industrial control rooms and ventilated electrical cabinets.

Q: Does the module require an external power source?

A: Yes, the board operates on a standard 24V DC industrial power supply, which is the typical voltage found within ABB Advant OCS and 800xA control cabinets.
