Product Overview

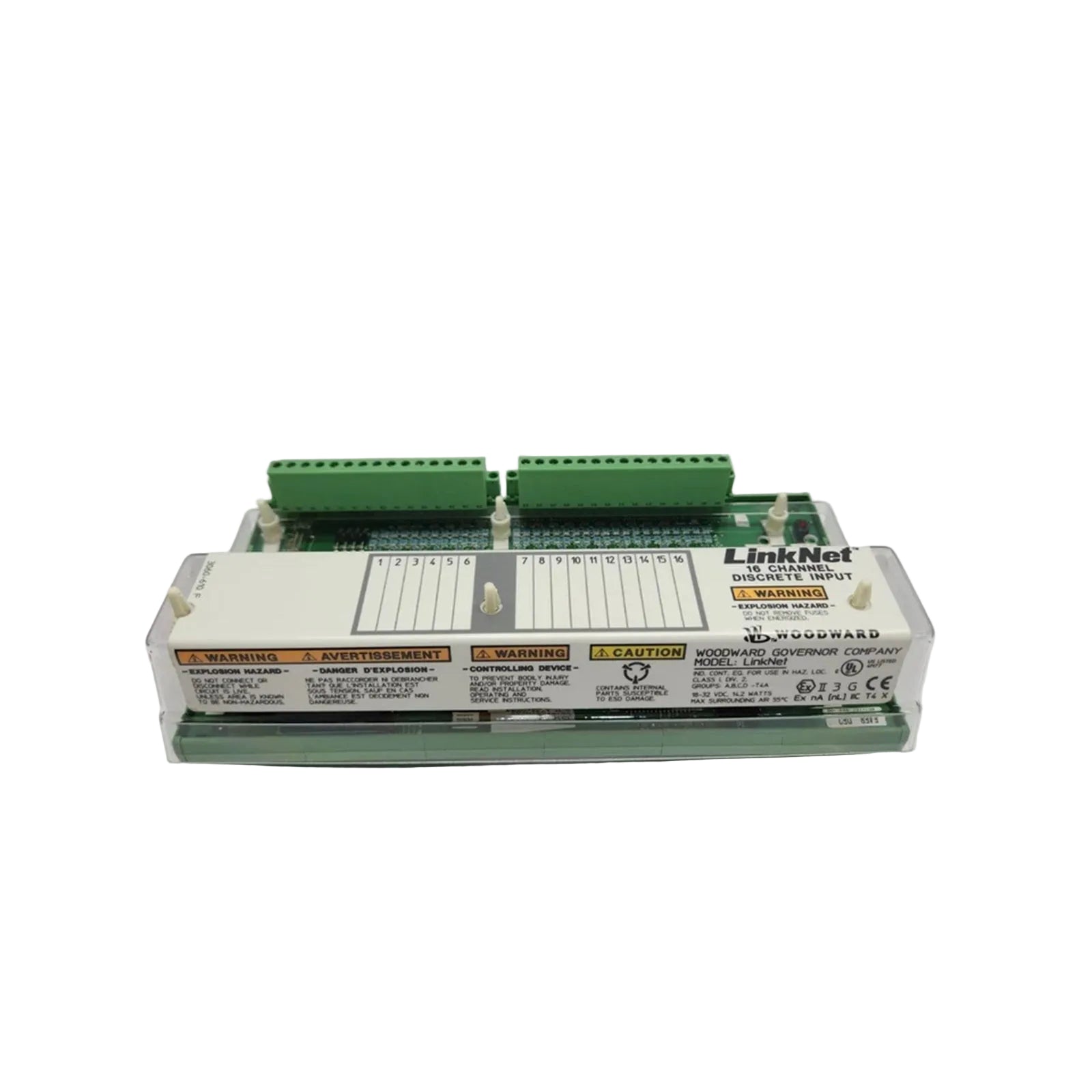

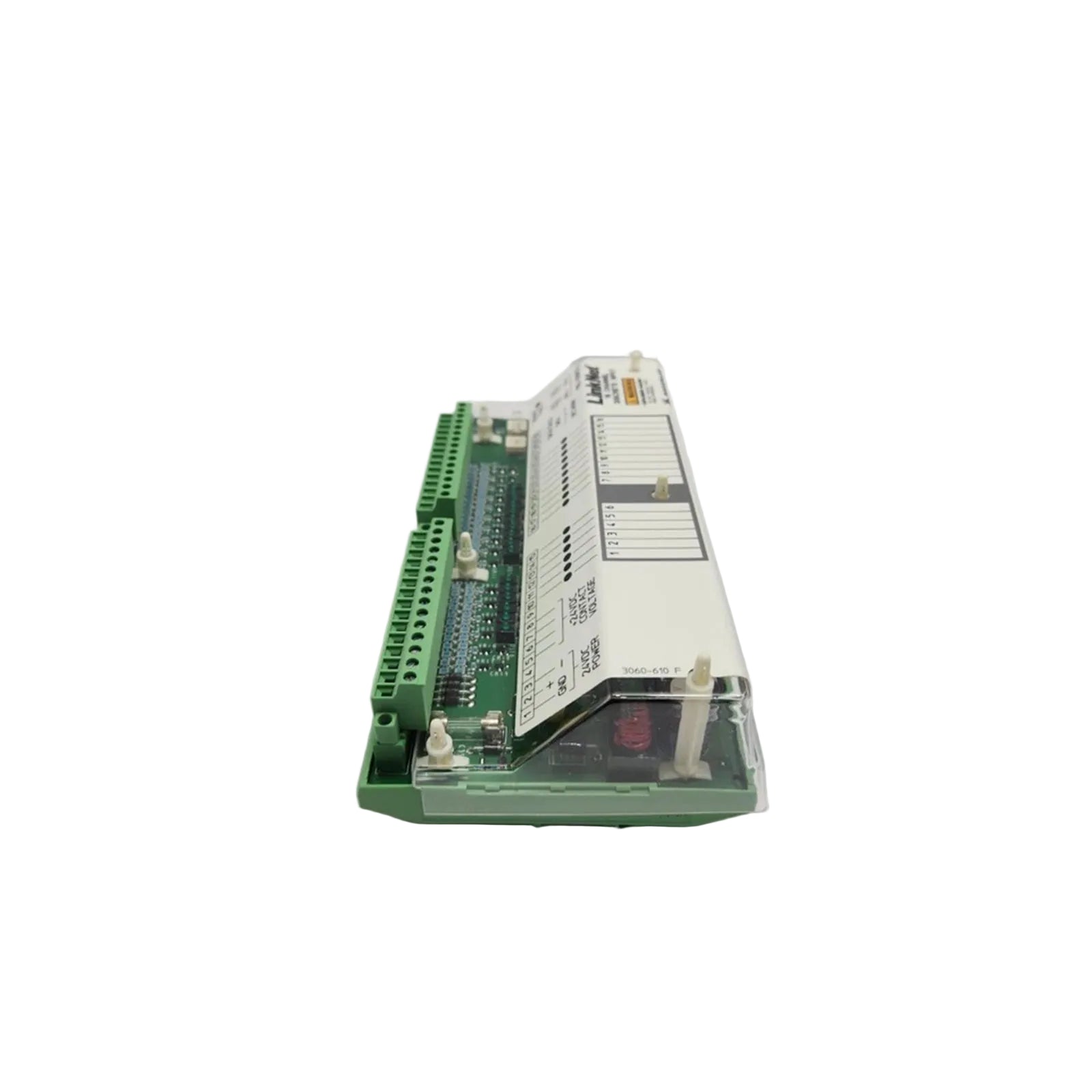

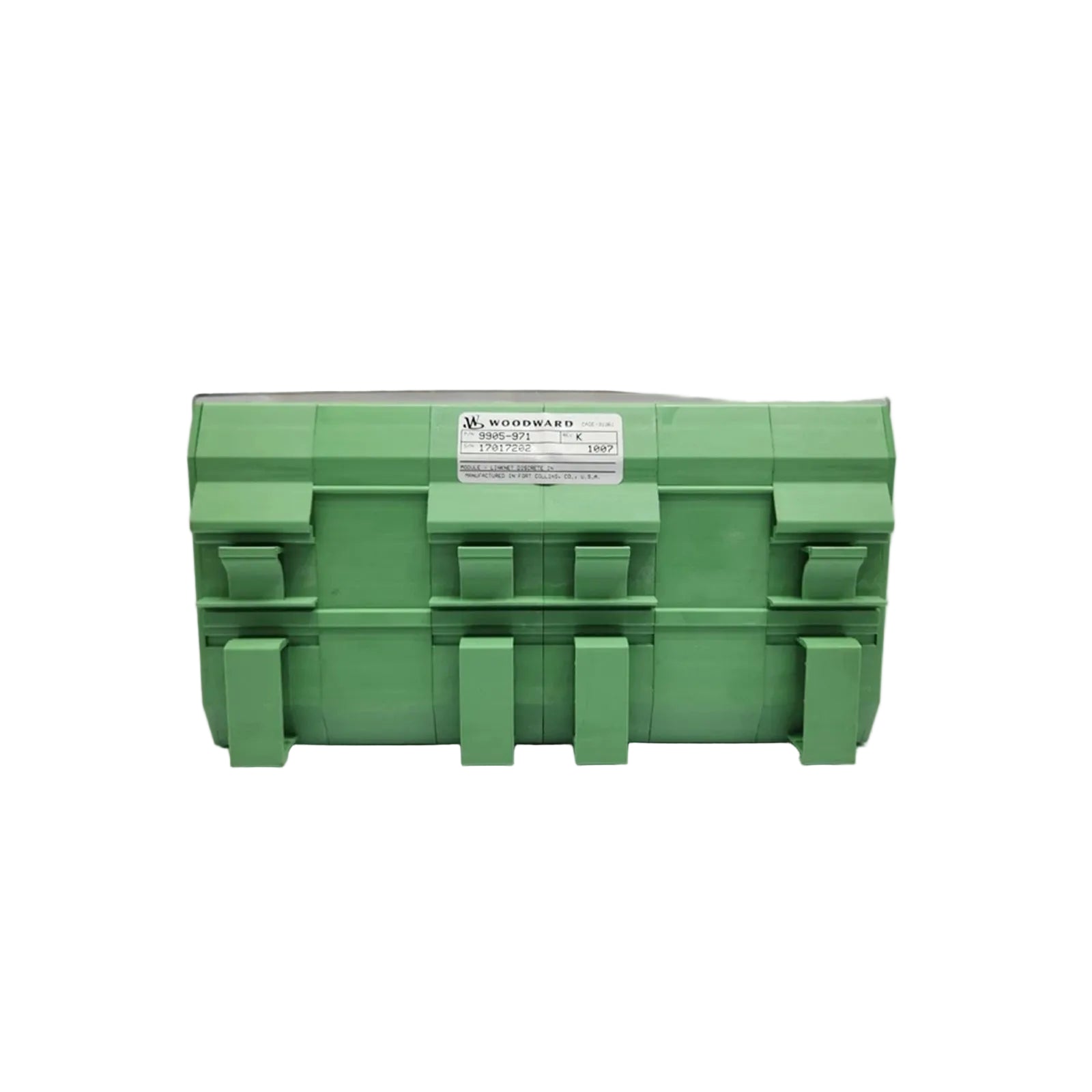

The Woodward 9905-971 serves as a high-speed intelligence node within the LON LINKNet distributed I/O network, specifically engineered for mission-critical turbine and engine control environments. This module excels in monitoring the operational states of large-scale rotating machinery, where millisecond-level precision in signal acquisition is mandatory for safety and sequencing. By offering 24 discrete input channels with an ultra-fast 5 ms update time and 1 ms resolution time-stamping, the 9905-971 captures transient events that standard I/O modules might miss. This high-fidelity data acquisition allows plant operators to perform precise sequence-of-events (SOE) analysis, ensuring that trip conditions in reciprocating compressors or steam turbines are diagnosed with absolute chronological accuracy.

Core Technical Advantages

The hardware architecture of the 9905-971 prioritizes fault tolerance and system integrity through advanced latent fault detection. Unlike conventional input modules, this unit features integrated readback circuitry that continuously monitors the state of relay contacts without disrupting active control operations.

The module utilizes a 24 Vdc contact wetting voltage, which can be sourced internally or from an external power supply to maintain signal clarity over long cable runs. Each discrete input is fully isolated, necessitating a common reference point that prevents ground loops and electrical interference from contaminating the control logic. Furthermore, the redundant relay output design ensures that contacts open and close in pairs. This mechanical redundancy guarantees that a single relay failure won't cause an accidental change of state, providing the "fail-safe" reliability required for high-availability industrial processes.

Technical Specifications

Installation & Engineering Guide

Achieving the rated 1 ms time-stamping accuracy with the Woodward 9905-971 requires careful attention to wiring topology. Engineers must establish a solid common reference point between the isolated inputs and the contact power source to ensure reliable signal transitions. We recommend using shielded twisted-pair cabling for all 24 channels to mitigate the effects of electromagnetic interference (EMI) generated by nearby high-voltage machinery.

During installation into the LINKNet network, ensure the LON communication wires are properly terminated to prevent signal reflections that could lead to data dropouts. For fault-tolerant setups, verify that the latent fault detection software parameters are correctly configured in the main controller to utilize the module’s readback reports. When mounting, maintain adequate spacing for airflow to ensure the module stays within its -40°C to +70°C operating window, particularly in high-density control cabinets.

Engineering Advantages

The 9905-971 offers superior durability for demanding industrial sectors like offshore oil and gas and power generation. Its ability to detect relay failures before they impact the process—known as latent fault detection—provides a layer of predictive maintenance that standard discrete modules lack. This unit integrates seamlessly with Woodward's Turbo System Integrity (TSI) strategies, providing the ruggedized I/O interface needed for reliable overspeed protection and emergency shutdown (ESD) sequences. Its rapid response and industrial-grade isolation make it a "plug-and-play" upgrade for aging control systems requiring enhanced diagnostic capabilities.

Delivery & Logistics

We maintain a consistent inventory of the 9905-971 to support your urgent replacement and expansion projects.

• Delivery Time: 3-5 business days upon payment completion.

• Shipping Partners: Fast global transit via DHL, FEDEX, or UPS.

• Quality Status: Brand New, Factory Sealed in original Woodward export packaging.

Technical FAQs

Q1: What is the benefit of 1 ms time-stamping on this module?

A1: It allows for highly accurate Sequence of Events (SOE) logging. If a turbine trips, you can determine exactly which sensor triggered first, even if multiple events happen within the same 5ms update cycle.

Q2: Can I use an external 24Vdc power source for contact wetting?

A2: Yes, the 9905-971 supports both internal and external 24 Vdc power sources for contact wetting, provided a common reference point is established.

Q3: What happens if the readback circuitry detects a relay error?

A3: The circuitry reports the error to the main controller and halts further testing of that specific relay to prevent accidental state changes, while allowing the rest of the control operation to continue unaffected.

Q4: Is the module suitable for high-vibration environments?

A4: Absolutely. Woodward designs the LINKNet series for installation on or near heavy industrial machinery, utilizing ruggedized connectors and solid-state components to resist mechanical stress.
