Product Overview

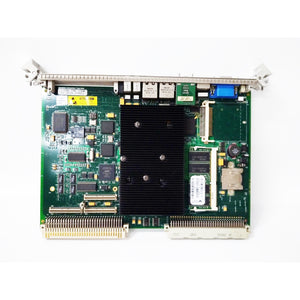

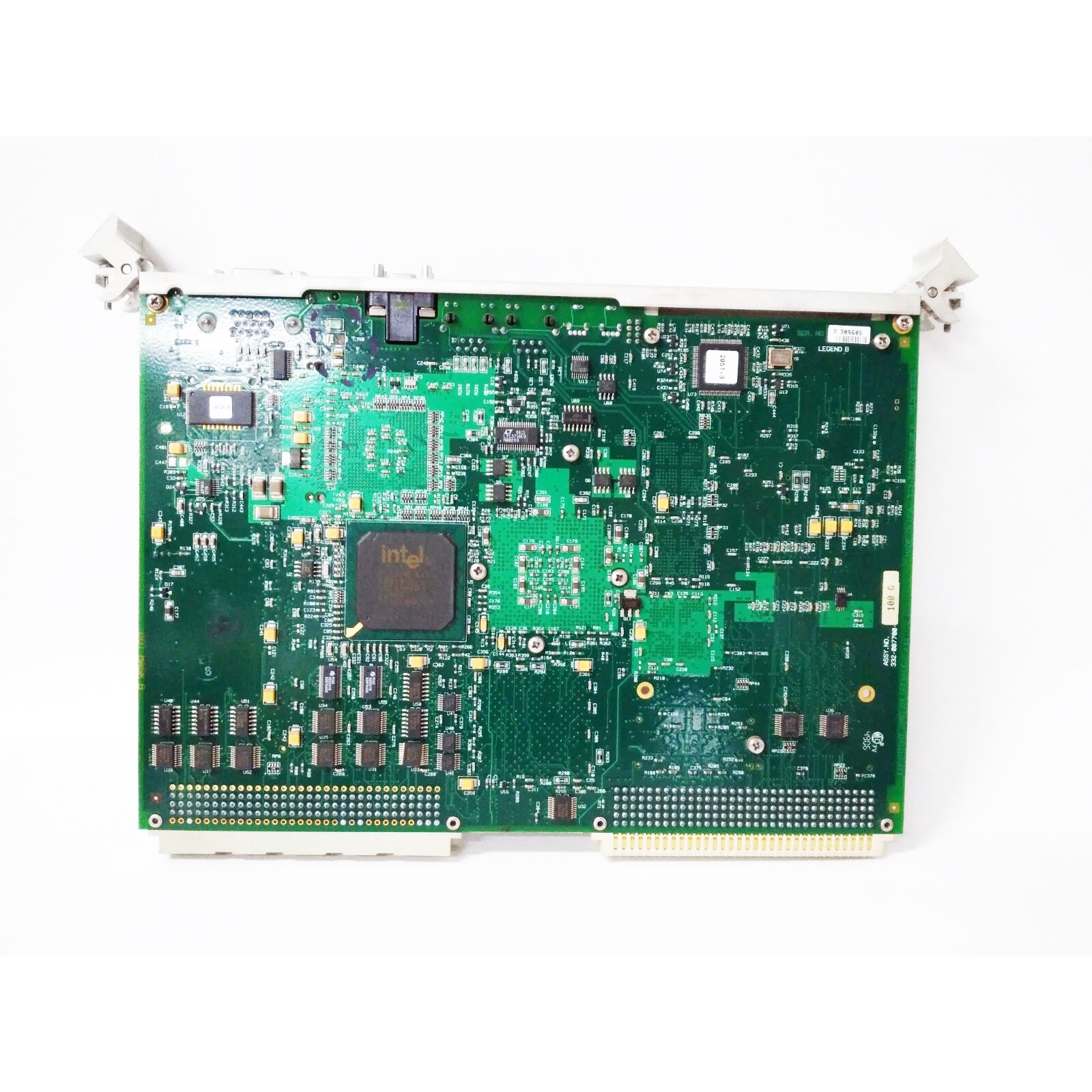

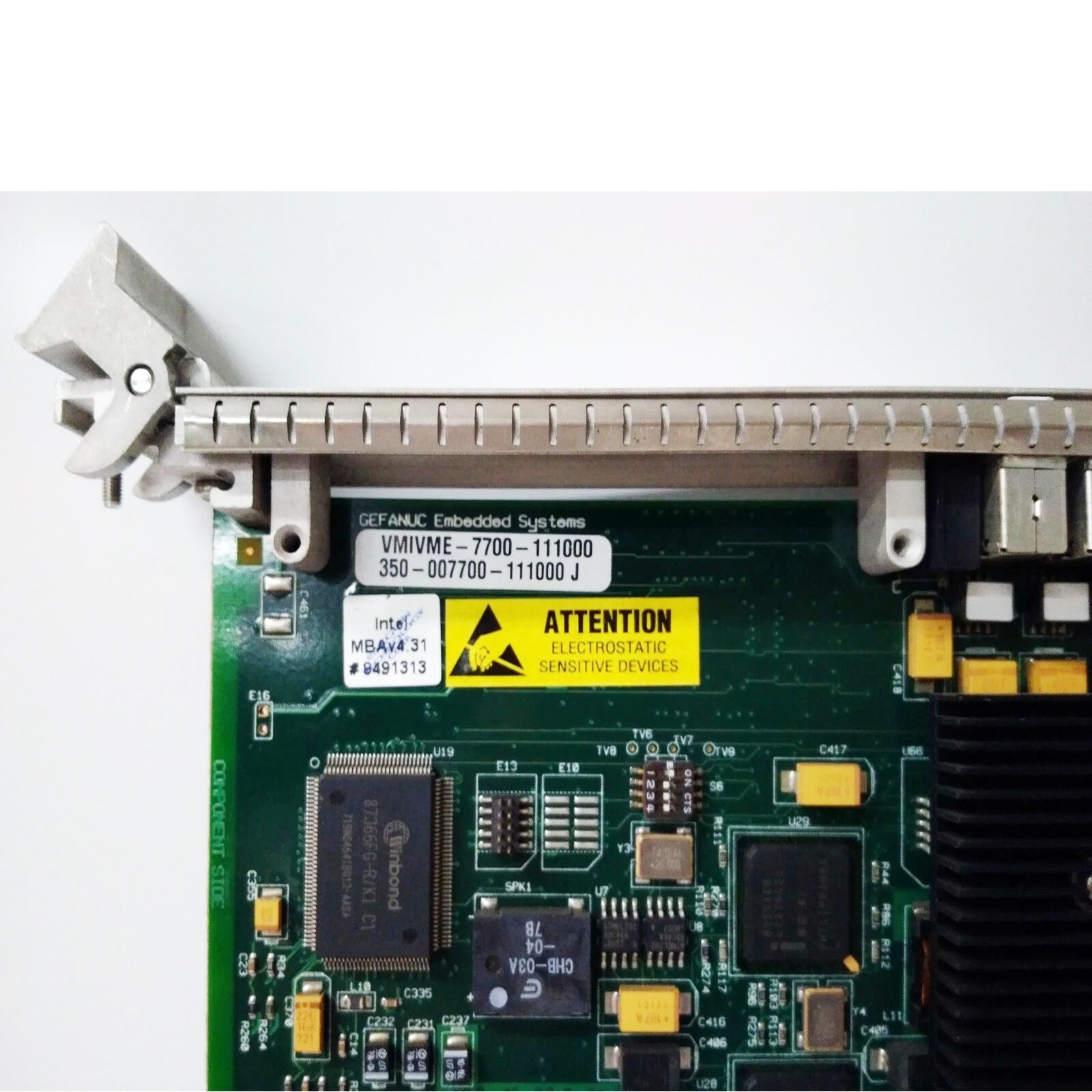

The VMIVME-7700-111000 is a high-reliability 6U Single Board Computer (SBC) developed by GE VMIC (now Abaco Systems) for the VMEbus architecture. Engineered to provide a balanced combination of low power consumption and robust computational performance, this module utilizes the Intel Ultra-Low Voltage (ULV) Celeron processor. It serves as a central processing hub in embedded systems, featuring a fanless design that eliminates mechanical failure points. With its extensive I/O suite and high-speed VME64 bridge, the VMIVME-7700-111000 is a preferred choice for long-lifecycle industrial and defense projects requiring a stable x86-based computing platform within a ruggedized VME chassis.

Hardware Parameters and Component Specifications

The VMIVME-7700-111000 is built upon the Intel 815E chipset, offering a comprehensive array of legacy and modern interfaces suited for industrial automation and data acquisition.

• CPU Architecture: Intel ULV Celeron (Model-specific frequencies) with 100MHz Front-Side Bus.

• Core Chipset: Intel 815E with integrated graphics.

• Memory Resources: Supports up to 1GB SDRAM; includes 32KB of non-volatile SRAM (NVRAM) for critical parameter storage.

• Storage Options: Dual-channel ATA-100 IDE interface; support for optional 1GB bootable Flash memory.

• VME Interface: PCI-to-VME bridge supporting VMEbus Rev. C.1 and VME64 modes.

• Video Acceleration: Onboard 64-bit AGP SVGA controller.

• Connectivity Suite:

• 1x 10/100 Mbps Ethernet port.

• 2x USB 1.1 ports for peripheral integration.

• 2x RS-232 Serial ports and 1x Parallel port.

• Expansion: Optional PMC (PCI Mezzanine Card) site for customized I/O expansion.

• Thermal Management: Passive cooling (fanless) architecture.

• Environmental Limits: Industrial grade operating range of -40°C to +85°C.

• Certifications: Compliant with CE, UL, and MIL-STD-202 vibration/shock standards.

Industrial Applications and Operational Use Cases

This VME Single Board Computer is designed for mission-critical deployments where downtime is not an option and environmental conditions are extreme.

• Defense and Aerospace Systems: Utilizing the MIL-STD-202 certification and wide temperature tolerance for flight line testing, radar processing, and shipboard control.

• Industrial Process Automation: Serving as the master controller in VME-based PLC systems for manufacturing plants and heavy machinery.

• Data Acquisition (DAQ): Processing high-speed sensor data through the VME64 backplane and optional PMC modules in research or energy monitoring facilities.

• Legacy System Upgrades: Providing a modern x86 processing path for older VMEbus installations without requiring a complete cabinet overhaul.

• Transportation and Infrastructure: Managing signaling and monitoring systems in railway or maritime environments where high humidity and mechanical shock are present.

The VMIVME-7700-111000 combines the versatility of the x86 instruction set with the extreme durability of the VME form factor, ensuring long-term availability for critical infrastructure.
