Product Overview

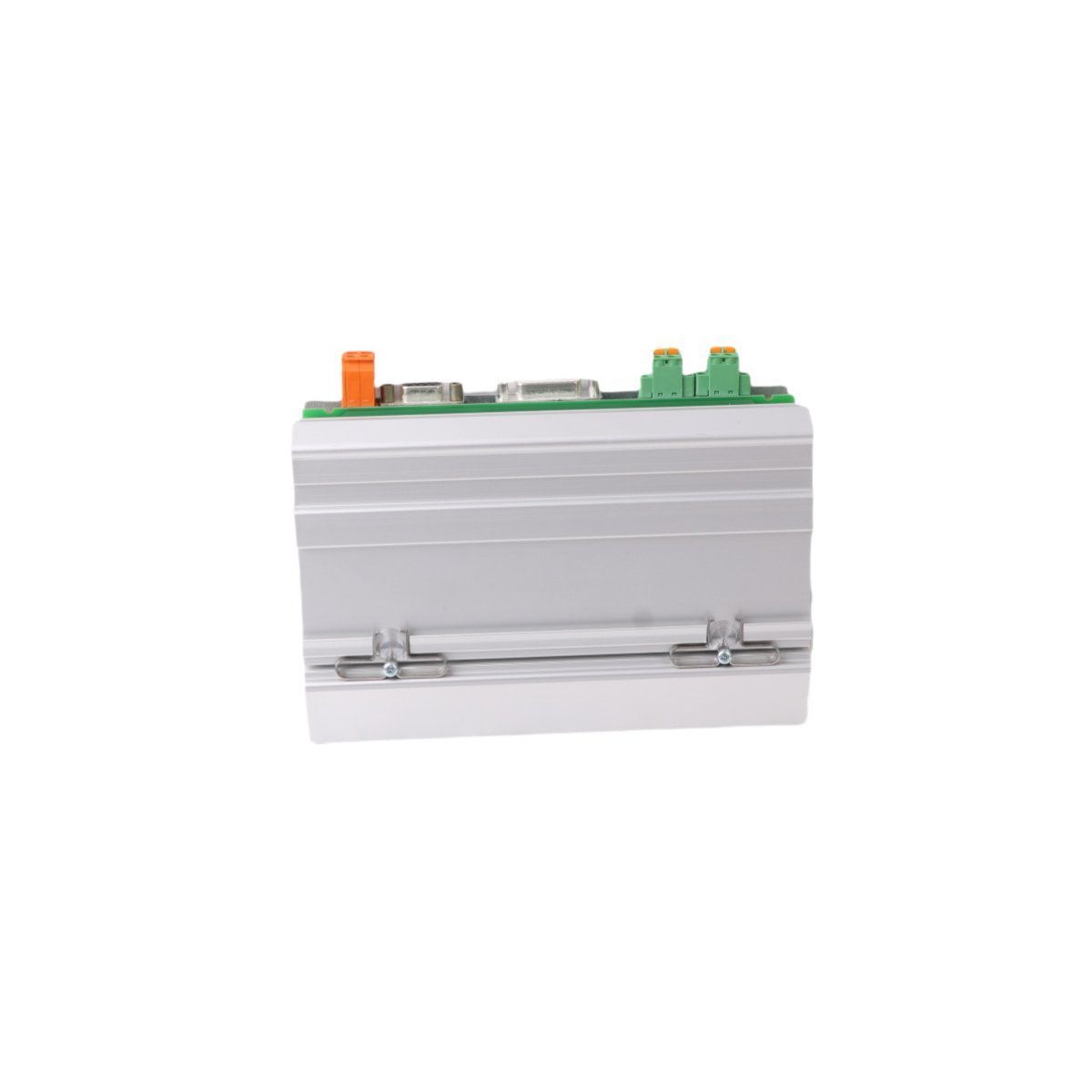

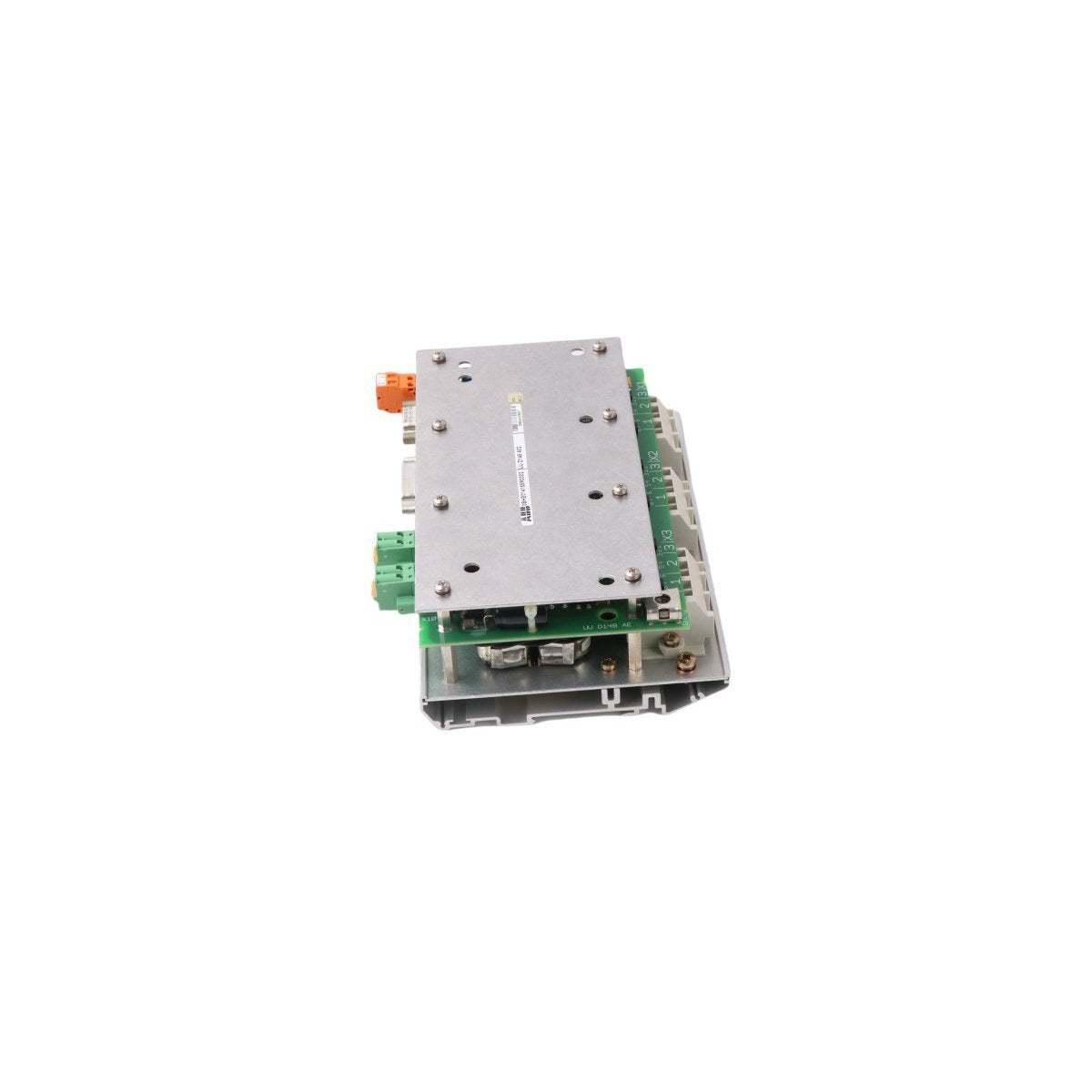

The ABB UUD148AE02, identified by the specific order code 3BHE014185R0002, is a precision-engineered control board designed for current transducer management within UNITROL Excitation Systems. This module acts as the central logic unit for monitoring and regulating electrical current flows in high-capacity industrial environments. By integrating a high-speed computational engine, the UUD148AE02 processes field telemetry in real-time to ensure the stability of excitation current, which is vital for the safe operation of synchronous generators. Its robust architecture is specifically built to handle the electromagnetic demands of power electronics, making it a critical component for Distributed Control System (DCS) synchronization and power plant automation.

Core Hardware Specifications and Metrics

• Component Net Weight: 0.44 kg

• Physical Dimensions: 29.6 x 25.4 x 2 cm

• Processing Throughput: 20 MIPS (Million Instructions Per Second)

• Onboard Memory: 512 KB Flash/RAM for logic execution

• I/O Capacity: 8 Input and 8 Output high-density channels

• Communication Ports: RS-485 Serial and Ethernet Interface

• Manufacturing Origin: Sweden

• Regulatory Compliance: CE and UL Certified

• System Connectivity: Compatible with standard Ethernet router services

• Tariff Code (HS): 8537101190

The UUD148AE02 features an ultra-slim 2 cm profile, allowing for high-density mounting in standard UNITROL control cubicles. The 0.44 kg board is built on a high-grade substrate that minimizes thermal drift, ensuring that the 20 MIPS processing engine remains stable even under peak load. With dual communication interfaces, it facilitates both legacy serial connectivity and modern networked data exchange for comprehensive system oversight.

Industrial Deployment and Logic Applications

The 3BHE014185R0002 UUD148AE02 is a versatile controller utilized across heavy energy and manufacturing sectors. Primary applications include:

• Excitation Current Regulation: Managing the feedback loops from current transducers to maintain precise field current in large-scale power generators.

• Synchronized Data Acquisition: Utilizing 8 input channels to monitor critical operational variables such as transducer thermal profiles and current levels.

• Networked Automation Bridge: Leveraging the onboard Ethernet and RS-485 ports to link field-level actuators with centralized DCS supervisory layers.

• Retrofit System Upgrades: Serving as a modern processing upgrade for older excitation systems to enhance response times and communication bandwidth.

FAQ

Q: What is the primary role of the UUD148AE02 in a power plant environment?

A: The UUD148AE02 processes signals from current transducers to ensure the excitation system provides the exact amount of field current required for generator stability and grid synchronization.

Q: Can this board handle both analog and digital communication?

A: Yes, the module is equipped with an Ethernet port for high-speed digital networking and an RS-485 interface for serial communication with diverse industrial sensors and actuators.

Q: Is the 512 KB memory sufficient for complex automation logic?

A: For the specialized task of current transducer control and excitation logic, 512 KB provides ample space for the high-efficiency code required to run at 20 MIPS.

Q: Does this module require specific mounting hardware for installation?

A: The board is designed to fit standard ABB UNITROL subracks. However, ensure that the 29.6 x 25.4 cm footprint is clear of obstructions within your specific cabinet configuration.

Q: What should be checked if the Ethernet communication fails to link?

A: Initial troubleshooting should involve verifying the IP configuration within the control software and checking the status of the connected Ethernet router or industrial switch.
