Product Overview

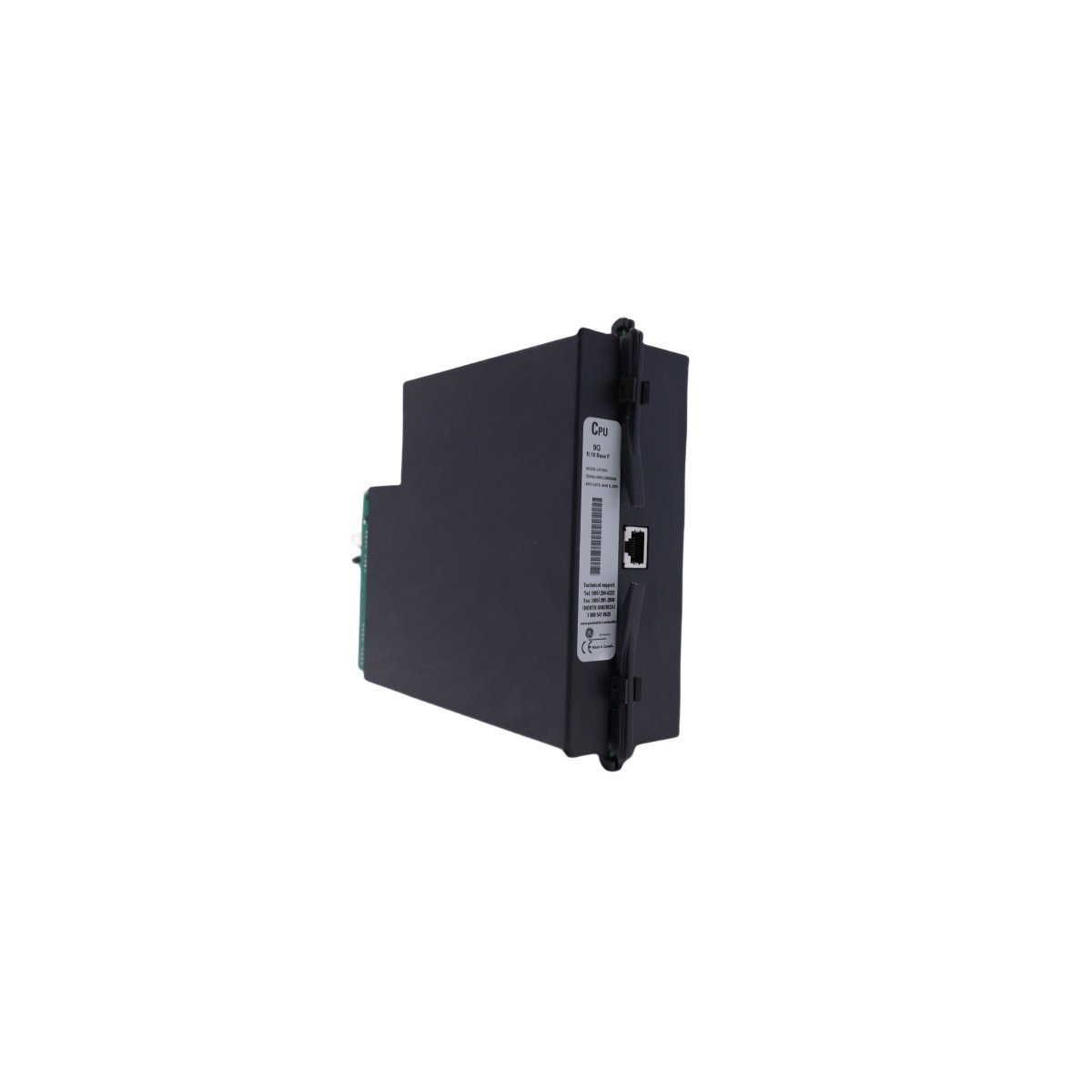

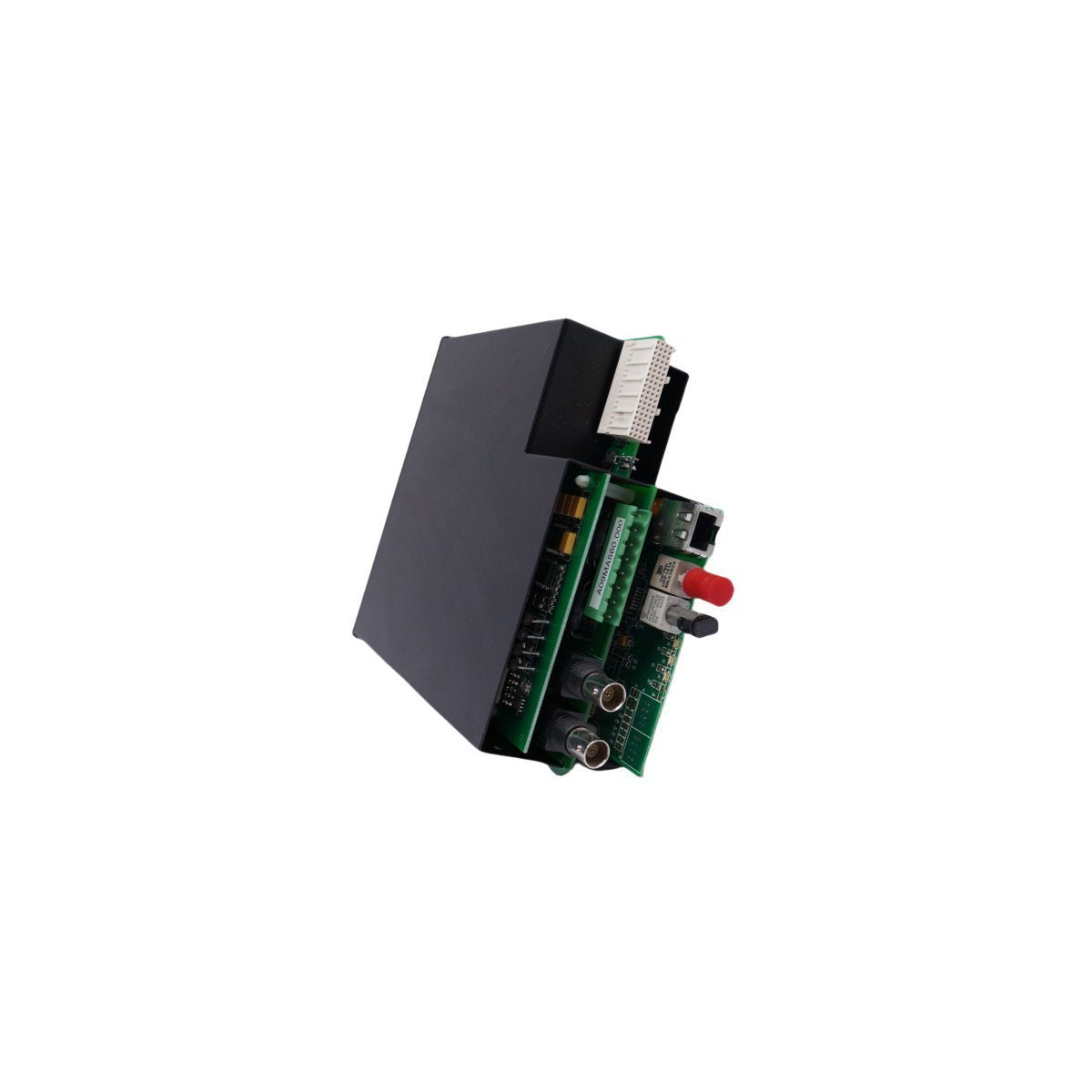

The UR9GH is a processor (CPU) module used in GE Multilin UR Series Universal Relays. It provides the primary computing and firmware execution environment that enables the relay’s protection, control logic, communications handling, and event/time functions. In a UR relay chassis, the CPU module is responsible for coordinating I/O processing, executing configured protection elements, and supporting engineering access for settings, monitoring, and diagnostics.

This module is applied in protection and control panels where UR Series relays are installed for feeder, transformer, motor, generator, or bus protection schemes. Because the UR9GH has a published discontinuation date, it is commonly sourced for installed-base support and maintenance replacement.

Hardware Parameters

• Brand: GE

• Product Family: Multilin UR (Universal Relay)

• Module Category: Processor Module / CPU

• Model / Order Number: UR9GH

• Primary Function: Relay CPU and firmware execution module for UR Series platforms

• System Type: PLC / Protection Relay System

• Communications and Time Features (as described):

• Ethernet networking support for remote access and engineering connectivity (relay configuration dependent)

• Supports redundancy networking concepts such as PRP when implemented in the system design (model and relay dependent)

• IEEE 1588 time synchronization support for precise time alignment on Ethernet networks (configuration dependent)

• Common protocol support may include Modbus TCP and DNP variants when enabled by the relay configuration and firmware

• Physical and Supply Data:

• Condition: Brand New

• Availability: In Stock

• Discontinued On: Dec 31, 2018

• Product Origin: USA

• Minimum Order Quantity: 1

• HS Code: 8537101190

• Weight: 0.84 kg

• Dimensions: 6.0 × 19.5 × 17.2 cm

• Integration Notes:

• Must match the target UR relay chassis type and required communication/feature set

• Firmware revision and feature availability depend on the relay platform, application package, and configuration tools used

• Settings, communications, and monitoring are typically managed through UR engineering software environments

Industrial Applications

• UR Series protection relays in utility and industrial switchgear lineups

• Feeder, transformer, motor, and generator protection schemes using UR relay platforms

• Substation modernization programs maintaining UR installed bases

• Control panels requiring Ethernet-based monitoring, event reporting, and time-synchronized records

• Maintenance replacement to restore relay CPU functionality and communications handling
