Product Overview

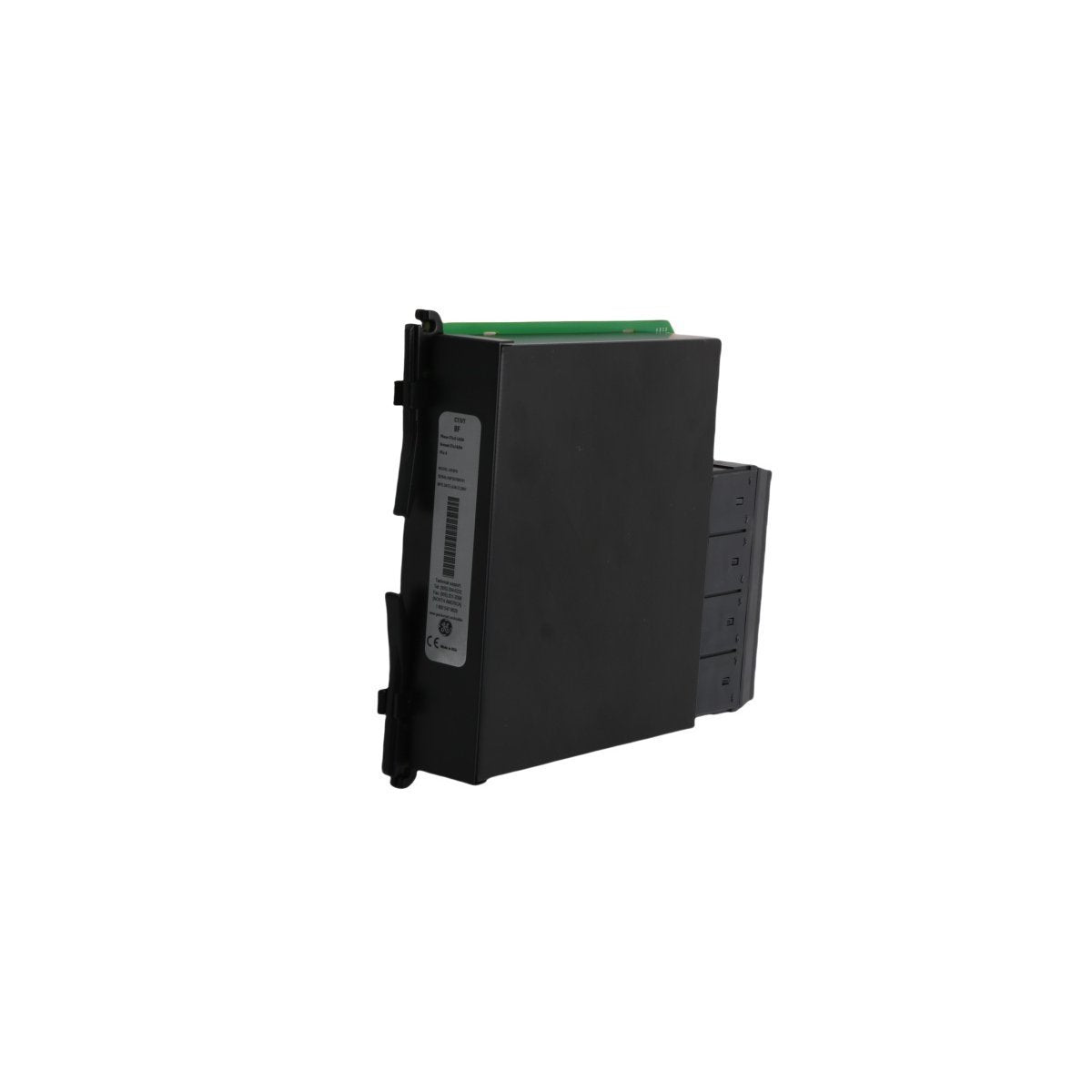

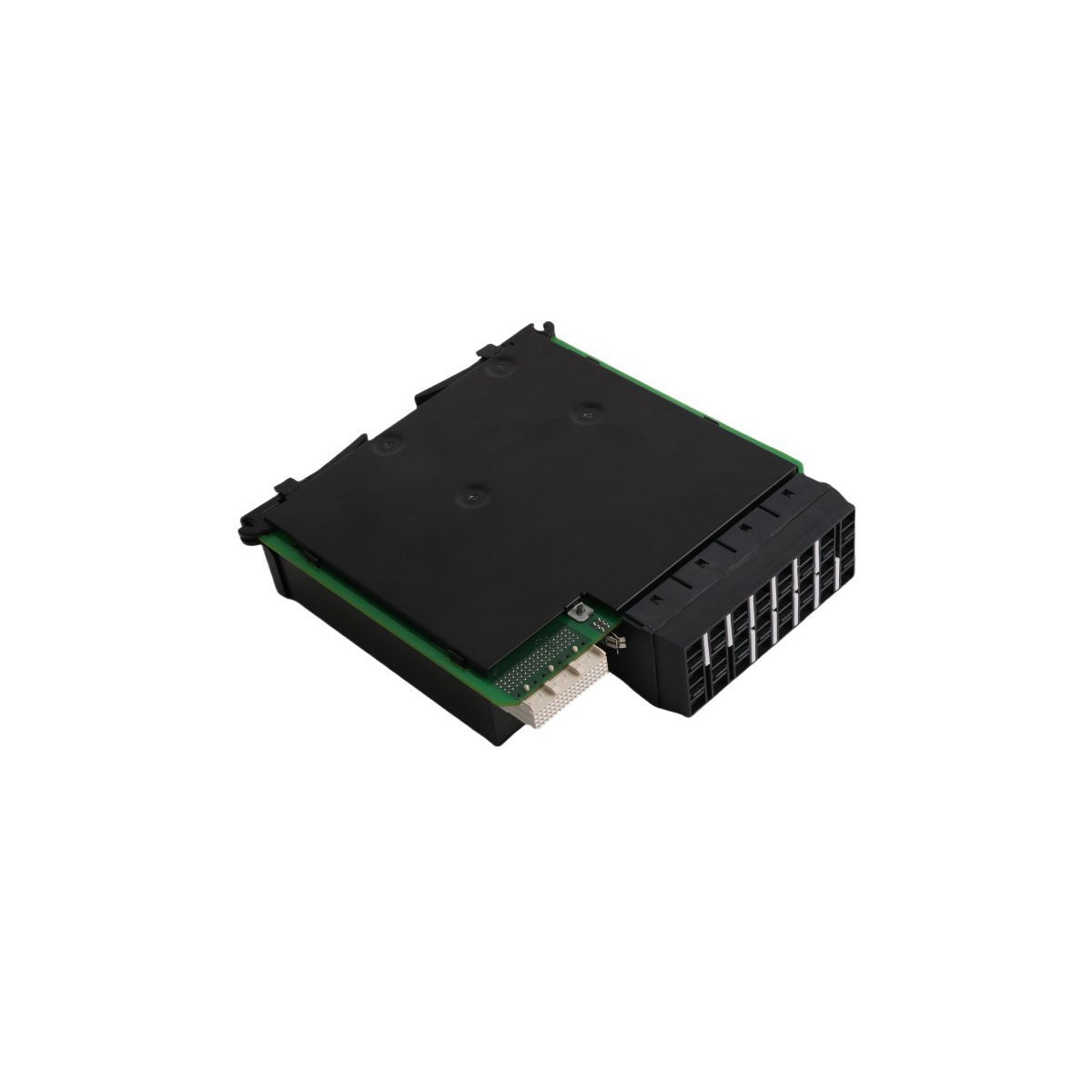

The GE Multilin UR8FH is a measurement input module for the Universal Relay (UR) platform, used to interface field instrument transformers with relay metering and protection functions. It accepts secondary CT and VT signals, scales them to the relay’s internal measurement domain, and supports accurate acquisition of phase current, ground current, and voltage values required for protection, control, and monitoring.

UR8FH is typically applied where a UR relay must be equipped with dedicated current and voltage input hardware for feeder, transformer, generator, or bus protection schemes. This model is discontinued (Dec 31, 2018) and is commonly sourced for installed-base maintenance and direct replacement needs.

Hardware Parameters

• Model / Order Number: UR8FH

• Product Family: Multilin Universal Relays (UR)

• Product Type: CT/VT Measurement Input Module

• Current Inputs:

• 3 phase current channels, 1A or 5A CT secondary compatible

• 1 ground (residual) current channel

• Voltage Inputs:

• 4 VT terminals for voltage measurement and scaling (application dependent)

• Measurement Function: Converts CT/VT secondary signals for relay metering, protection elements, and event analysis

• Configuration Flexibility: Channel assignment may allow voltage or contact usage depending on UR application and relay configuration

• Integration: Designed for direct installation in compatible UR relay hardware assemblies

• Lifecycle Status: Discontinued on Dec 31, 2018

• Condition: Brand New, In Stock

• Origin: USA

• Weight: 0.84 kg

• Dimensions: 6 × 19.5 × 17.2 cm

• HS Code: 8537101190

• MOQ: 1

Industrial Applications

• Feeder and line protection panels requiring 1A/5A CT and VT measurement inputs

• Transformer protection schemes using phase and ground current with voltage supervision

• Generator and motor protection where accurate current/voltage sensing is required

• Substation automation retrofits maintaining the GE Multilin UR installed base

• Replacement module for UR relays in power generation, transmission, and distribution systems
