Product Overview

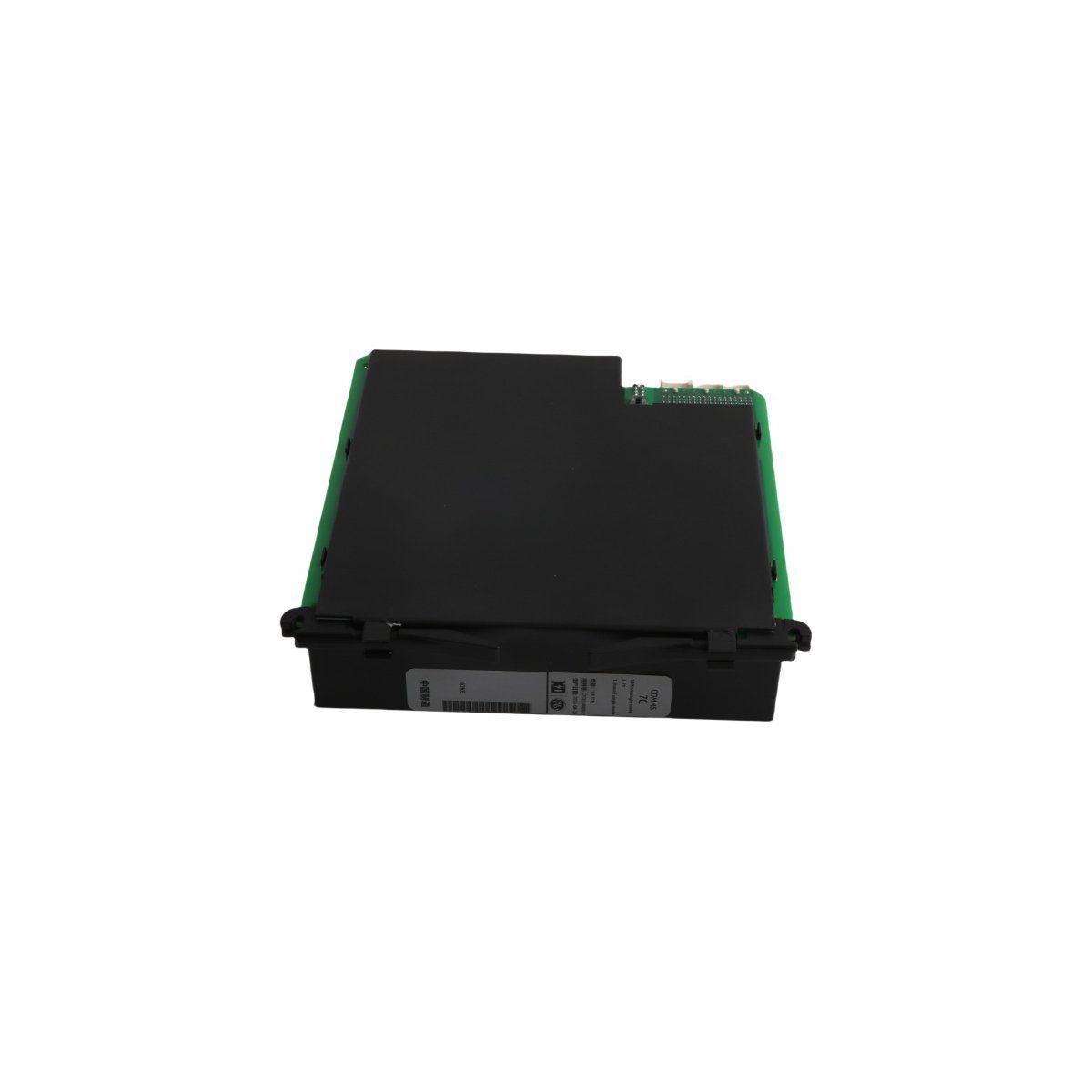

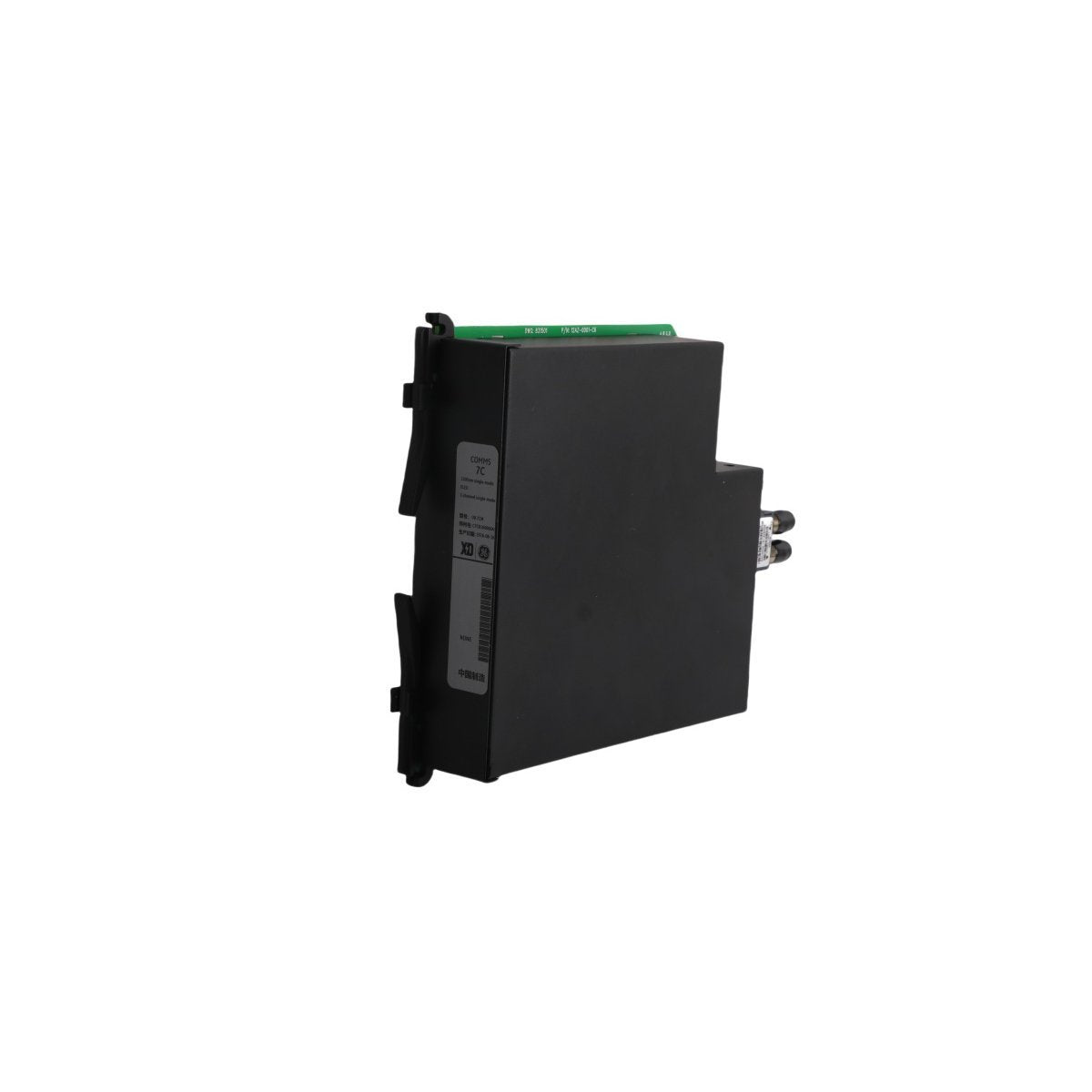

The UR7CM is a digital input expansion module used with GE Multilin UR Series (Universal Relay) platforms. It is installed to increase the available discrete status inputs for protection, control, and monitoring schemes, allowing the relay to receive external contact signals such as breaker auxiliary status, lockout indications, alarm contacts, and interlock permissives.

In typical protection and control panels, the UR7CM supports structured wiring of field contacts into the relay environment so that logic, alarms, and event records can be built around real plant and switchgear states. This module is commonly applied where additional binary inputs are required without replacing the base relay.

Hardware Parameters

• Brand: GE

• Product Family: Multilin UR (Universal Relay)

• Module Category: Digital Input Module

• Model / Order Number: UR7CM

• Primary Function: Discrete status input expansion for UR Series relays

• System Type: PLC / Protection Relay System

• Condition: Brand New

• Availability: In Stock

• Lifecycle Status: ACT (as provided)

• Product Origin: USA

• Minimum Order Quantity: 1

• HS Code: 8537101190

• Weight: 0.66 kg

• Dimensions: 16.3 × 4.2 × 21.0 cm

• Functional Characteristics (module-level, configuration-dependent):

• Accepts multiple discrete field contact inputs for relay logic and monitoring

• Supports event-driven status reporting through the host relay firmware

• Designed for continuous-duty operation in protection and control cabinets

• Integration Notes:

• Input point behavior, debounce timing, and alarm/logic mapping are configured in the host UR relay settings environment

• Final wiring practices should follow the UR relay installation manual and site grounding/interlocking standards

Industrial Applications

• Switchgear and breaker status monitoring (open/close, spring charged, trip circuit healthy)

• Substation feeder protection panels requiring additional binary inputs

• Transformer and bus protection schemes with multiple interlocks and permissives

• MCC and industrial distribution systems needing expanded digital status acquisition

• Modernization projects where existing UR relays remain installed and require more input capacity
