Product Overview

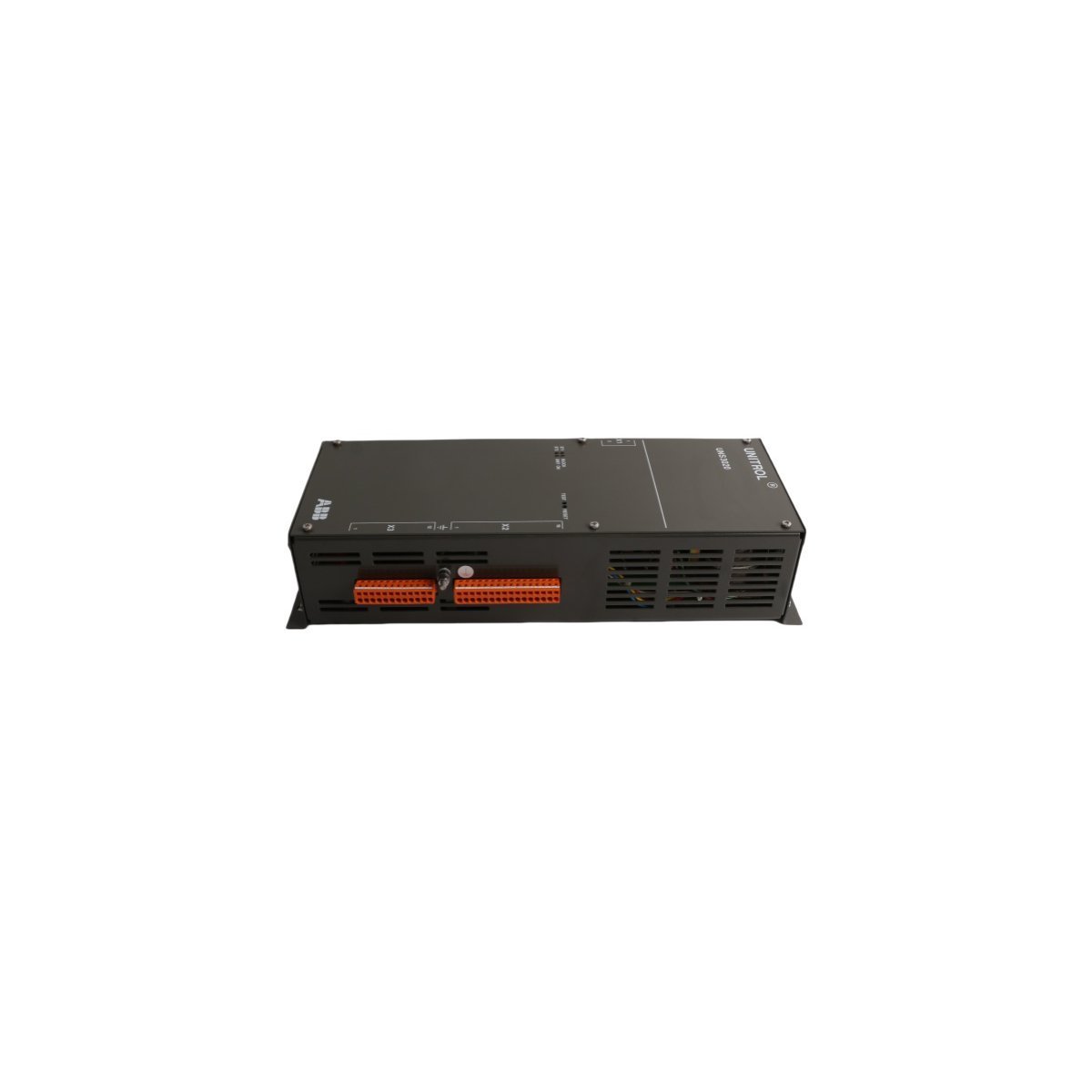

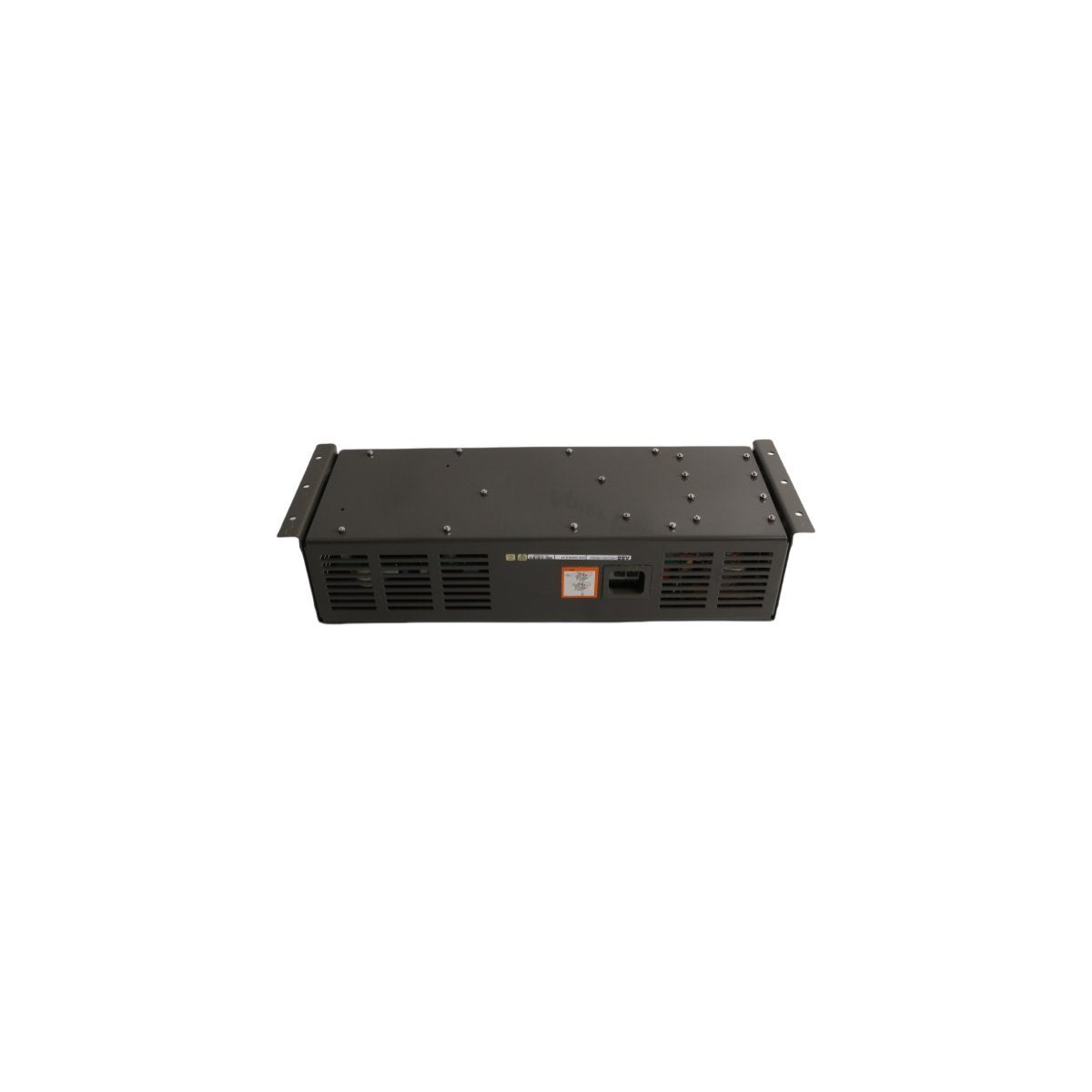

The HIEE205010R0003, designated as the UNS3020A-Z,V3, is a specialized ground fault detection relay specifically engineered for the ABB UNITROL® 5000 excitation system. This high-reliability component serves as a critical safety monitor, identifying insulation breakdowns and leakage currents within the excitation circuit of large synchronous generators and motors. By utilizing ultra-fast microcontroller sensing technology, the UNS3020A-Z,V3 ensures that any deviation in ground integrity is detected in less than 1ms, triggering protective measures before equipment damage occurs. Its integration within the UNITROL framework allows for advanced diagnostic reporting and seamless protection coordination in high-power energy sectors.

System Specifications and Critical Parameters

• Model Code: UNS3020A-Z,V3

• Order Number: HIEE205010R0003

• Product Series: UNITROL 5000

• Function: Earth/Ground Fault Protection

• Response Speed: < 1ms Detection Time

• Switching Capacity: Up to 30A @ 120V AC

• Contact Configuration: SPDT (Single Pole Double Throw) Relay Contacts

• Thermal Endurance: -40°C to +70°C (-40°F to 158°F)

• Total Weight: 4.98 kg

• Chassis Dimensions: 44cm x 17cm x 10cm

• Manufacturing Origin: Sweden

• Standardization: CE / Industrial Safety Certified

Industrial Protection Applications

This ground fault relay is a vital asset in heavy-duty power electronics and energy production. Its primary applications include:

• Power Generation: Protecting the rotor and stator windings of large-scale generators from insulation failure within hydroelectric and thermal power plants.

• Excitation Systems: Serving as a primary safety layer in UNITROL 5000 assemblies to monitor DC circuit ground integrity.

• Mining and Heavy Industry: Monitoring large synchronous motor drives used in grinders and conveyors where dust and vibration increase the risk of ground faults.

• Critical HVAC Infrastructure: Safeguarding high-voltage motor control centers in industrial climate control systems.

• Maritime Propulsion: Ensuring electrical safety in shipboard excitation and propulsion systems where environmental humidity challenges insulation.

FAQ

Q: What is the significance of the "V3" designation in the UNS3020A-Z model?

A: The V3 indicates the third version or hardware revision of this specific relay. It typically includes updated microcontroller firmware and improved component longevity over legacy versions like V1 or V2.

Q: Can this relay be used as a standalone safety device?

A: While technically possible, the HIEE205010R0003 is optimized for the UNITROL 5000 series. For standalone use, ensure your power supply and signal conditioning are compatible with the relay’s specific input requirements.

Q: Why is the response time rated at less than 1ms?

A: In high-energy excitation systems, a ground fault can lead to catastrophic arcing or equipment failure almost instantly. The < 1ms speed is necessary to trip breakers fast enough to prevent permanent hardware damage.

Q: Is the 4.98kg weight typical for this type of relay?

A: Yes, this is a heavy-duty industrial component. The weight reflects the robust shielding, high-quality internal transformers, and heavy-gauge terminals required to handle 30A switching in a professional DCS environment.

Q: Does the unit support wide temperature fluctuations?

A: Correct. This module is rated for -40°C to +70°C, making it suitable for unheated outdoor control cabinets or high-heat engine rooms without the need for specialized cooling.
