Product Overview

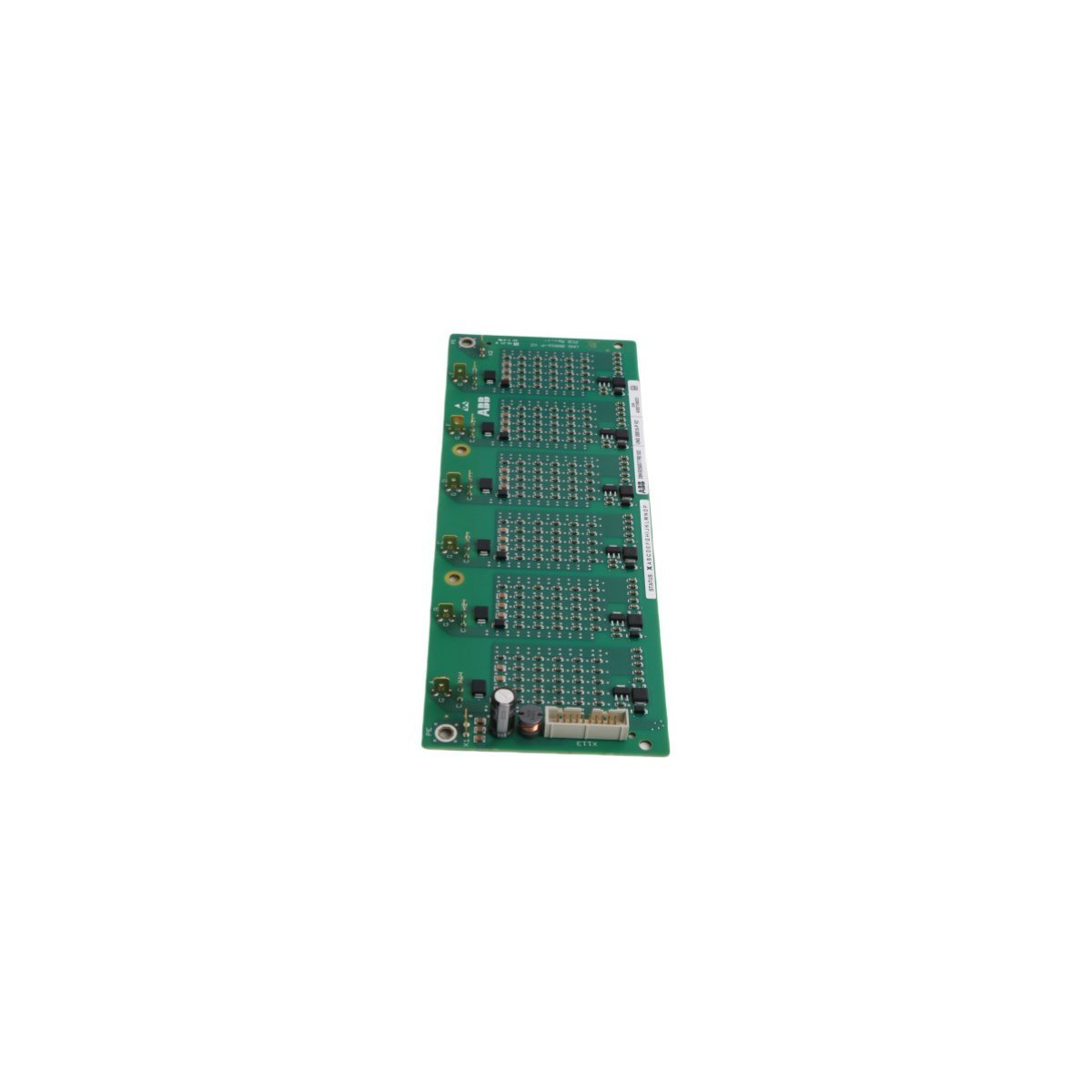

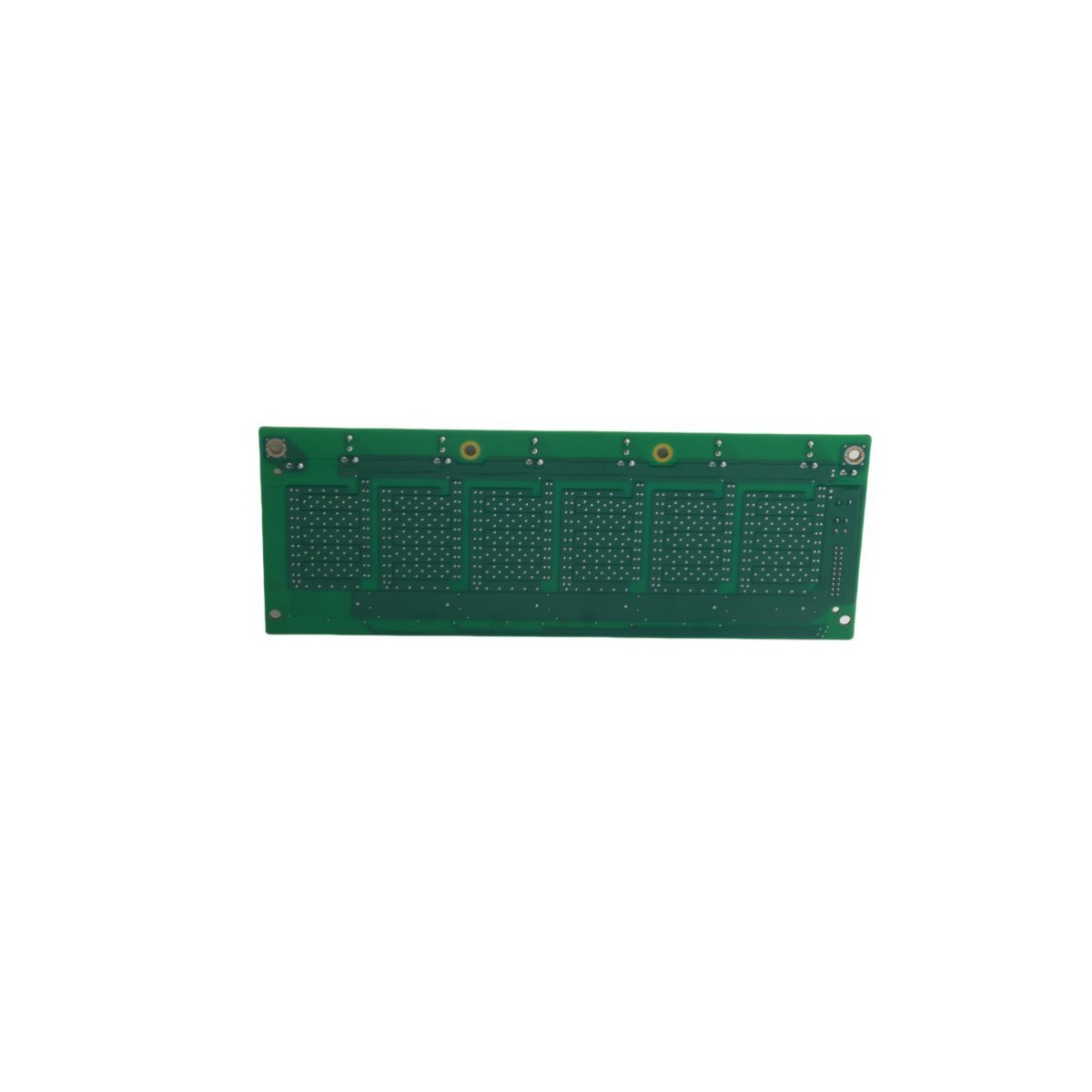

The ABB UNS0881B-P V2, order reference 3BHE050077R0102, is a precision control PCB designed for the UNITROL 1000 excitation system series. This second-generation (V2) board functions as a high-speed logic processor, managing the intricate feedback loops necessary for synchronous generator regulation. By integrating advanced signal processing capabilities, the UNS0881B-P V2 ensures stable field excitation and voltage control within Distributed Control Systems (DCS). Engineered for industrial reliability, this Swedish-made module acts as a vital interface for automated power management, providing the computational speed required to maintain grid synchronization and system stability in real-time.

Integrated Hardware Features and Physical Specifications

• Module Weight0.14 kg

• Product Dimensions27 x 10 x 2.5 cm

• Model CodeUNS0881B-P V2

• Engineering Order Number3BHE050077R0102

• Communication InterfaceIntegrated RS-232 Serial Port

• Protocol SupportMODBUS RTU Compatibility

• Environmental ProtectionIP20 Rated

• Series CompatibilityUNITROL 1000 / DCS Systems

• Country of OriginSweden

• HS Classification8537101190

The 3BHE050077R0102 is built on a high-grade PCB substrate with a compact 2.5 cm depth, making it ideal for high-density mounting in standard UNITROL cubicles. Its 0.14 kg frame is optimized for thermal dissipation, ensuring that the control logic remains deterministic even under peak processing loads. The inclusion of a dedicated RS-232 port allows for direct MODBUS RTU communication, facilitating seamless data exchange with various industrial diagnostic and monitoring software platforms.

Strategic Industrial Deployment Scenarios

The UNS0881B-P V2 is a critical component for infrastructure requiring localized logic execution and stable power regulation. Primary applications include:

• Generator Excitation ManagementProviding the logic control for small to medium-sized synchronous generators to ensure consistent voltage output.

• MODBUS Network IntegrationActing as a communication bridge between field-level excitation hardware and supervisory SCADA systems via RS-232 serial links.

• Automation Logic ProcessingExecuting complex control algorithms for power electronics modules within a synchronized DCS environment.

• Remote Diagnostic MonitoringUtilizing its serial connectivity to stream real-time operational data to Ethernet router gateways for off-site plant oversight.

FAQ

Q: What differentiates the V2 version of the UNS0881B-P from earlier revisions?

A: The V2 (Version 2) features optimized PCB layouts and updated component specifications designed to enhance signal processing speed and long-term reliability in modern UNITROL 1000 systems.

Q: Does this control board support networking over Ethernet?

A: While the board itself features an RS-232 serial port for MODBUS RTU, it is typically integrated into a system-level network that utilizes Ethernet router services for plant-wide data transmission.

Q: What level of physical protection does the IP20 rating provide?

A: An IP20 rating ensures the board is protected against solid objects larger than 12.5mm (such as fingers), making it suitable for installation inside a protected control cabinet or enclosure.

Q: Can the UNS0881B-P V2 be customized for specific plant requirements?

A: Yes, the board's versatile architecture allows for specific configuration adjustments or the addition of specialized components to meet unique industrial automation needs upon request.

Q: How do I establish a connection for diagnostic troubleshooting?

A: You can utilize the onboard RS-232 interface to connect a laptop or industrial terminal, allowing you to monitor real-time MODBUS registers and assess the status of the excitation logic.
