Product Overview

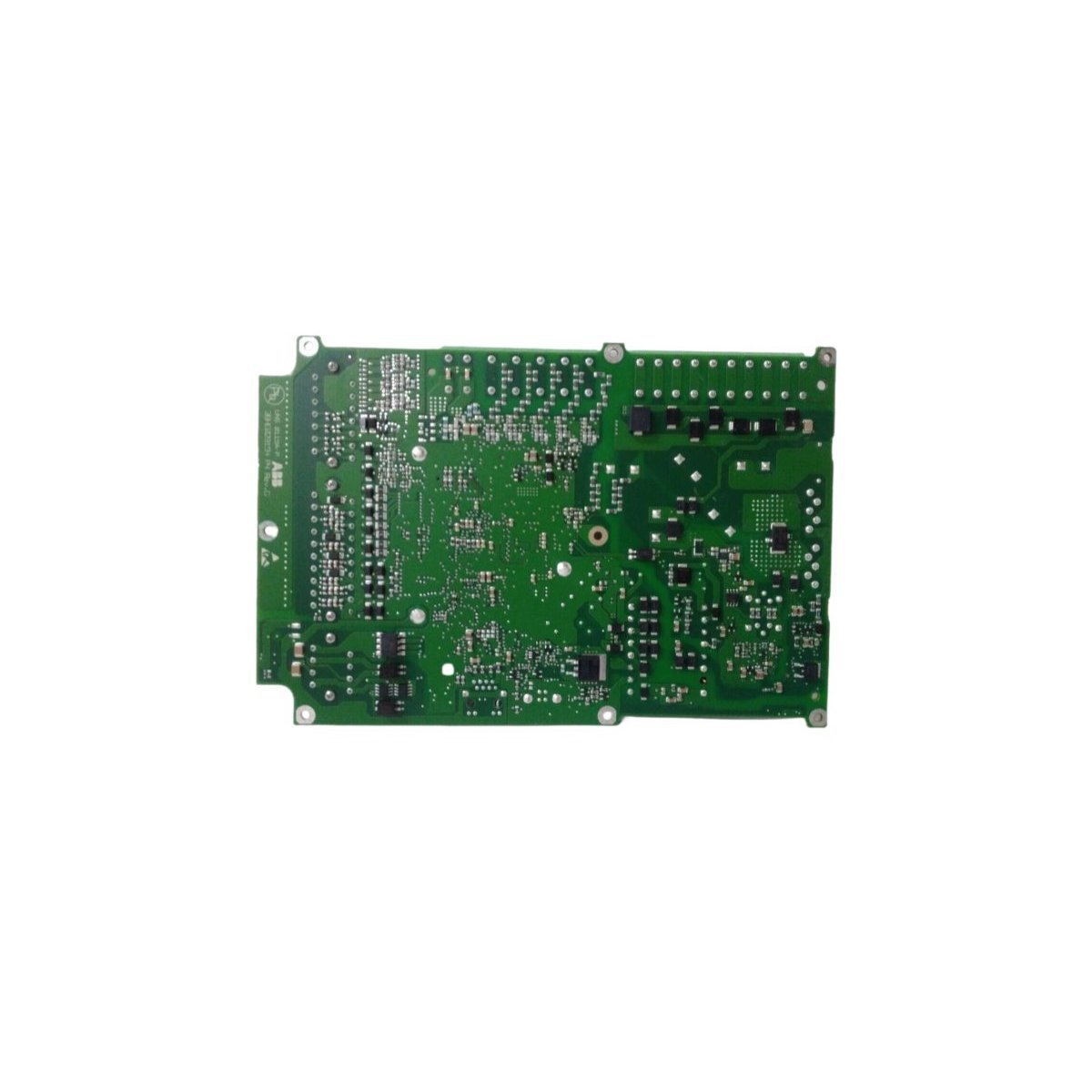

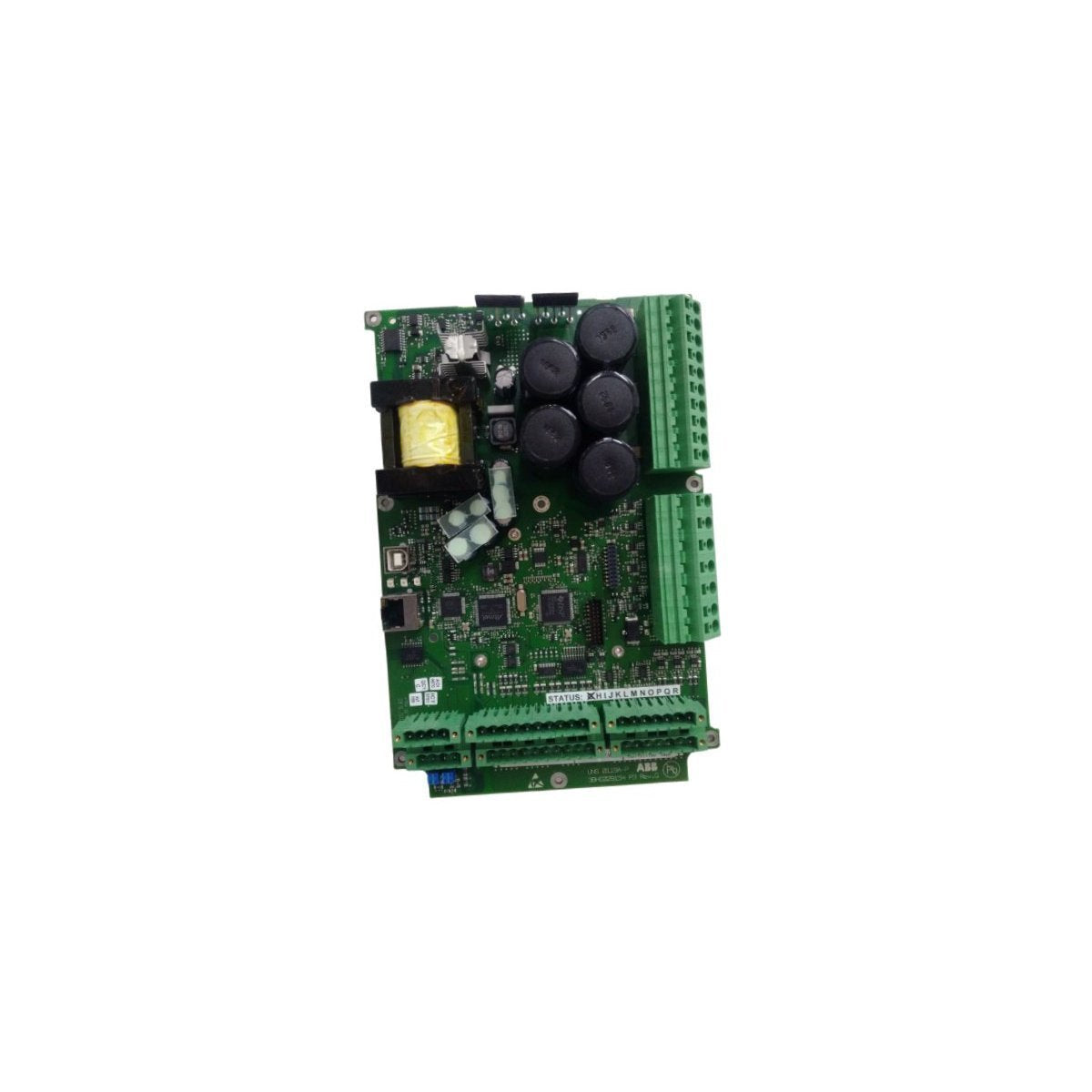

The ABB 3BHE029153R0101, identified by the model code UNS0119A-P V101, is a high-reliability digital input submodule engineered for sophisticated automation and control architectures. This unit is specifically designed to function within fault-tolerant environments, supporting Triple Modular Redundancy (TMR) to ensure maximum system uptime. It acts as a primary interface for digital signal acquisition, converting field-level inputs into actionable data for the central processing unit. By integrating advanced signal isolation and backplane bus connectivity, the UNS0119A-P V101 maintains high signal integrity even in conditions characterized by significant electromagnetic interference, making it a cornerstone for safety-critical industrial applications.

Technical Specifications and Hardware Parameters

The UNS0119A-P V101 is built with a ruggedized chassis designed for optimal heat dissipation and secure mounting in standard industrial control racks.

• Mass: 1.08 kg (Shipping weight) / 0.5 kg (Net weight)

• Form Factor: 18.5 x 8.5 x 30.5 cm

• Input Voltage Range: 100-240V AC

• Internal Output: 24V DC

• Control Architecture: Triple Modular Redundancy (TMR) Support

• Programming Environment: Ladder Logic via Automation Builder

• Thermal Operating Range: -10°C to +60°C

• Communication Interface: Backplane bus with integrated isolation

• Origin: Sweden

This module is optimized for rapid data processing and features a streamlined installation process via its backplane connector. Its wide input voltage tolerance allows for global deployment across various power grid standards without the need for additional voltage regulation hardware.

Industrial Applications and Strategic Deployment

The ABB UNS0119A-P V101 is predominantly utilized in sectors where process continuity is non-negotiable and system failure is not an option.

• Emergency Shutdown Systems (ESD): Serving as a reliable input for safety instrumented systems in oil and gas refineries.

• Chemical Process Control: Managing digital feedback loops for valve positions and motor statuses in corrosive or high-stakes environments.

• Power Grid Automation: Monitoring breaker statuses and relay logic in utility-scale substations requiring redundant control paths.

• Heavy Manufacturing: Providing the digital backbone for high-speed production lines that utilize TMR to prevent costly production halts.

Q: How does the Triple Modular Redundancy (TMR) support benefit my system?

A: TMR allows the system to remain operational even if one processing path fails. The UNS0119A-P V101 provides the redundant input data necessary for the "voting" logic, ensuring that a single component failure does not lead to a total system shutdown.

Q: What software platform is used to configure the UNS0119A-P V101?

A: The module is fully integrated into the ABB Automation Builder platform, where engineers can utilize standard ladder logic programming for quick configuration, testing, and deployment.

Q: Is this module suitable for environments with fluctuating temperatures?

A: Yes, it is rated for stable operation from -10°C to +60°C, making it a resilient choice for both cold-start conditions and high-heat industrial enclosures.

Q: Does the module provide its own internal power distribution?

A: The unit accepts a wide AC input range and provides a regulated 24V DC internal output to power its own circuitry and facilitate signal processing, reducing the complexity of the cabinet power distribution.

Q: What is the significance of the built-in backplane isolation?

A: Integrated isolation protects the central control logic from electrical transients and noise originating in the field wiring, significantly enhancing the overall reliability and longevity of the DCS system.
