Product Overview

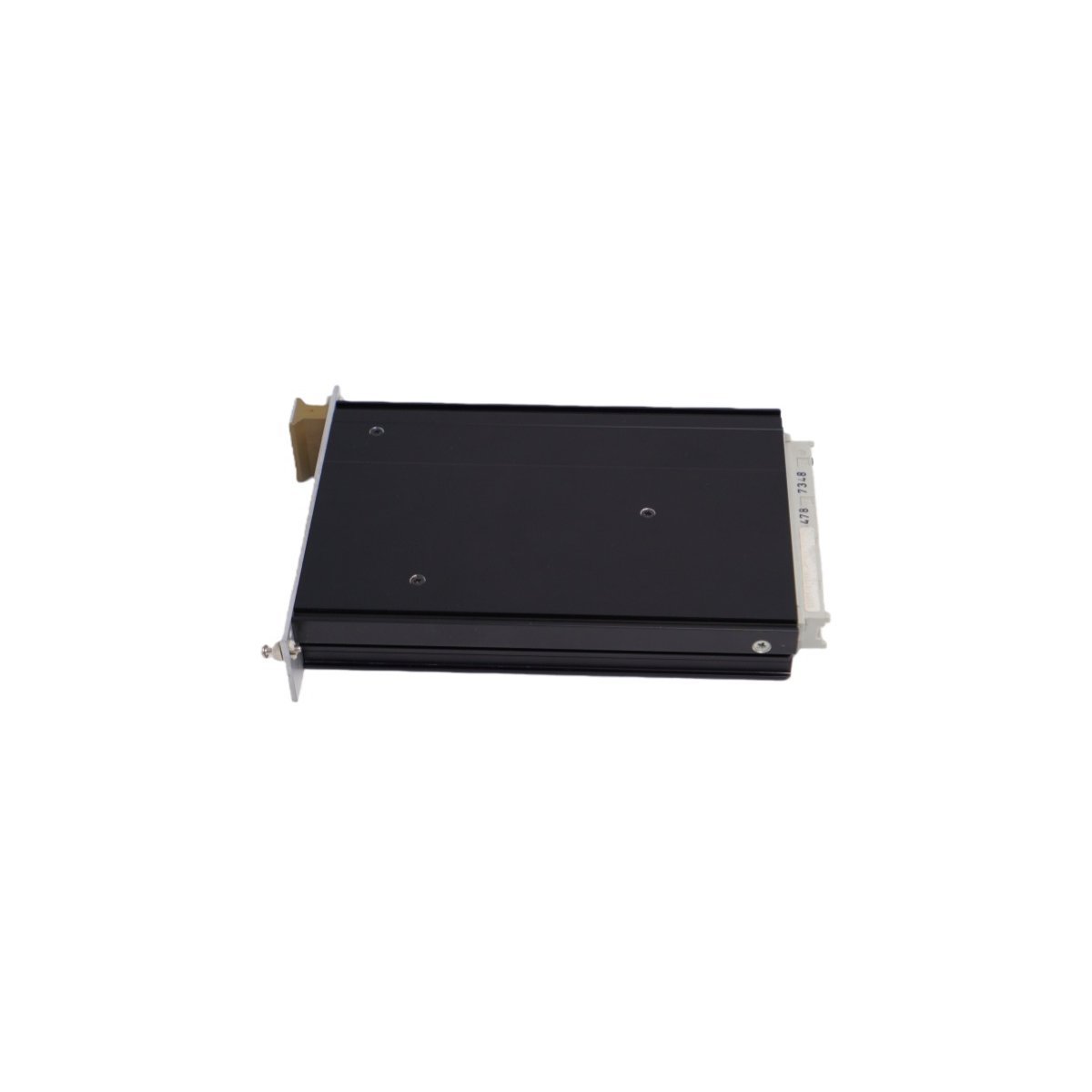

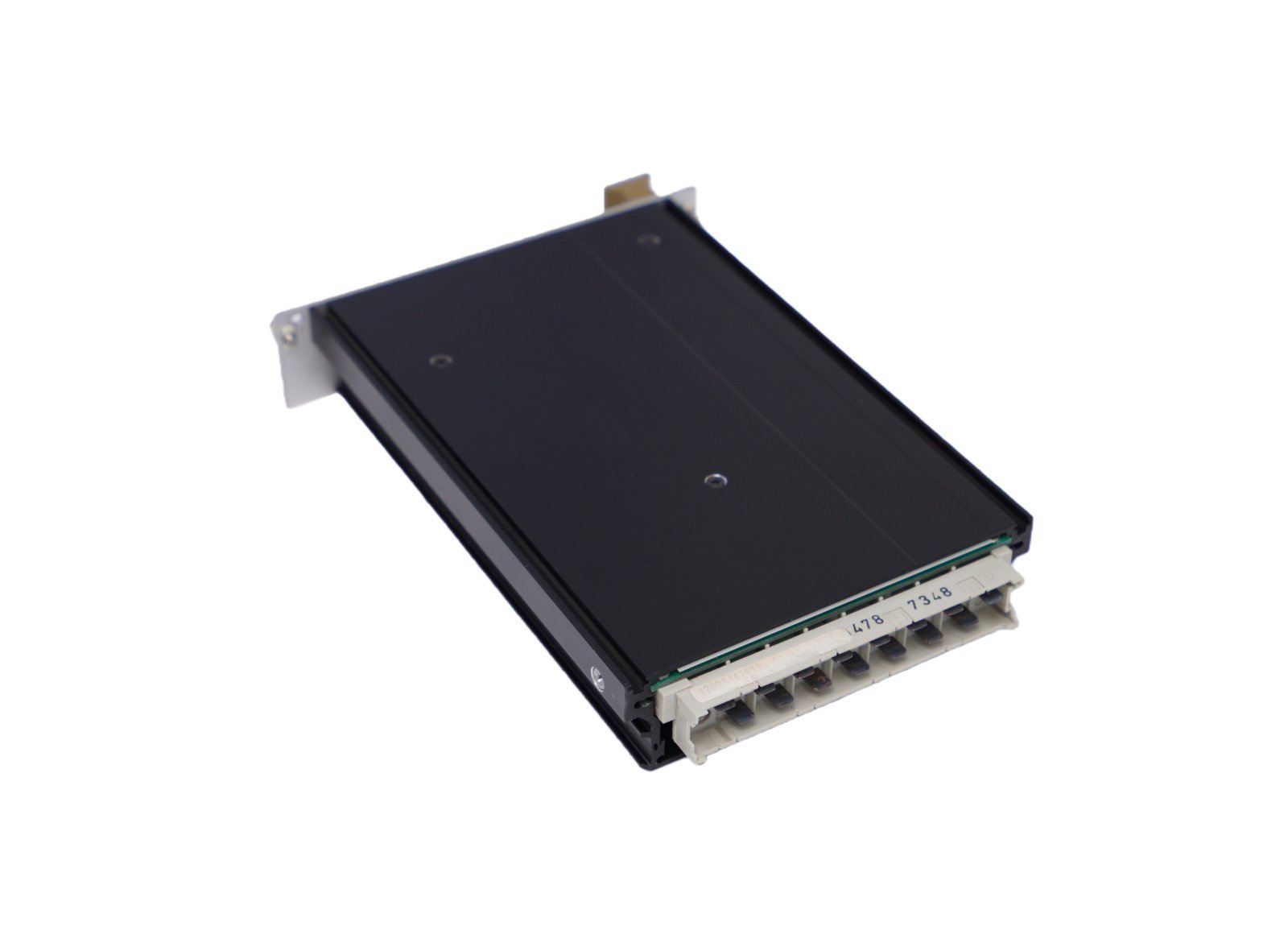

The Emerson UES815S-24A is a high-performance power monitoring and supply module integrated into the PAC8000 process automation series. This unit is specifically engineered to provide stable, regulated DC power to critical field instrumentation and DCS controllers within hazardous or demanding industrial environments. By combining advanced power conversion with intelligent monitoring, the UES815S-24A ensures that automated systems receive a consistent energy flow, minimizing the risk of logic errors or hardware resets caused by voltage fluctuations.

Built with a focus on high availability, the UES815S-24A utilizes a 30kHz switching frequency to optimize energy efficiency and reduce thermal output. It is a vital component for mission-critical infrastructures, such as oil platforms and power stations, where power integrity is directly linked to operational safety. Its ruggedized architecture and compact footprint allow for dense installation in specialized control enclosures while maintaining superior electromagnetic compatibility (EMC).

Core Technical Characteristics and Protection

The UES815S-24A is defined by its industrial-grade resilience and sophisticated fault-safeguarding mechanisms.

• High-Current Stability: Delivers a 24A output capacity, designed to support multiple high-load devices and high-density I/O branches within a PAC8000 node.

• Broad Environmental Tolerance: Rated for continuous operation in extreme ambient temperatures ranging from -25°C to +70°C, making it suitable for unconditioned field cabinets.

• Triple-Layer Safeguarding: Features integrated overvoltage protection, short-circuit current limiting, and automated thermal shutdown to prevent damage to downstream DCS components.

• Efficient Power Conversion: Accepts a standard 220V input and utilizes high-frequency switching to ensure minimal energy waste and stable DC regulation.

• Rigorous Validation: Every module undergoes high-temperature burn-in testing and automated stress simulation to identify and eliminate potential infant mortality failures.

• Reinforced Isolation: Incorporates protective conformal coatings and reinforced barrier isolation to prevent electrical arcing and corrosion in humid or contaminated atmospheres.

[Image showing the internal protection circuitry of a DCS power module]

Technical Specifications

• Manufacturer: Emerson (PAC8000 Series)

• Model Number: UES815S-24A

• Module Type: Power Monitoring and Supply Module

• Output Current: 24 Amps

• Switching Frequency: 30 kHz

• Input Voltage: 220V AC (Standard Industrial)

• Operating Temperature: -25°C to +70°C

• Dimensions: 12.1 x 5.2 x 16.6 cm

• Unit Weight: 0.34 kg

• Product Origin: USA

Industrial Applications

The Emerson UES815S-24A is essential for providing reliable power in several infrastructure-heavy sectors:

• Oil & Gas Exploration: Powering remote telemetry units and safety instrumented systems on offshore rigs.

• Renewable Energy: Managing power distribution for distributed control nodes in wind and solar farms.

• Chemical Processing: Providing stable DC voltage for hazardous area controllers and process interlocks.

• Mass Transportation: Supporting rail signaling and tunnel ventilation control systems requiring high-uptime power.
