Product Overview

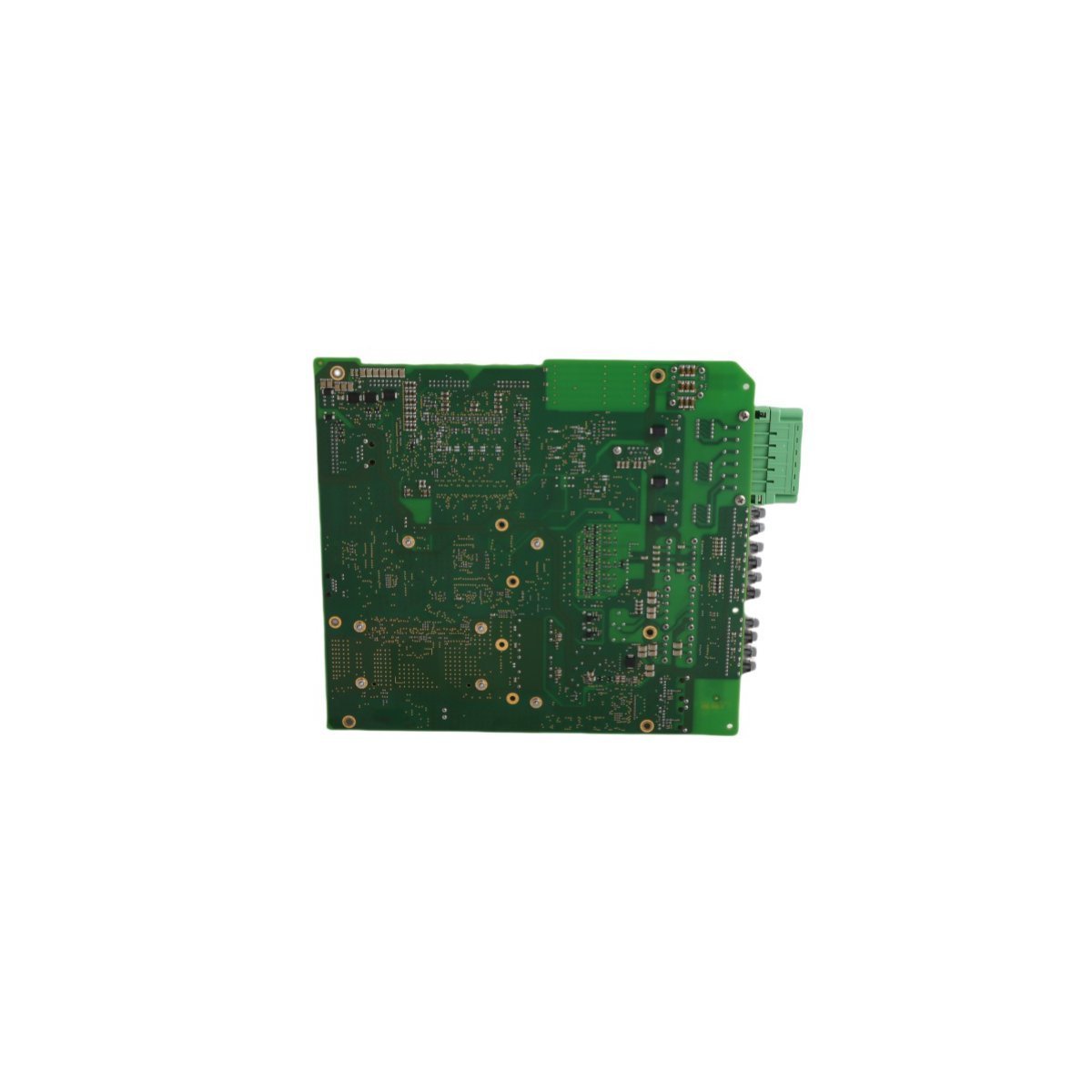

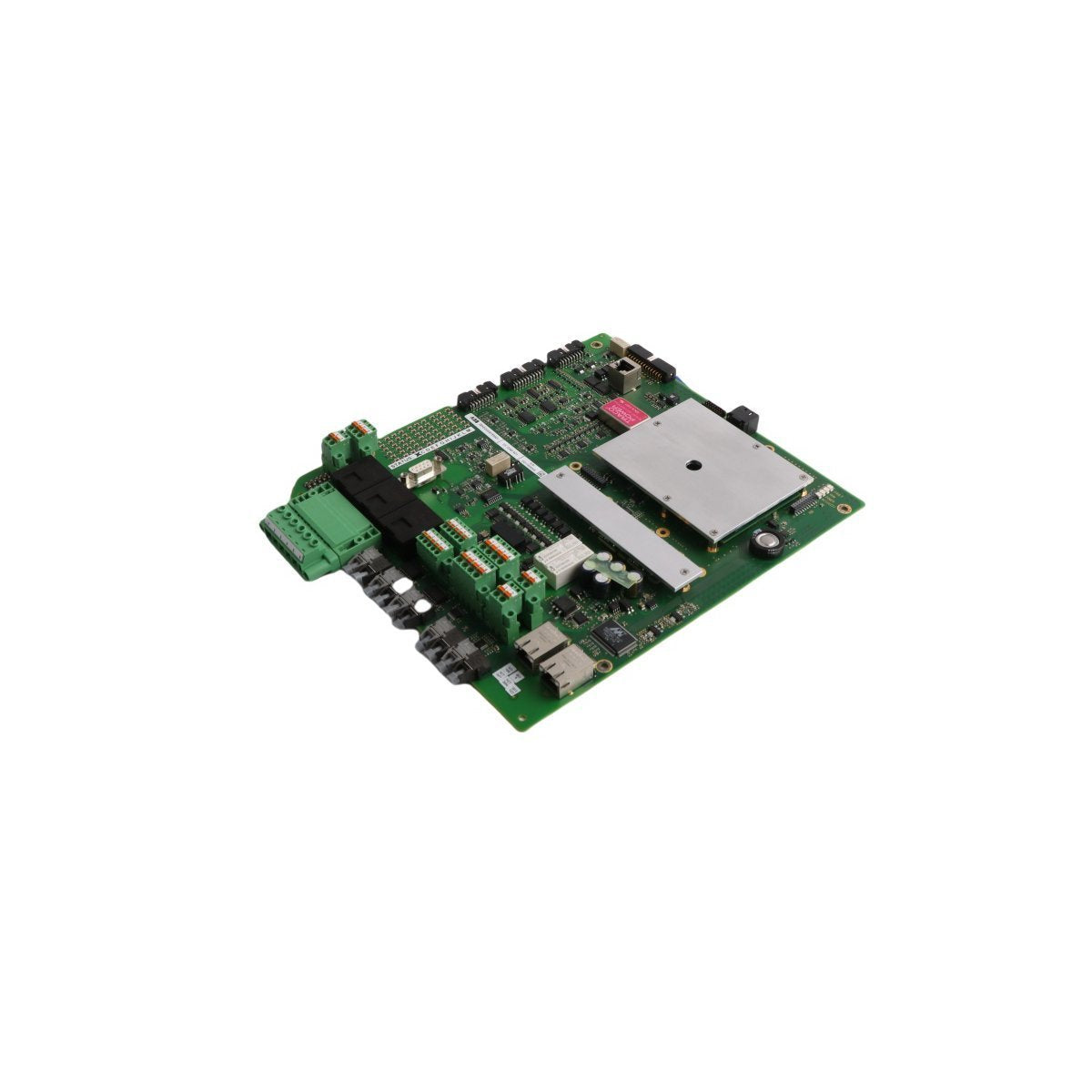

The ABB 3BHE022287R0001, also identified as the UCD240A01, is a high-tier Converter Control Management (CCM) board designed specifically for the UNITROL excitation system family. This module serves as a central processing unit for power conversion tasks, managing the complex firing angles and regulation loops required for synchronous generator excitation. By providing a stable interface between control logic and power electronics, the UCD240A01 ensures precise voltage regulation and enhanced dynamic response during transient grid conditions. Its architecture is optimized for integration into Symphony Plus and other ABB Distributed Control Systems (DCS), making it a cornerstone for reliable power plant automation.

Technical Hardware Specifications

Industry-Specific Applications

The UCD240A01 converter module is engineered for high-availability environments where power stability is critical. Primary applications include:

• Synchronous Generator Control: Managing the excitation current for large-scale utility generators to maintain grid synchronization.

• Heavy Industrial Rectifiers: Controlling high-power conversion processes in aluminum smelting or chemical electrolysis plants.

• Voltage Regulation: Serving as the primary controller in automatic voltage regulators (AVR) for hydroelectric and thermal power stations.

• System Retrofitting: Modernizing legacy UNITROL 6000 or similar excitation frames to improve diagnostic capabilities and network integration.

Engineering Advantages and Durability

The 3BHE022287R0001 is manufactured using industrial-grade semiconductors and high-frequency filtering components to minimize electromagnetic interference (EMI). Its specialized CCM circuitry allows for rapid fault detection and thermal monitoring, which significantly reduces the risk of unplanned outages in power generation cycles. Furthermore, the board's streamlined dimensions allow for high-density installation in standard control cabinets without compromising airflow or thermal dissipation. Designed for longevity, the UCD240A01 maintains calibration accuracy across a wide range of operating temperatures, ensuring consistent performance in demanding Swedish-engineered quality.
