Product Overview

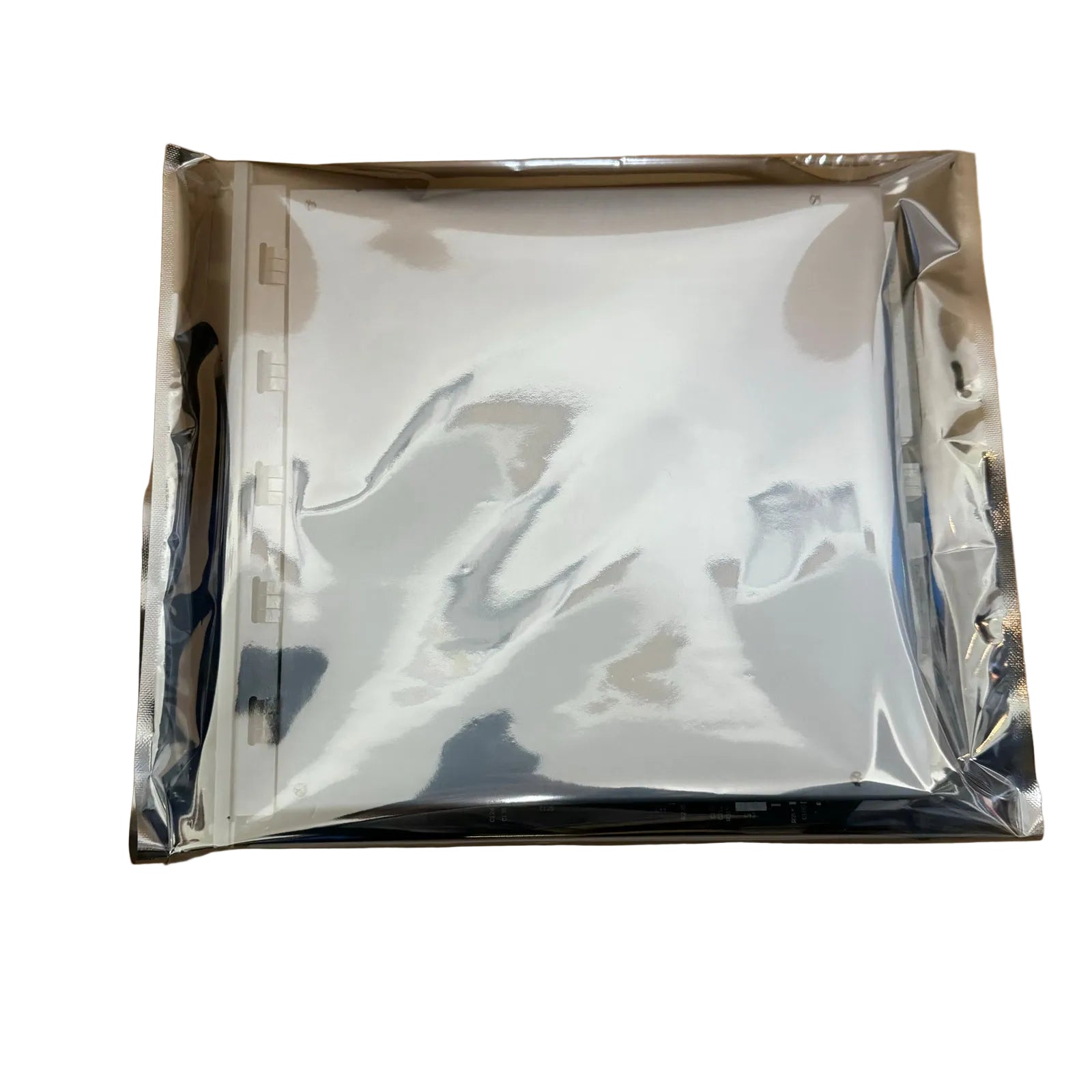

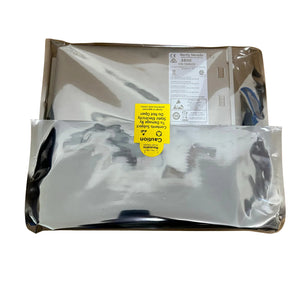

The Bently Nevada 3500/22-01-03-01 Transient Data Interface (TDI) serves as the primary communication and processing hub for the 3500 Machinery Protection System. This CPU module functions as the intelligence layer of the rack, responsible for collecting static and dynamic data from all monitoring cards and facilitating high-speed transmission to external software platforms. Unlike standard interface modules, the TDI is capable of capturing "transient" data—such as high-resolution waveform snapshots during machine startup, coast-down, or alarm events—which is vital for root-cause analysis. It bridges the gap between hardware-level protection and plant-wide condition monitoring, ensuring that every vibration pulse and shaft movement is recorded with synchronized precision.

Essential Hardware Parameters and Engineering Data

The 3500/22-01-03-01 is engineered for high-bandwidth throughput and supports redundant communication architectures to ensure constant data availability.

• Model Number: 3500/22-01-03-01

• Module Function: CPU and Transient Data Interface (TDI)

• Communication Interface: USB (Front) and Ethernet/Serial (Rear via I/O)

• Data Acquisition Type: Static, Dynamic, and High-Resolution Transient Waveforms

• System Synchronization: Supports internal and external clock sync for cross-rack data alignment

• Mounting Location: Dedicated "TDI" slot (Slot 1) in the 3500 chassis

• Physical Mass: 1.05 kg

• Unit Dimensions: 2.6 x 25.5 x 24.1 cm

• Voltage Requirements: Drawn directly from 3500/15 Power Supply units

• Protocol Support: Modbus (via I/O), Ethernet TCP/IP, and Proprietary Bently Protocols

• Diagnostic Indicators: LED array for OK, Config Error, and Communication Status

• Production Origin: USA

Industrial Application Scenarios

• Machine Startup/Coast-down Analysis: Captures critical transient data during a turbine's transition through resonance or critical speeds, allowing engineers to map "Bode" and "Polar" plots.

• Predictive Condition Monitoring: Acts as the primary data gateway for System 1 software, enabling long-term trending and mechanical health forecasting.

• Remote Asset Diagnostics: Facilitates Ethernet-based remote access to rack data, allowing centralized specialists to troubleshoot machinery across global sites.

• Sequence of Events Recording: Provides millisecond-accurate timestamps for alarm logs, helping maintenance teams determine the exact "first out" event during a trip.

• Control System Integration: Transmits processed static values to Distributed Control Systems (DCS) or PLCs via Modbus to keep operators informed of machinery status.

FAQ

Q: What is the primary difference between the 3500/22 TDI and the older 3500/20 RIM?

A: The 3500/22 TDI includes significantly more onboard memory and processing power, allowing it to collect high-resolution dynamic waveforms and transient data that the 3500/20 Rack Interface Module (RIM) cannot process.

Q: Does the 3500/22-01-03-01 require a separate I/O module?

A: Yes, the 3500/22 CPU module must be paired with a 3500/22M I/O module installed at the rear of the rack to provide the physical Ethernet, USB, and Serial ports.

Q: Is the TDI module responsible for the machinery trip logic?

A: No, the protective trip logic is executed by the individual monitor modules and relay cards. The TDI is primarily for communication, data collection, and system configuration.

Q: Can I update the firmware of the 3500/22 while the rack is protecting a machine?

A: Firmware updates typically require the rack to be placed in "Program Mode," which may disrupt the "OK" status. It is highly recommended to perform updates only when the machinery is in a safe, non-operational state.

Q: How do I connect my laptop for configuration?

A: You can connect directly to the USB port on the front of the 3500/22-01-03-01 module or via the Ethernet port on the rear I/O using the 3500 Rack Configuration Software.
