Product Overview

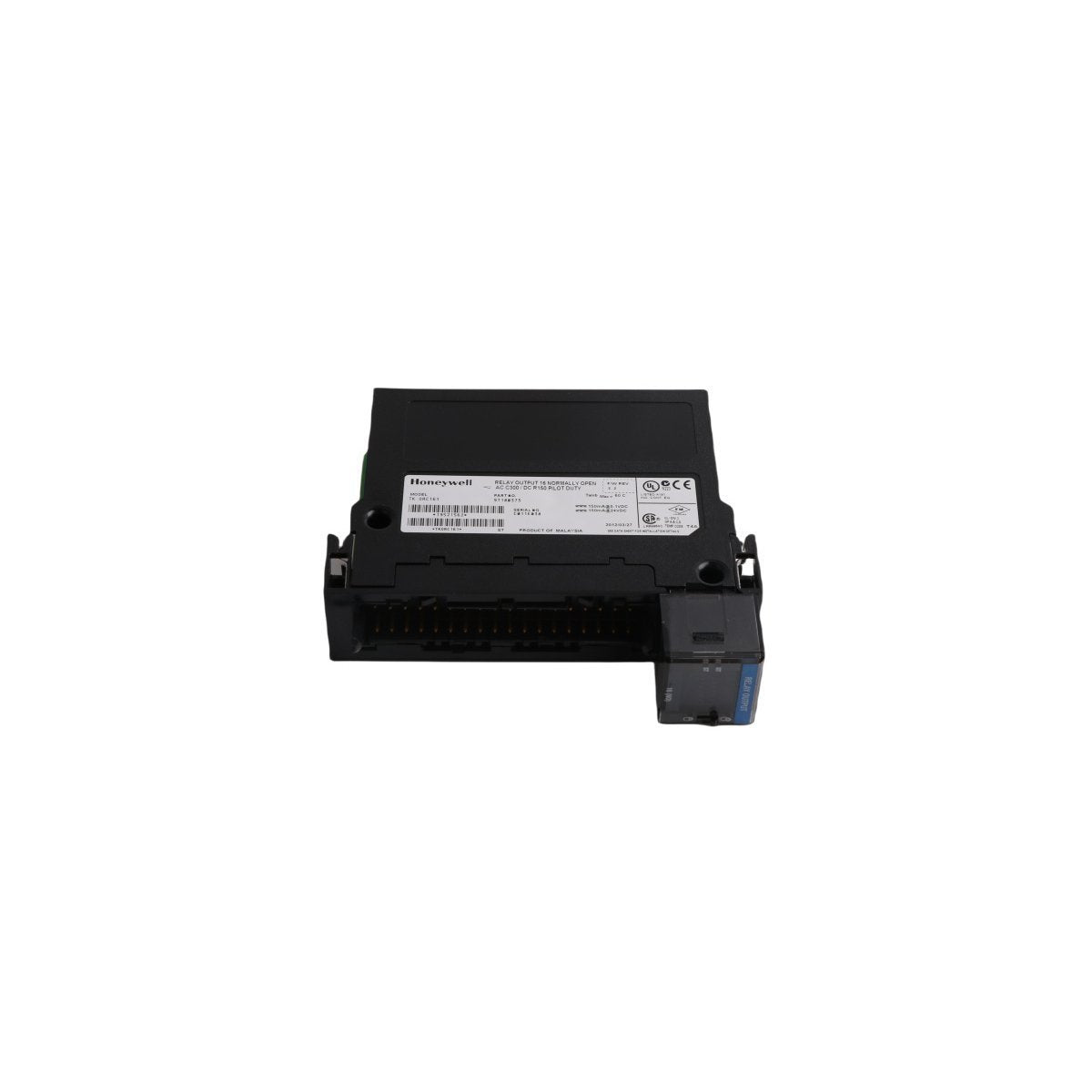

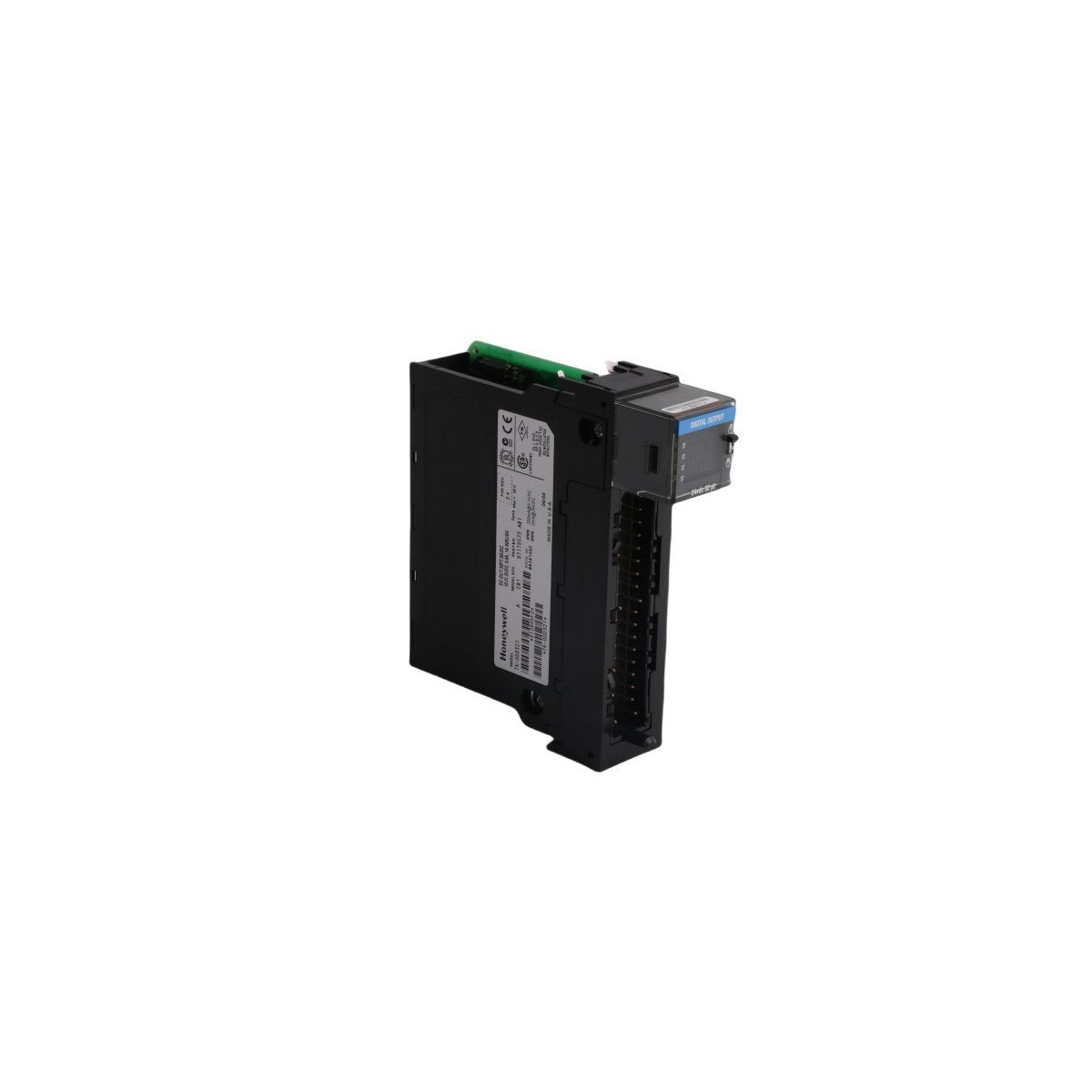

The Honeywell TK-ODD321 is a high-density discrete output interface engineered specifically for the Experion LS and PKS control environments. This module provides 32 independent DC output channels, serving as a robust command bridge between the Distributed Control System (DCS) logic and field-side machinery. Built to maximize cabinet space without sacrificing performance, the TK-ODD321 allows for the simultaneous management of a wide array of binary devices, including solenoid valves, motor starters, and auxiliary relays. Its architecture is optimized for low-latency signal execution, ensuring that automated sequences are carried out with the timing precision required for modern process control.

Hardware Performance and Technical Attributes

• Channel Density: 32 Discrete Output Points

• Signal Type: DC Digital (Sourcing/Bussed)

• System Integration: Native compatibility with Experion LS series I/O racks

• Diagnostics: Integrated channel-level monitoring for health tracking and fault detection

• Thermal Resilience: Engineered for stable operation under significant temperature fluctuations

• Vibration Resistance: Ruggedized construction for deployment in high-vibration machinery zones

• Mounting Profile: Slim-line 3.5cm width for high-density DIN-rail or rack installations

• Unit Mass: 0.22 kg

• Chassis Dimensions: 3.5 cm x 14.1 cm x 14.5 cm

• Manufacturing Standard: USA Origin | HS Code 8537101190

Industrial Deployment and Operational Roles

The TK-ODD321 is an essential component for facilities that require high-capacity discrete control and real-time diagnostic visibility.

• Sequential Batch Control: Managing the complex opening and closing cycles of manifold valves in chemical and pharmaceutical production lines.

• Motor Control Interfacing: Driving 24V DC interposing relays for Large Motor Control Centers (MCCs) in heavy manufacturing or water treatment plants.

• Conveyor and Material Handling: Executing rapid start/stop commands across distributed conveyor networks where high-density I/O reduces wiring complexity.

• Process Safety Signaling: Controlling localized alarm beacons and status indicators across hazardous plant zones, utilizing built-in diagnostics to verify signal integrity.

• Space-Constrained Retrofitting: Ideal for upgrading legacy control panels where 32 channels of output must be added within a limited physical footprint.
