Product Overview

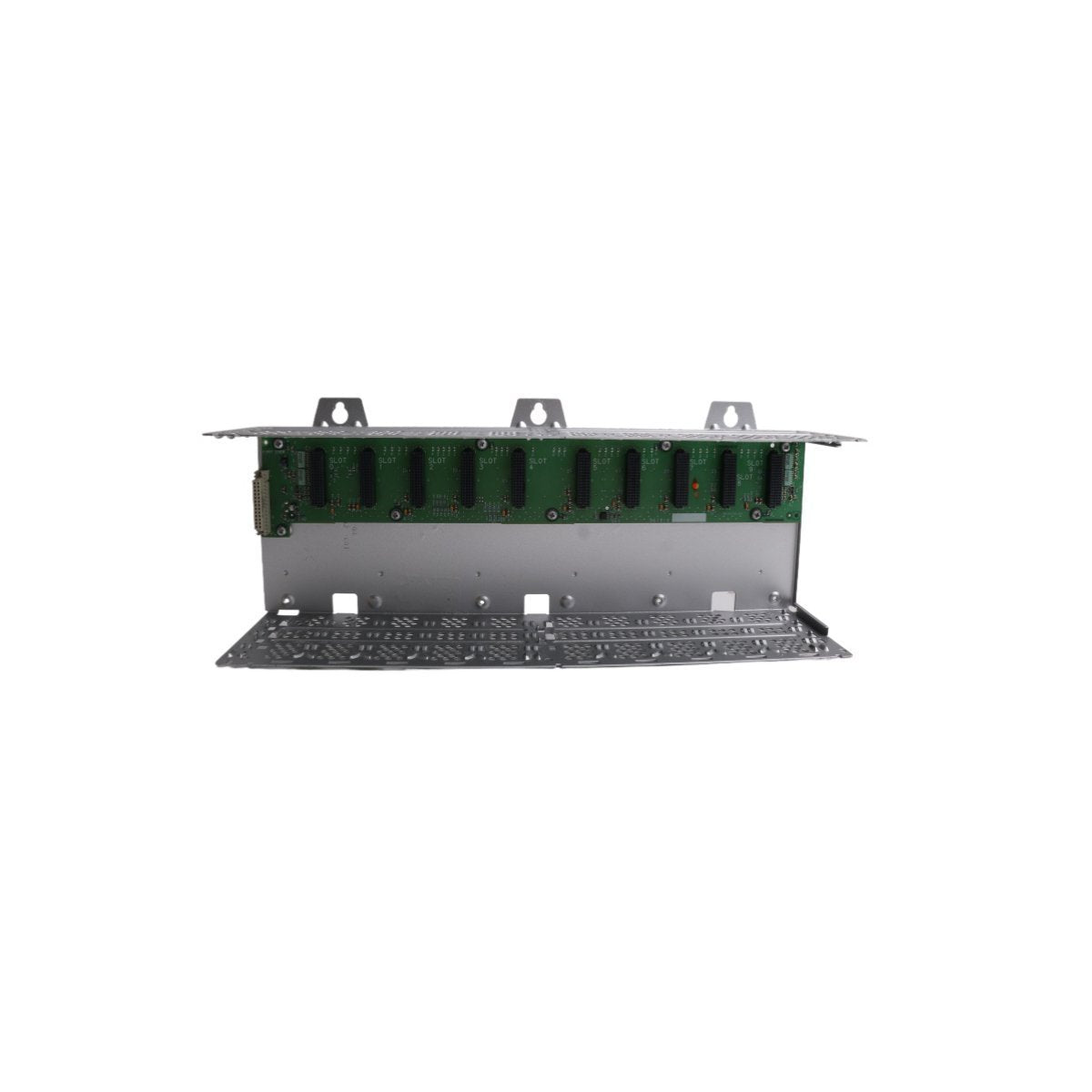

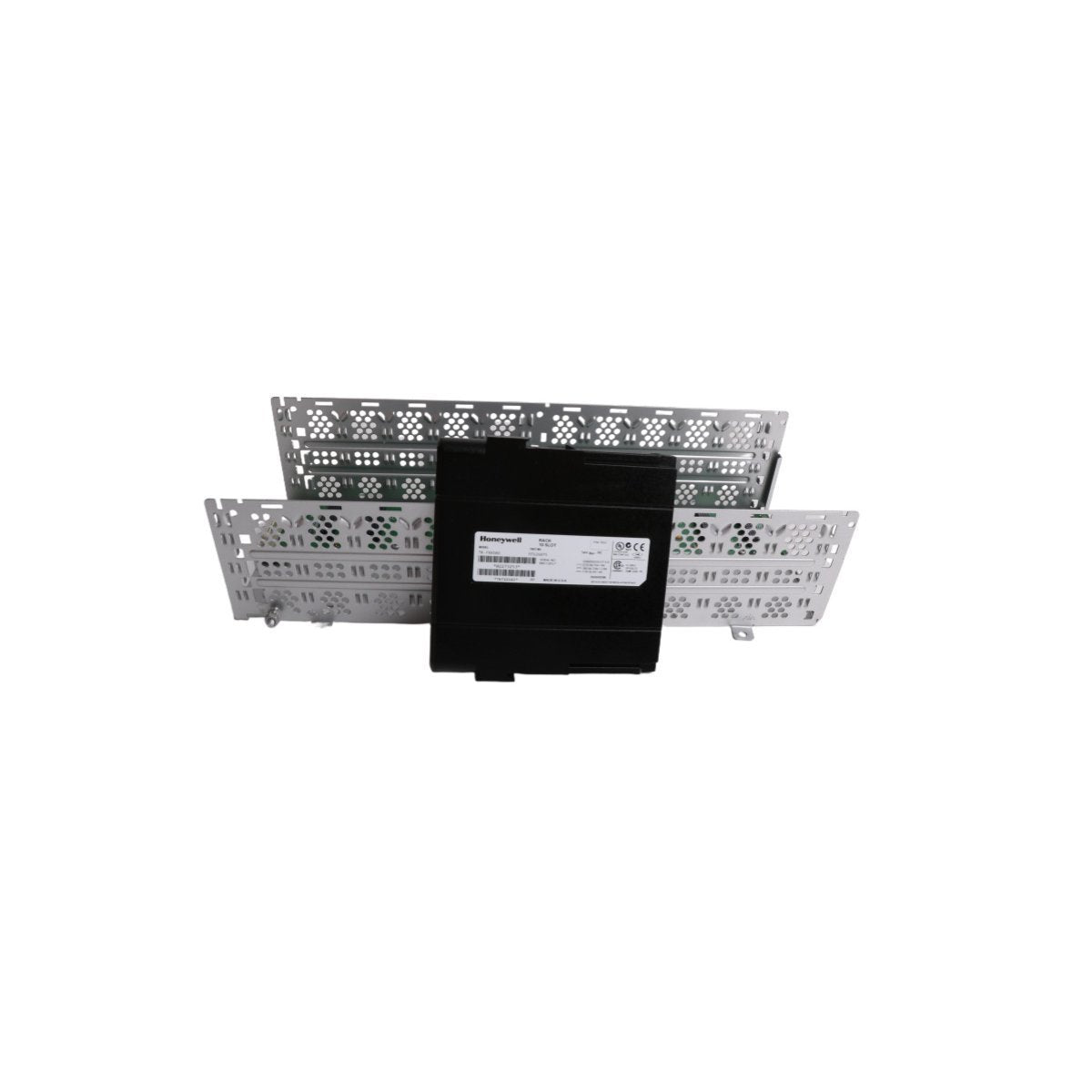

The Honeywell TK-FXX102 is a high-integrity 10-slot rack chassis specifically designed to serve as the structural and electrical backbone for redundant power systems within the Experion PKS and legacy DCS architectures. Unlike standard I/O racks, the TK-FXX102 is engineered to house and manage multiple power supply modules, providing a deterministic 5.1V DC output to support system-wide hardware stability. By facilitating an N+1 or 1+1 redundancy configuration, this chassis ensures that critical control logic remains energized even during a primary power failure. Its ruggedized backplane is optimized for high-current distribution, making it a foundational component for facility managers who prioritize maximum system uptime and fault-tolerant infrastructure.

Hardware Infrastructure and Physical Metrics

The TK-FXX102 is built to the following industrial-grade mechanical and electrical specifications:

• Model Identification: TK-FXX102

• Chassis Capacity: 10 Dedicated Slots

• Primary Function: Redundant Power System Chassis

• System Output: 5.1V DC High-Stability Bus

• Physical Dimensions: 17.1 cm x 40.0 cm x 14.6 cm

• Net Weight: 1.4 kg

• Environmental Protection: Conformal coated for resistance against humidity and airborne contaminants

• Maintenance Feature: Supports hot-swappable module replacement

• Monitoring: Integrated health-status bus for real-time power diagnostics

• Origin: Manufactured in the USA

• Mounting: Standard industrial cabinet/panel mounting footprint

Industrial Power Reliability Scenarios

In Continuous Process Manufacturing, the TK-FXX102 is the primary safeguard against unplanned controller shutdowns. By hosting redundant power modules, it prevents a single power supply failure from halting production lines. The 10-slot configuration allows for the distribution of power across large-scale I/O networks, while the conformal coating ensures that the backplane remains conductive and corrosion-free in the humid or chemically active environments often found in pulp and paper or fertilizer plants.

Within Data Centers and Critical Telecommunications Hubs, this chassis provides the stabilized 5.1V DC baseline required for sensitive logic boards. Its hot-swappable architecture allows maintenance teams to replace aging power modules without taking the system offline, facilitating proactive maintenance schedules. The chassis's efficient power distribution logic reduces heat buildup within the rack, which is essential for maintaining the longevity of the surrounding control hardware in high-density server environments.

For Petrochemical and Energy Infrastructure, the TK-FXX102 functions as a mission-critical power hub for Safety Instrumented Systems (SIS). The integrated fault-tolerance mechanisms ensure that even if one power circuit is compromised, the redundant side takes over instantaneously without a voltage drop. This seamless transition is vital for maintaining the integrity of emergency shutdown (ESD) sequences, where a loss of control power could lead to a catastrophic failure of safety barriers.
