Product Overview

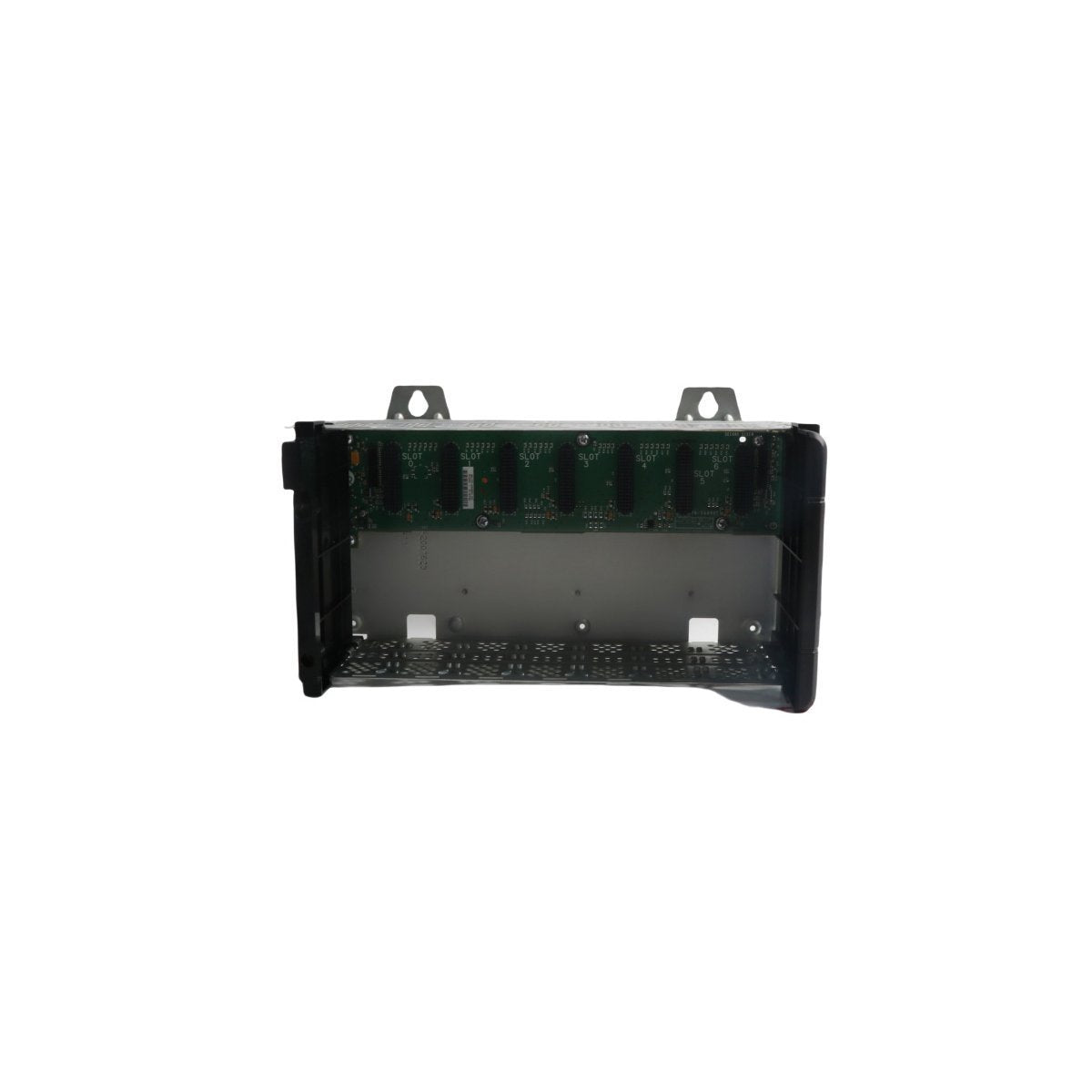

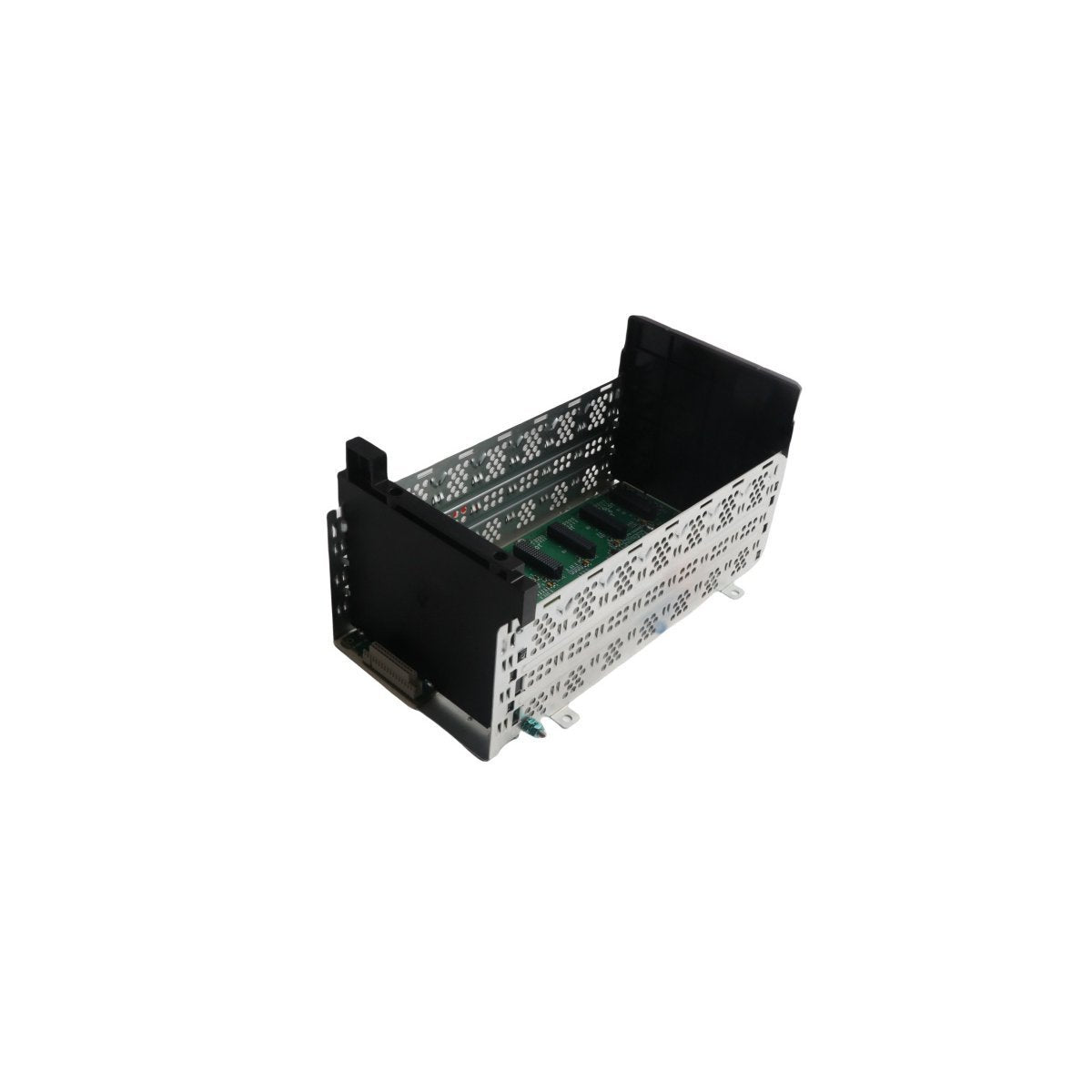

The Honeywell TC-FXX072, identified by part number 97126485, is a fundamental structural and electrical component of the Experion LS control system. This 7-slot rack chassis provides the physical housing and high-speed communication backplane necessary for integrating a variety of I/O modules and processors. Engineered to serve as the backbone of a Distributed Control System (DCS) node, the TC-FXX072 ensures reliable power distribution and seamless data exchange between the individual modules and the central controller. Its modular design allows engineers to scale their automation infrastructure precisely, facilitating the localized or centralized deployment of I/O points in a ruggedized, industrial-grade assembly.

Structural Architecture and Hardware Metrics

The TC-FXX072 is built to the following mechanical and technical specifications:

• Model Identification: TC-FXX072

• Engineering Part Number: 97126485

• Chassis Capacity: 7 Slots

• System Lineage: Experion LS / C200E Compatibility

• Physical Dimensions: 28 cm x 16.8 cm x 14.5 cm

• Net Weight: 0.96 kg

• Backplane Function: High-speed data synchronization and power bus distribution

• Installation Profile: Standard panel or rack mounting

• Construction Material: Heavy-duty industrial housing for vibration and thermal resistance

• Country of Manufacture: USA

• System Role: Primary I/O rack or remote expansion chassis

Strategic System Implementation

In Discrete Manufacturing and Assembly, the TC-FXX072 serves as a localized hub for digital and analog signals. Its 7-slot capacity is ideal for sub-system control, where a high density of proximity sensors and motor starters must be consolidated and communicated back to the master controller. The chassis’s robust backplane ensures that signal integrity is maintained even in environments with significant electromagnetic interference from nearby heavy machinery.

Within Batch Chemical and Pharmaceutical Processing, this rack module provides the necessary scalability for expanding production lines. As new reactant feed systems or monitoring instrumentation are added, the TC-FXX072 allows for the easy insertion of additional I/O modules without re-architecting the entire cabinet. The standardized Experion LS interface ensures that any module placed in the chassis is immediately recognized by the system, reducing commissioning time and minimizing potential wiring errors.

For Water and Wastewater Management, the TC-FXX072 is frequently utilized in remote telemetry units (RTUs) or distributed control panels. Its relatively compact footprint allows it to fit into smaller, unconditioned enclosures at pumping stations or filtration beds. By providing a stable and vibration-resistant mounting platform for critical I/O, the chassis helps maintain continuous visibility into infrastructure health, ensuring that remote assets operate efficiently with minimal manual intervention.
