Product Overview

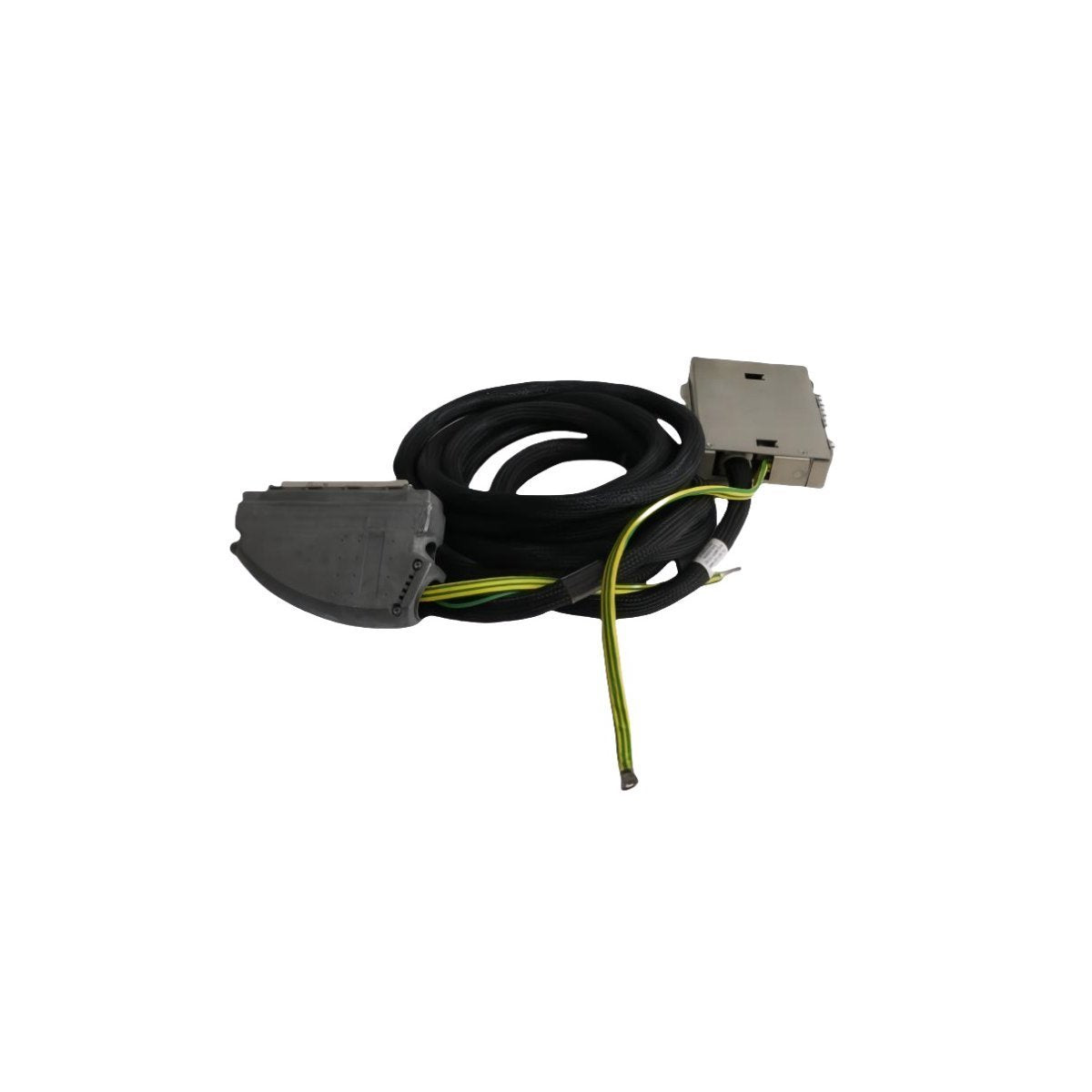

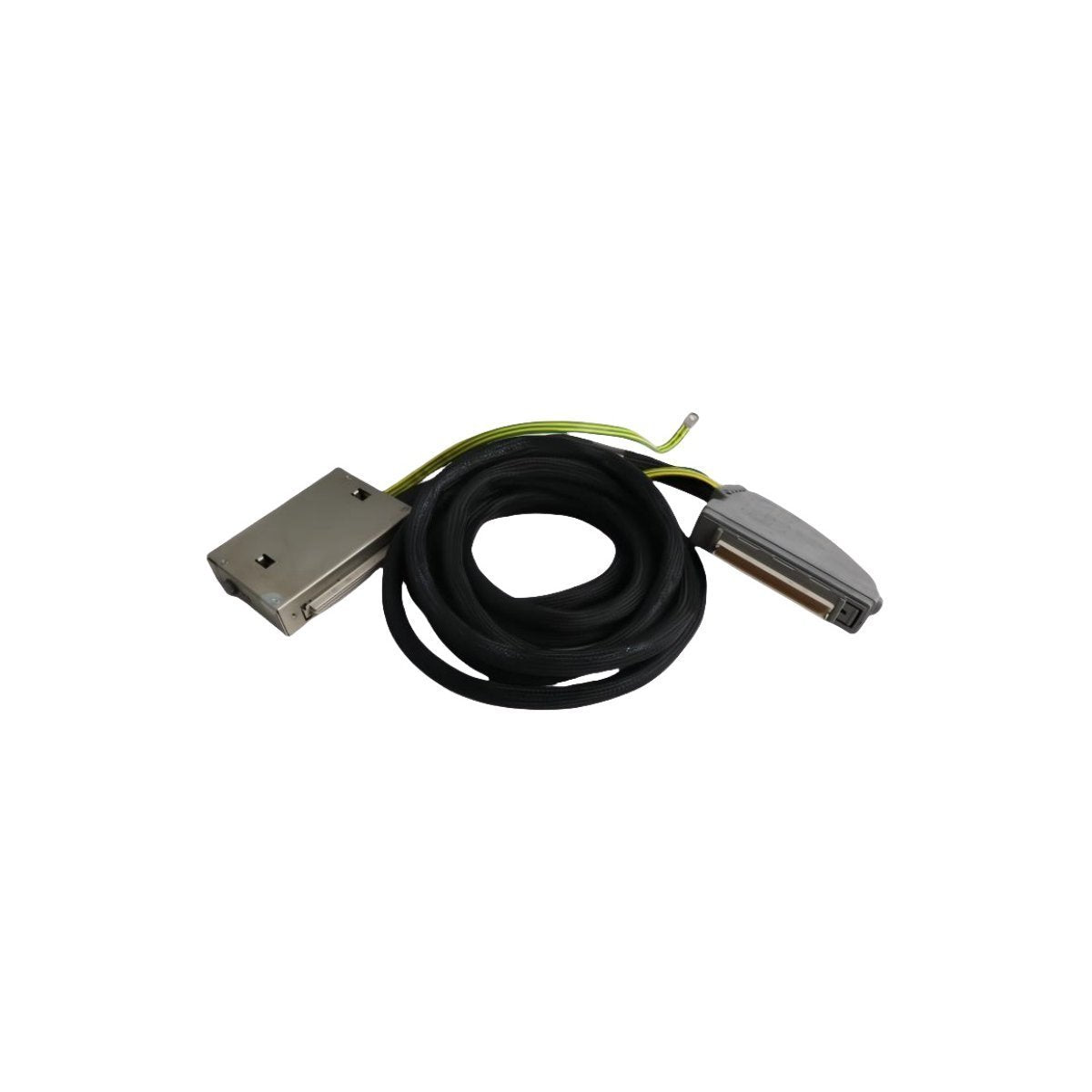

The ICS Triplex TC-505-02-2M0 is a high-integrity I/O SmartSlot Cable engineered for the Regent Control System. This 2-meter interface assembly is a specialized interconnect solution designed to facilitate high-speed data transmission between the controller backplane and SmartSlot-equipped I/O modules. By providing a secure, low-impedance path for critical signals, the TC-505-02-2M0 ensures that the logic solver maintains real-time synchronization with field-side instrumentation.

In safety-critical environments such as pharmaceutical manufacturing, chemical processing, and thermal management, this cable is essential for maintaining the high availability of the control loop. It is specifically built to handle complex I/O configurations where signal veracity and physical durability are paramount. The "SmartSlot" architecture allows for advanced diagnostics and hot-swappable module support, and the TC-505-02-2M0 provides the necessary physical infrastructure to enable these high-level features.

Key Technical Characteristics

The TC-505-02-2M0 is characterized by its superior shielding and industrial-grade construction, tailored for high-stakes automation.

• Precision Signal Integrity: Optimized for low-latency communication, ensuring that high-resolution data—including sensitive temperature and pressure variables—reaches the processor without interference.

• Harsh Environment Resilience: The cable jacket and connectors are constructed to withstand corrosive atmospheres, mechanical vibrations, and significant thermal fluctuations common in heavy industry.

• Advanced Shielding: Incorporates multi-layered electromagnetic interference (EMI) protection to prevent signal crosstalk in high-density electrical cabinets.

• Standardized Integration: Features heavy-duty, keyed connectors that allow for rapid, tool-less installation and secure locking, minimizing the risk of accidental disconnection.

• Optimized Length: The 2.0m (2M0) specification provides sufficient flexibility for routing within standard 800mm or 1000mm wide enclosures while maintaining signal strength.

• Diagnostic Support: Specifically wired to support the Regent system’s SmartSlot diagnostic protocols, enabling the detection of module-level faults and line integrity issues.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: TC-505-02-2M0

• Product Series: ICS Regent Control System

• Module Type: SmartSlot I/O Interface Cable

• Length: 2.0 Meters (approx. 6.56 ft)

• Weight: 1.96 kg (4.32 lbs)

• Dimensions: 36.0 x 27.0 x 6.0 cm (Packaged)

• System Architecture: PLC / DCS

• HS Code: 8537101190

• Country of Origin: USA

Industrial Reliability and Application

The TC-505-02-2M0 SmartSlot Cable is a vital link in systems where every degree of measurement and every millisecond of response time matters. It is frequently deployed in:

• Thermal Process Control: Connecting high-density thermocouple or RTD modules to the main processor for precise temperature regulation in heat-treatment or chemical synthesis.

• High-Availability Manufacturing: Supporting "SmartSlot" configurations that allow modules to be swapped while the process remains live, ensuring zero downtime.

• Safety Instrumented Systems (SIS): Providing the physical link for critical input/output paths in SIL-rated safety loops.

By utilizing the TC-505-02-2M0, engineers can reduce the complexity of their cabinet wiring while increasing the overall diagnostic depth of their control system. Its rugged build and proven compatibility with the Regent framework make it a reliable choice for long-term operational efficiency.
