Product Overview

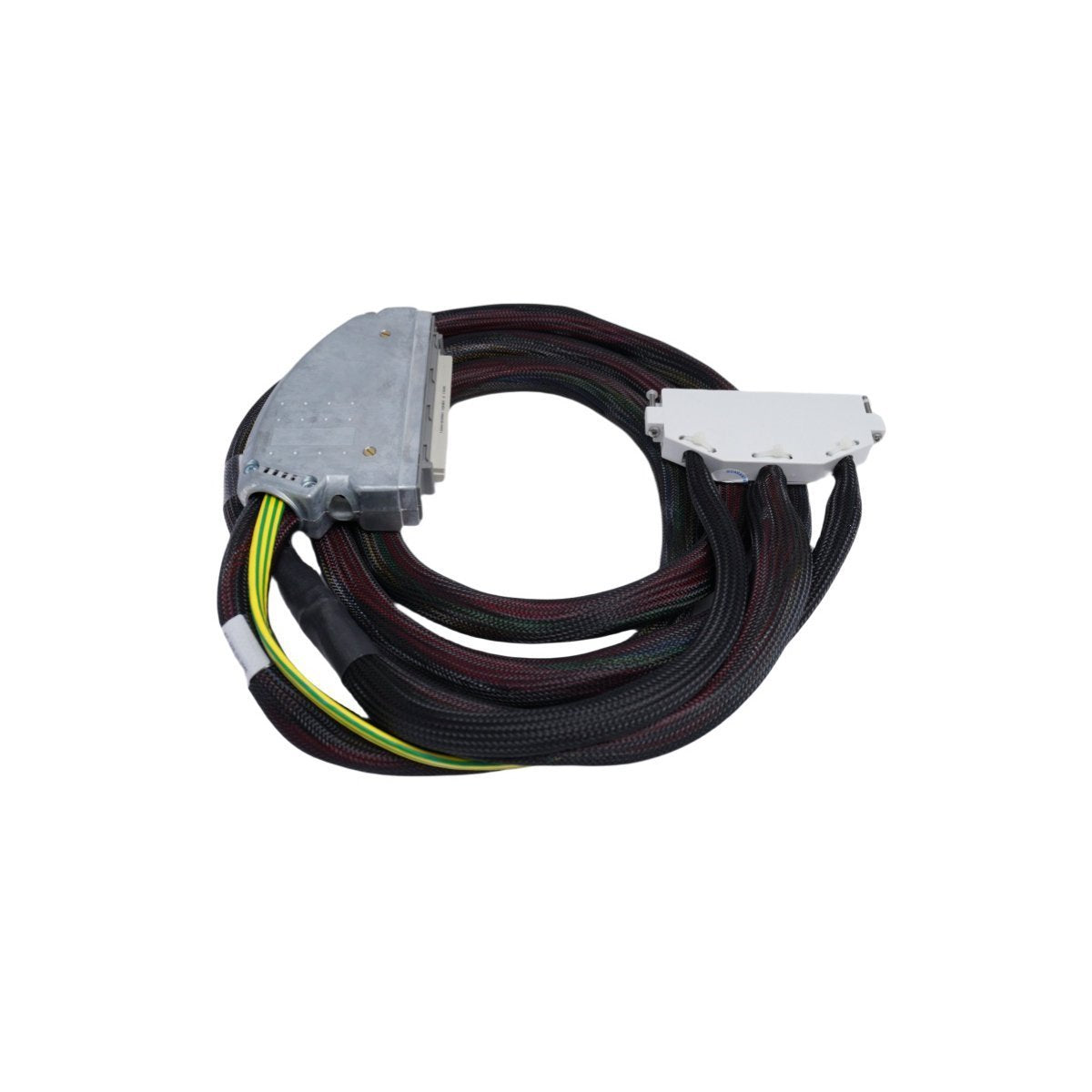

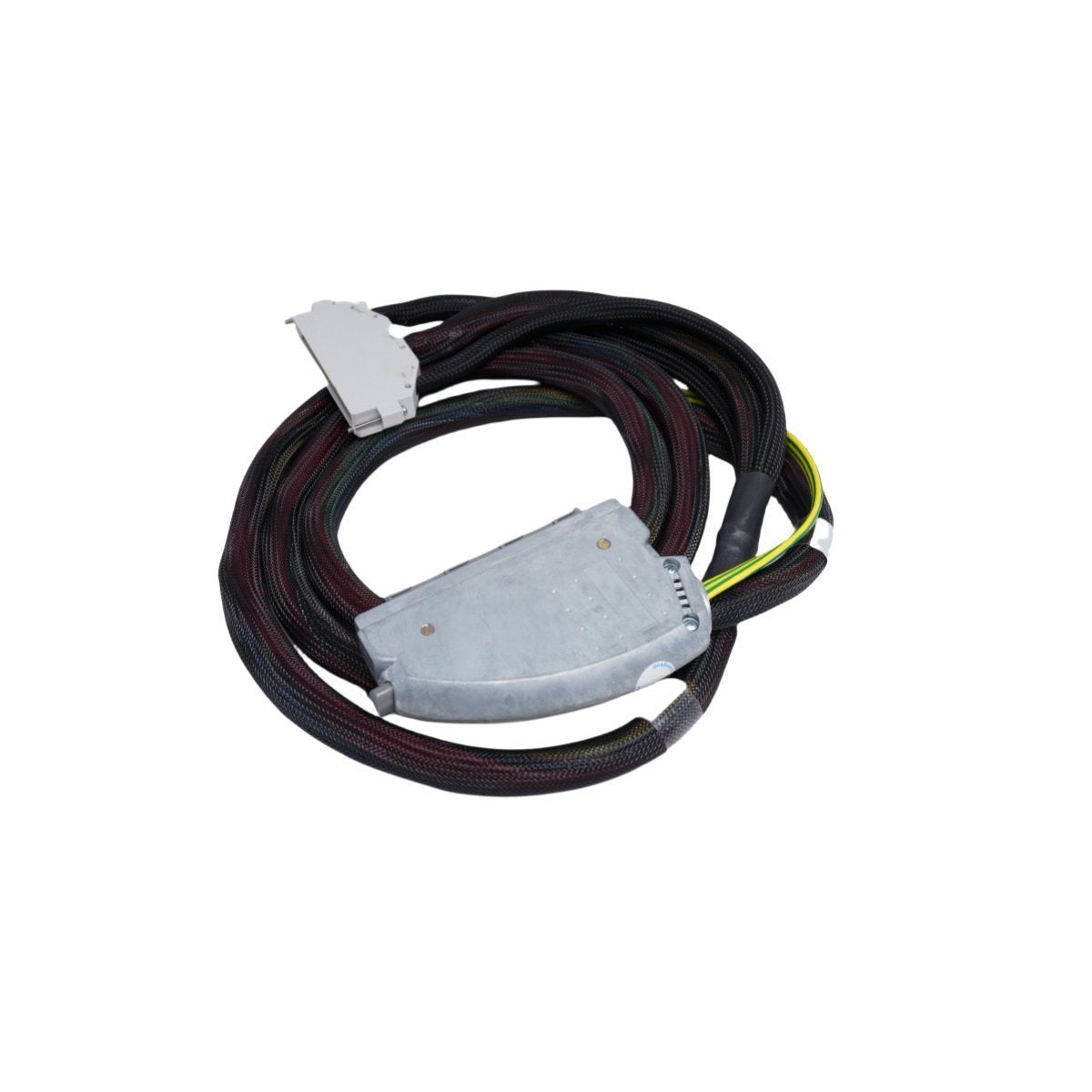

The ICS Triplex TC-501-02-6M5 is a high-integrity 6-meter (approximately 20-foot) SmartSlot interface cable engineered for the Trusted® series safety controller platform. This heavy-duty cable is designed to provide a secure, fail-safe communication link between Trusted I/O modules housed in the main chassis and their respective Field Termination Assemblies (FTAs). It is a critical component in Triple Modular Redundant (TMR) systems, where maintaining absolute signal purity and physical connection security is mandatory for Emergency Shutdown (ESD) and Fire and Gas (F&G) logic.

Constructed to withstand the rigors of mission-critical environments such as nuclear power facilities and offshore oil platforms, the TC-501-02-6M5 manages the high-density routing of up to 40 independent signal channels. Its design focuses on total electromagnetic compatibility (EMC), utilizing advanced shielding techniques to eliminate external interference that could otherwise trigger false trips or signal degradation in safety-instrumented systems (SIS).

Technical Design and Signal Integrity

The TC-501-02-6M5 is built with specialized materials and termination methods to ensure longevity in high-vibration and corrosive industrial settings.

• Standardized Connectivity: Features a 96-way type ‘C’ connector at the controller chassis end and a 96-way type ‘R’ connector at the remote FTA end, providing keyed, error-proof installation.

• Superior Shielding Architecture: Incorporates a comprehensive braided sheath that is bonded at both ends. A dedicated green screen-earth wire is provided at the remote end to facilitate proper grounding to the cabinet earth bar.

• Mechanical Protection: The internal conductors are encased in a durable nylon Rilgain sheathing. This outer layer is specifically chosen for its resistance to abrasion and chemical exposure common in refinery and power plant environments.

• Precision Termination: The cable ends feature heat-sealed terminations that prevent the internal wiring from fraying or separating over time, ensuring that low-voltage analog signals remain stable under mechanical stress.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: TC-501-02-6M5

• Cable Type: Trusted I/O SmartSlot Interconnect

• Length: 6 Meters (600 cm)

• Channel Capacity: Up to 40 Channels

• Connectors: 96-Way Type C (Chassis) to 96-Way Type R (Remote)

• Protection: Nylon Rilgain Sheathing

• Grounding: Integrated braided screen with dedicated earth lead

• Weight: 0.38 kg

• Dimensions: 48.2 x 8.0 x 1.7 cm (Shipping profile)

• Industrial HS Code: 8537101190

Critical Safety Applications

As a core accessory for the Trusted® platform, the TC-501-02-6M5 cable is utilized in sectors where operational failure can have catastrophic consequences:

• Petrochemical Processing: Connecting high-density pressure and temperature sensors to the safety logic solver.

• Nuclear Power: Providing reliable signal paths for reactor protection systems where EMI resistance is paramount.

• BMS (Burner Management Systems): Ensuring the rapid and secure transmission of flame detection and fuel valve command signals.

• Turbine Protection: Managing high-speed vibration and overspeed sensor data through a ruggedized link.
