Product Overview

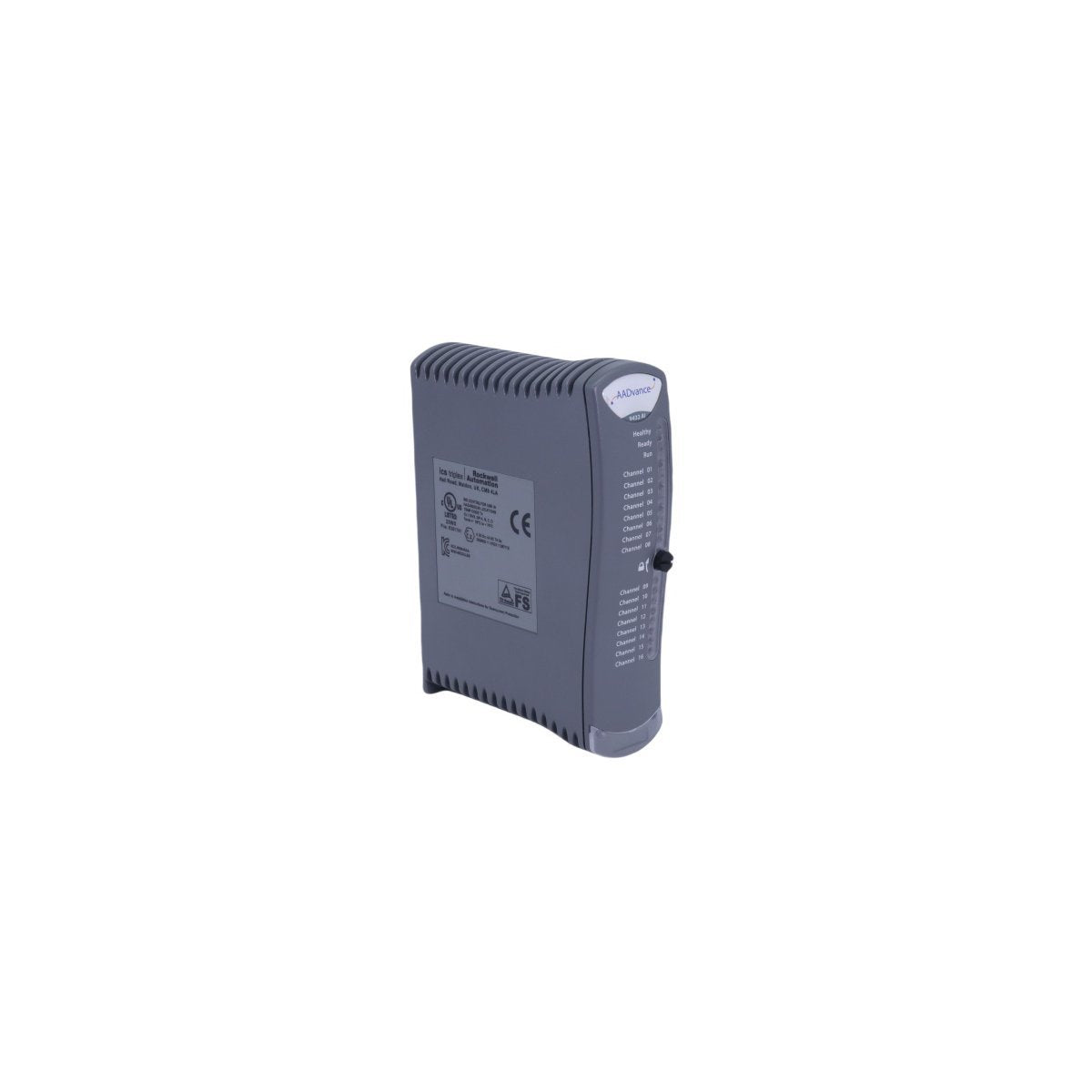

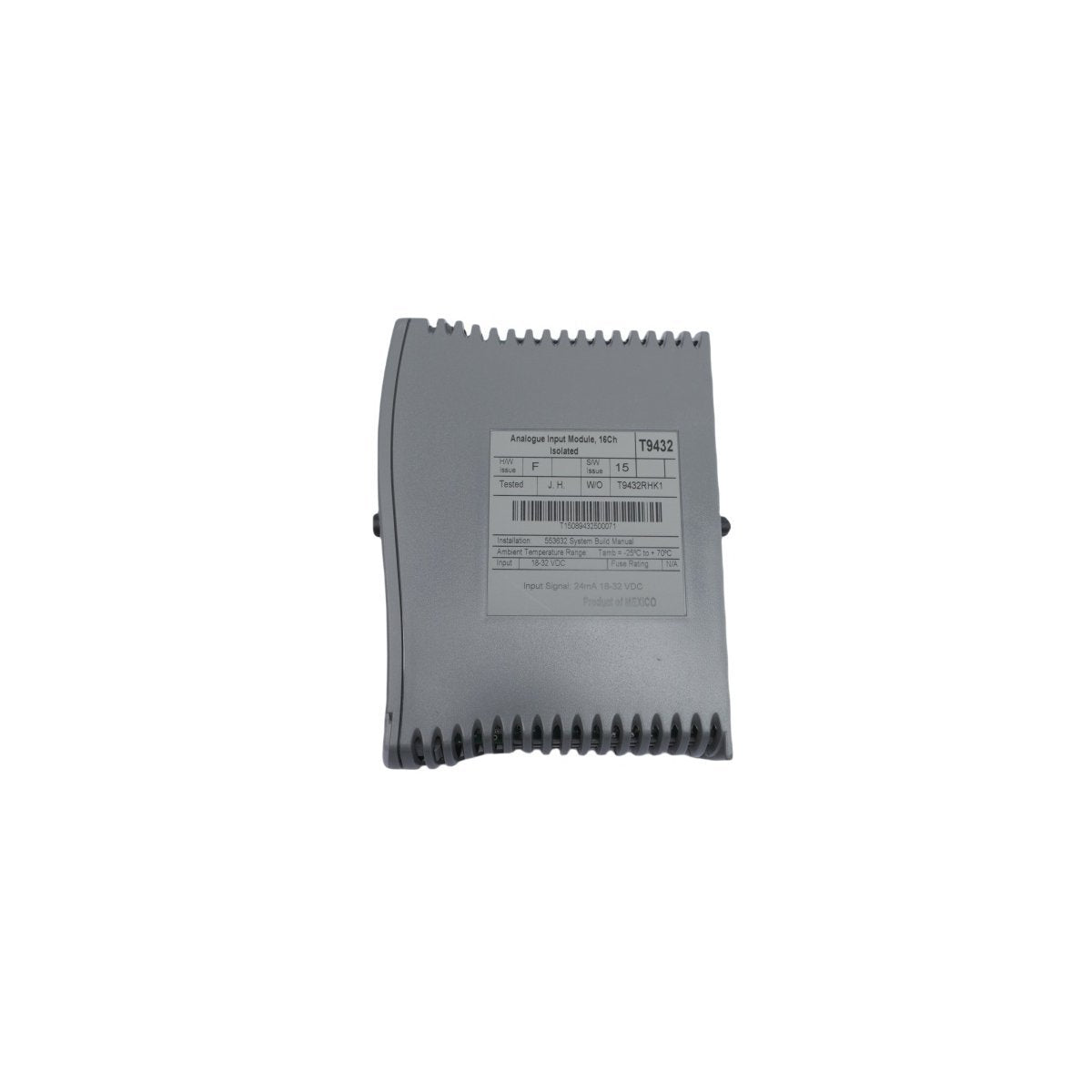

The T9432 is a high-density, 16-channel isolated analog input module engineered by ICS Triplex for use within the Trusted and Regent control architectures. Specifically developed for safety-critical and high-availability industrial applications, this module provides precise measurement of current signals ranging from 0 mA to 24 mA. It serves as a primary interface for field transmitters, sensors, and other analog instrumentation, converting physical process variables into high-resolution digital data for the system processor.

Each channel is electrically isolated to prevent ground loops and protect the control system from field-side electrical noise or transients. Beyond simple data acquisition, the T9432 provides intelligent line monitoring and comprehensive fault detection, ensuring that process integrity is maintained in demanding environments such as oil and gas refineries, chemical plants, and power generation facilities.

Technical Characteristics

• Input Capacity: 16 independent, isolated analog input channels.

• Signal Range: 0 mA to 24 mA (standard 4-20 mA support with over-range capability).

• Configurable Voltage Bands: 5 user-definable voltage bands per input for granular signal analysis.

• Switching Thresholds: 8 adjustable thresholds per channel featuring programmable hysteresis to prevent signal chatter.

• Line Monitoring: Advanced diagnostics capable of detecting open circuits, short circuits, and field device health.

• Software Integration: Fully configurable via AADvance Workbench software for parameter setting and mapping.

• Local Diagnostics: Front-panel LED array providing instantaneous status for the module and individual channel health.

• Data Processing: Provides both raw analog values and converted digital status information to the main controller.

• Isolation Rating: High-level galvanic isolation between field inputs and system logic.

• Physical Profile: 4.2 x 12 x 16.5 cm; Weight: 0.36 kg.

Advanced Diagnostics and System Safety

The T9432 Analog Input Module is distinguished by its sophisticated diagnostic engine. By utilizing the five configurable voltage bands, engineers can set specific zones that define "Normal," "Alarm," or "Fault" states. This allows the module to differentiate between a valid low-signal process state and a cable break. The inclusion of eight switching thresholds with hysteresis ensures that the system remains stable even when field signals are hovering near trip points.

Integration within the ICS Triplex PLC system allows these diagnostic variables to be mapped directly to application logic. This transparency enables predictive maintenance strategies, as operators can visualize precise signal health through the Workbench software. The module's hardware is designed for "hot-swap" capability within a redundant chassis, ensuring that process control is never interrupted during module replacement. With its robust American-made construction and high shock/vibration tolerance, the T9432 remains a standard for mission-critical analog signal processing.
