Product Overview

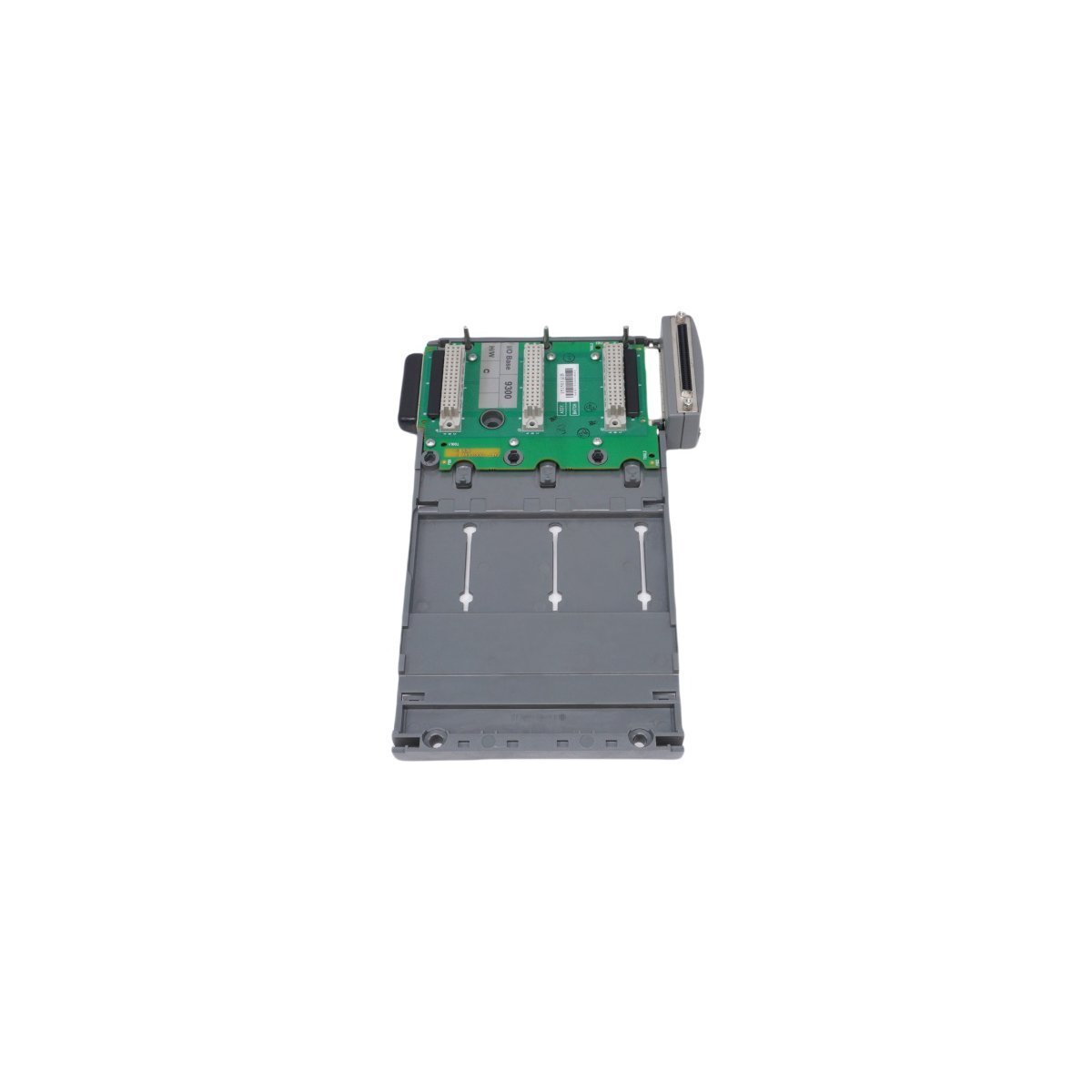

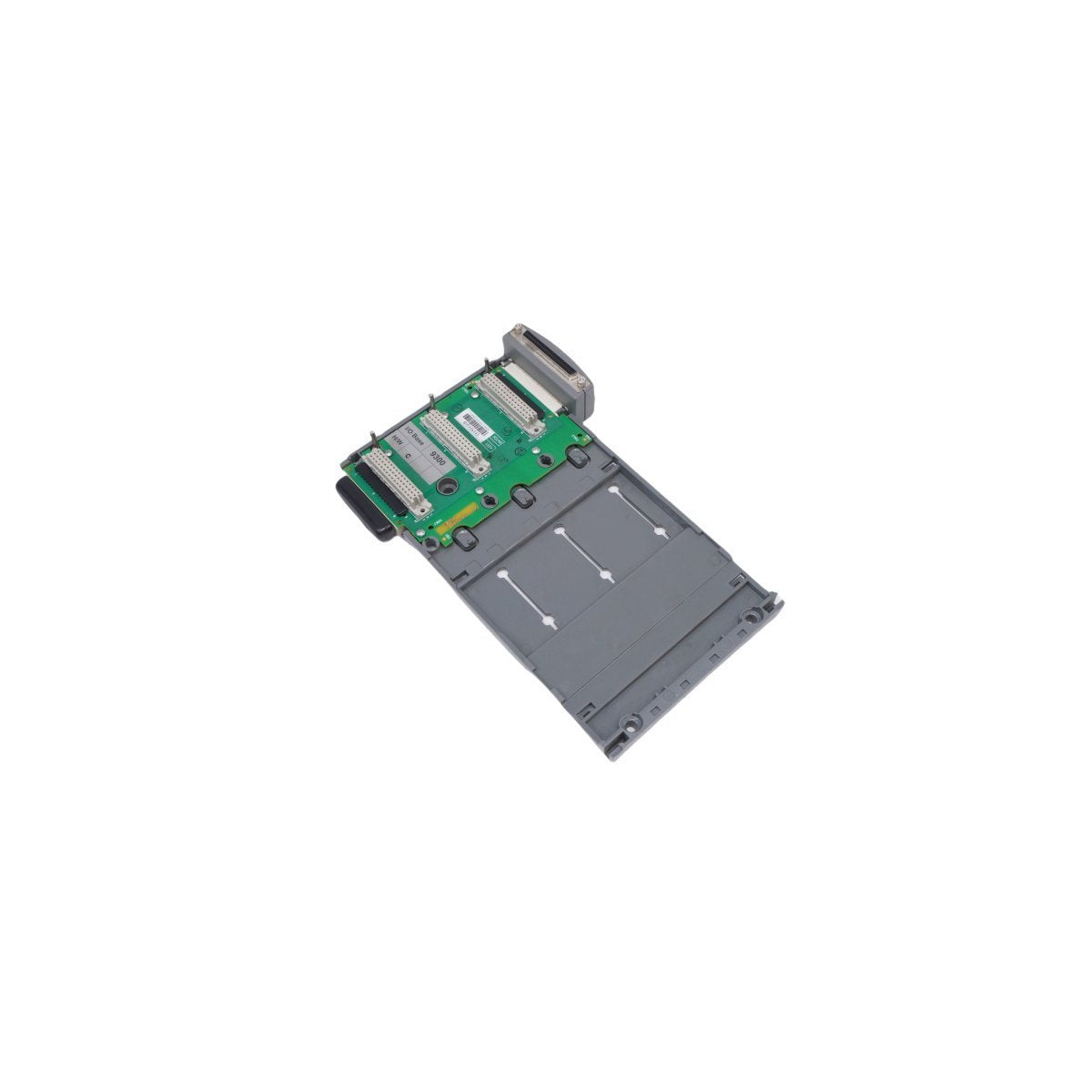

The ICS Triplex T9300 is a high-integrity I/O base unit designed to serve as the structural and electrical foundation for the Regent Control System. This ultra-compact interconnect module facilitates the secure mounting and communication interface for field I/O modules, providing a stable backplane connection within the PLC rack. By acting as the primary anchoring point, the T9300 ensures that power distribution and signal data remain consistent between the primary controller and individual input/output hardware.

Engineered for mission-critical reliability in the oil, gas, and power generation sectors, the T9300 is built to eliminate mechanical stress on electronic connectors. Its role is fundamental in maintaining the uptime of safety-instrumented systems (SIS), providing a modular platform that allows for rapid system expansion and hardware hot-swapping without compromising the integrity of the remaining control loop.

Key Technical Characteristics

The T9300 is characterized by its robust mechanical design and high-density signal throughput capabilities.

• Modular Integration: Designed for seamless "snap-in" installation, allowing multiple base units to be ganged together to scale I/O capacity according to specific process requirements.

• Harsh Environment Resilience: Constructed from industrial-grade, flame-retardant materials that resist high thermal loads and corrosive atmospheric conditions.

• High-Speed Backplane Interface: Maintains low-impedance electrical paths for high-speed data transmission across the Regent bus, ensuring zero-latency signal processing.

• Compact Footprint: At only 6.7x3.4x2cm, the unit maximizes rail space, making it ideal for high-density control cabinets where space is at a premium.

• Vibration Resistance: Engineered with secure locking mechanisms to prevent signal intermittent issues caused by industrial vibration or mechanical shock.

• Passive Architecture: Features a high-reliability passive design with a significant MTBF (Mean Time Between Failures), reducing the need for maintenance or replacement over the system's lifecycle.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T9300

• Product Series: Regent Control System

• Module Type: I/O Base Unit / Interconnect Terminal

• Weight: 0.04 kg (40 grams)

• Dimensions: 6.7 x 3.4 x 2.0 cm

• System Type: Distributed Control System (DCS) / PLC

• HS Code: 8537101190

• Product Origin: USA

• Operational Status: Active / Supported

System Application and Maintenance

The T9300 I/O base unit is a staple in critical infrastructure protection. Its primary function is to provide the physical and electrical "bedrock" for various Regent modules, including digital and analog I/O. Because the unit facilitates modularity, it allows maintenance teams to replace active electronic modules while the base unit remains wired and secured to the DIN rail.

This architecture is essential for preventing process disruptions during hardware updates. For engineers managing large-scale automation frameworks, the T9300 provides the necessary stability to ensure that complex workflows—from turbine control to emergency shutdown logic—run with absolute precision and continuity.
