Product Overview

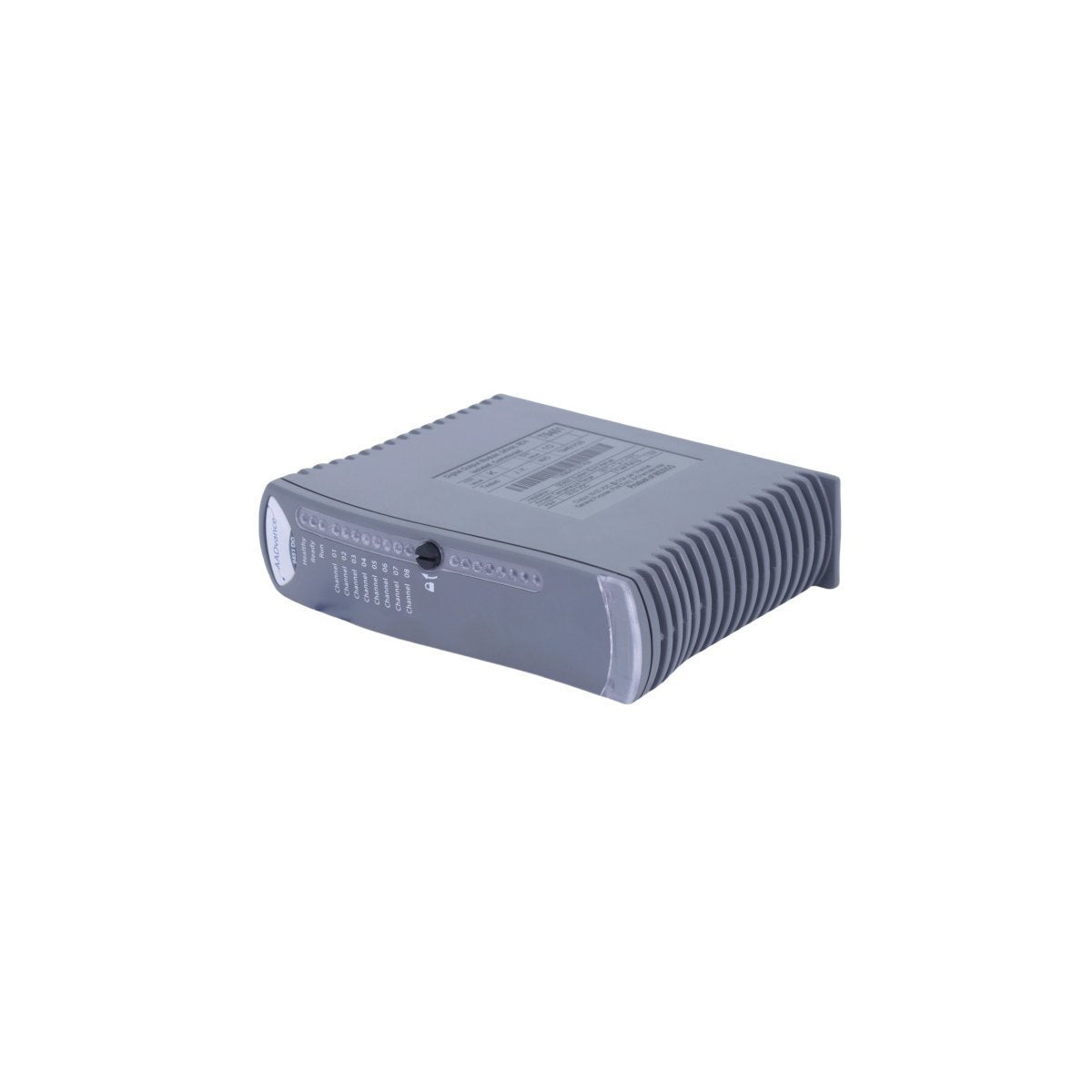

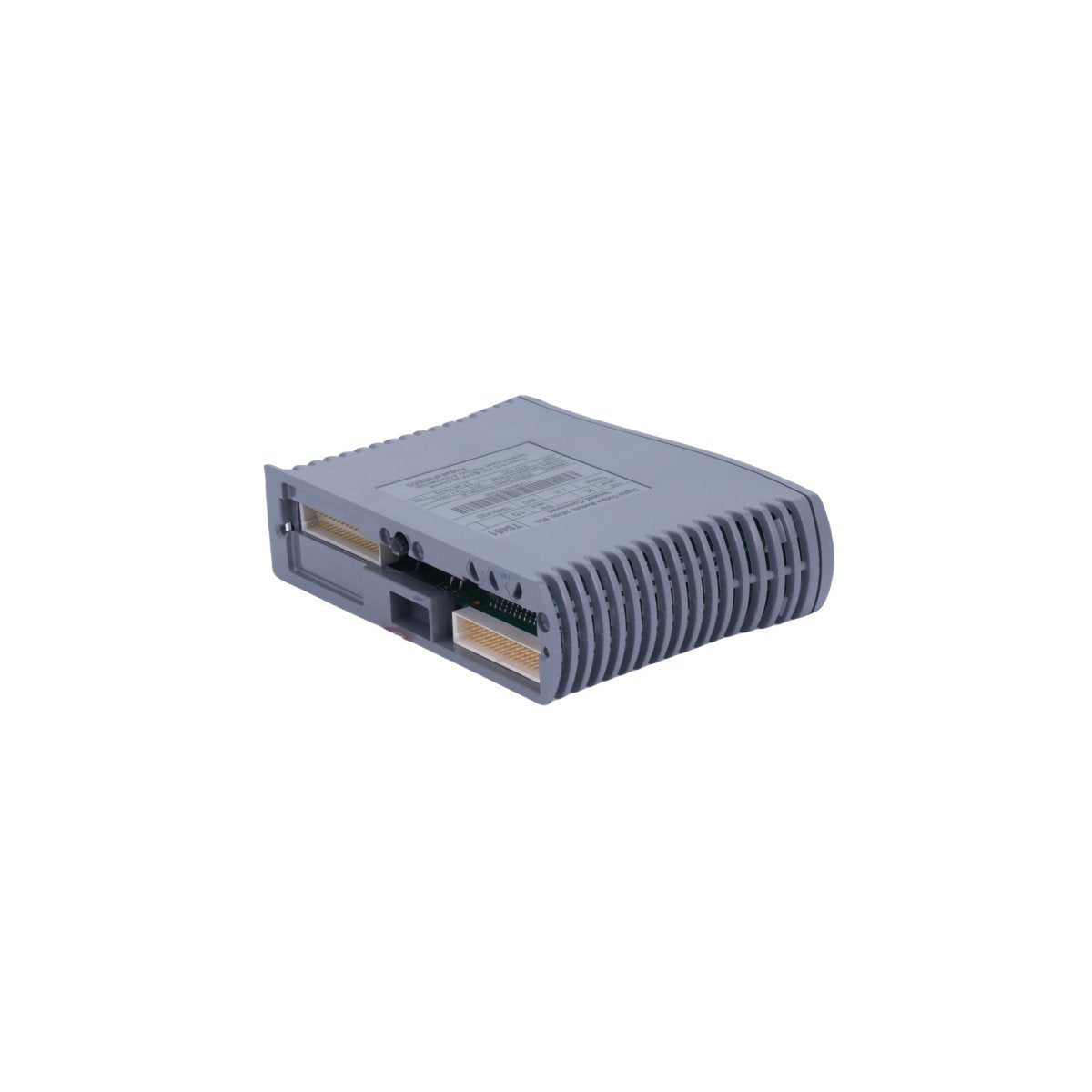

The ICS Triplex T9083U is a high-integrity Trusted Expander Interface and Universal I/O module designed for the Regent and Trusted control platforms. This hardware serves as a critical bridge within Fault Tolerant systems, providing a unified interface for both digital and analog field signals. By consolidating multiple signal types into a single module architecture, the T9083U reduces the necessity for specialized, single-purpose I/O units, thereby optimizing cabinet space and simplifying the overall system topology.

Engineered for use in Safety Instrumented Systems (SIS) and critical control applications, the T9083U facilitates high-speed data exchange between expansion chassis and the main controller rack. Its universal design allows it to interface with a broad spectrum of field devices, from simple limit switches and pushbuttons to complex analog transmitters and actuators, ensuring deterministic performance in high-stakes industrial environments.

Reliability and Diagnostic Intelligence

The T9083U architecture is built to withstand the rigors of heavy industrial sectors such as petrochemical refining, power generation, and large-scale manufacturing. The module is protected against electromagnetic interference (EMI), moisture, and airborne contaminants, maintaining signal integrity even in electrically noisy settings.

A core feature of the T9083U is its comprehensive suite of onboard diagnostics. The module continuously monitors the health of each individual channel and the status of the expander bus. By providing real-time telemetry on field-side faults or internal hardware discrepancies, the unit enables predictive maintenance and rapid troubleshooting, significantly reducing mean time to repair (MTTR) and preventing unscheduled process shutdowns.

Technical Specifications

• Module Function: Trusted Expander Interface / Universal I/O

• Signal Support: Analog and Digital Input/Output (Configurable)

• System Architecture: TMR (Triple Modular Redundant) Compatible

• Backplane Interface: Trusted Expander Bus

• Diagnostic Features: Point-level status monitoring and fault reporting

• Operating Voltage: 24V DC (Nominal)

• Physical Weight: 2.34 kg

• Dimensions: 14.5 x 30 x 4.5 cm

• HS Code: 8537101190

• Environmental Rating: Industrial Hardened (Regent/Trusted Class)

• Origin: USA

Operational Applications

• Emergency Shutdown (ESD): Managing safety-critical loops in oil and gas processing.

• Fire and Gas (F&G) Systems: Integrating flame detectors and alarm beacons.

• Process Expansion: Adding I/O capacity to existing Trusted racks without re-engineering the core logic.

• Distributed Control: Facilitating communication between distant I/O clusters in large-scale plants.
