Product Overview

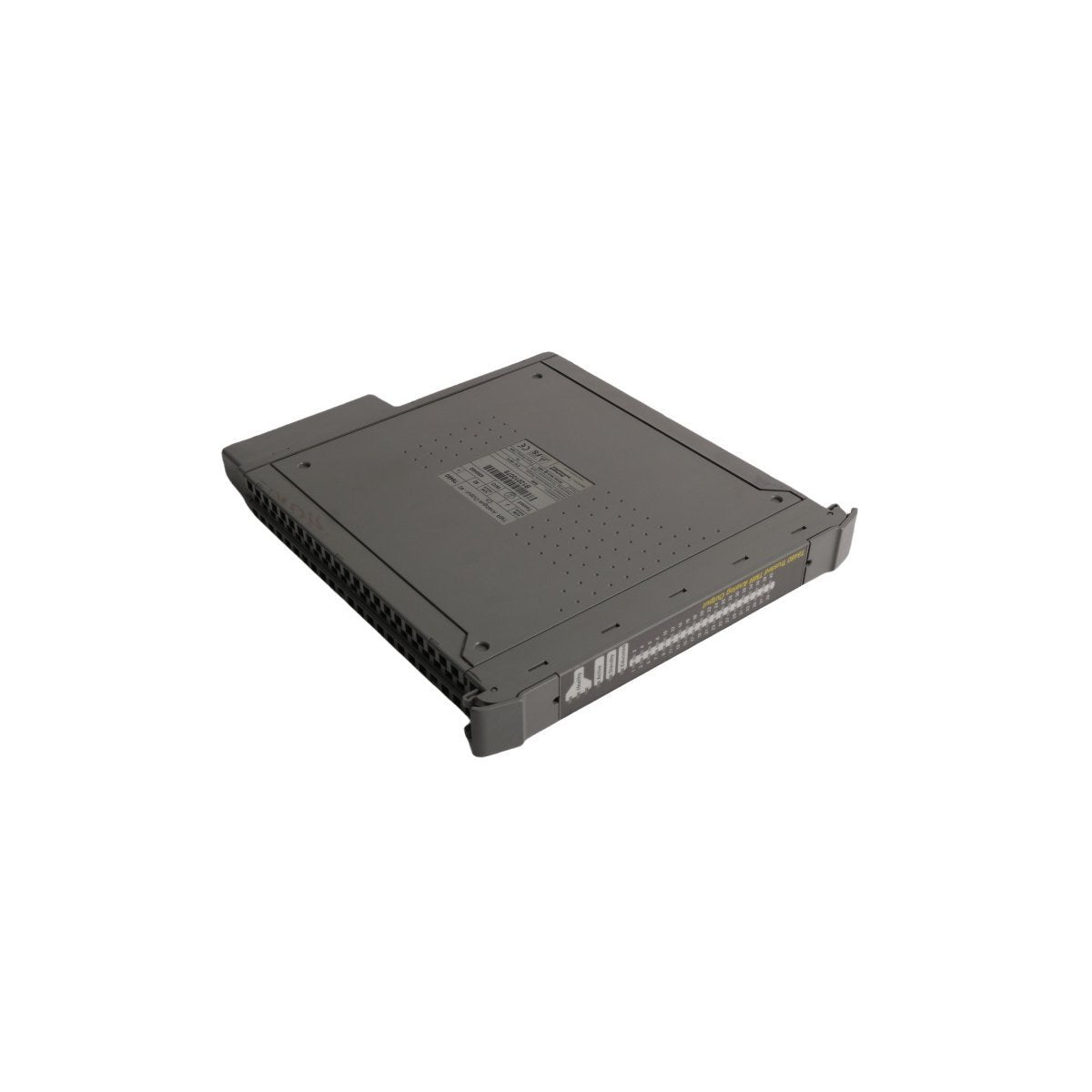

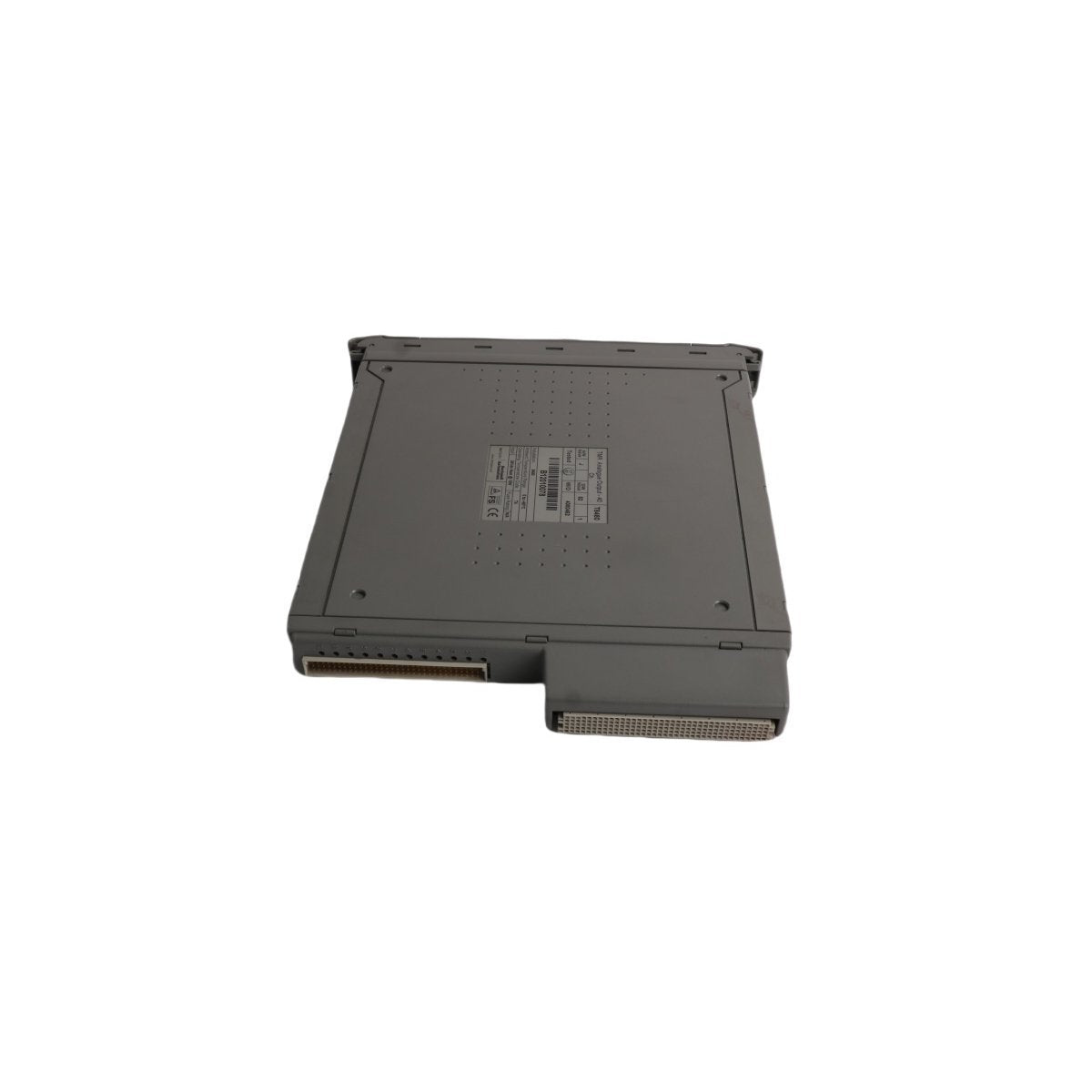

The ICS Triplex T8480 is a high-precision, 8-channel Analog Output Module designed for the Trusted™ Triple Modular Redundant (TMR) safety and control platform. This module is engineered to drive critical field actuators, such as control valves, dampers, and speed governors, with exceptional accuracy and fault tolerance. By utilizing a triplicated architecture, the T8480 ensures that a single hardware failure cannot cause a loss of control or an incorrect output signal, making it an essential component for Safety Integrity Level (SIL) applications.

As a part of the ICS Regent and Trusted ecosystems, the T8480 provides deterministic control in the most demanding environments, including offshore oil platforms, chemical processing plants, and nuclear power facilities. It manages complex modulating control loops by converting digital processor commands into high-fidelity 4-20mA or 0-20mA signals, ensuring that industrial processes remain within safe and efficient operational boundaries.

Key Technical Characteristics

The T8480 stands out for its sophisticated diagnostic capabilities and its resilience against environmental stressors.

• Triple Modular Redundancy (TMR): Features three independent internal output slices that perform hardware-based 2-out-of-3 (2oo3) voting to ensure the veracity of every analog signal sent to the field.

• Comprehensive Loop Monitoring: Includes advanced onboard diagnostics that continuously monitor for open circuits, short circuits, and field wiring health, providing real-time feedback to the main controller.

• High-Resolution Signal Control: Delivers 12-bit to 16-bit resolution (configuration dependent) for smooth, precise control of modulating valves and other sensitive actuators.

• Galvanic Isolation: Provides robust electrical isolation between the field-side wiring and the sensitive logic backplane, protecting the system from high-voltage transients and ground loops.

• Modular Hot-Swap Design: Supports online module replacement via companion slots, allowing maintenance teams to swap units without de-energizing the safety system or halting production.

• Ruggedized Thermal Management: Engineered for high-temperature stability, the module functions reliably in unconditioned cabinets subject to thermal fluctuations and corrosive air.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8480

• Product Series: Trusted TMR / ICS Regent System

• Module Type: Analog Output Module

• Number of Channels: 8 Isolated Channels

• Signal Range: 4-20 mA / 0-20 mA

• Safety Rating: SIL 3 Capable (IEC 61508)

• Weight: 1.3 kg

• Dimensions: 3.0 x 30.2 x 26.4 cm

• HS CODE: 8537101190

• Origin: USA

Industrial Application and Stability

In high-stakes automation, the T8480 Analog Output Module serves as the critical link between digital logic and physical process adjustment. Its ability to maintain signal accuracy under mechanical vibration and electromagnetic interference (EMI) is a hallmark of the ICS Triplex brand. By reducing the probability of spurious trips and ensuring reliable fail-safe positions, the T8480 optimizes plant resources and significantly lowers long-term maintenance costs. For engineering teams focused on total system integrity, this module provides a dependable solution that preserves process stability while maximizing operational safety.
