Product Overview

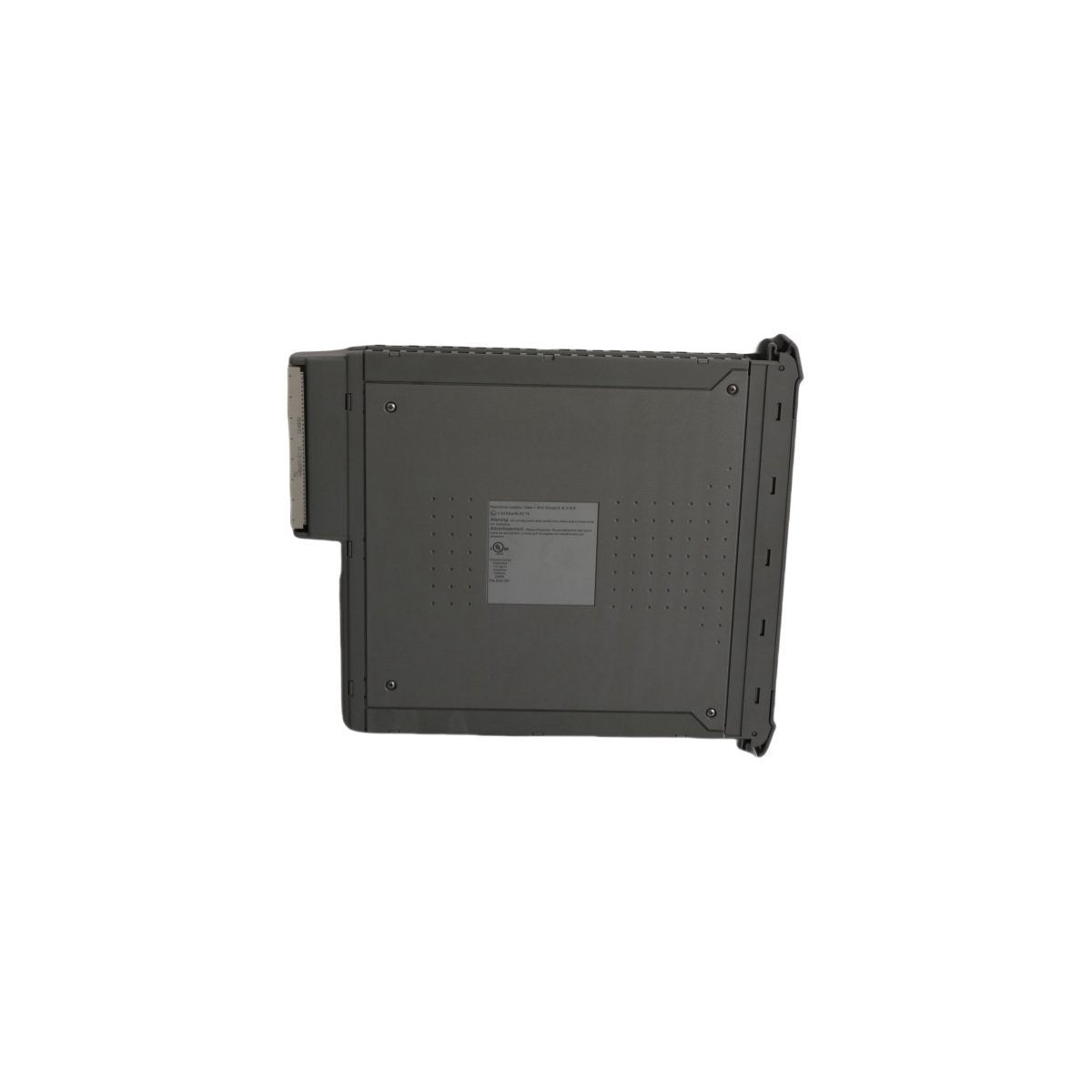

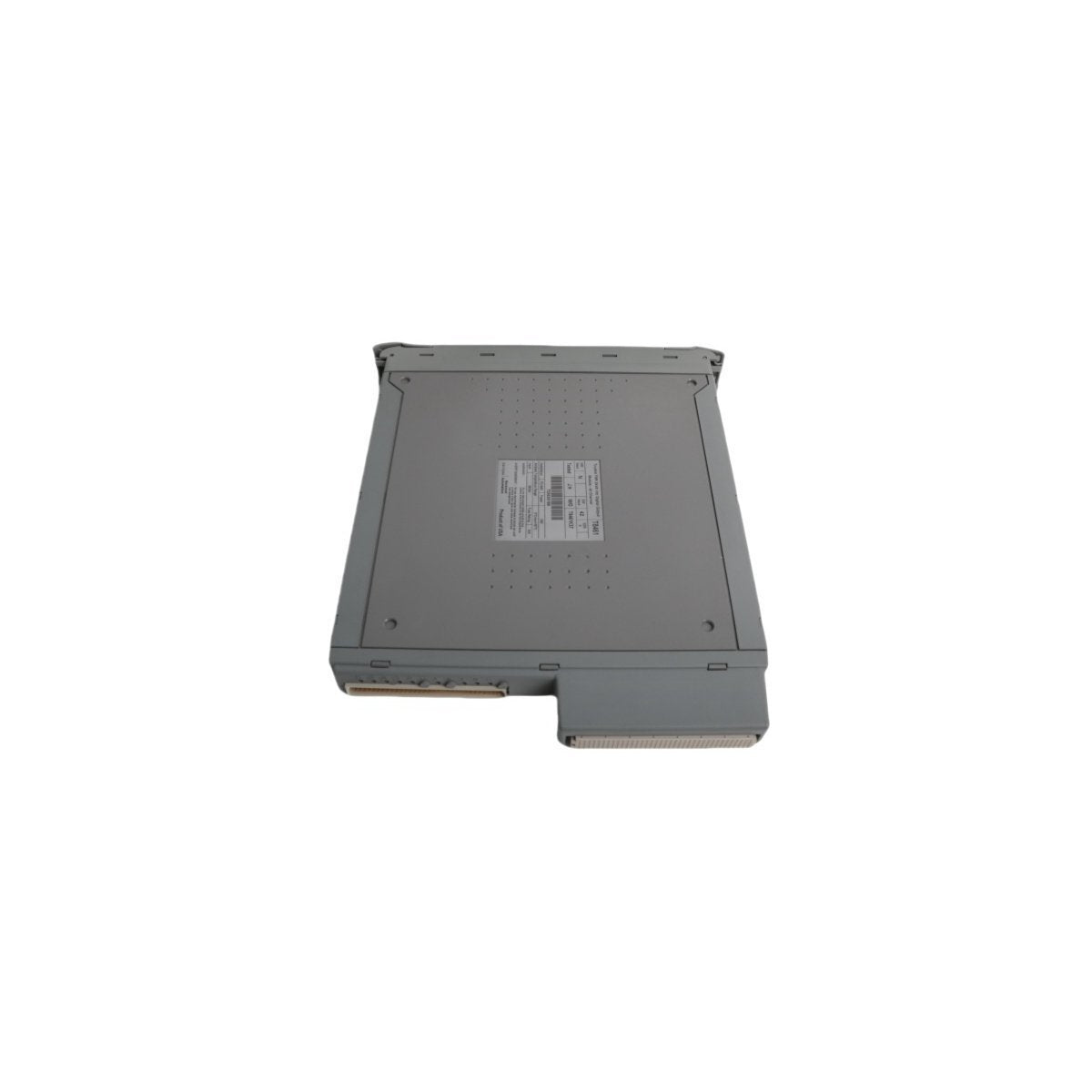

The Rockwell ICS Triplex T8461 is a high-integrity, 40-channel digital output module designed for the Trusted™ Triple Modular Redundant (TMR) platform. Engineered to meet the rigorous demands of SIL 3 safety-instrumented systems, this module provides the high-availability switching required to drive critical field actuators, including solenoids, motor starters, and emergency beacons. By utilizing a triplicated internal architecture, the T8461 performs hardware-level voting on all output commands, ensuring that a single component failure cannot lead to a loss of safety function or an accidental process trip.

The T8461 is distinguished by its versatile voltage compatibility and advanced diagnostic suite. It supports both 24V DC and 48V DC field power configurations, making it adaptable to various industrial power infrastructures. With integrated line monitoring and load-testing capabilities, the module provides operators with a transparent view of the health of the entire output loop, from the controller backplane to the final field element.

Core Technical Characteristics

The T8461 is designed for deterministic control and maximum fault tolerance in hazardous environments.

• Triple Modular Redundancy (TMR): Features three independent processing slices that perform 2-out-of-3 (2oo3) hardware voting, providing extreme reliability for high-stakes automation.

• Broad Voltage Range: Supports an operational supply range of 20V to 32V DC for the logic side, while managing higher-voltage digital outputs for specialized field devices.

• Intelligent Line Monitoring: Automatically detects field-side faults such as open-circuits, short-circuits, and failed field loads without interrupting the active process.

• Hot-Swap Maintenance: Engineered for live replacement within the Trusted chassis, allowing for hardware updates or repairs without shutting down the system or losing safety coverage.

• Redundant Power Feeds: Incorporates dual power inputs to ensure the module remains operational even if one primary DC supply is lost.

• Galvanic Isolation: Provides robust electrical separation between the high-voltage field side and the sensitive internal logic backplane, preventing transient damage.

Technical Specifications

• Manufacturer: Rockwell Automation (ICS Triplex)

• Model Number: T8461

• Product Series: Trusted TMR System

• Output Type: Digital Output (Sourcing)

• Channel Count: 40 Channels

• Voltage Supply: 20V DC to 32V DC (Nominal 24/48V field support)

• Weight: 1.7 kg (Packaged) / 1.32 kg (Net)

• Dimensions: 39 x 31 x 9 cm

• Certification: SIL 3, CE, UL, and CSA for hazardous areas

• HS Code: 8537101190

• Origin: USA

System Application and Longevity

The T8461 is a cornerstone component for Safety Instrumented Systems (SIS) across the global energy and manufacturing sectors. Its primary applications include:

• Emergency Shutdown (ESD): Controlling critical isolation valves and power-down relays in refineries.

• Fire and Gas (F&G): Driving high-output sirens, strobes, and suppression release systems.

• Turbine Control: Managing auxiliary oil pumps and fuel shut-off solenoids in power generation.
