Product Overview

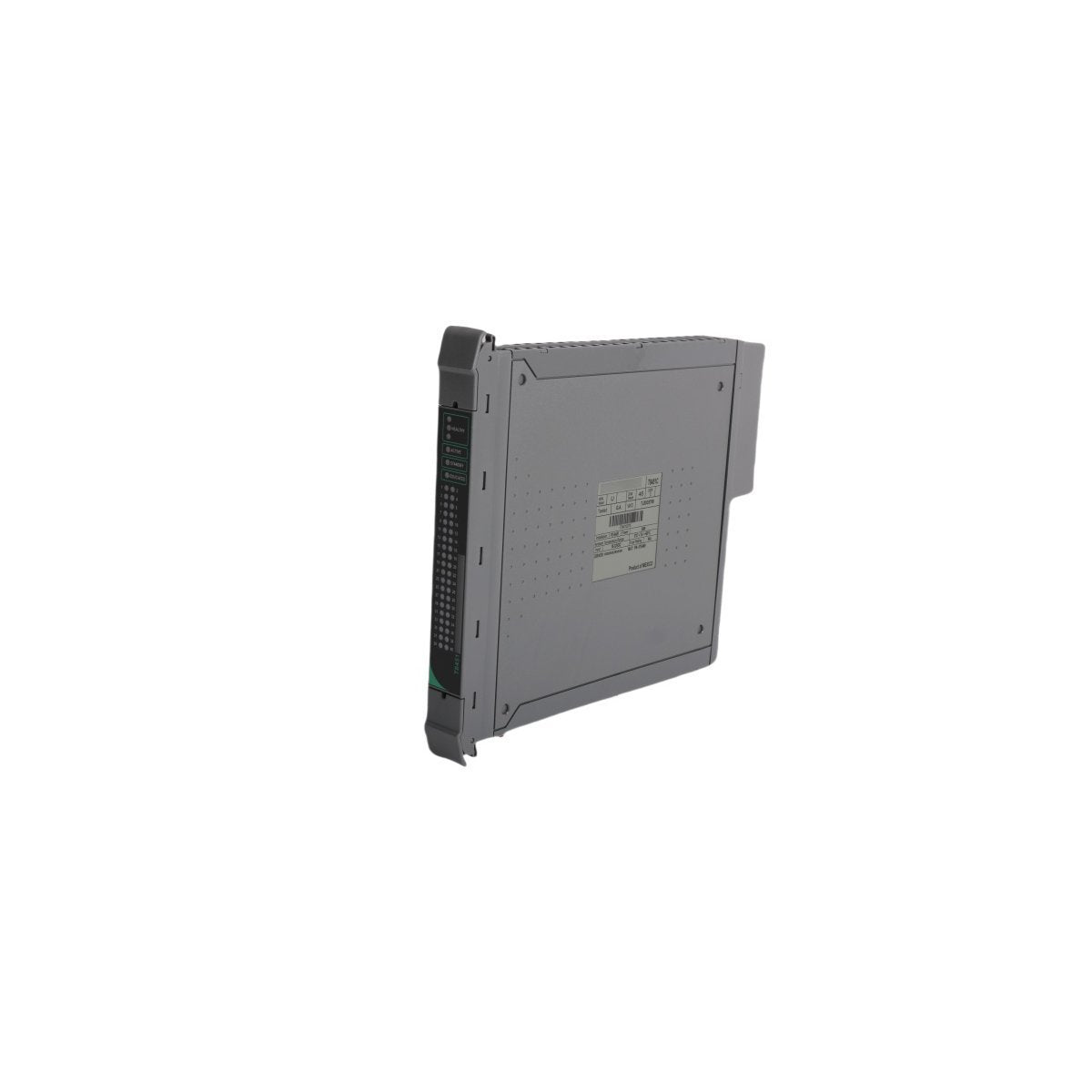

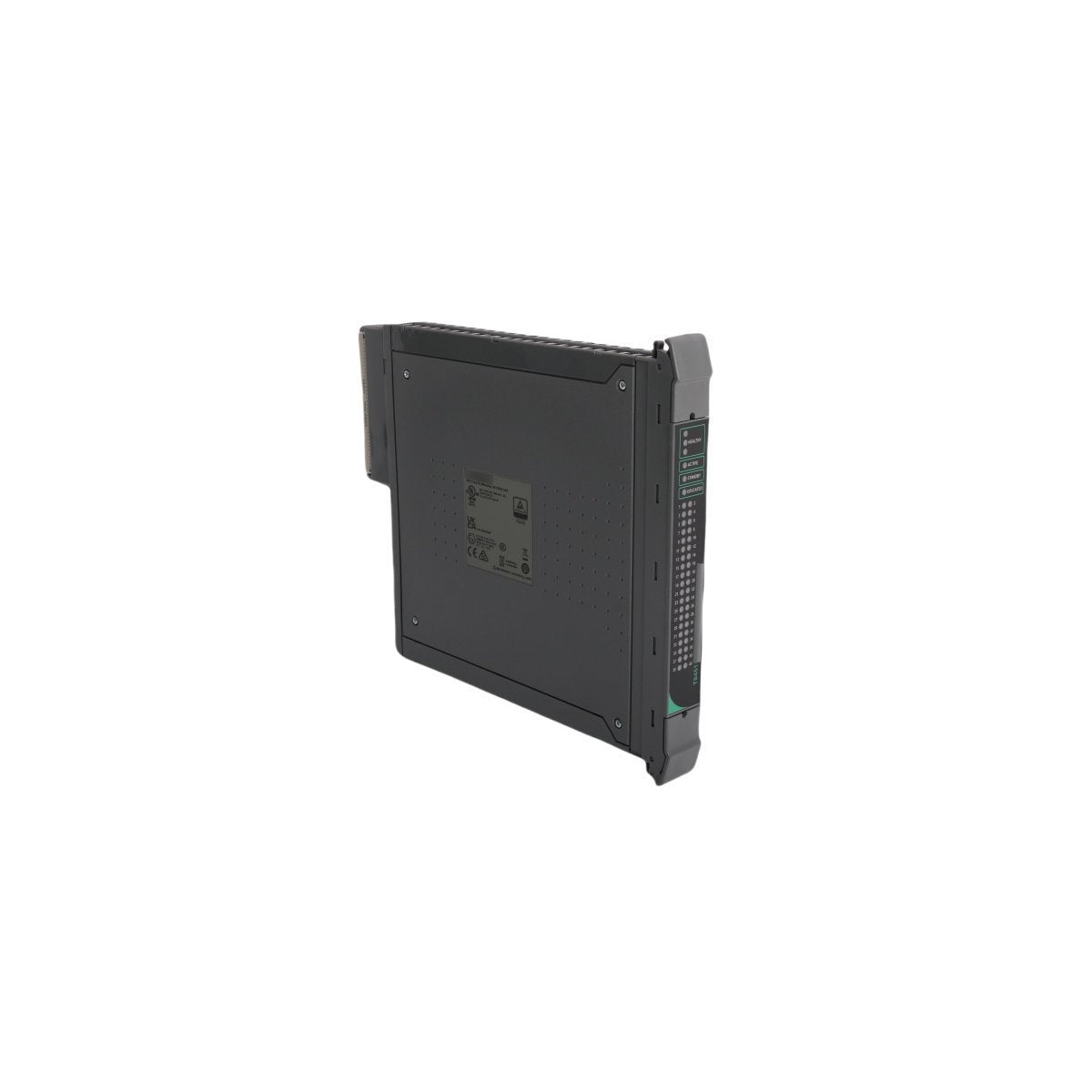

The ICS Triplex T8451C is a high-availability digital output module specifically engineered for the Trusted™ Triple Modular Redundant (TMR) safety platform. This module serves as a critical command interface, driving 24V DC field devices such as solenoids, relay coils, and visual indicators in environments where unplanned downtime or safety failures are unacceptable. By utilizing a triplicated internal hardware architecture, the T8451C ensures that output commands are voted upon by three independent processing slices, providing a hardware fault tolerance (HFT) that meets the most stringent global safety standards.

The T8451C is optimized for deployment in Safety Instrumented Systems (SIS), Emergency Shutdown (ESD) systems, and Fire and Gas (F&G) logic. Its primary role is to execute safety actions with deterministic precision, ensuring that even if an internal component fails, the module continues to operate correctly using the remaining redundant paths.

High-Integrity Architecture and Fault Tolerance

The T8451C is distinguished by its "Always-On" philosophy and advanced diagnostic capabilities.

• Triple Modular Redundancy (TMR): Incorporates three completely separate processing channels that perform 2-out-of-3 (2oo3) hardware voting to confirm the validity of every output state change.

• Fail-Safe Design: Engineered to transition to a predefined safe state upon the detection of critical system-level failures, protecting personnel and machinery.

• Continuous Self-Diagnostics: Conducts background monitoring of output circuit integrity, detecting conditions such as stuck-on or stuck-off transistors without disrupting the process.

• Load and Line Monitoring: Capable of identifying field-side faults, including open-circuit wiring and short-circuit conditions, facilitating rapid troubleshooting of external actuators.

• Hot-Swap Functionality: Allows for the replacement of a faulty module while the system is live, ensuring continuous control and no loss of safety coverage.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8451C

• Product Series: Trusted TMR System

• Output Type: 24V DC Digital Output

• Number of Channels: High-density output configuration

• Architecture: Triple Modular Redundant (TMR)

• Operating Voltage: 24V DC Nominal (18–32V DC range)

• Weight: 0.55 kg (1.21 lbs)

• Dimensions: 25.7 x 17.3 x 7.8 cm

• Isolation: Galvanic isolation between field side and logic backplane

• Compliance: Designed for SIL 3 rated applications, CE, and UL certified

Industrial Durability and System Integration

The T8451C is built to withstand the rigors of heavy industrial processing. Its electronics are housed in a robust enclosure that resists moisture, airborne particulates, and extreme temperature fluctuations common in the oil, gas, and power sectors. The module integrates seamlessly into the Trusted Controller chassis, where it communicates with the main processor via the high-speed triplicated backplane.

For system engineers, the T8451C offers simplified scaling and integration. Its diagnostic data is easily mapped to HMI and SCADA systems, providing operators with real-time visibility into the health of the safety loops. This transparency allows for proactive maintenance strategies, reducing the likelihood of nuisance trips and maximizing the overall productivity of the facility.
