Product Overview

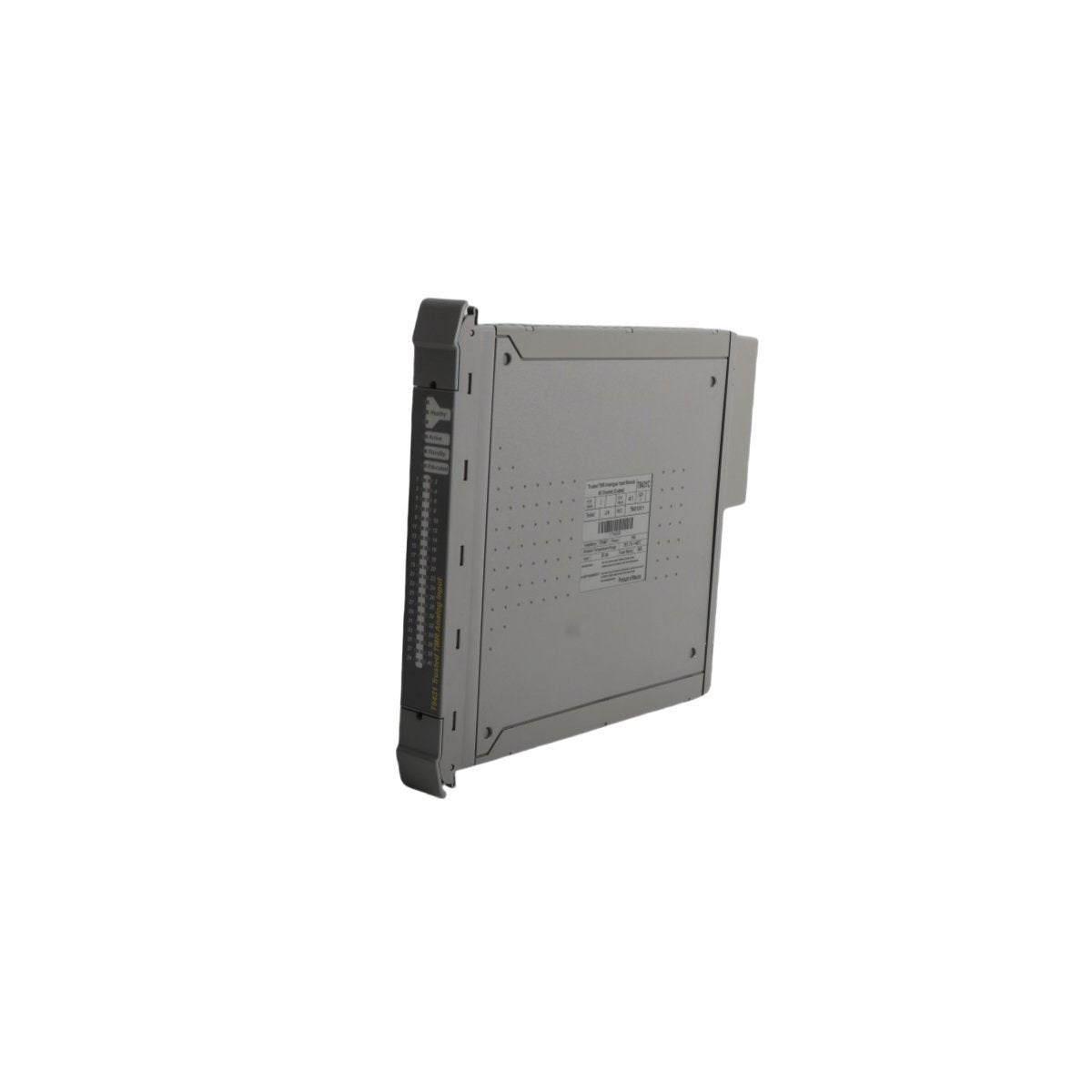

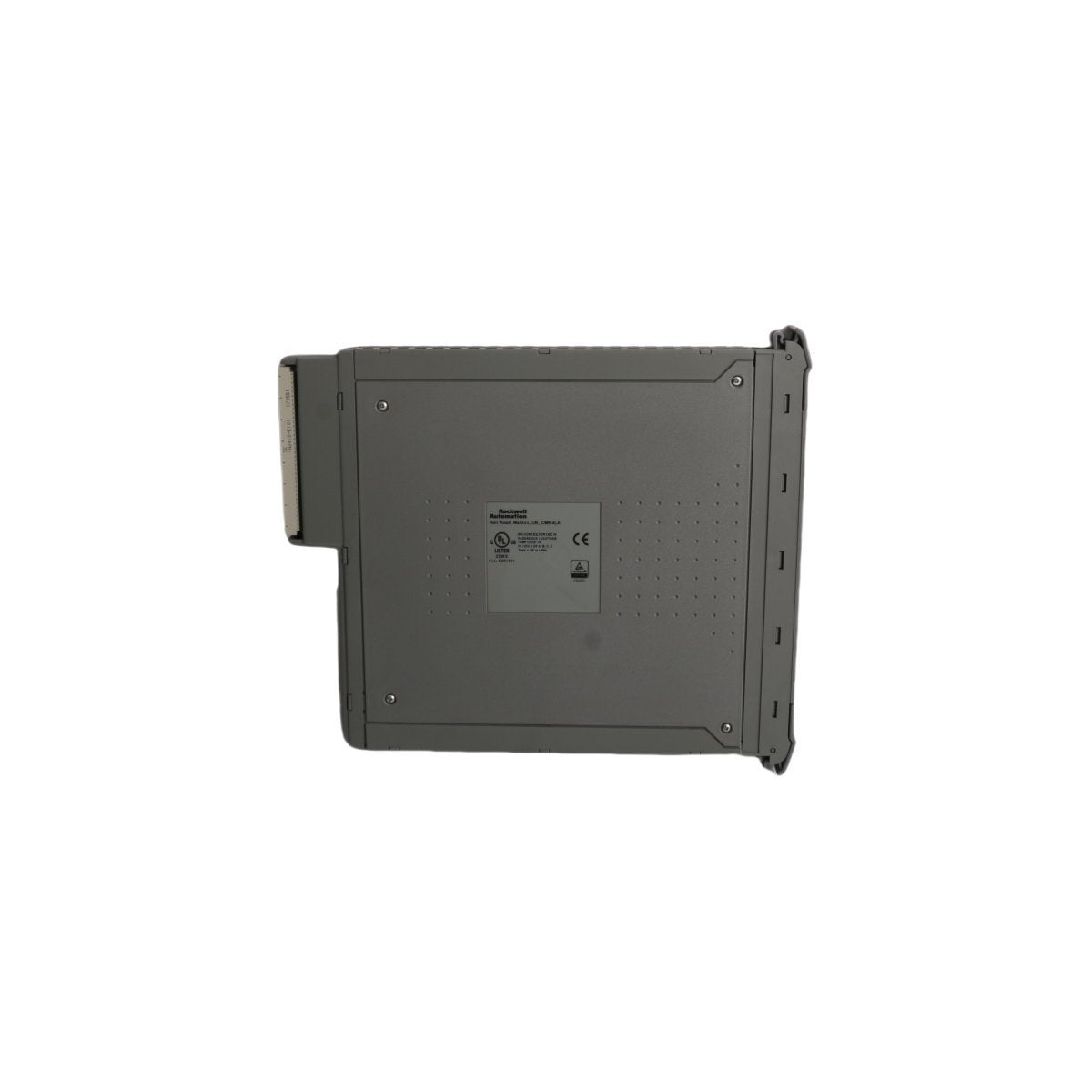

The ICS Triplex T8431CX is an ultra-reliable, 40-channel Analog Input Module specifically engineered for the Trusted™ Triple Modular Redundant (TMR) platform. Designed to meet the stringent requirements of IEC 61508 SIL3 safety standards, this module provides a fault-tolerant interface for critical 24Vdc field instrumentation. It serves as a high-integrity current sink, capturing essential process variables such as pressure, temperature, and flow from field sensors and translating them into precise digital data for the controller.

The "X" variant denotes enhanced features for mission-critical Safety Instrumented Systems (SIS). By utilizing a triplicated signal path and hardware-based voting architecture, the T8431CX eliminates single points of failure, ensuring that your process remains online and protected even if an internal component malfunction occurs.

Advanced Technical Characteristics

The T8431CX distinguishes itself through superior electrical isolation and high-resolution diagnostic capabilities.

• Triplicated Modular Redundancy (TMR): Incorporates three independent sensing slices for every channel. The system cross-validates these inputs using 2-out-of-3 (2oo3) voting logic to maintain data veracity.

• Superior Galvanic Protection: Features 2500V opto-galvanic isolation to shield the sensitive controller backplane from field-side electrical surges and noise.

• Precise Event Tracking: Supports Sequence of Events (SOE) reporting with a 1ms resolution, allowing for forensic millisecond-level analysis of process trips and system status changes.

• Comprehensive Line Monitoring: Every channel is equipped with intelligent diagnostics capable of detecting open-circuit wiring and short-circuit faults in real-time.

• High-Density Architecture: Provides 40 independent TMR channels within a single-slot footprint, maximizing I/O capacity in space-constrained control cabinets.

• Seamless Maintenance: The module supports hot-swapping via Companion Slot or SmartSlot configurations, allowing for replacement without de-energizing the system or interrupting the active process.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8431CX

• Product Series: Trusted TMR System

• Module Type: Analog Input (40-Channel)

• Nominal Voltage: 24Vdc

• Safety Rating: IEC 61508 SIL3 Capable

• Resolution: 1ms Sequence of Events (SOE)

• Weight: 1.18 kg (Packaged) / 1.149 kg (Net)

• Dimensions: 3.0 x 30.2 x 26.5 cm

• Isolation Voltage: 2500V Opto-Galvanic

• HS Code: 8537101190

• Country of Origin: USA

Industrial Reliability and Integration

The T8431CX is a cornerstone of modern industrial safety. It is frequently deployed in high-availability sectors including nuclear power generation, offshore oil and gas production, and volatile chemical processing. Its ability to perform continuous background self-testing ensures that latent faults are detected before they can impact plant safety.

Equipped with front-panel LED indicators, the module provides maintenance teams with immediate visual confirmation of channel health and fault alerts. This proactive diagnostic approach, combined with the global support network of Rockwell Automation's Trusted platform, ensures long-term operational success and minimal unplanned downtime for critical infrastructure.
