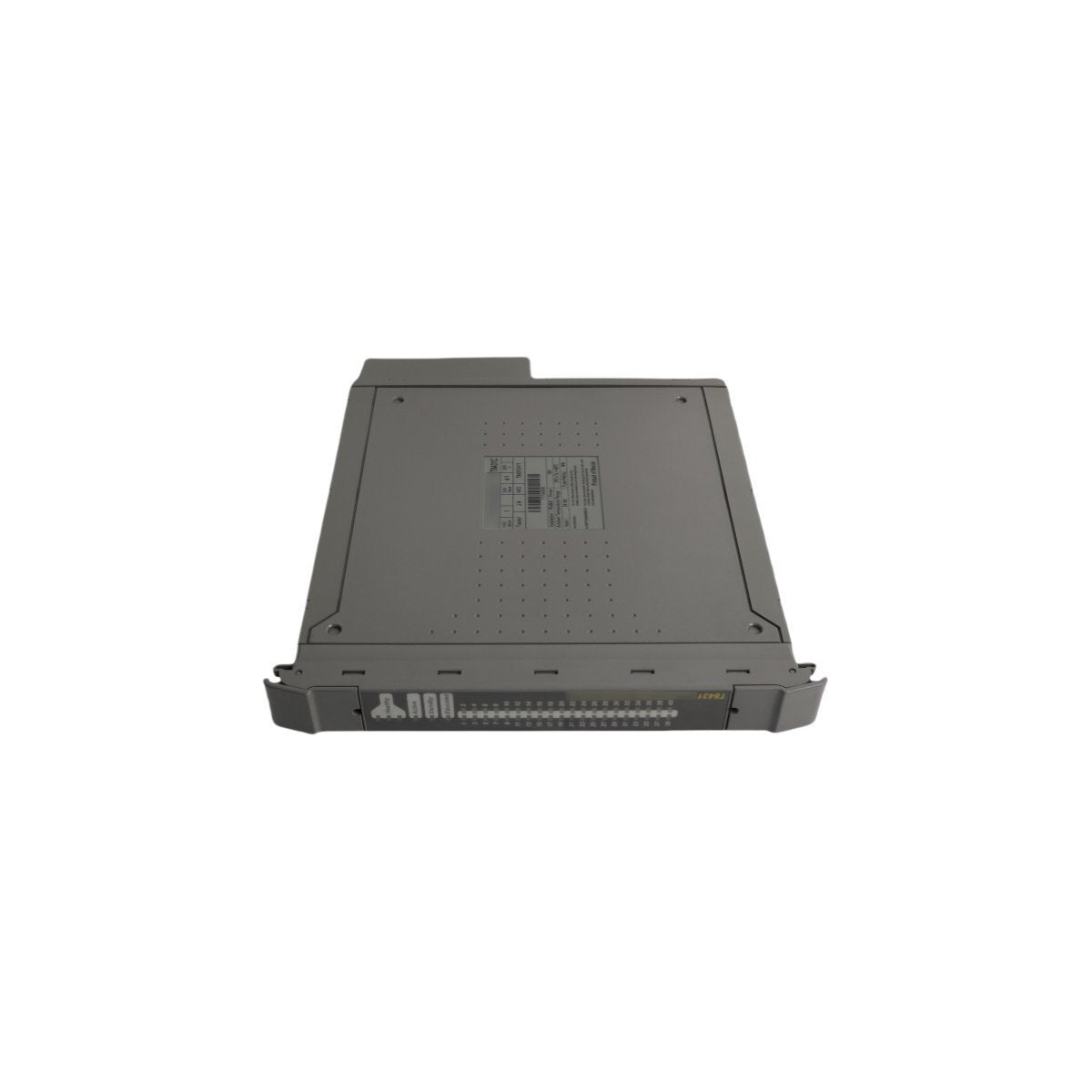

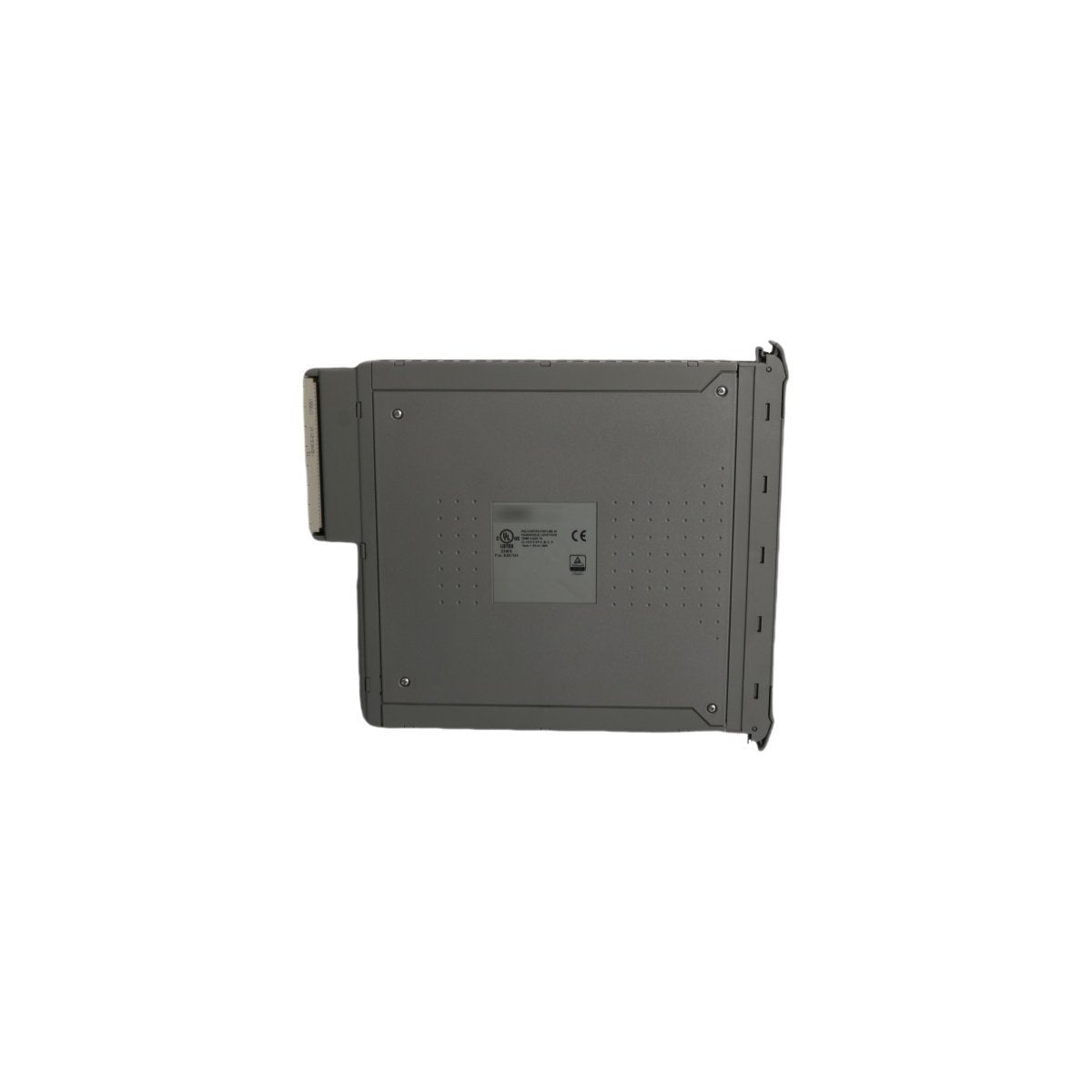

Product Overview

The ICS Triplex T8431C is a high-integrity analog input module engineered for the Trusted™ Triple Modular Redundant (TMR) platform. It provides 40 independent, isolated input channels designed to interface with standard 4-20mA process signals and voltage sensors. As a core component of Rockwell Automation’s safety-critical infrastructure, the T8431C utilizes a triplicated architecture to perform 2-out-of-3 (2oo3) hardware voting. This ensures that even in the event of a single component failure, the system maintains accurate data acquisition without interrupting the safety loop.

This module is specifically optimized for high-availability environments such as offshore oil platforms, chemical refineries, and nuclear power facilities. It converts field-side analog signals into high-precision digital data, allowing the main logic solver to execute safety functions based on reliable real-time process variables.

Key Technical Characteristics

The T8431C is defined by its rigorous diagnostic capabilities and fault-tolerant engineering.

• Triple Modular Redundancy (TMR): Features three independent processing slices that cross-reference data through hardware voting to eliminate single points of failure.

• Extensive Diagnostic Coverage: Includes integrated self-testing that monitors for internal circuit health and field-side wiring faults, such as open circuits or signal drift.

• Galvanic Isolation: Provides robust electrical separation between field inputs and the internal backplane, protecting the system logic from transients and electromagnetic interference.

• High Channel Density: Supports 40 channels in a compact 3.0 cm wide form factor, maximizing I/O capacity within the Trusted controller chassis.

• Flexible Input Range: While optimized for 24V DC systems and 4-20mA current loops, it accommodates various sensor types for pressure, temperature, and flow monitoring.

• Hot-Swap Maintenance: Specifically designed for "online" replacement, allowing maintenance personnel to exchange modules under power without impacting the active process.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation / Allen-Bradley)

• Model Number: T8431C

• Product Series: Trusted TMR System

• Module Type: Analog Input (40 Channels)

• Operating Voltage: 24V DC

• Input Signal Type: 4-20mA (Standard) / Voltage

• Accuracy: High-resolution A/D conversion with self-calibration

• Weight: 1.18 kg (Packaged) / 1.149 kg (Net)

• Dimensions: 3 x 30.2 x 26.5 cm

• HS Code: 8537101190

• Country of Origin: USA

System Application and Longevity

The T8431C Analog Input Module is a primary choice for Safety Instrumented Systems (SIS) requiring SIL 3 certification. By providing highly accurate feedback from field instrumentation, it supports critical functions including:

• Process Safety Monitoring: Constant surveillance of pressure and temperature levels in hazardous environments.

• Emergency Shutdown (ESD): Reliable input detection for triggering isolation sequences.

• Fire and Gas Systems: Precision monitoring of gas concentration levels and flame detection sensors.

The module’s rugged construction ensures long-term stability in harsh industrial climates, withstanding high thermal loads and vibration. When integrated with the Trusted TMR ecosystem, the T8431C delivers the operational confidence required for mission-critical automation and regulatory compliance.
