Product Overview

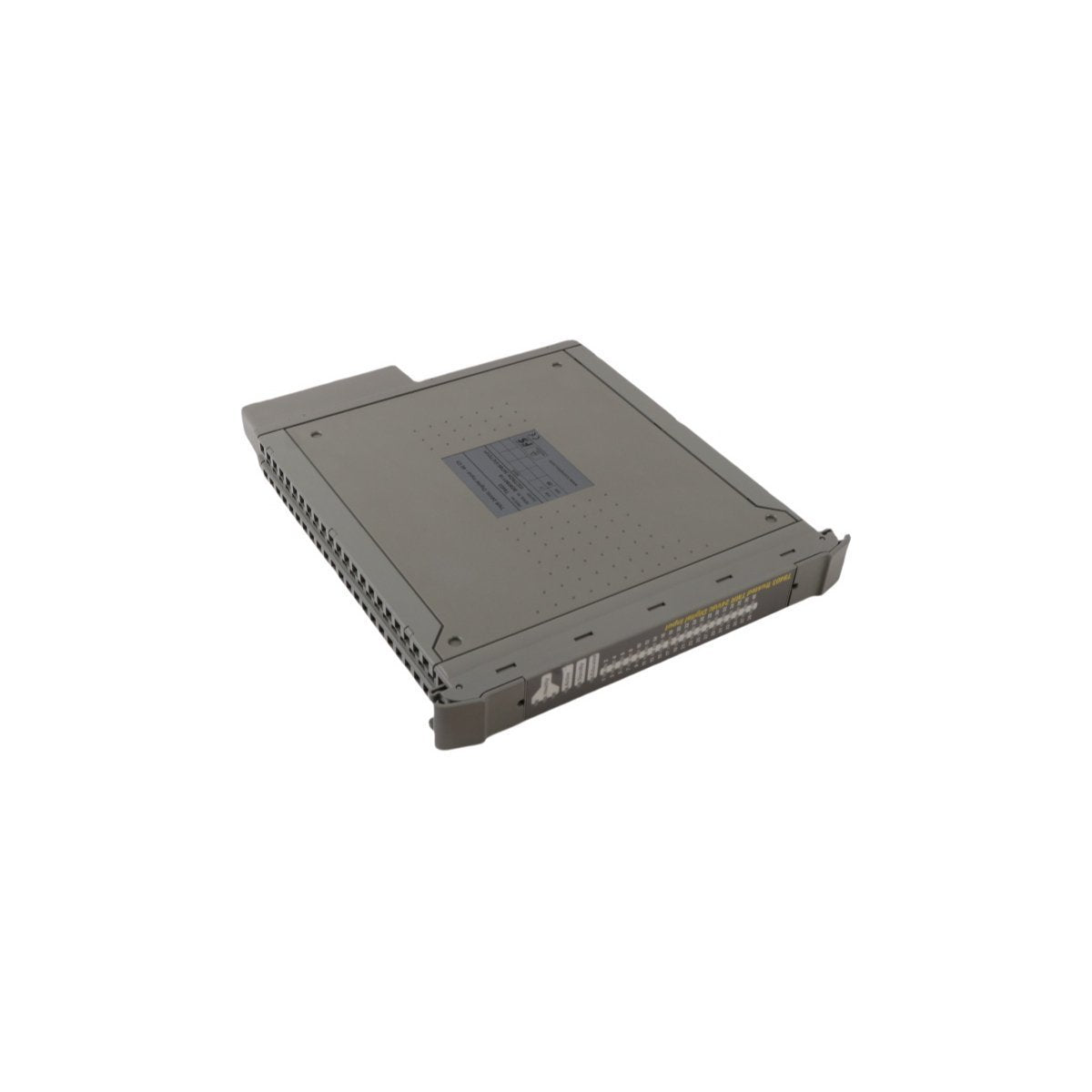

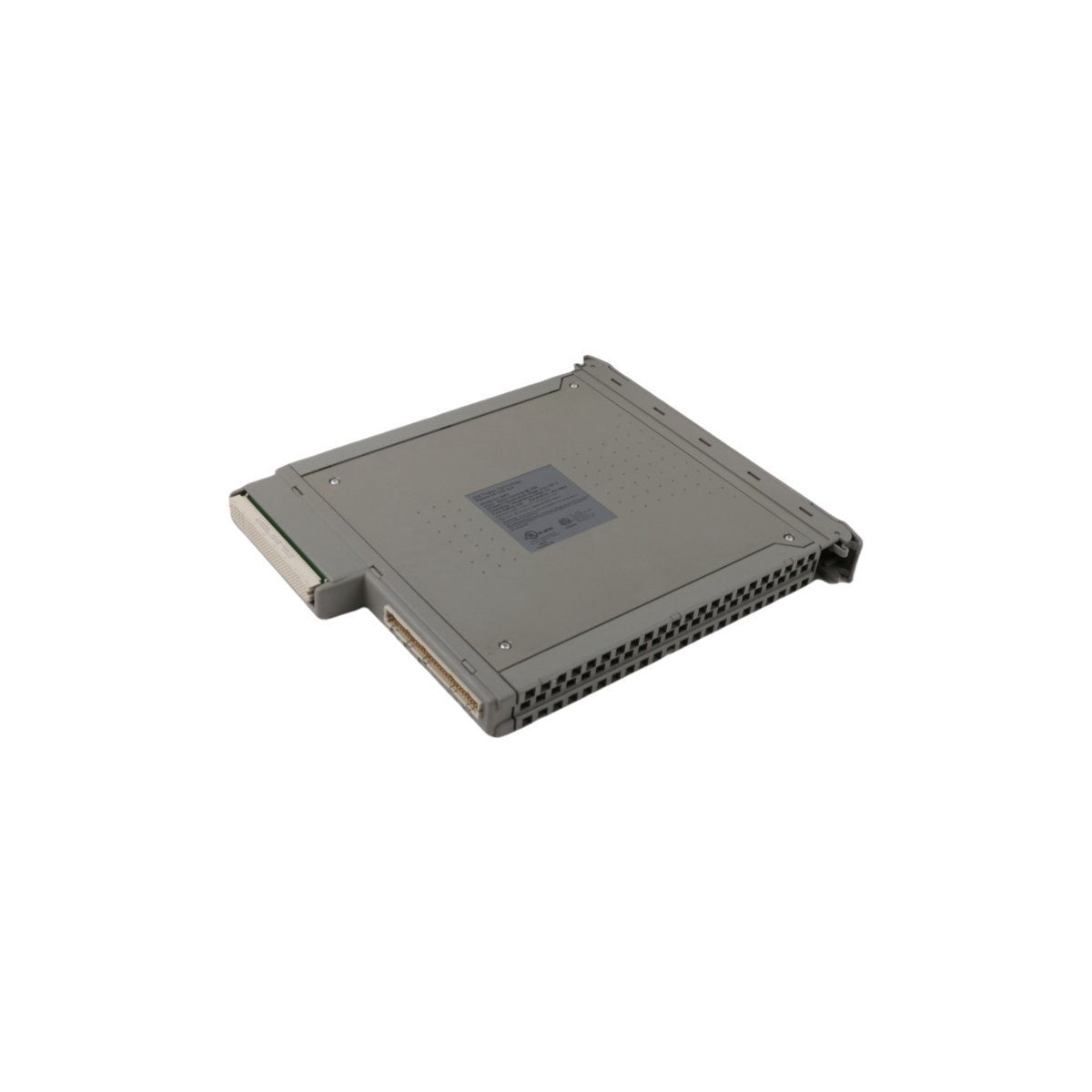

The ICS Triplex T8403 is a high-integrity 40-channel digital input module specifically engineered for use within the Trusted™ Triple Modular Redundant (TMR) system. As a cornerstone of fault-tolerant industrial automation, this module is designed for safety-critical applications where "fail-safe" operation is mandatory. The T8403 monitors digital states from field devices—such as limit switches, pushbuttons, and relay contacts—and utilizes a triplicated internal architecture to ensure data veracity.

By processing every input signal through three isolated channels and performing hardware-based voting, the T8403 eliminates single points of failure. This makes it an essential component for Safety Instrumented Systems (SIS), Emergency Shutdown (ESD) configurations, and Fire and Gas (F&G) protection loops. The module provides continuous monitoring of field-side signals while maintaining high levels of electromagnetic compatibility and thermal efficiency.

Advanced Fault Tolerance and Signal Diagnostics

The T8403 is distinguished by its ability to perform high-speed signal analysis while simultaneously executing complex self-test routines.

• Triple Modular Redundancy (TMR): Features three independent input slices that vote on the state of each digital input, ensuring that internal hardware faults do not lead to nuisance trips or failed safety demands.

• Comprehensive Line Monitoring: Supports the detection of field-side faults, including open-circuit and short-circuit conditions, allowing for precise differentiation between a process event and a wiring failure.




• Active Self-Testing: Continuous background diagnostics monitor the health of the internal voting circuitry and the isolation barrier without interrupting the primary control function.

• Hot-Swap Functionality: Designed for online replacement within a Trusted controller chassis, facilitating maintenance and system expansion without requiring a process shutdown.

• High Channel Density: Consolidates 40 inputs into a single module, optimizing rack space in high-density control cabinets while maintaining high galvanic isolation.




Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8403

• Product Series: Trusted TMR System

• Input Type: 24 Vdc Digital Input (40 Channels)

• Architecture: Triple Modular Redundant (TMR)

• Input Voltage Range: 18 Vdc to 32 Vdc

• Isolation: 50V continuous (field-to-logic)

• Module Weight: 1.2 kg (2.64 lbs)

• Dimensions: 3.0 x 30.2 x 26.4 cm

• Response Time: Typically < 2 ms

• Compliance: SIL 3, CE, UL, and CSA certifications for hazardous industrial environments

Industrial Integration and Reliability

The T8403 is built for longevity in harsh conditions, utilizing high-grade components that resist vibration and thermal stress. The module interfaces seamlessly with Trusted Controller backplanes and is managed via the system's specialized engineering software.

A robust mechanical keying system ensures that only the correct T8403 module can be inserted into a designated slot, preventing configuration errors during field service. Its design is optimized for low power consumption, reducing the overall heat load within the control room and enhancing the reliability of the entire TMR system.
