Product Overview

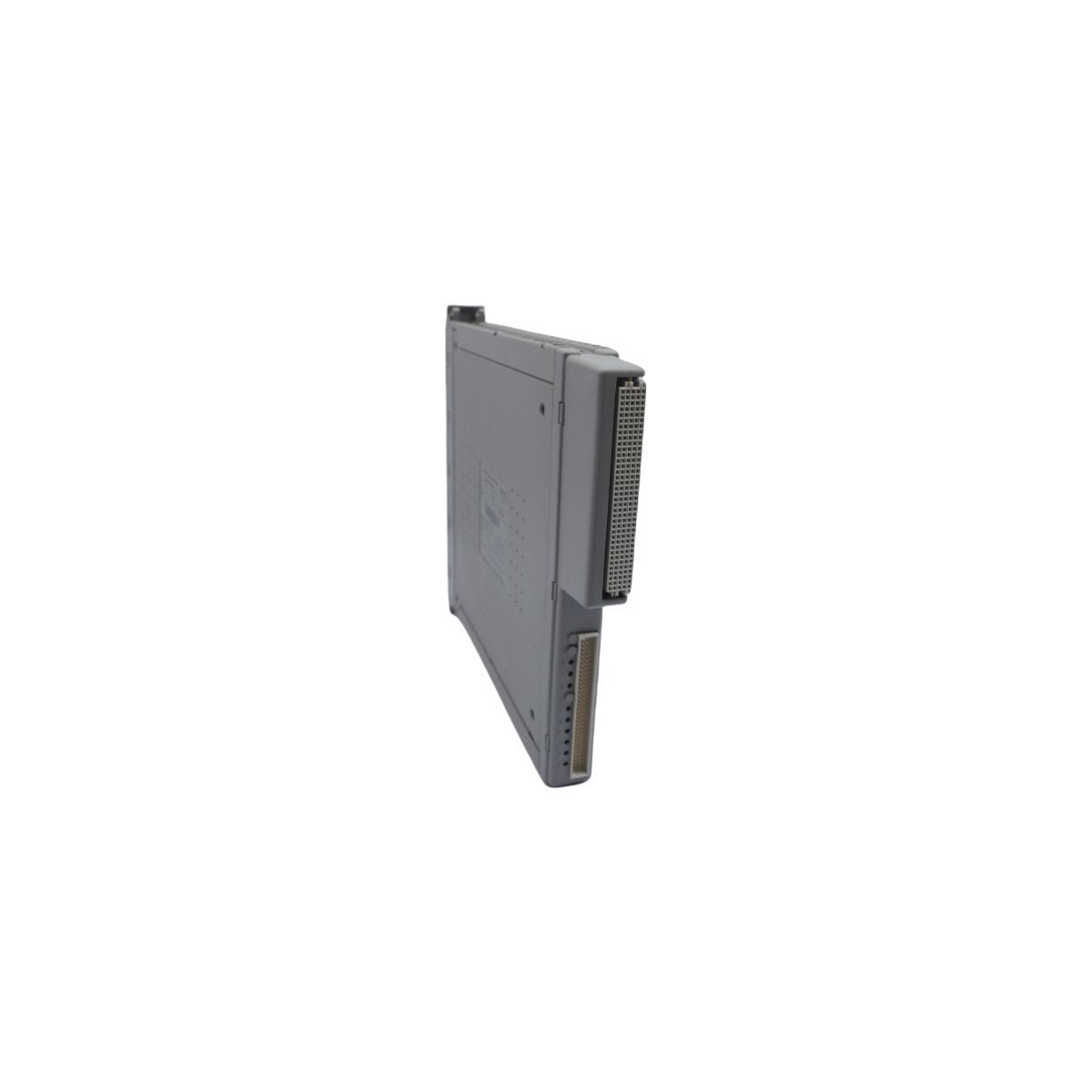

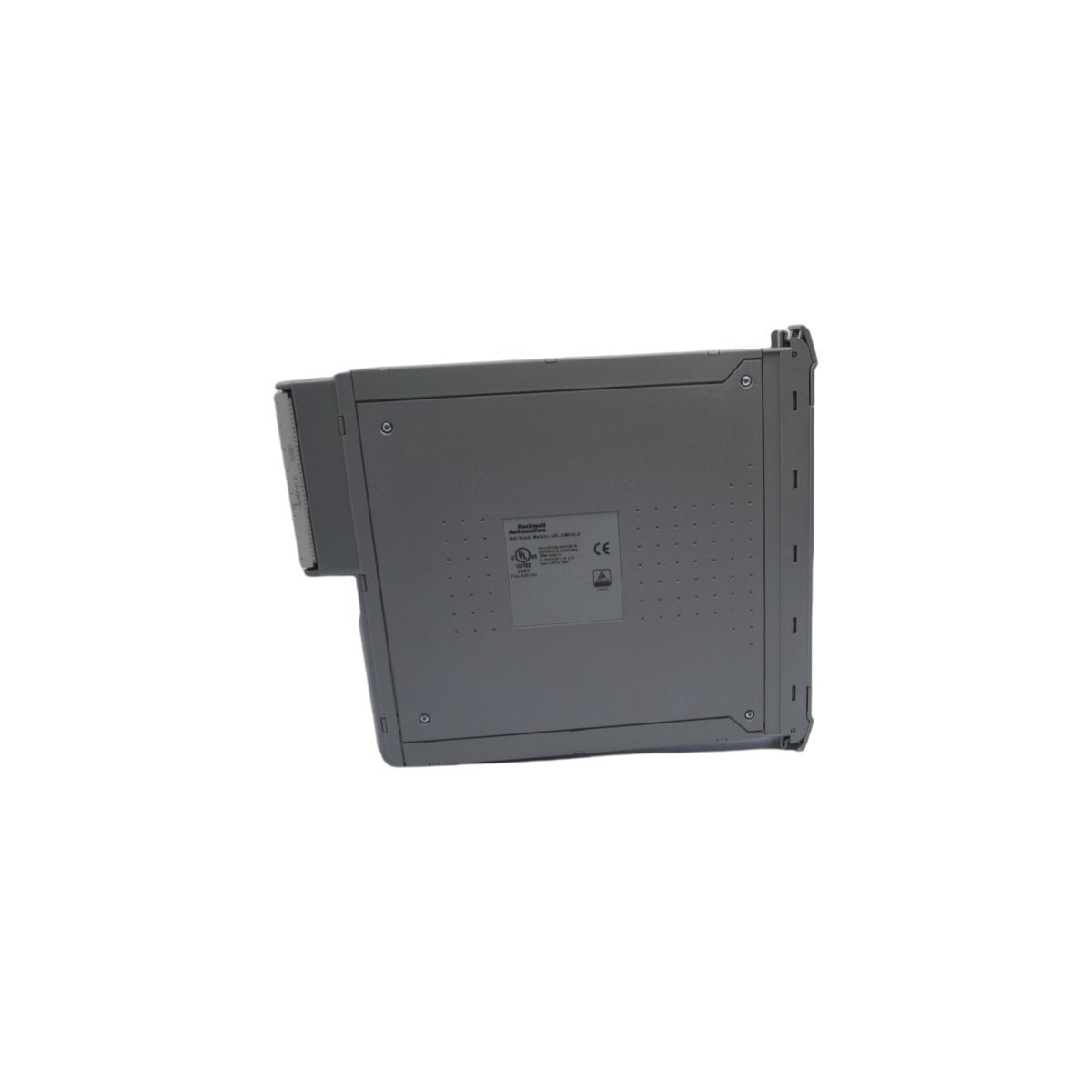

The ICS Triplex T8311 is a high-integrity Expander Interface module designed for the Trusted™ Triple Modular Redundant (TMR) system. This module serves as the primary communication bridge between the main controller chassis and remote expansion chassis, allowing for the seamless scaling of I/O capacity across a distributed control network. By utilizing TMR technology, the T8311 ensures that the system's fault-tolerant architecture is maintained throughout the expansion bus, preventing any single point of failure from compromising the safety or availability of the plant.

The T8311 is engineered for mission-critical environments, such as offshore platforms, refineries, and nuclear facilities, where system expansion must not come at the cost of safety integrity. It manages the high-speed data transfer between the processor and expanded I/O modules with extremely low latency, ensuring that the voting logic of the TMR system remains synchronized across all chassis.

Core Technical Characteristics

The T8311 is distinguished by its robust mechanical construction and sophisticated data handling capabilities.

• Triplicated Data Integrity: Extends the TMR bus architecture to expansion chassis, ensuring that all data transmitted across the expander link is verified through hardware voting.

• Superior Thermal Management: Housed in a premium-grade aluminum alloy chassis that provides excellent electromagnetic shielding and acts as a heat sink for efficient passive cooling.

• High-Speed Interconnect: Optimized for rapid data exchange, maintaining the performance of the Trusted system even when managing a high density of remote I/O points.

• SEU Protection: Incorporates advanced circuitry to prevent Single-Event Upsets (SEUs), ensuring that cosmic radiation or electrical noise does not cause bit-flips in the communication stream.

• Galvanic Isolation: Provides robust electrical separation between chassis, protecting the main processor from field-side transients or grounding issues in expanded sections.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8311

• Module Type: Trusted TMR Expander Interface

• Architecture: Triple Modular Redundant (TMR)

• Material: High-grade Aluminum Alloy

• Communication Interface: Dedicated Trusted Expander Bus

• Dimensions: 3.1 x 30.2 x 26.5 cm

• Weight: 1.18 kg (2.6 lbs)

• Isolation: Comprehensive galvanic isolation

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Compliance: SIL 3, CE, UL, and CSA certifications for critical safety systems

System Expansion and Reliability

The T8311 simplifies the process of scaling industrial control systems. It is designed for hot-swap installation, allowing engineers to add expansion capabilities or replace interface modules without powering down the entire controller. The module’s front panel features comprehensive LED diagnostics that provide real-time status of the expander link and the health of the triplicated slices.

[Image showing T8311 connecting a main Trusted chassis to an expansion rack]

By implementing the T8311, operators can extend their control footprint while maintaining the highest Safety Integrity Level (SIL 3). Its reliability makes it a standard choice for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems that require distributed I/O across large-scale industrial sites.
