Product Overview

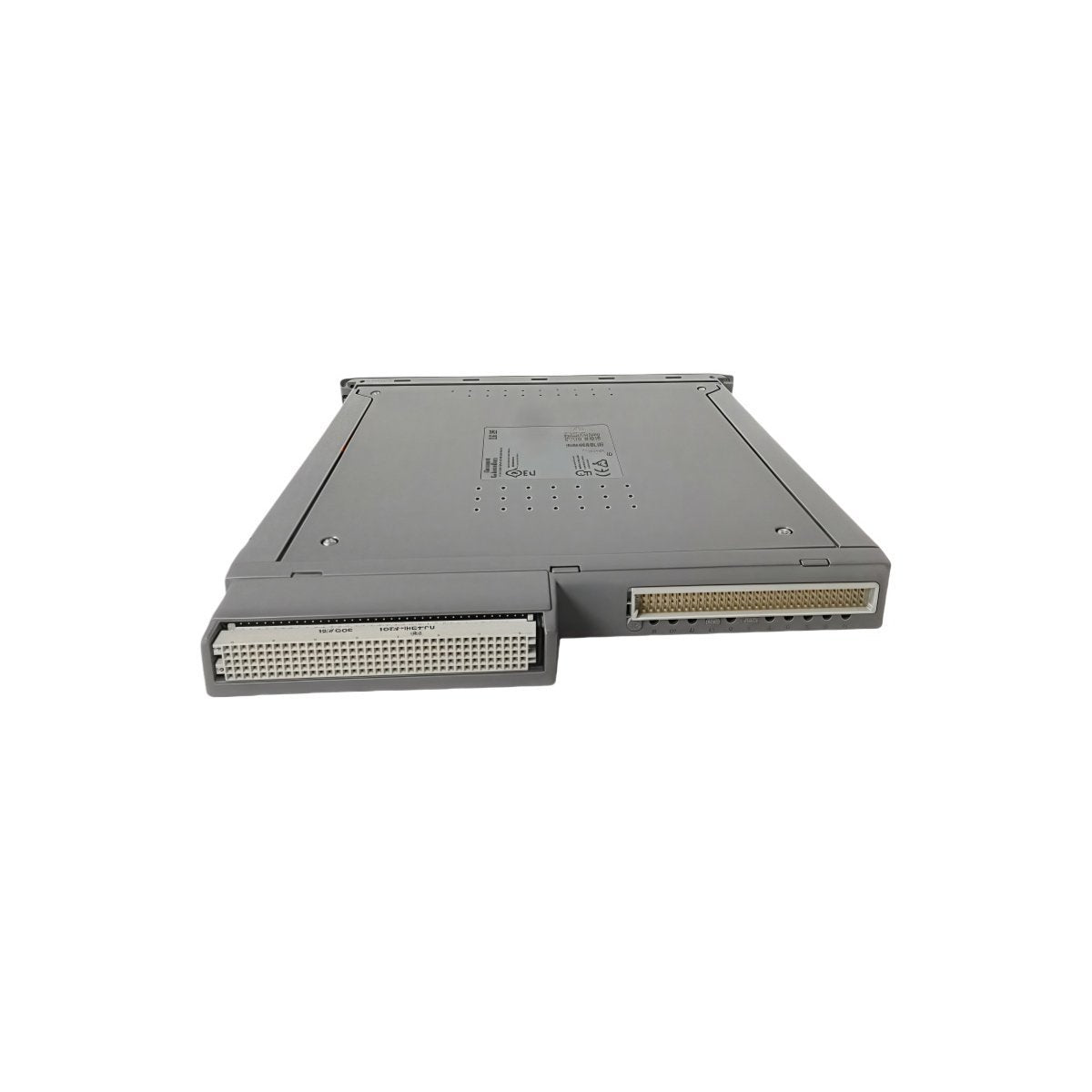

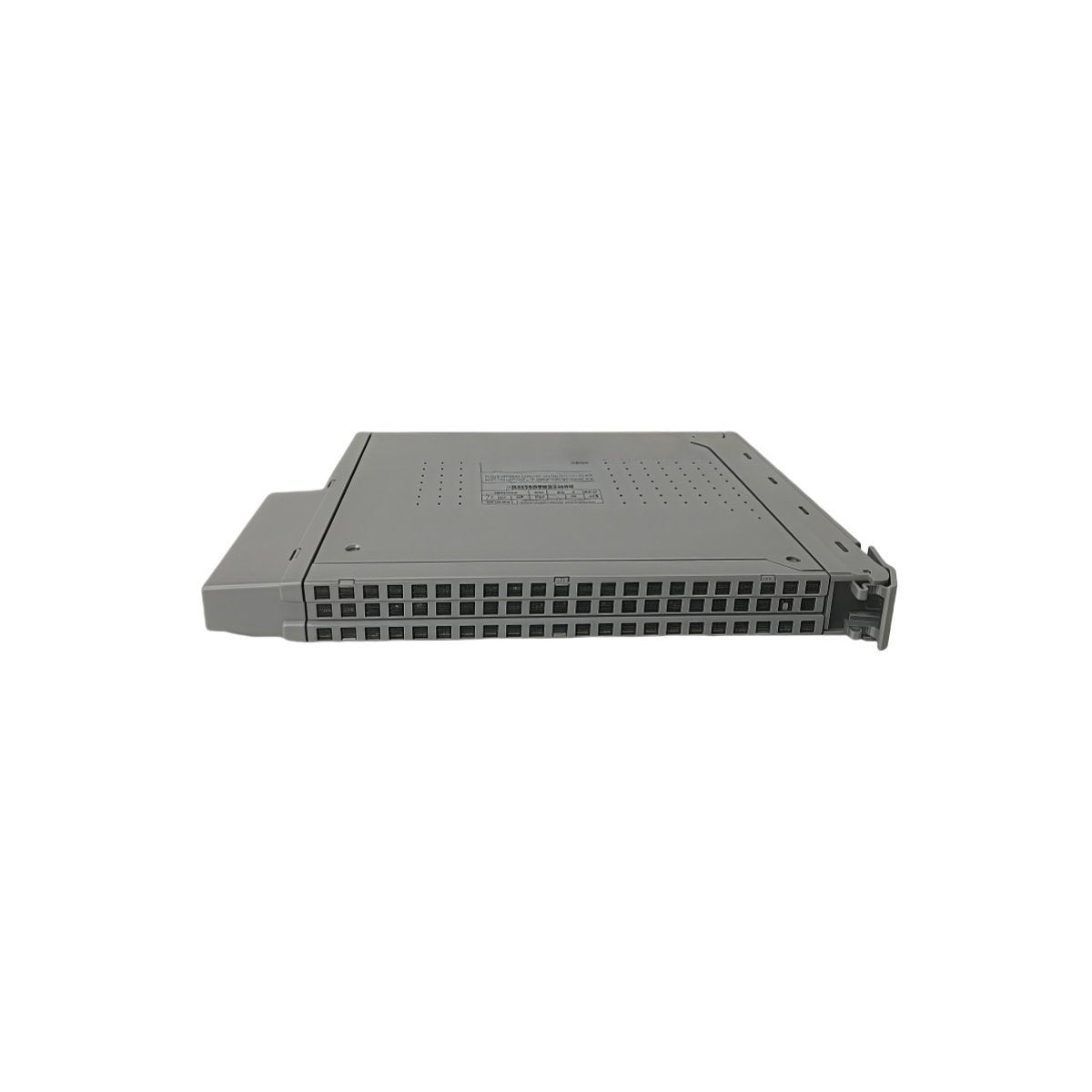

The ICS Triplex T8273 is a high-performance power supply module specifically engineered to provide a stable and redundant energy source for the Trusted™ Triple Modular Redundant (TMR) controller family. This module is a critical component within the Trusted architecture, responsible for converting and regulating primary DC power into the precise voltages required by the backplane, processors, and I/O modules. Designed for high-availability environments where system failure is not an option, the T8273 ensures that the logic solver remains energized even under volatile electrical conditions.

Housed in a rugged, industrial-grade chassis, the T8273 is built to survive the atmospheric and mechanical stresses of oil and gas platforms, chemical refineries, and power generation plants. It functions as a foundational safety layer, providing clean, filtered power that protects sensitive internal electronics from line noise, surges, and electromagnetic interference.

Key Technical Characteristics

The T8273 is distinguished by its fault-tolerant design and sophisticated diagnostic feedback mechanisms.

• Redundant Load Sharing: Engineered for parallel operation, allowing multiple T8273 units to share the system load. If one module experiences a fault, the others instantly compensate to prevent any interruption in system logic.

• Advanced Power Conditioning: Features integrated high-frequency filtering to mitigate the effects of industrial electrical noise, ensuring data integrity across the TMR backplane.

• Intelligent Diagnostic Monitoring: The module continuously tracks its own health, including internal temperature, output voltage stability, and current consumption, reporting data back to the main controller.

• Hot-Swap Capability: Supports live replacement within a powered Trusted chassis, allowing maintenance teams to address power issues without halting the manufacturing process or compromising safety loops.

• Fail-Safe Internal Protection: Includes hardware-based over-voltage and over-current protection to prevent localized electrical faults from propagating to other modules.

• Modular Integration: The compact yet high-capacity design allows for easy integration into standard Trusted TMR power shelves, optimizing cabinet space.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8273

• Product Series: Trusted TMR System

• Module Type: High-Availability Power Supply

• Weight: 5.24 kg (11.55 lbs)

• Dimensions: 48.5 x 31.2 x 26.7 cm

• System Logic Compatibility: Trusted T8100/T8110 Series

• Cooling: Passive convection (optimized for fan-tray assisted racks)

• Input Protection: Integrated diode auctioning and surge suppression

• HS Code: 8537101190

• Product Origin: USA

Industrial Application and Reliability

The T8273 is a core requirement for any Safety Instrumented System (SIS) where operational continuity is paramount. Its primary roles include:

• Safety Control Systems: Providing the necessary voltage rails for SIL 3 rated logic solvers in emergency shutdown (ESD) applications.

• Turbine and Compressor Control: Maintaining a rock-solid power base for high-speed vibration and thermal monitoring modules.

• Remote I/O Hubs: Supporting distributed expansion chassis in large-scale manufacturing facilities.
