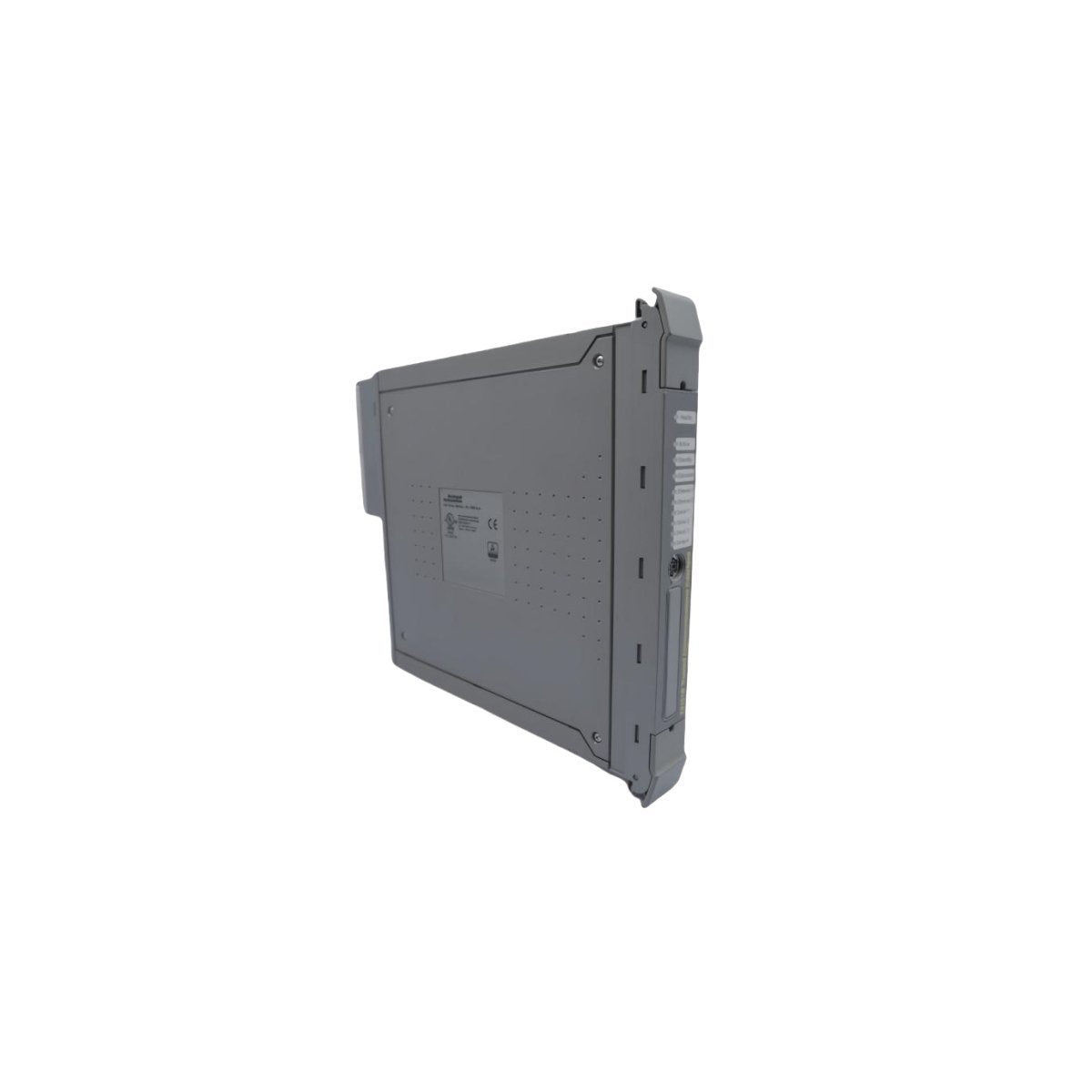

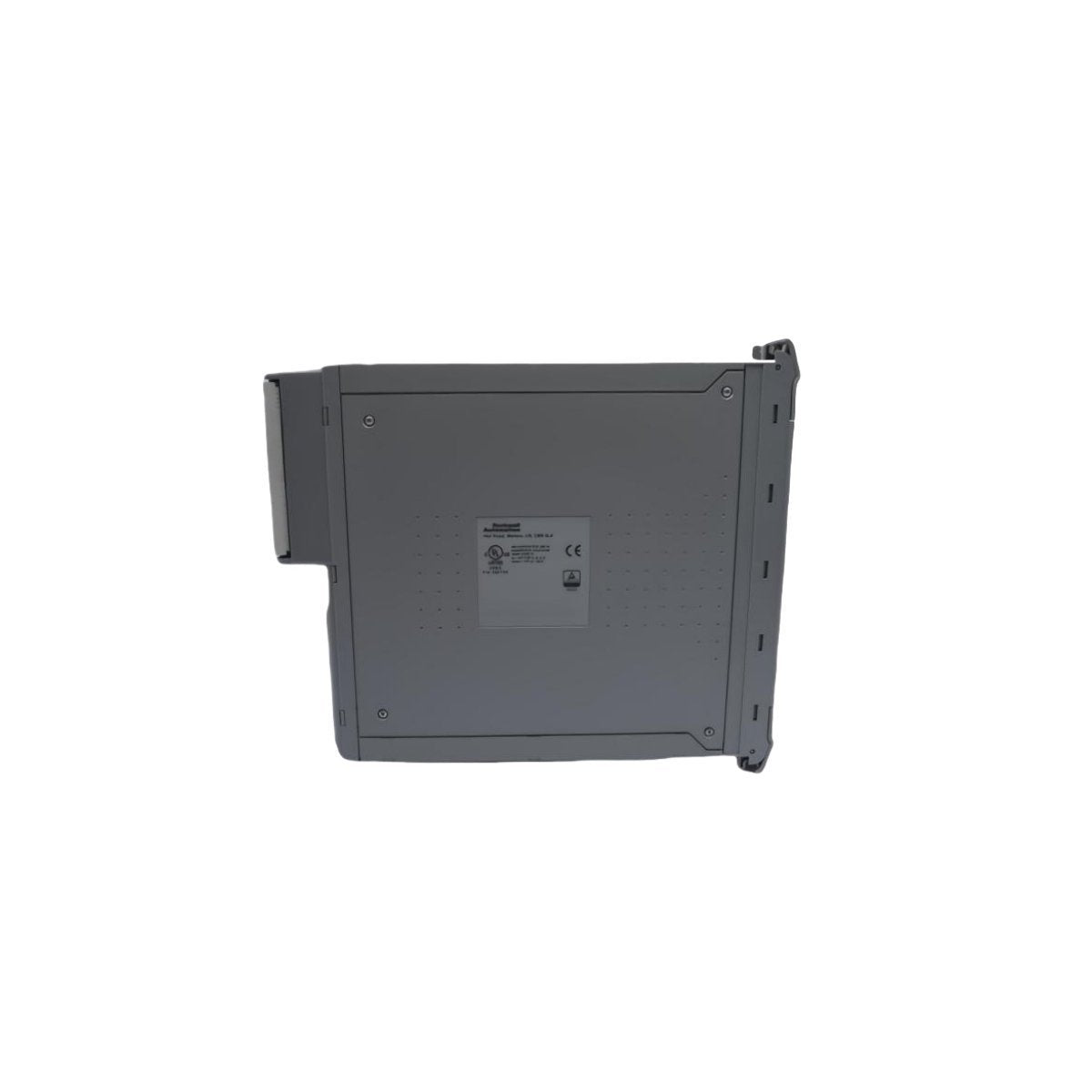

Product Overview

The ICS Triplex T8271 is a high-performance, chassis-integrated thermal management solution designed specifically for the Trusted™ Triple Modular Redundant (TMR) controller system. Within high-density PLC environments, excessive heat can compromise the safety integrity and operational lifespan of processors and I/O modules. The T8271 provides forced-air cooling to ensure that internal chassis temperatures remain within strictly defined operational limits, even in high-ambient industrial settings such as power plants, refineries, and offshore platforms.

This fan tray is engineered for mission-critical reliability, featuring redundant fan units and intelligent monitoring capabilities. It facilitates vertical airflow through the Trusted chassis, preventing the formation of thermal hotspots and ensuring that the SIL 3-rated safety components function with maximum stability and deterministic performance.

Key Technical Characteristics and Safety Features

The T8271 is distinguished by its high-availability design, ensuring that cooling is never a single point of failure for the control system.

• Hot-Swappable Architecture: The T8271 is designed for online replacement. In the event of a mechanical fan failure, the unit can be removed and a new tray inserted without powering down the Trusted system or interrupting active control processes.

• Integrated Health Monitoring: Equipped with internal sensors that provide real-time feedback to the controller regarding fan speed and operational status, allowing for predictive maintenance before a thermal trip occurs.

• High-Static Pressure Fans: Utilizes industrial-grade, long-life fans capable of overcoming the airflow resistance found in fully populated 19-inch racks.

• Debris Resistance: The mechanical design includes protective screening to prevent the ingress of dust and particulates, protecting the precision bearings and internal electronics.

• Low Acoustic Profile: Optimized blade geometry balances high-volume airflow with reduced noise levels, suitable for control room environments.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8271

• Product Series: Trusted TMR System

• Function: Chassis Thermal Management / Fan Tray

• Mounting: Slide-in integrated chassis mount

• Weight: 2.34 kg (5.16 lbs)

• Dimensions: 14.5 x 30.0 x 4.5 cm

• Input Voltage: Derived from the Trusted Chassis Backplane

• Material: Industrial-grade steel and aluminum housing

• Operating Status: Active / Supported

Industrial Applications

The T8271 Fan Tray is an essential component for any Trusted system installation requiring high availability:

• Safety Instrumented Systems (SIS): Ensuring that TMR logic solvers remain cool during high-speed processing demands.

• Emergency Shutdown (ESD): Protecting critical hardware in enclosed, unconditioned cabinets in the oil and gas sector.

• Fire and Gas (F&G) Systems: Maintaining hardware integrity for 24/7 monitoring systems in chemical processing plants.
