Product Overview

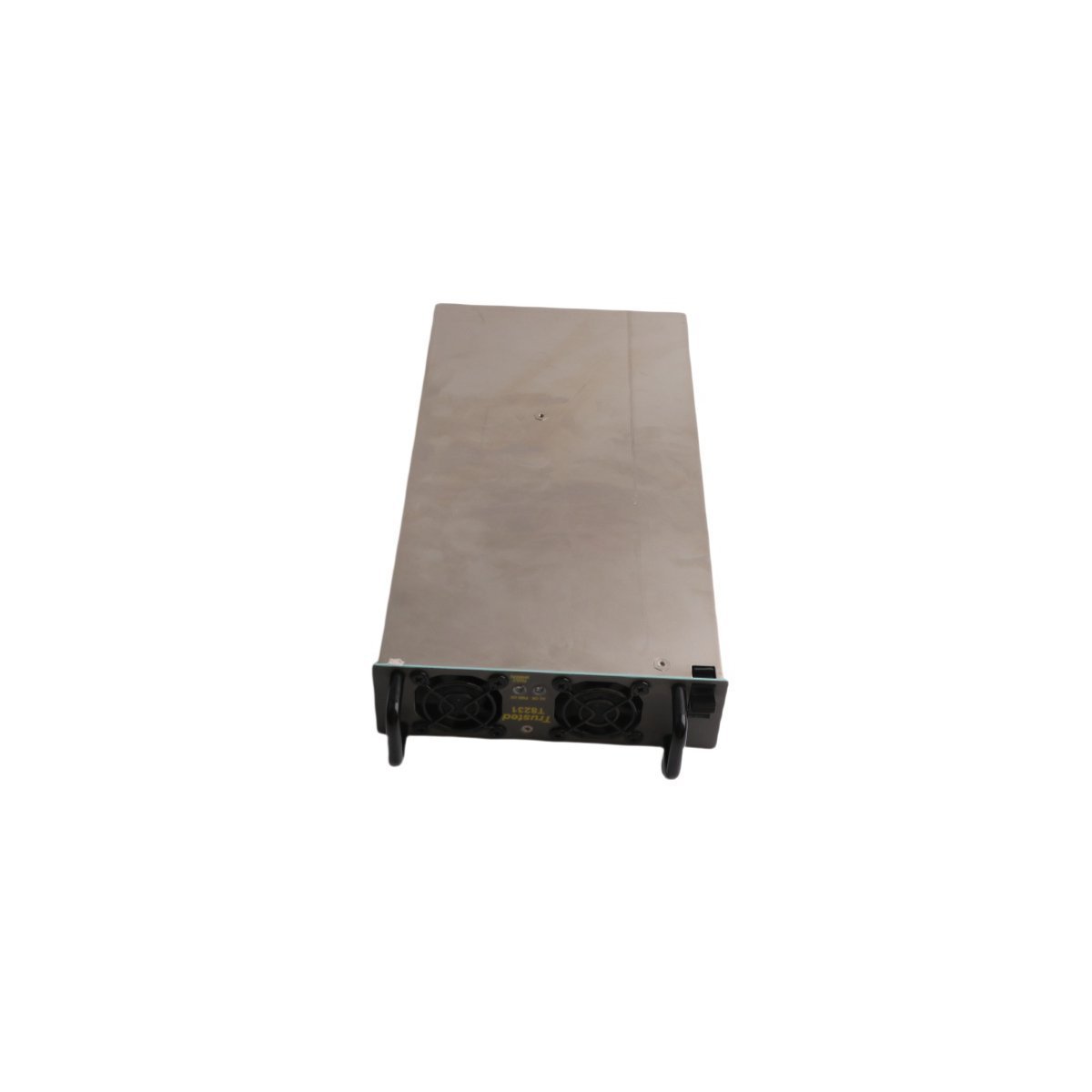

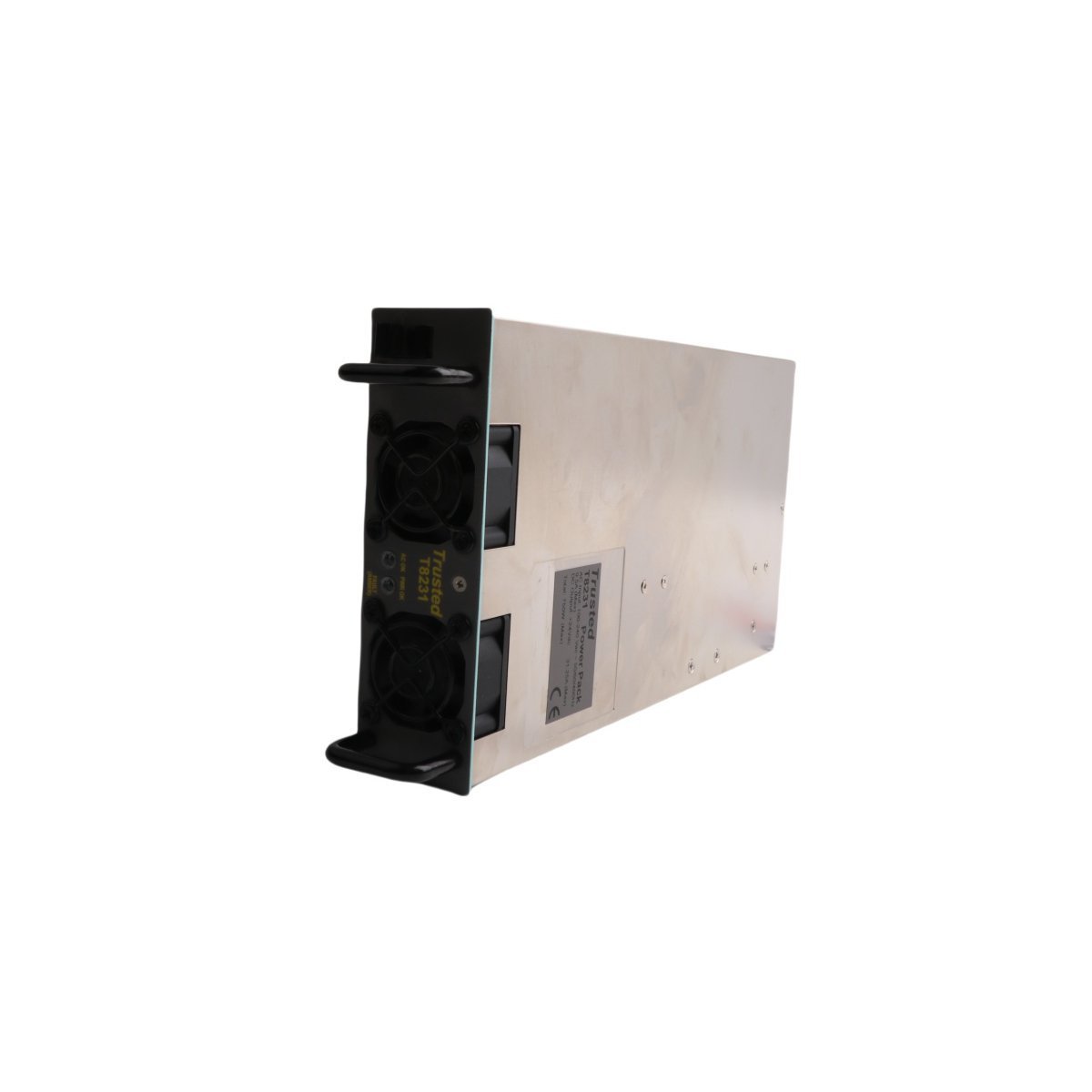

The ICS Triplex T8231 is a high-efficiency, 750W switch-mode Power Pack designed as the fundamental energy source for the Trusted™ TMR (Triple Modular Redundant) system. This industrial-grade module converts universal AC mains (110Vac or 240Vac) into a highly stabilized 24Vdc output for controller logic or an adjustable 28Vdc for field device power.

Engineering specifically for mission-critical safety systems, the T8231 is designed to be housed within a 1U Power Shelf (T8230). When configured in a triad, these units provide up to 2250W of total power or 1500W in an $N+1$ redundant configuration. This ensures that even if one Power Pack fails or loses its AC source, the industrial process remains fully energized and protected, eliminating the power supply as a single point of failure.

Core Technical Characteristics

The T8231 combines high power density with sophisticated diagnostic capabilities to maintain maximum system uptime.

• Redundant Power Architecture: Supports $N+1$ load sharing when installed in a multi-pack shelf, allowing for seamless failover and hot-swappable maintenance without system interruption.

• Universal AC Input: Dynamically handles 110/240 Vac ranges, making it compatible with global industrial power standards.

• Precision Thermal Management: Features integrated cooling fans and internal sensors to monitor heat dissipation, protecting internal electronics from thermal stress.

• Intelligent Diagnostics: Connects to the system Power Port to report real-time status, including over-temperature alerts, fan failure detection, and voltage-out-of-range faults.

• Secure Mechanical Interfacing: Utilizes a mechanically retained IEC 60320 input connector to prevent accidental disconnection due to vibration or mechanical shock.

• Adjustable Output: While set to a nominal 24Vdc for system logic, the unit can be calibrated to 28Vdc to compensate for voltage drops in long-distance field wiring loops.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8231

• Product Series: Trusted TMR / Regent Control System

• Module Type: 750W Power Pack

• Input Voltage: 110 Vac or 240 Vac (Auto-ranging)

• Output Voltage: 24 Vdc (Logic) / 28 Vdc (Field)

• Output Power: 750 W per unit

• Weight: 2.34 kg (5.16 lbs)

• Dimensions: 14.5 x 30.0 x 4.5 cm

• Certification: Safety-rated for SIL 3 environments when used in Trusted architectures

• HS Code: 8537101190

• Origin: USA

Industrial Application and Reliability

The T8231 Power Pack is a staple in the energy and heavy manufacturing sectors. It is primarily utilized in power plants, oil and gas refineries, and chemical processing facilities where the Trusted safety controller is deployed. By providing a "clean" and uninterruptible DC source, it shields sensitive PLC components from the electrical noise and surges common in heavy industrial grids.

When managed by an optional Power Controller, up to 12 T8231 units can be synchronized across multiple shelves, providing a centralized and scalable power management solution for entire control rooms. This scalability, combined with its ruggedized USA-manufactured build, ensures that the T8231 remains the benchmark for reliability in safety-instrumented systems.
