Product Overview

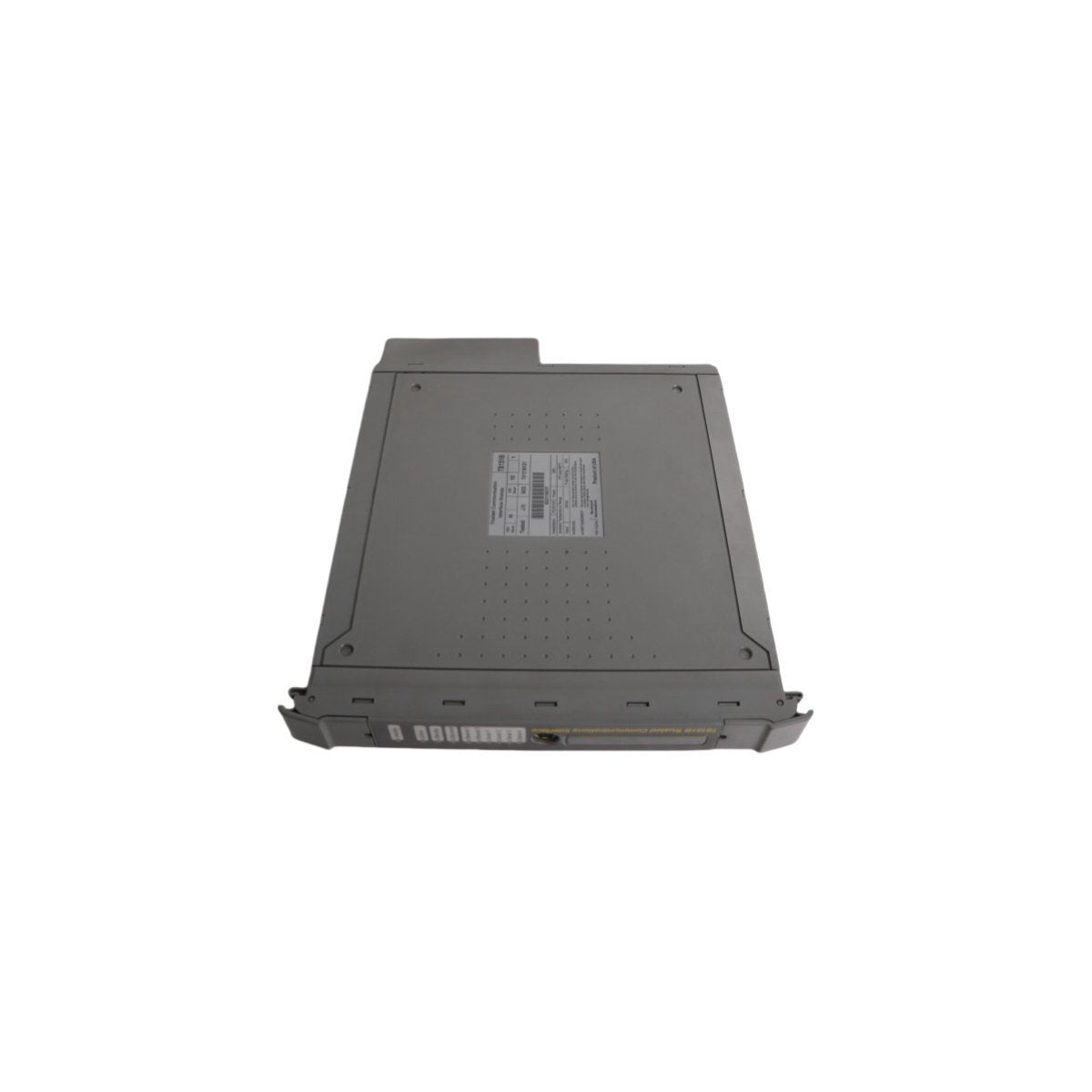

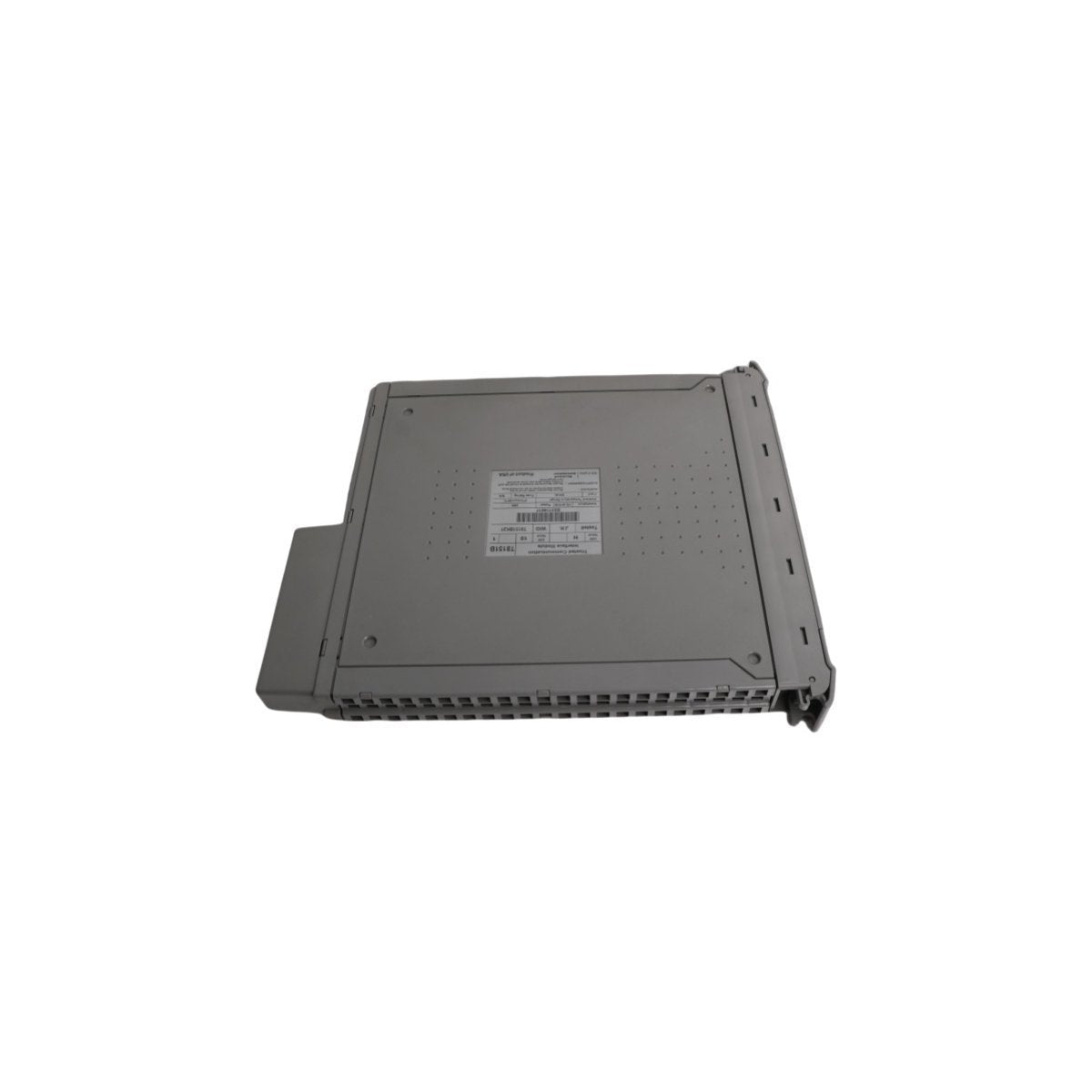

The ICS Triplex T8151B is a high-integrity Trusted™ Communications Interface designed to provide a secure and fault-tolerant gateway between the Trusted TMR (Triple Modular Redundant) controller and external networks. Developed by Rockwell Automation, this module is a core component of safety-critical systems, offering specialized triplexed hardware architecture. By utilizing three independent processing paths, the T8151B ensures that communication remains uninterrupted even in the event of a single point of failure, making it indispensable for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.

The T8151B manages complex data exchange protocols while maintaining the strict timing and safety requirements of the Trusted platform. It serves as the primary bridge for Modbus/TCP communications, allowing host systems, DCS platforms, and HMI interfaces to access controller data safely without compromising the integrity of the safety loop.

Advanced Redundancy and Data Security

The T8151B is engineered to protect the "Trusted" environment from external network disturbances while providing transparent data access.

• Triple Modular Redundancy (TMR): Incorporates three isolated communication channels that work in parallel. The system performs continuous cross-checking and voting to identify and isolate faults automatically.

• Protocol Versatility: Native support for Modbus/TCP (Master/Slave) allows for easy integration with modern Ethernet-based industrial networks and third-party automation equipment.

• Network Isolation: Acts as a firewall between the safety-critical TMR backplane and the plant-wide Ethernet network, preventing unauthorized access or data broadcast storms from affecting the controller logic.

• Fault Diagnostics: Features sophisticated internal self-testing that monitors the health of all three channels simultaneously, with real-time reporting of hardware discrepancies to the system event logger.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8151B

• Module Type: Trusted™ TMR Communications Interface

• Redundancy: Triple Modular Redundancy (TMR)

• Protocols Support: Modbus/TCP, Modbus RTU (via serial), and Trusted Peer-to-Peer

• Ethernet Ports: Dual-redundant 10/100 Mbps RJ45 interfaces

• Operating Temperature: -20°C to +60°C (-4°F to +140°F)

• Backplane Current: 1.5A @ 24V DC (approximate)

• Dimensions: 3.0 x 30.3 x 26.4 cm

• Weight: 1.14 kg (2.51 lbs)

• Certifications: UL, CE, TÜV (SIL 3 rated when part of a Trusted system)

Environmental and Compliance Standards

• Harsh Environment Capability: Designed with industrial-grade components and protective coatings to operate in temperatures ranging from -20°C to +60°C, ensuring reliability in remote or unconditioned control rooms.

• Global Safety Compliance: Meets stringent international standards, including CE and UL, specifically tailored for Safety Instrumented Systems (SIS) within the oil, gas, and power sectors.

• Seismic and Vibration Resilience: Built to withstand the mechanical stresses of industrial plant environments, ensuring the physical connections remain secure during operational vibration or seismic events.
