Product Overview

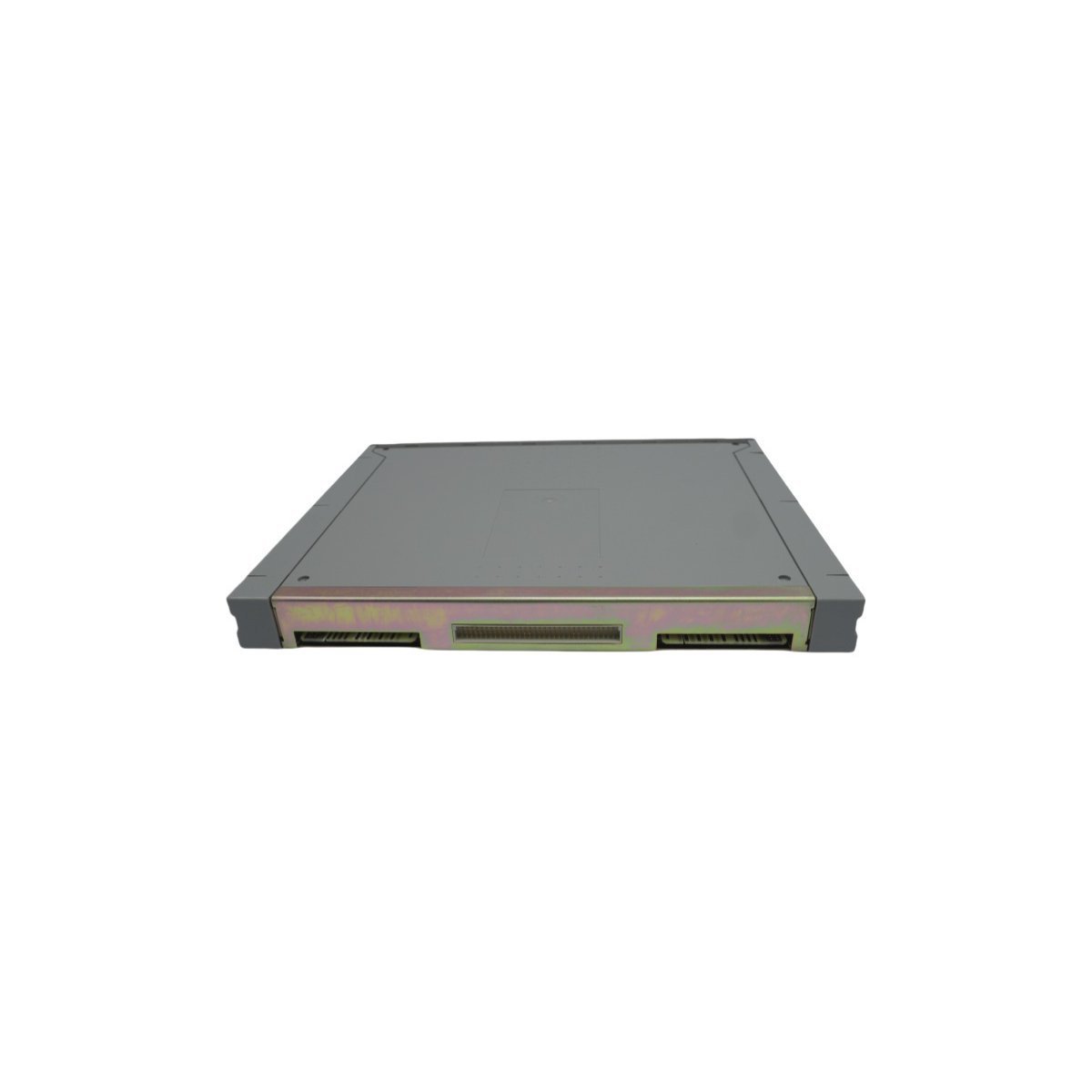

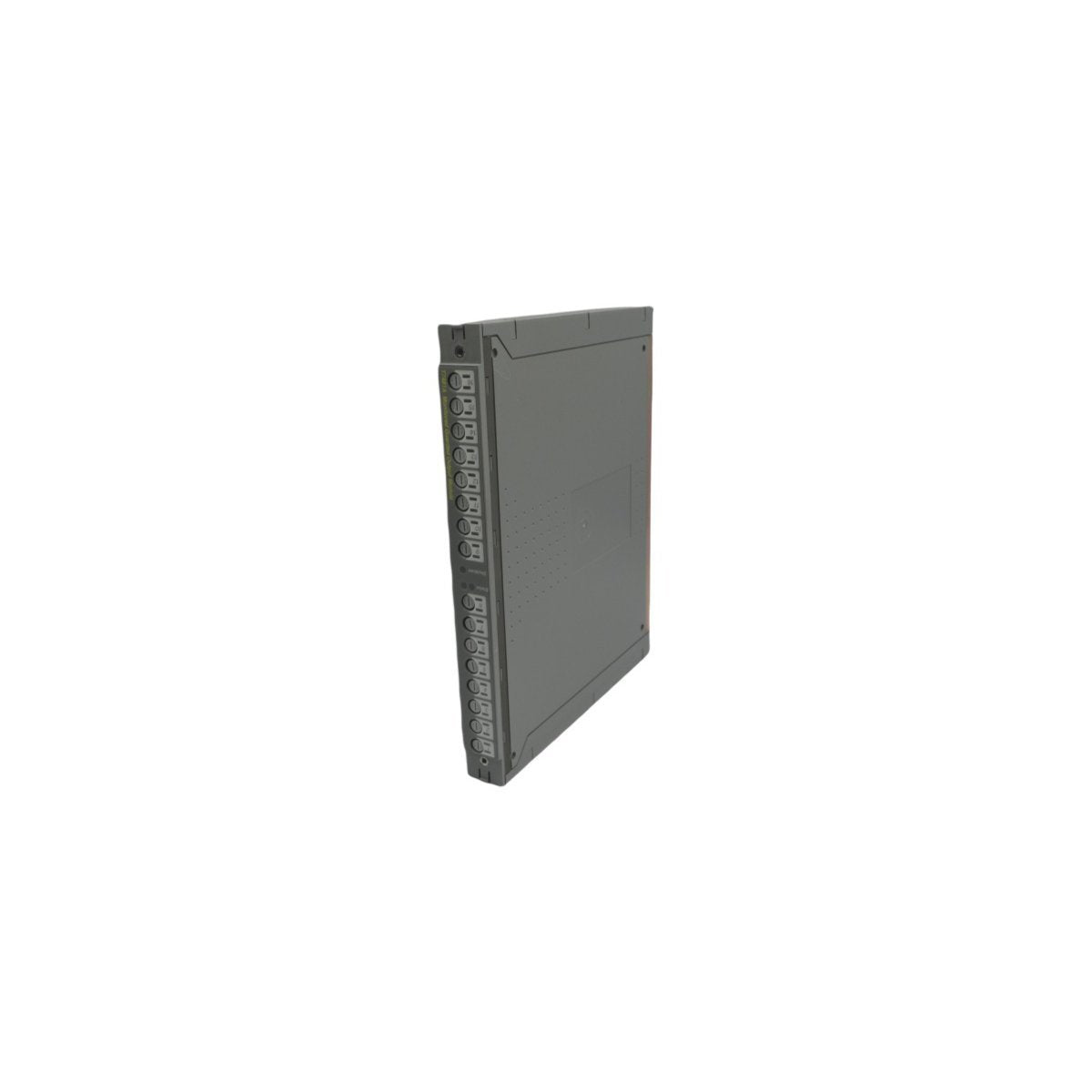

The ICS Triplex T7481A is a high-integrity Monitored Guarded Output Module specifically engineered for the Regent+Plus Control System. This module represents a sophisticated solution for discrete control where preventing unintended activation is as critical as ensuring reliable operation. By integrating "guarded" logic with continuous channel monitoring, the T7481A provides a dual-layer safety architecture that supervises the state of each output while protecting against accidental state changes caused by electrical noise or hardware faults.

Designed for high-availability industrial infrastructures, the T7481A excels in applications such as Emergency Shutdown (ESD) and Fire and Gas (F&G) logic. It bridges the gap between the logic solver and field actuators, ensuring that every command is verified and every connection is monitored for integrity. Its ruggedized construction and diagnostic capabilities make it a preferred component for the most demanding oil, gas, and power generation environments.

Core Technical Characteristics

The T7481A is defined by its ability to provide high-precision output control while maintaining a comprehensive diagnostic window into the field loop.

• Guarded Output Architecture: Features specialized internal circuitry that prevents "spurious" or accidental triggering of outputs, ensuring that field devices only actuate upon a verified command from the processor.

• Integrated Line Supervision: Every channel is equipped with active monitoring to detect wiring anomalies, such as open or short circuits, before they impact the process safety function.

• MODBUS RTU Compatibility: Supports seamless data exchange with external diagnostic tools and industrial control frameworks through a standard MODBUS RTU interface, facilitating remote status tracking.

• High-Visibility Diagnostics: The module front panel includes a comprehensive LED array that provides immediate visual feedback on channel status, power health, and module faults, significantly reducing troubleshooting time.

• Ruggedized Mechanical Build: Manufactured with industrial-grade materials to withstand the thermal and mechanical stresses of harsh processing environments, including extreme temperature fluctuations and vibration.

• Ethernet Integration: Fully compatible with Regent+Plus communication routers, allowing for high-speed deterministic control and real-time reporting to the central DCS.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T7481A

• Product Series: Regent+Plus Control System

• Module Type: Monitored Guarded Output

• Communication Interface: MODBUS RTU / Ethernet Router Service

• Weight: 1.6 kg (3.52 lbs)

• Dimensions: 3.3 x 26.4 x 32.7 cm

• System Type: PLC / Safety Instrumented System (SIS)

• HS Code: 8537101190

• Operational Status: Active / Fully Supported

Industrial Safety and Integration

The T7481A is designed for seamless integration into existing Regent+Plus racks, allowing for flexible system scaling without complex re-wiring. Its "monitored" nature provides operators with a proactive maintenance tool; rather than reacting to a failed valve or actuator, the system alerts the team the moment a line fault or module discrepancy occurs.

In safety-critical sectors where downtime carries significant financial and environmental risks, the T7481A offers the necessary resilience to keep processes stable. Its ability to perform reliably under pressure ensures that critical safety barriers remain intact, making it an essential module for modern, risk-aware industrial automation.
