Product Overview

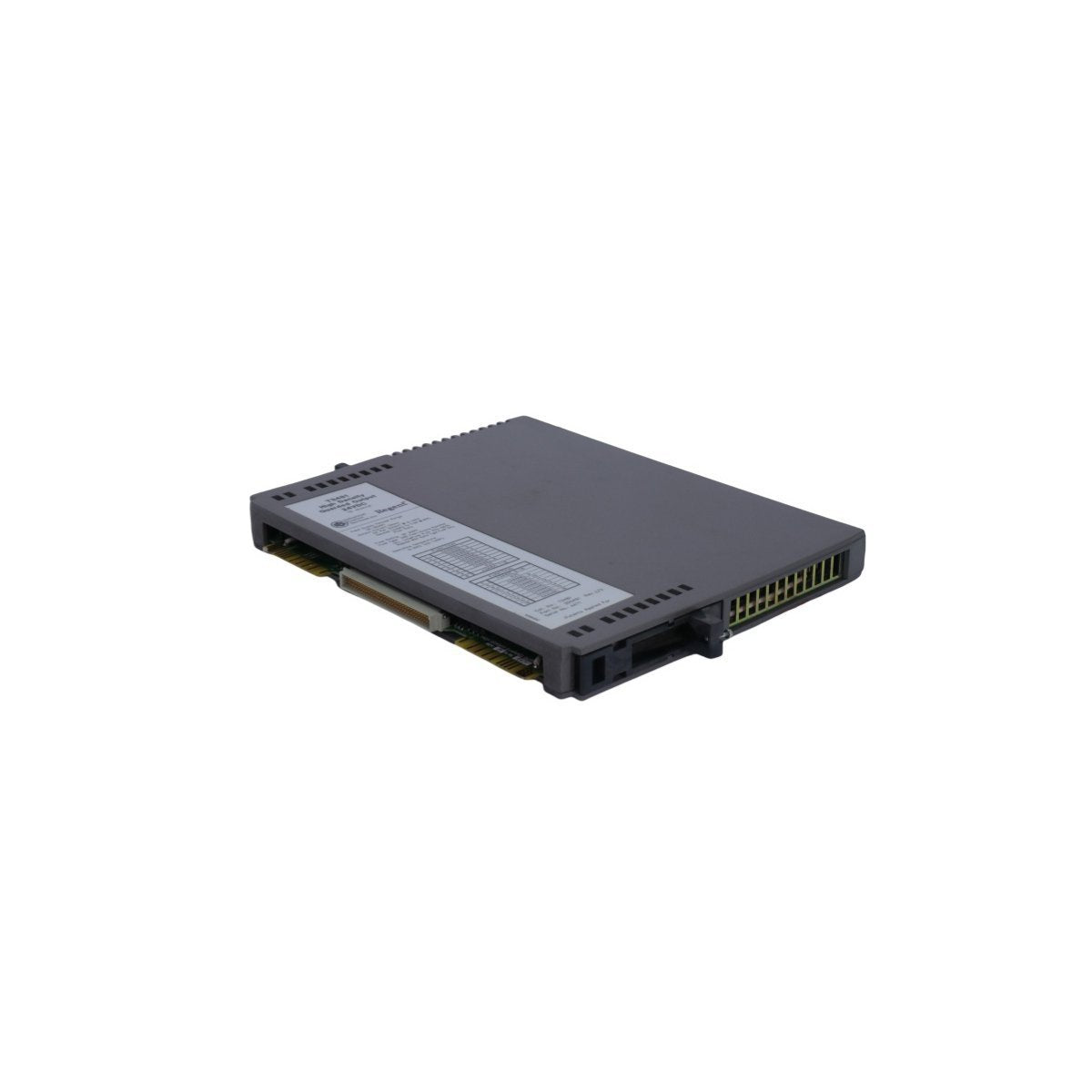

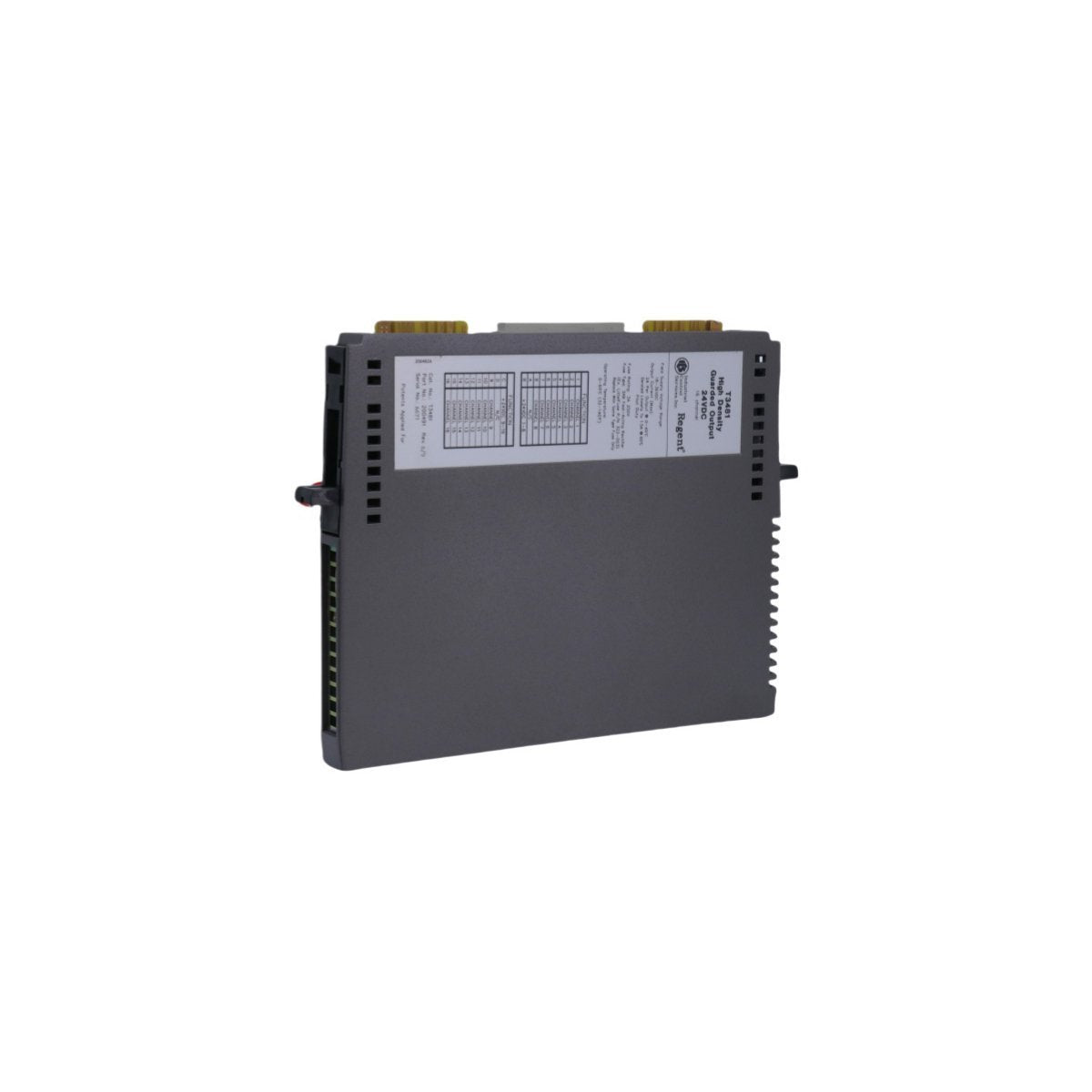

The ICS Triplex T3481 is a specialized 16-channel High Density Guarded Output Module engineered for the Regent+Plus Control System. Designed by Rockwell Automation, this module is a critical component for safety-instrumented systems (SIS) where preventing unauthorized or accidental signal activation is paramount. The T3481 utilizes a unique "guarded" architecture that employs a triple I/O security bus, creating a fail-safe environment that eliminates single points of failure.

By integrating monitored output technology, the T3481 provides real-time verification of every channel's status. This ensures that the final control elements—such as solenoids, motor starters, or emergency valves—respond precisely to the logic solver's commands while being protected against internal hardware malfunctions or electrical interference.

Core Technical Characteristics

The T3481 is distinguished by its high-integrity power distribution and sophisticated fault-masking capabilities.

• Triple Security Bus Architecture: Features a triplicated internal communication path that cross-verifies output commands, ensuring that only validated signals reach the field equipment.

• Flexible Field Power Integration: Optimized to interface with diverse field power supplies, including 24 VDC, 48 VDC, and 120 VDC ranges, providing broad compatibility for various industrial power grids.

• Continuous Channel Monitoring: The "Monitored Guarded" design performs constant health checks on the output loops to detect and report discrepancies, open circuits, or shorted conditions instantly.

• High-Density I/O Efficiency: Consolidates 16 high-integrity guarded outputs into a single-slot module, maximizing rack density without compromising safety or electrical isolation.

• Advanced Fault Isolation: Incorporates redundant circuitry that isolates internal component failures, allowing the module to maintain stable performance even under stressed conditions.

• Deterministic Process Control: Delivers rapid and consistent signal processing via the Regent+Plus backplane, making it suitable for high-speed shutdown and protection loops.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T3481

• Product Series: Regent+Plus Control System

• Module Type: High Density Monitored Guarded Output

• Output Channels: 16 independent channels

• Compatible Field Voltages: 24 VDC, 48 VDC, 120 VDC

• Communication Interface: Backplane integrated (supports Ethernet Router services)

• Weight: 1.72 kg (3.79 lbs)

• Dimensions: 3.2 x 26.5 x 35.8 cm

• Safety Architecture: Triple Modular Redundant (TMR) Security Bus

• HS CODE: 8537101190

• Origin: USA

Industrial Reliability and System Maintenance

The T3481 High Density Guarded Output Module is a staple in high-stakes industries such as chemical processing, power generation, and subsea oil and gas operations. Its robust construction is specifically designed to handle the thermal and mechanical stresses found in heavy industrial control rooms.

The module supports hot-swapping through the Regent+Plus chassis, allowing maintenance personnel to replace modules without de-energizing the safety system. This capability, combined with extensive diagnostic LEDs and remote reporting via Modbus or Ethernet protocols, ensures that operators can maintain peak efficiency and compliance with global safety standards. For organizations prioritizing zero-compromise reliability, the T3481 sets the standard for fault-tolerant output management.
